Universal Camera Pole Mount

Universal Pole Mount for Security Cameras – Ø50 mm Pole

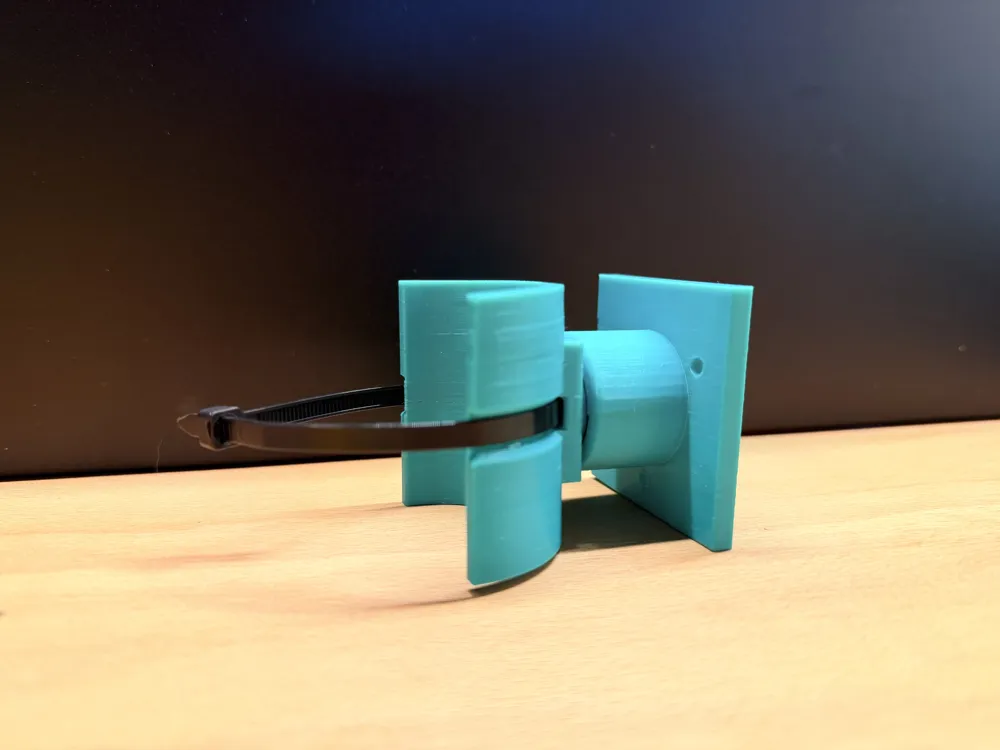

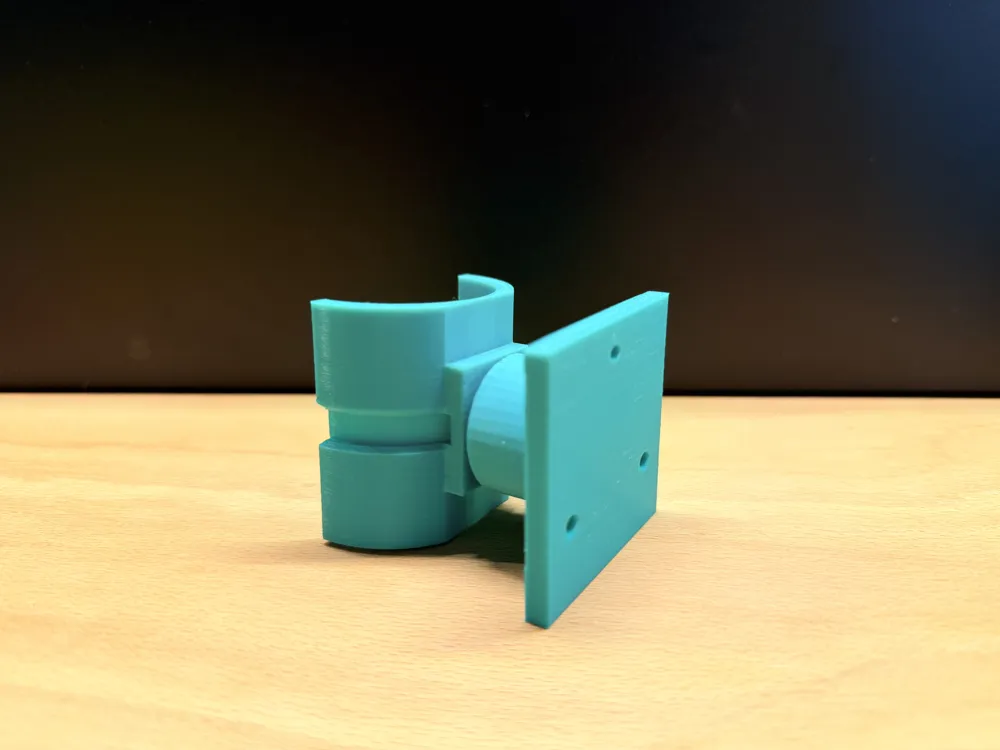

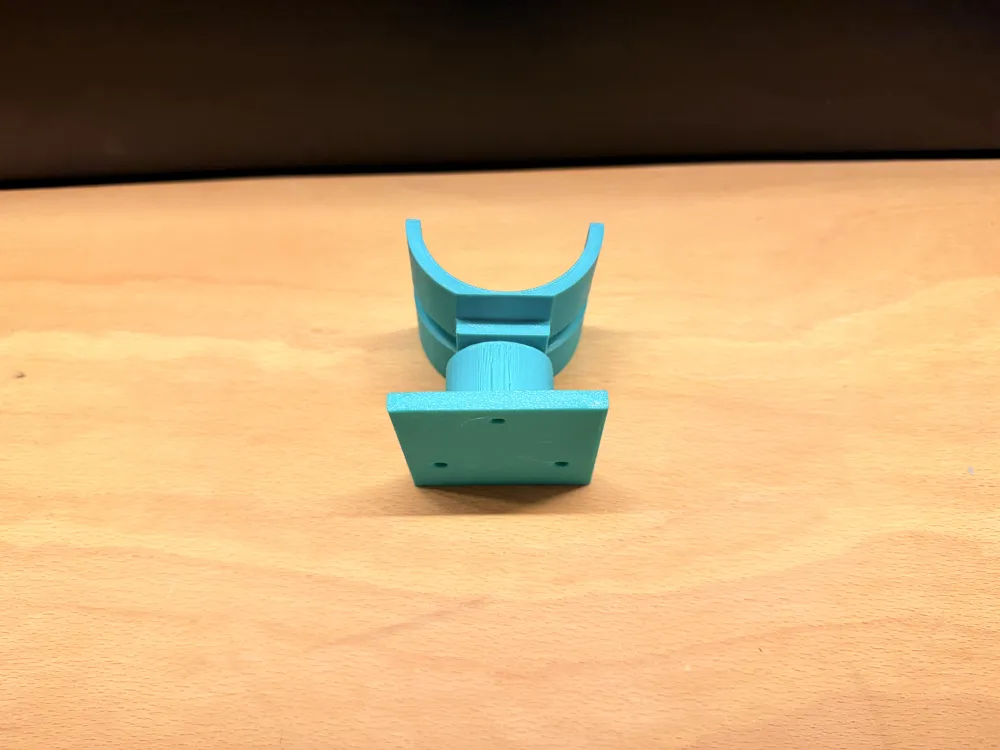

A universal pole mount designed for security cameras and accessories that use a 3-hole screw mounting pattern. The mount is optimized for 50 mm diameter poles and features a split design for easy installation, especially in challenging locations such as wire mesh fences.

Compatibility

Compatible with many security cameras and accessories that use a 3-point mounting base. This includes various Arlo cameras and other devices with a similar mounting system.

Features

• Designed for Ø50 mm round poles
• Universal 3-hole camera mounting platform

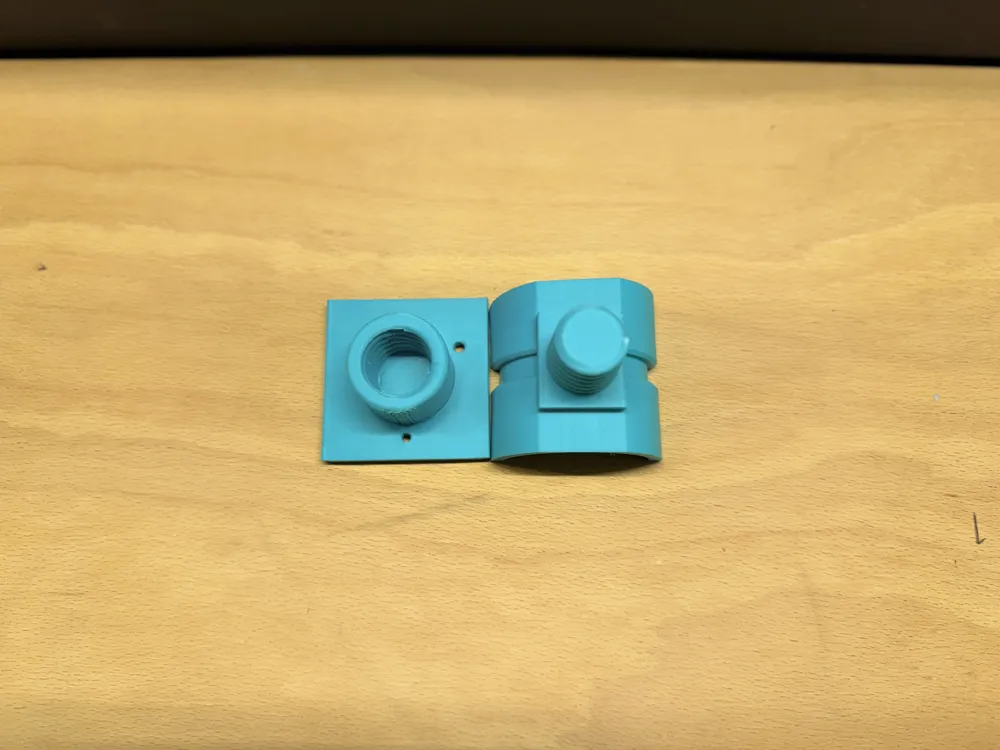

• Split two-piece design for easy installation
• No drilling required
• Strong and durable construction
• Suitable for permanent outdoor installations
• Optimized for use on fence poles and surveillance installations

Ideal for Wire Mesh Fences

This mount is especially useful for poles installed behind wire mesh fencing (chain-link fencing). Thanks to the removable two-piece design, one half of the mount can be passed through the fence mesh and positioned around the pole before attaching the second half. This allows installation without removing the pole or modifying the fence.

Recommended Material

ASA (Recommended)

ASA provides excellent performance for outdoor applications:

• UV resistant
• Weather resistant
• High temperature resistance
• Better long-term durability than PLA
• Suitable for year-round outdoor use

Print Settings

• Layer height: 0.20 mm
• 4–5 walls/perimeters
• 40–50% infill
• ASA recommended
• Supports only where necessary

Required Hardware

• 3 × M3 screws (minimum length: 20 mm)
• 3 × M3 nuts
• Optional M3 washers
• 2 × cable ties, 25 cm length

Installation

1. Position the first mount half behind the pole.
2. Place the second mount half on the opposite side of the pole.
3. Fasten the screws to join the two mount halves together.
4. Tighten the hardware until the mount is securely attached to the pole.
5. Attach the camera or accessory using the 3-hole mounting pattern.
6. Adjust the camera position and viewing angle as required.

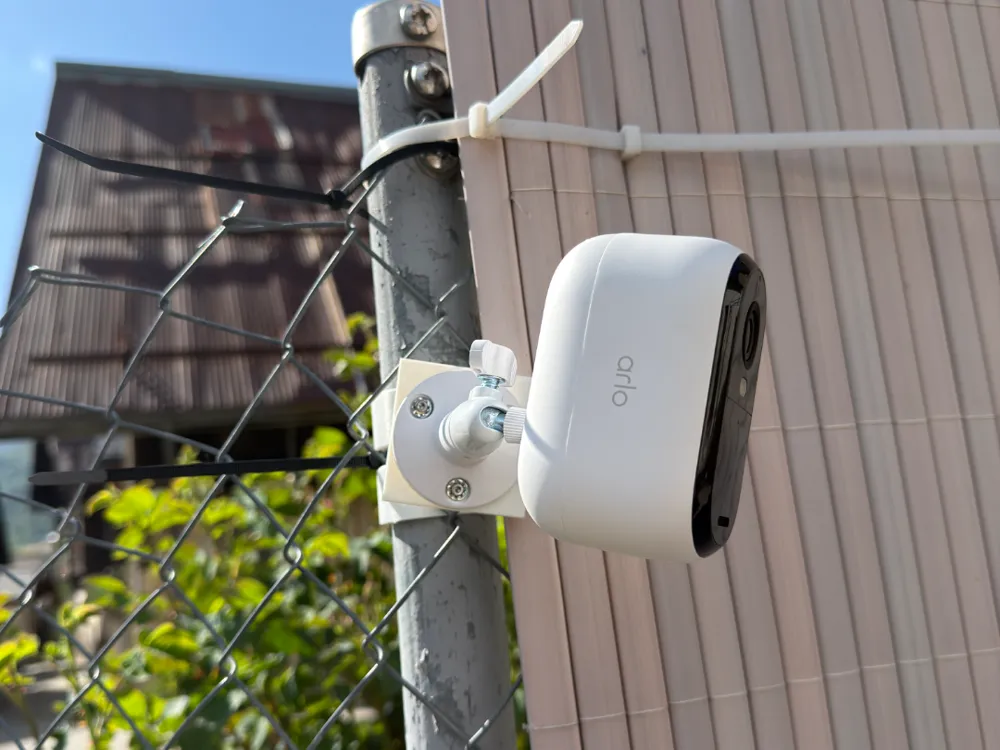

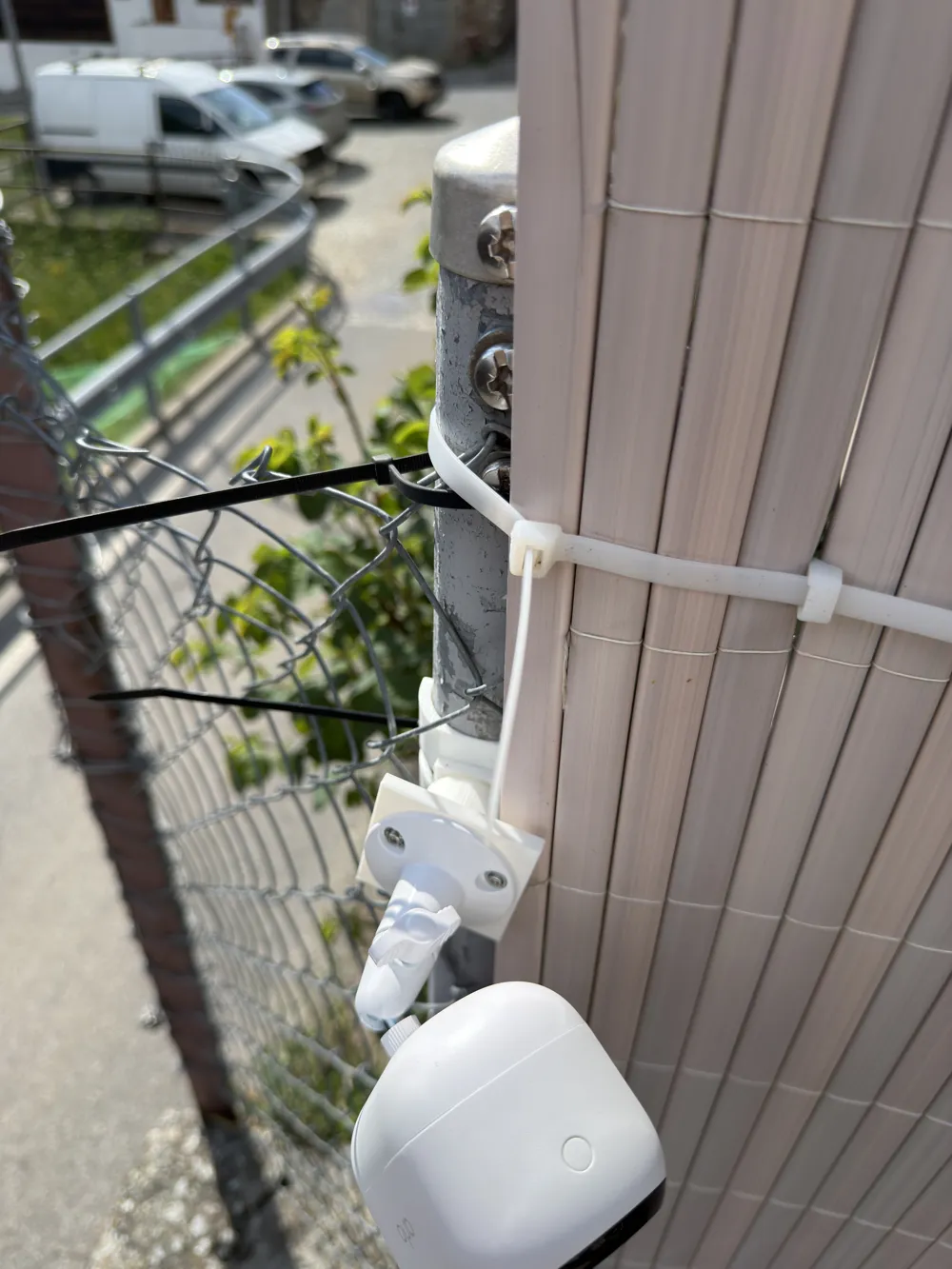

Installation on Wire Mesh Fencing

For poles located behind wire mesh fencing, pass the first mount half through the fence mesh and place it around the pole. Install the second half from the opposite side and fasten both parts together. The split design makes installation quick and convenient even when access to the pole is limited.

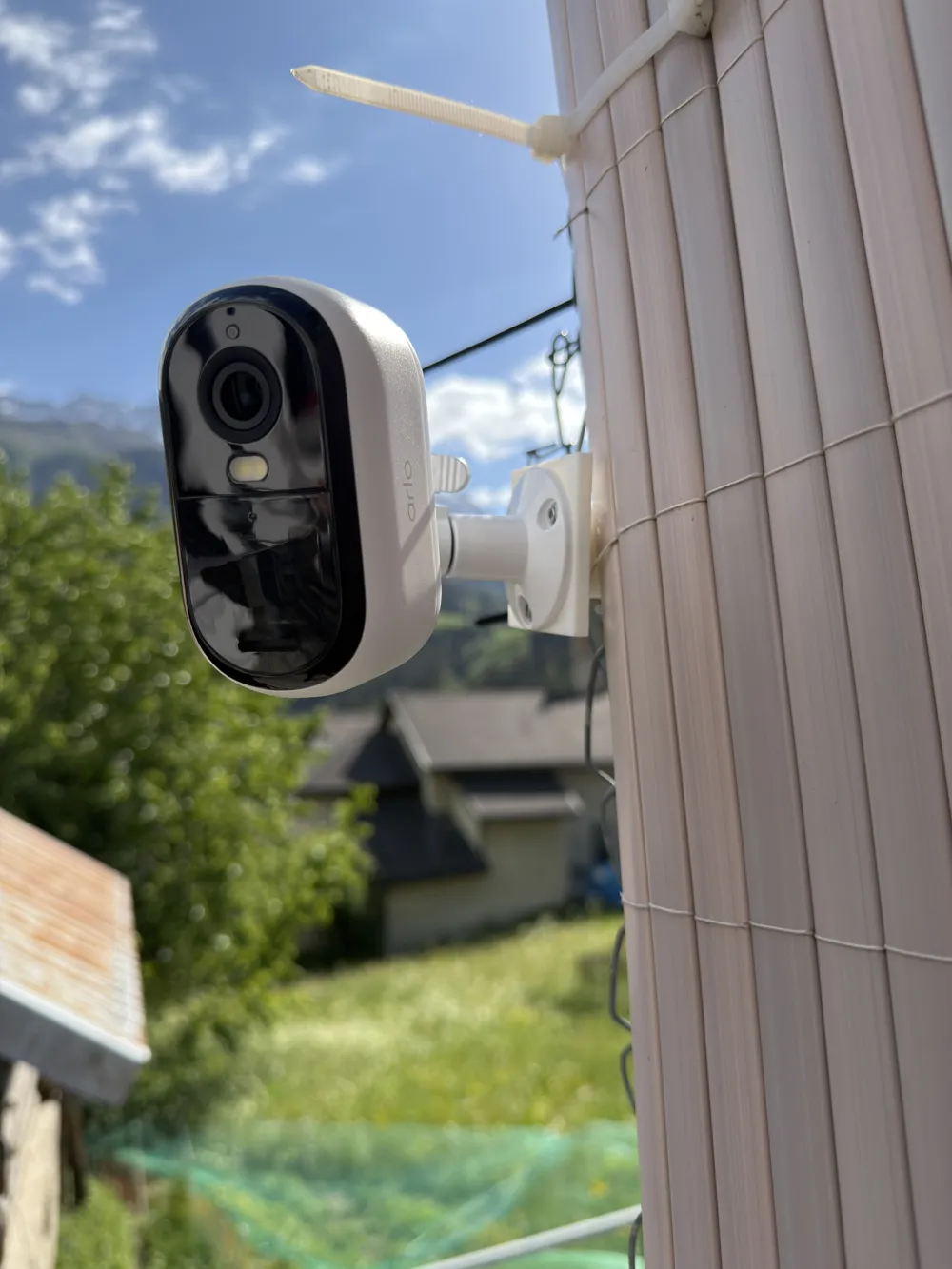

Applications

• Arlo security cameras
• Outdoor surveillance cameras
• Camera solar panels
• Sensors and monitoring devices
• Fence-mounted security installations
• Pole-mounted monitoring systems

Notes

For maximum durability, use ASA filament, stainless steel hardware, and UV-resistant cable ties. The mount is designed to withstand long-term exposure to sunlight, rain, snow, and seasonal temperature changes while maintaining strength and reliability.

If you like this model, please consider leaving a rating and sharing a photo of your installation!
