Parametric Clicking Container
Print Profile(1)
Description
Round parametric container similar to a fishing weight container
Configurable components:
Diameter: How big around it is
Height: How tall the base is (not including the 5mm for the lid)
Compartments: How many sections (one is blocked for the closed position - so using “2” will give 1 usable section, the 2nd is the closed position)
Default Print Profile is 78mm Diameter, 17mm tall, and 6 compartments (similar size to an Ice Breakers candy container)
If you use the “Customize” feature, it does export the 3mf file as one object. If it is too big for your printer, you can download the STLs instead and print them separately.
Minimum sizes:
Diameter: 50mm
Height: 12mm
Compartments: 2 (though I would go 3 or more)

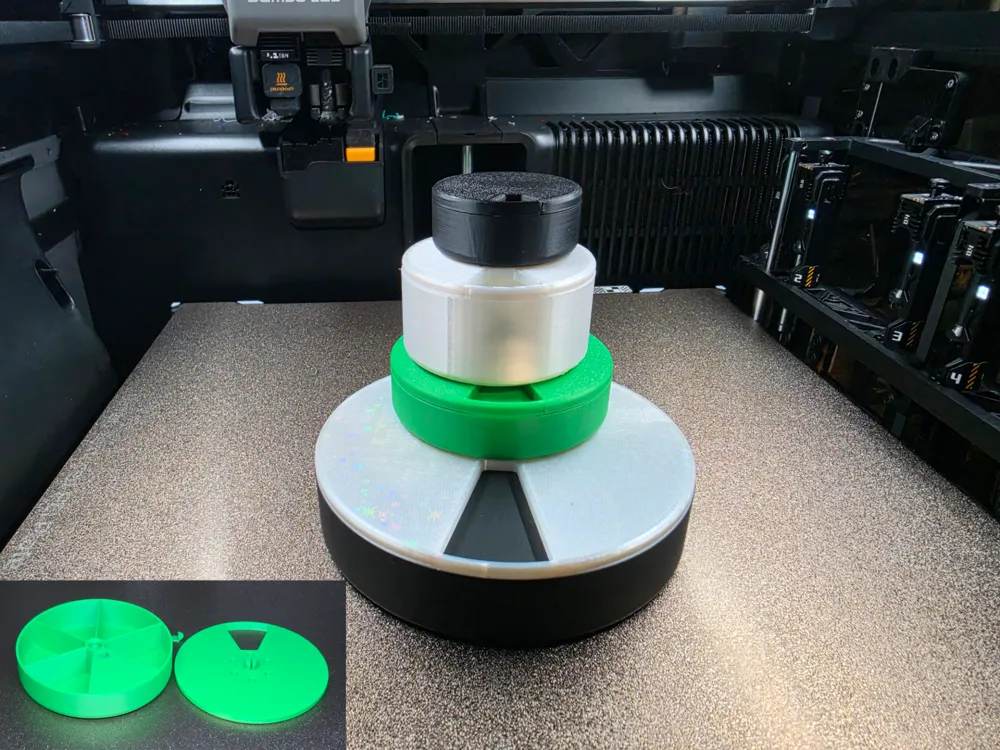

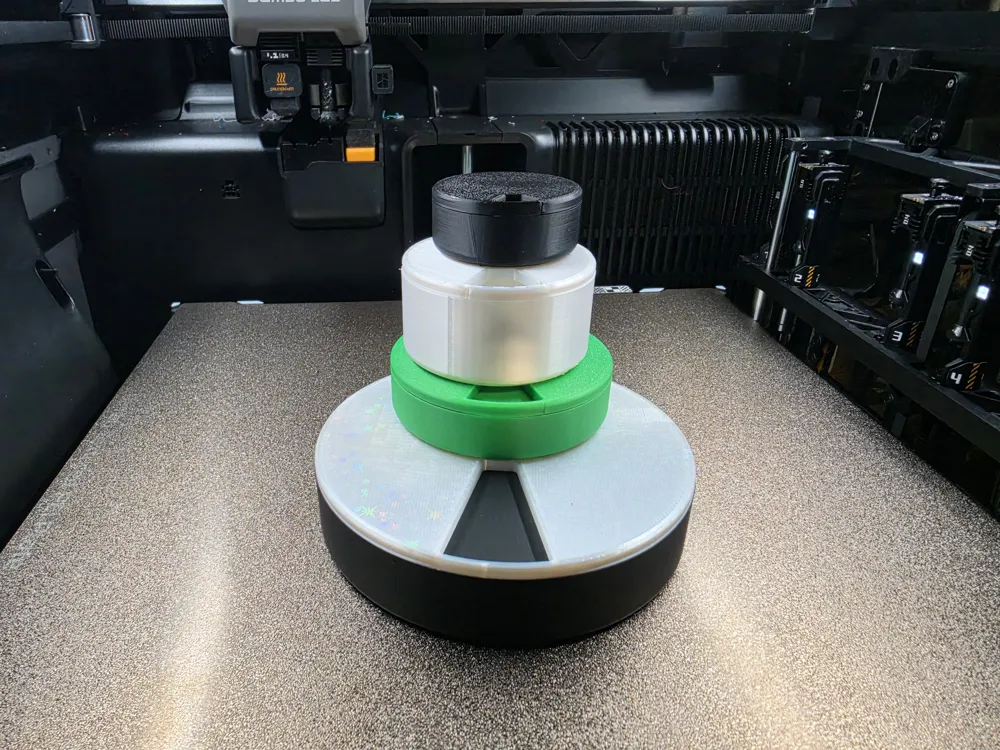

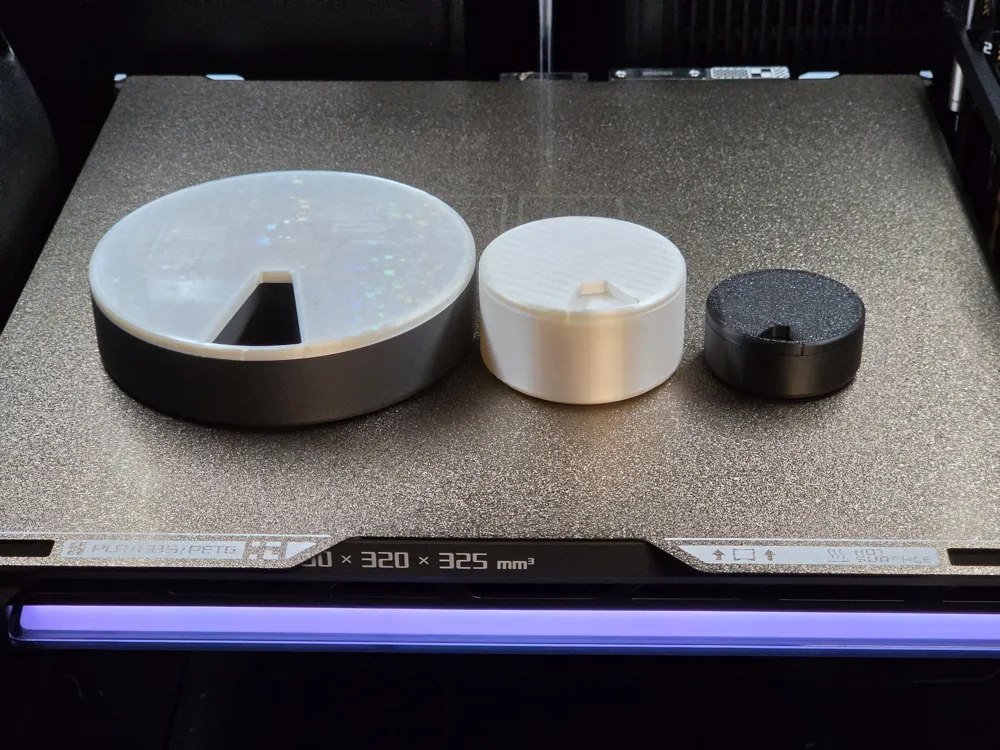

Maximum tested (as you get larger, the clickiness decreases):
Diameter: 125mm
Height: This should not be a restriction
Compartments: 9
Print the parts

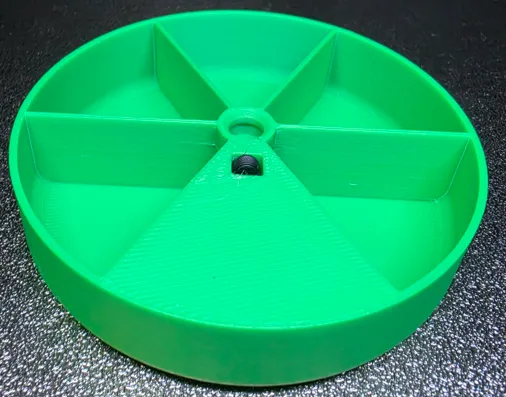

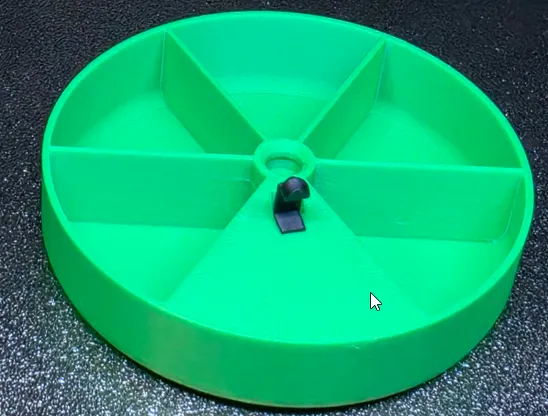

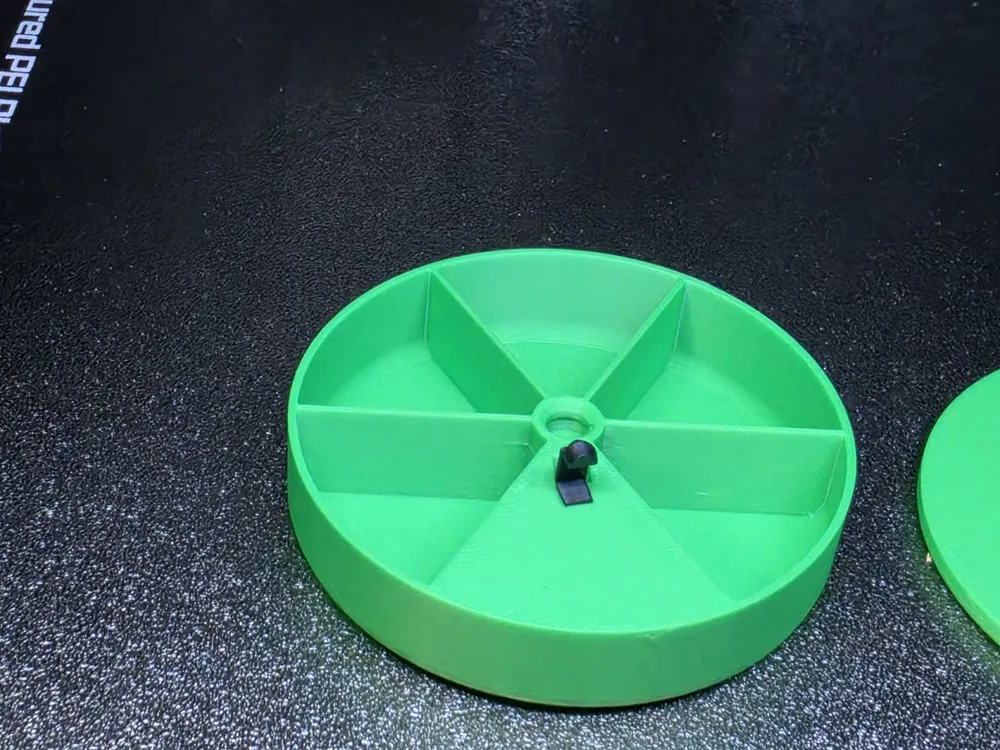

Add the spring into the square hole, round side up, flat side towards center

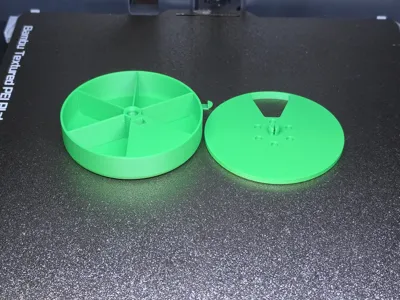

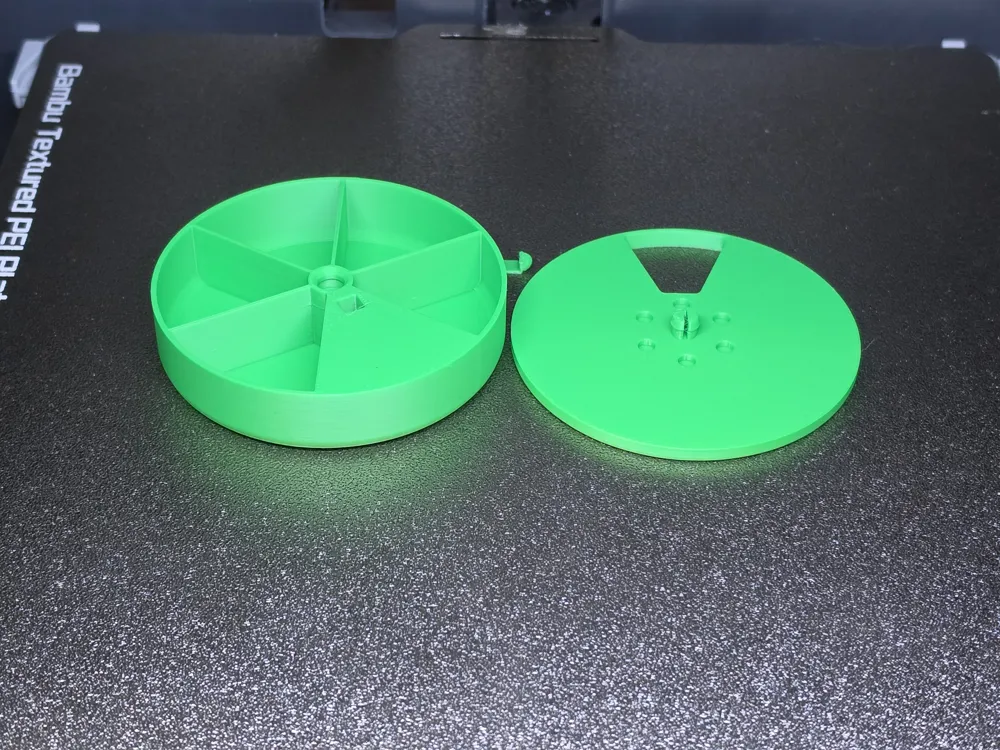

Put lid on the base and press firmly down. It will snap in. It is locked in place and cannot be removed without breaking the lid.
