Latch box

IP Report

Print Profile(1)

All
P1S
H2C
A1
P2S
X2D
H2D Pro
H2D
P1P
A2L
X1E
H2S
X1 Carbon
X1

0.2mm layer, 3 walls, 10% infill
0.2mm layer, 3 walls, 10% infill
Designer
3.1 h
1 plate

Open in Bambu Studio
Boost
0
0
0
0
1
0
Released

Description

Summary

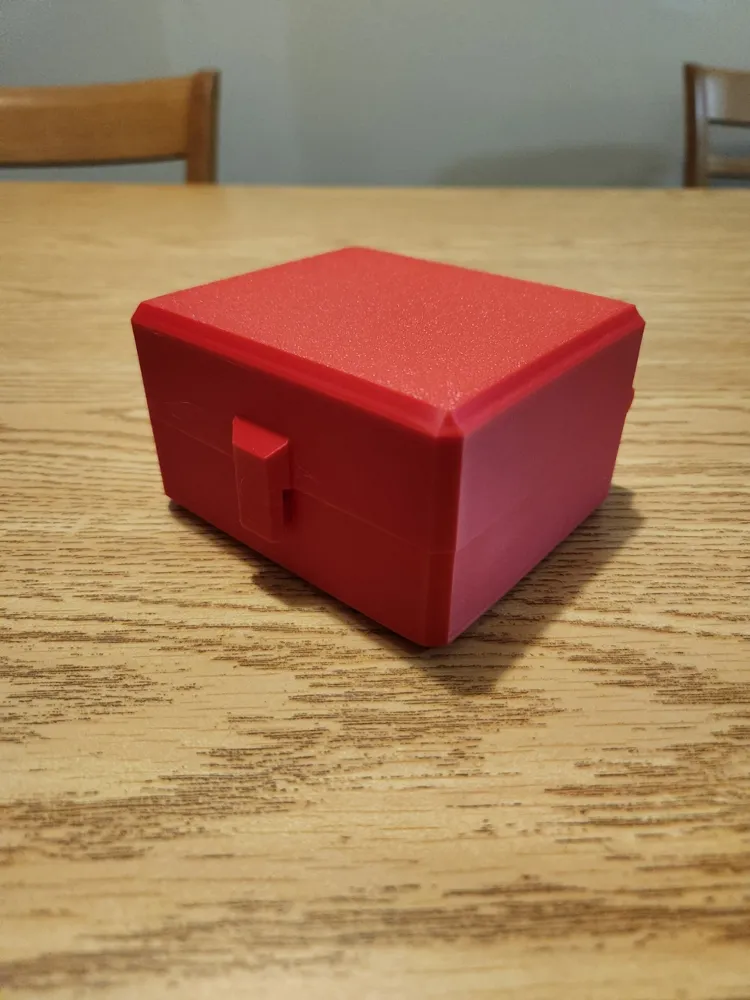

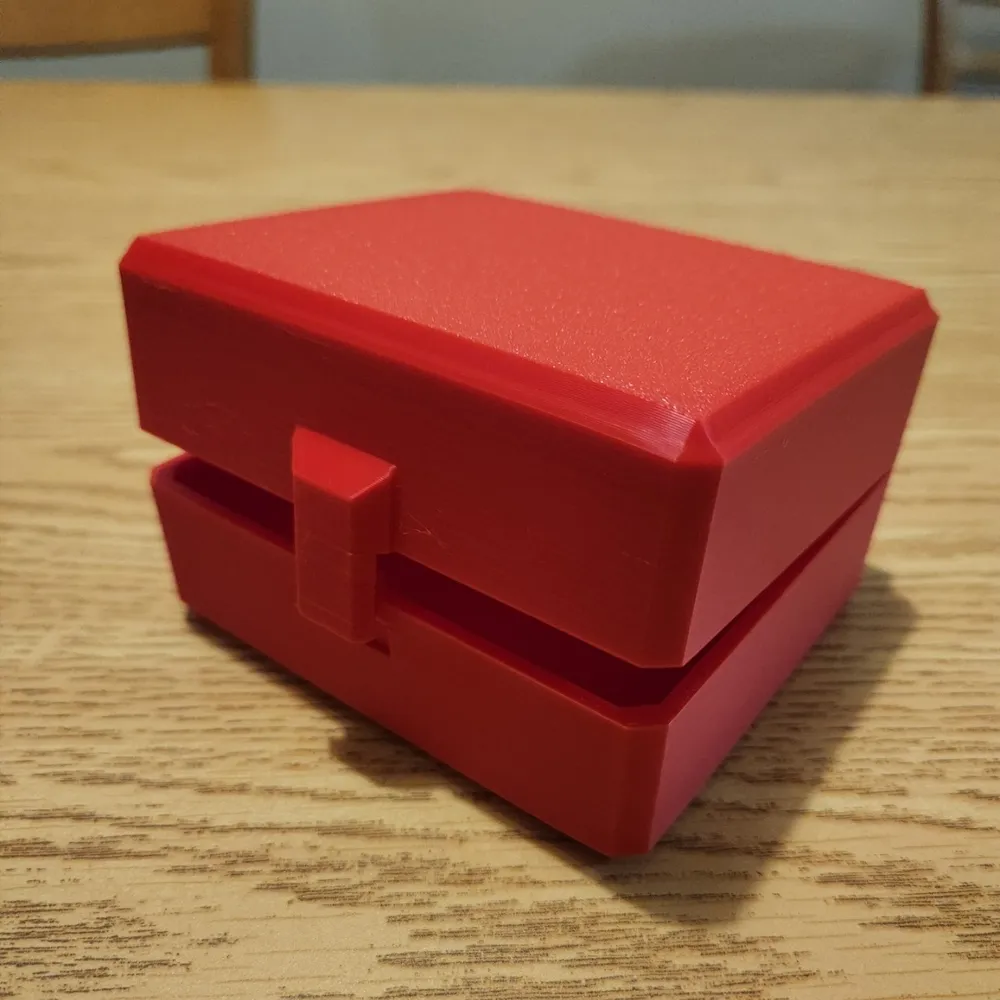

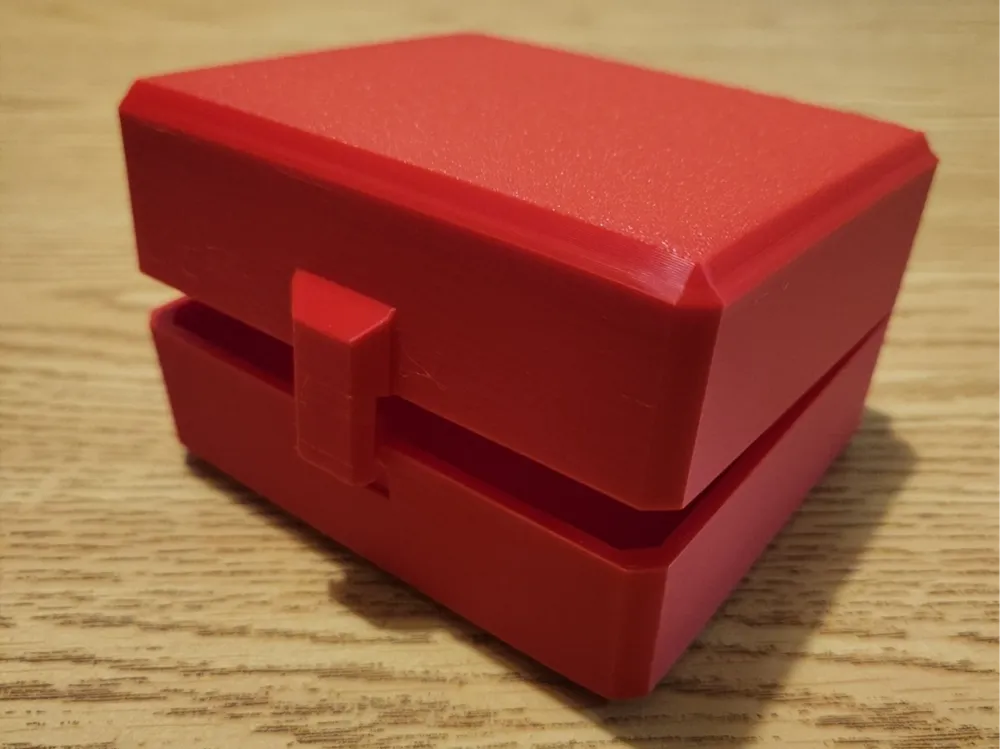

I designed a simple latch box that is print in place and can be scaled to whatever size you need it, the only limit is you printing plate. The current size is around 600cm^3.
This simple box can be used to store whatever you want from jewelry to other 3D printed trinkets, or something useful in your office or shop.

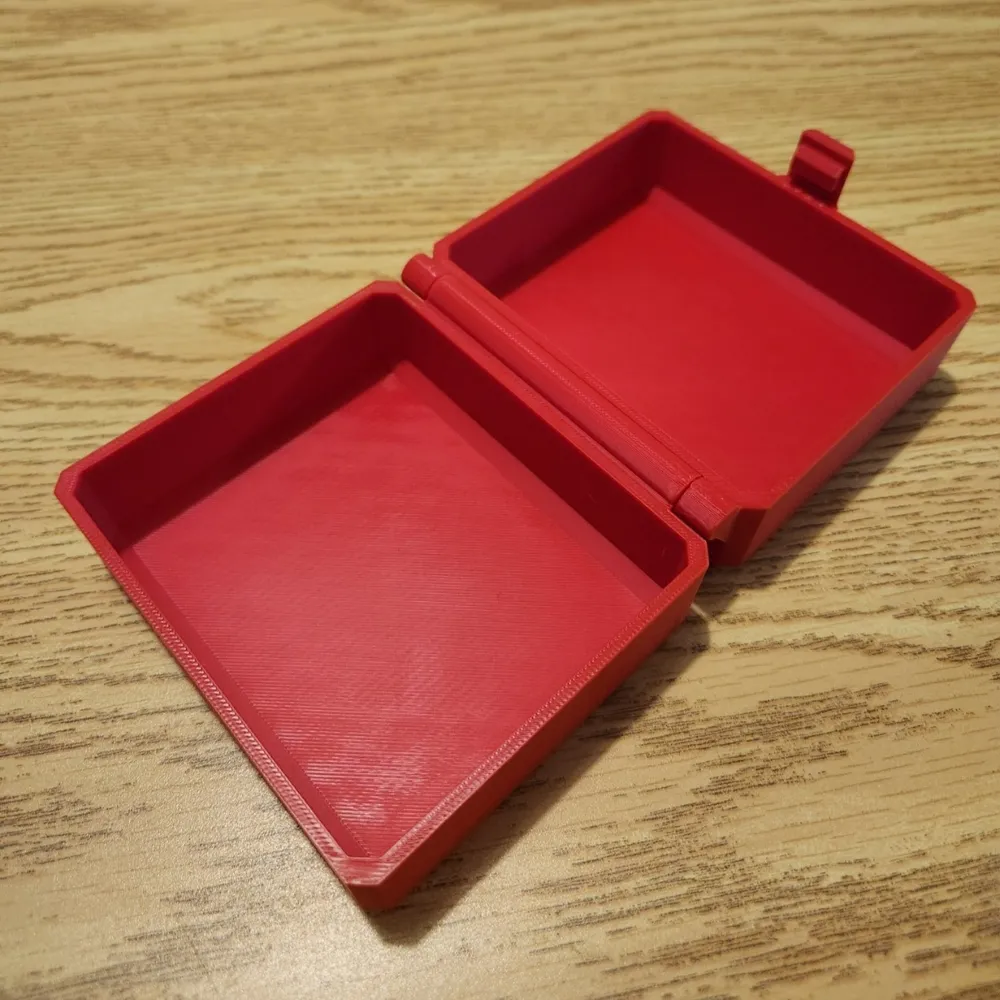

I printed it with supports, but realistically you shouldn't need any. Print in the orientation with the lids open and the hinge in the middle. After it's done printing and cooling, take it off the plate and try and close the lid, it should snap shut. You need to put in good effort to open it, so it won't accidentally. I even did a drop test from about a foot off the ground and it stayed closed.

Print Settings

Printer Brand:

Bambu Lab



Printer:

Bambu P1S

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

10-15%
