Description
Content has been automatically translated.

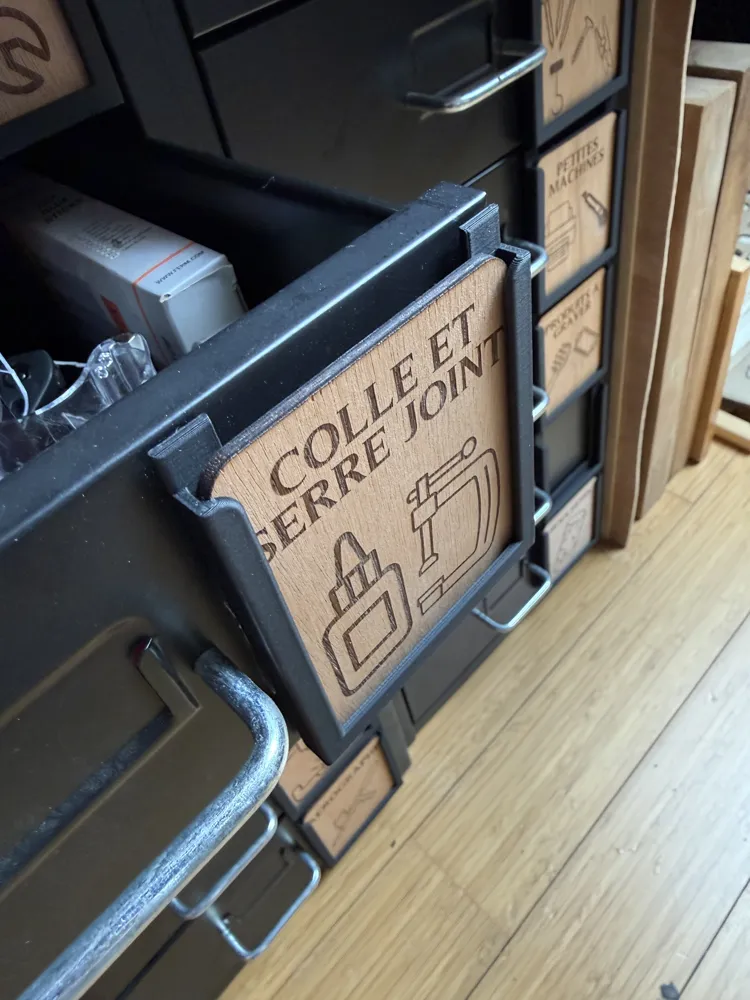

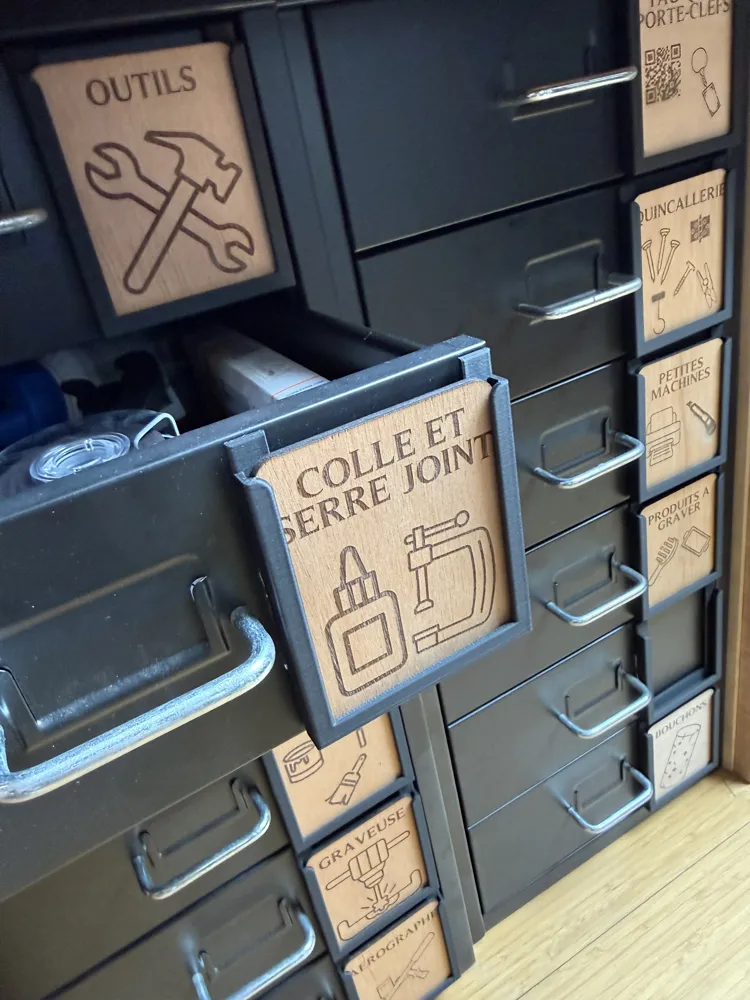

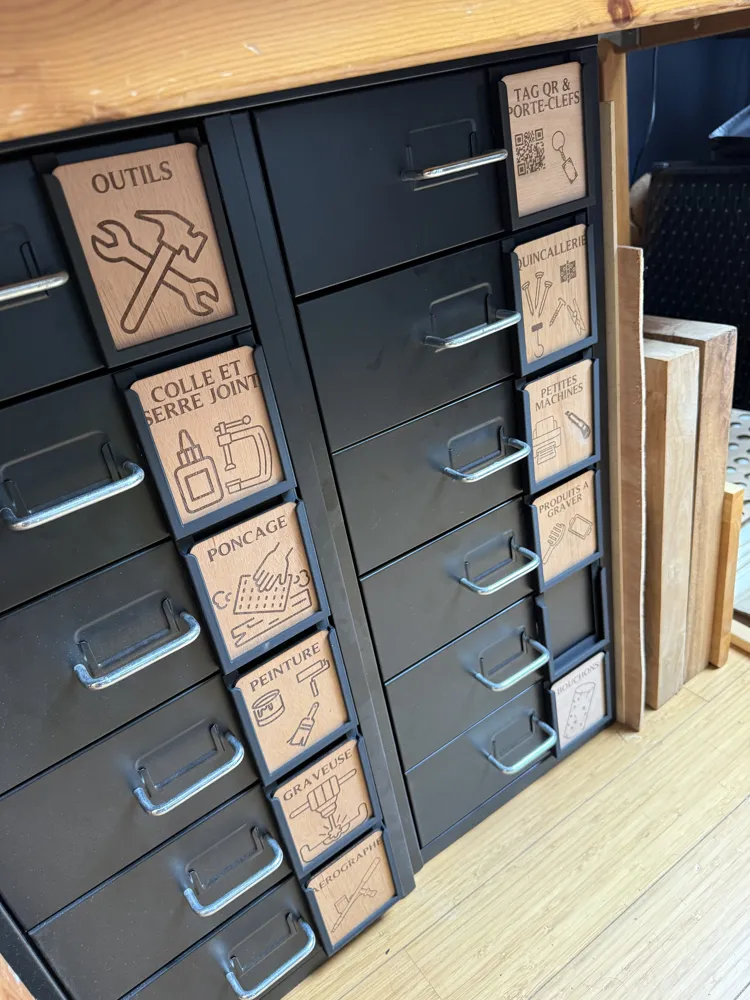

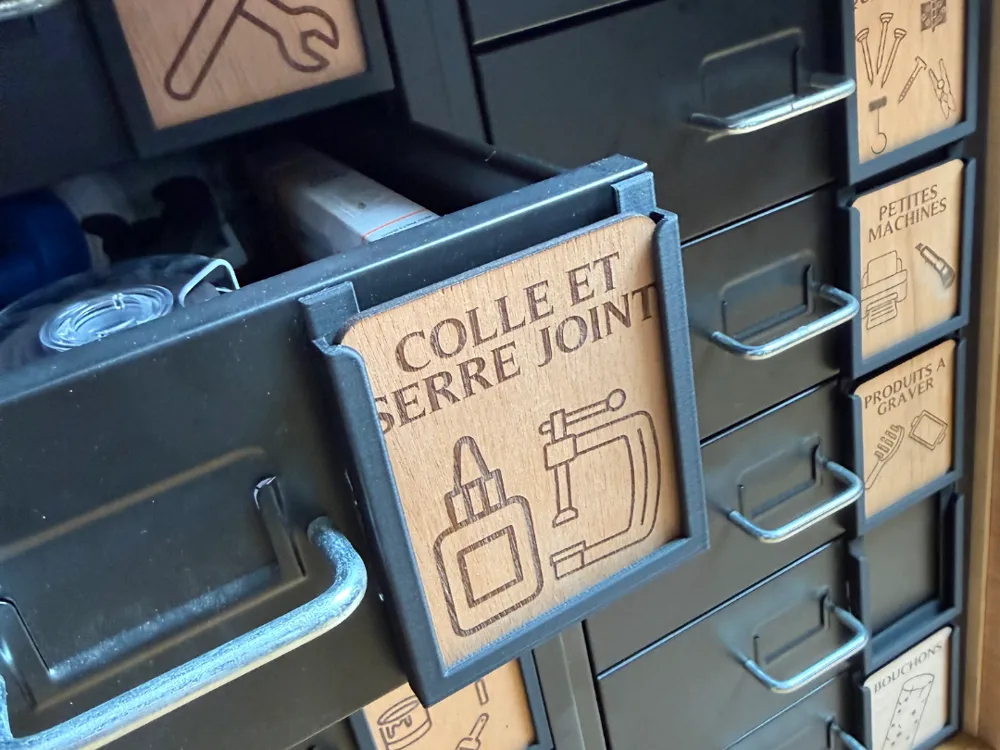

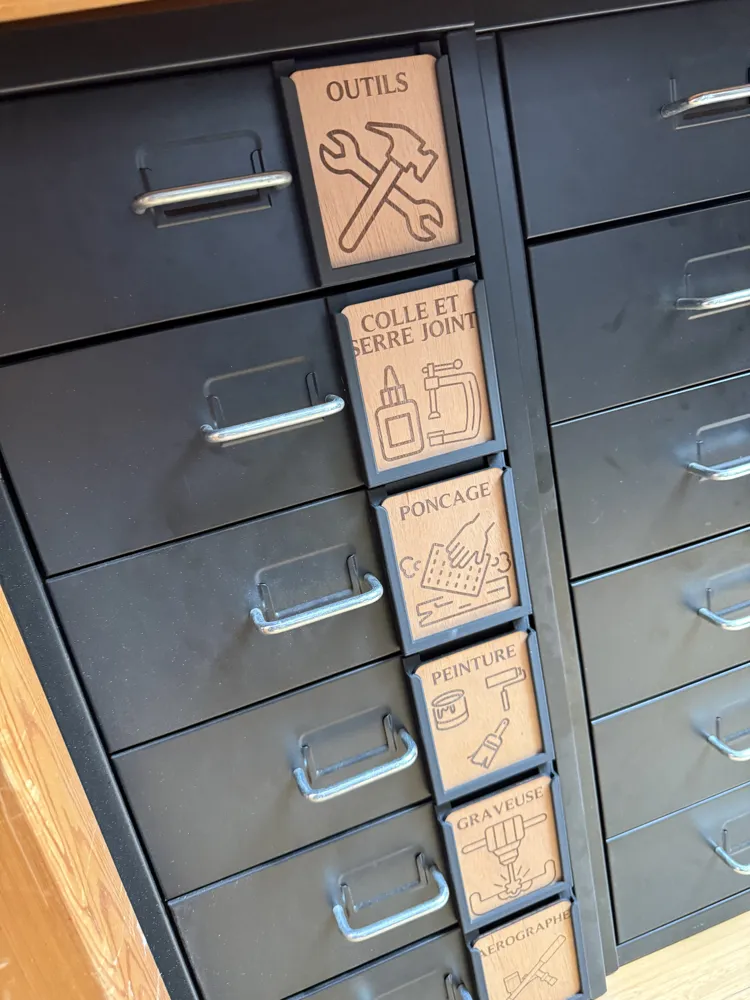

Support frame for holding a laser-engraved plate on the front of a workshop drawer. The plate slides in through the open side of the frame and is held by two grooves at the top and bottom.
Designed to accommodate 75 x 90 mm plates (3.6 mm thickness) available separately on my MakerWorld profile (https://makerworld.com/fr/models/2880273-engraved-workshop-drawer-label-laser-cut-label).

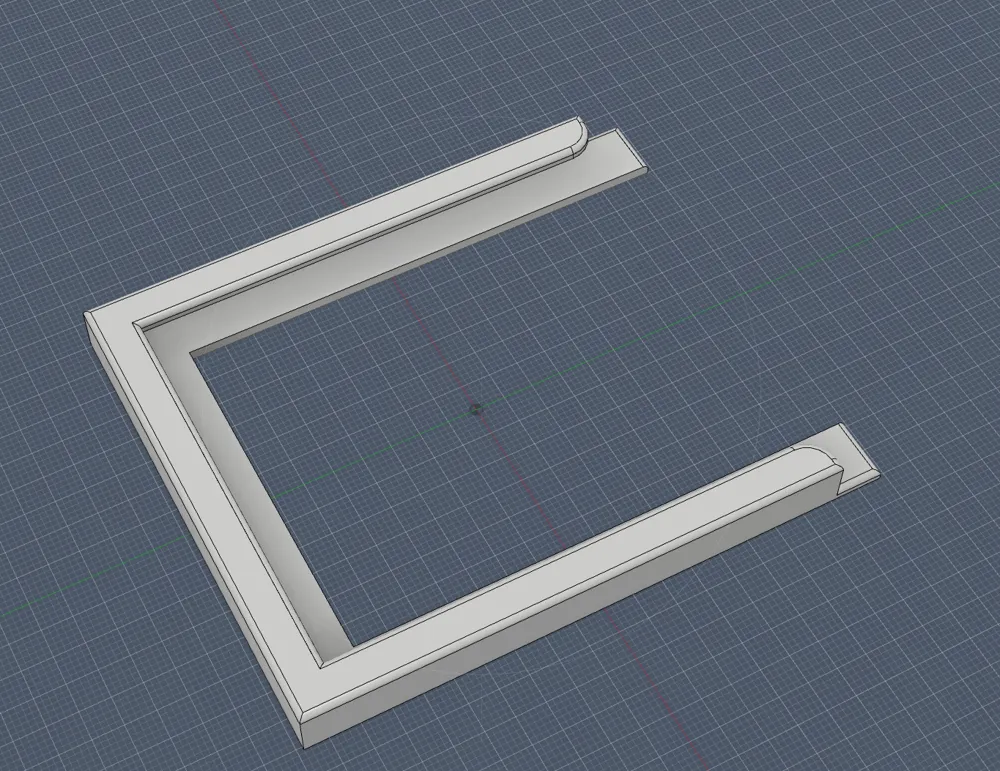

Designed and modeled in Fusion 360.
Recommended print settings:
- Material: PLA
- Infill: 15% gyroid
- Wall thickness: 3 walls
- Supports: not necessary
