Autonomous Robot
Print Profile(1)
Description

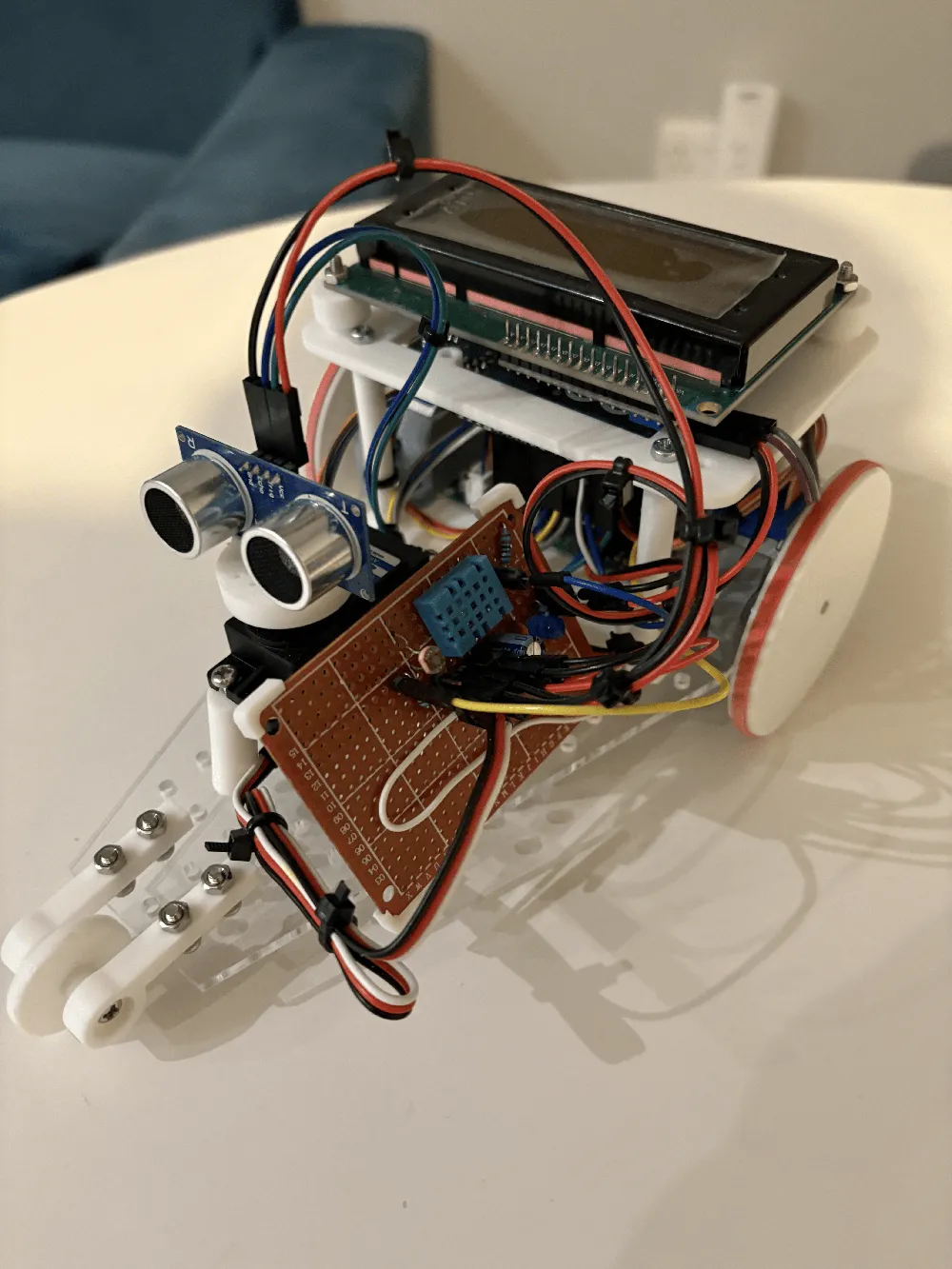

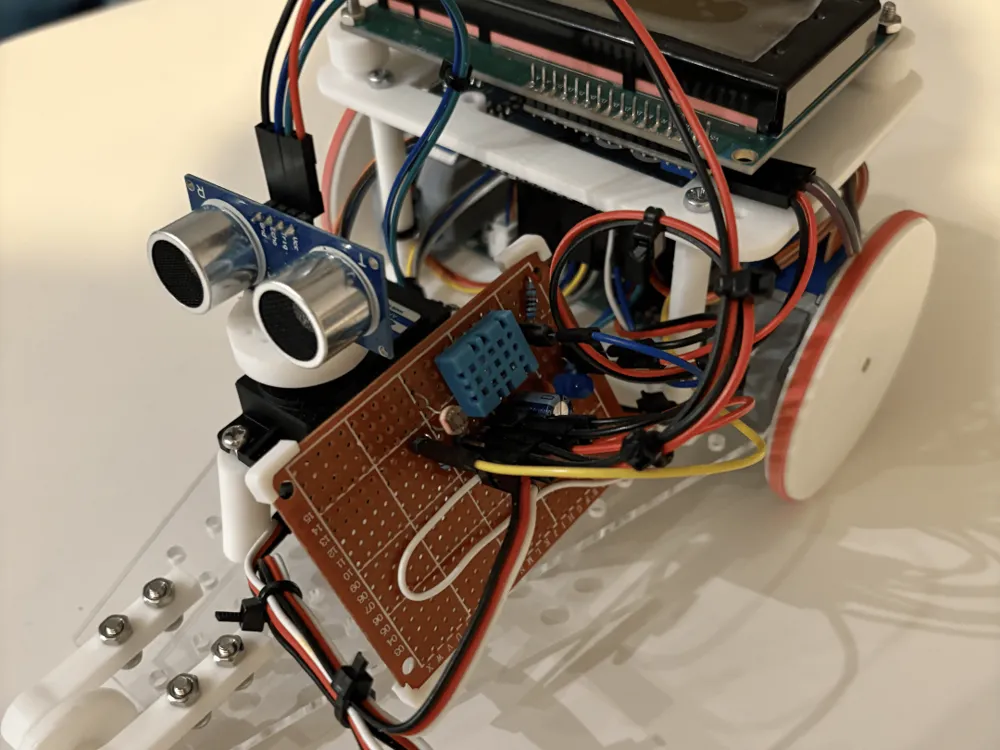

This is my Autonomous Robot project that I have completed for University I thought I would share it as its something im quite proud of I have attached both .STL and the original CAD files so that you can either print them straight away or you can adapt the models to your liking. I hope that you like this project I had a lot of fun making it below I'll list the components used so that you are aware. I'm unable to attach the code because the files are not supported even when zipped but there are plenty of reources to help with coding.
key Components Used:
- 2x stepper motors
- 2x stepper motor controller boards
- servo motor
- Ultrasonic sensor
- LCD screen 27x4
- DHT11
- LDR sensor

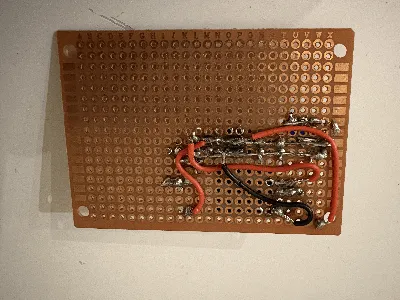

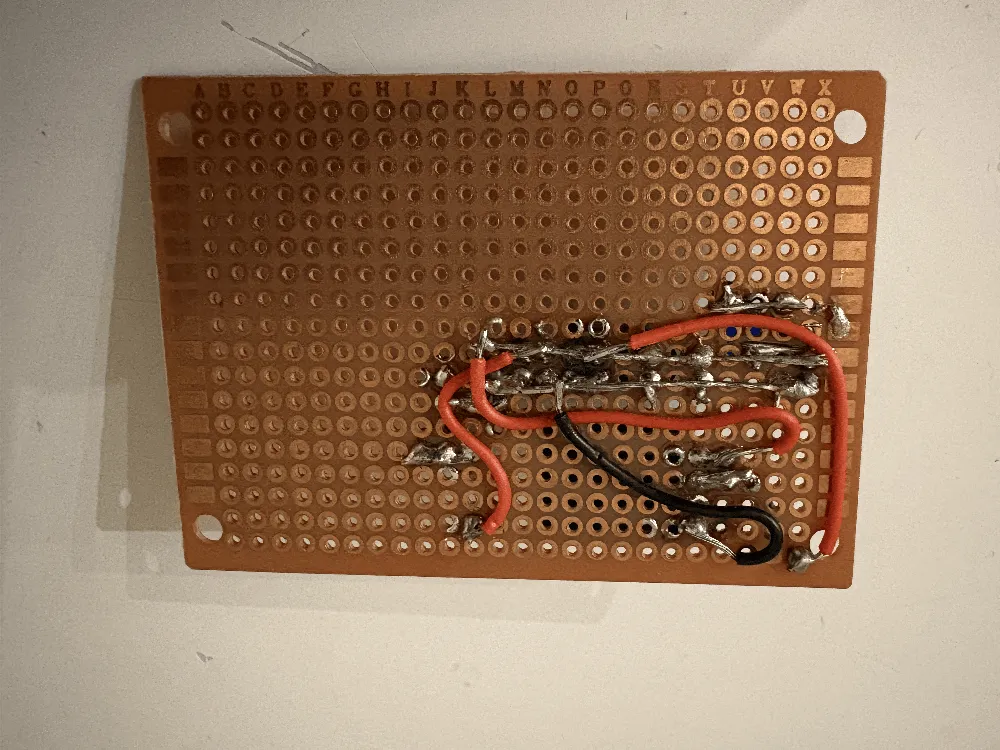

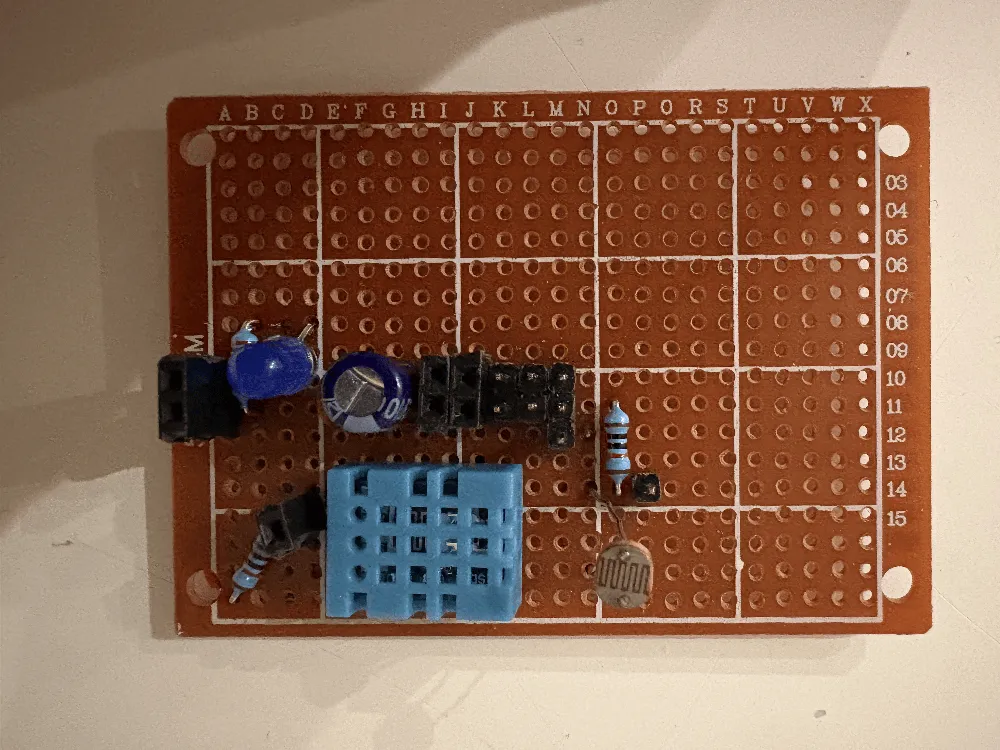

- Prototype board
- Arduino UNO R3
- battery 5V
- Female and Male headers
If you are to make this project you don't need to use a prototype board you can also use a breadboard so that it is less permanent and can easily supply voltage to all components. To use eitehr your laptop to power the arduino when connected to the components or directly 5V battery pack this is because the stepper motors draw too much current that will damage other components connected. For filaments that I use it was basic white PLA from Bambu Lab and also their PLA support filament.
