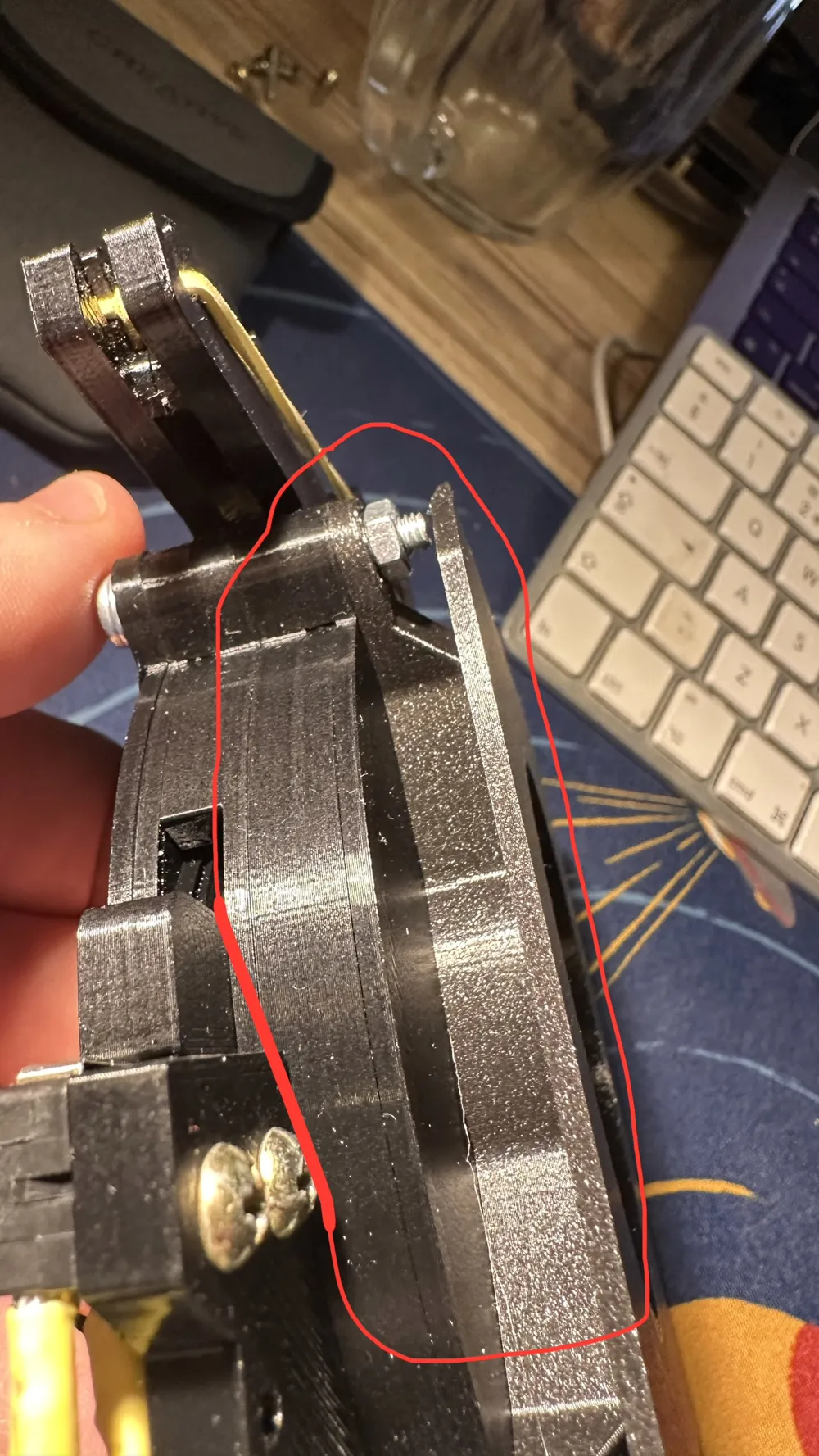

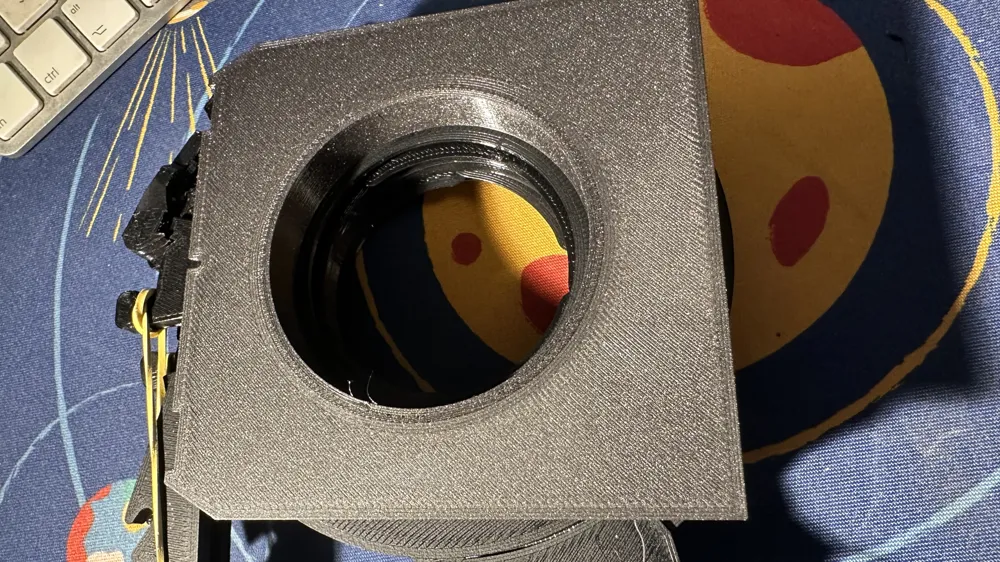

Shutter Lens boards for Vega 4x5 camera
v4 more simple design
v5 more rigid, space for nut

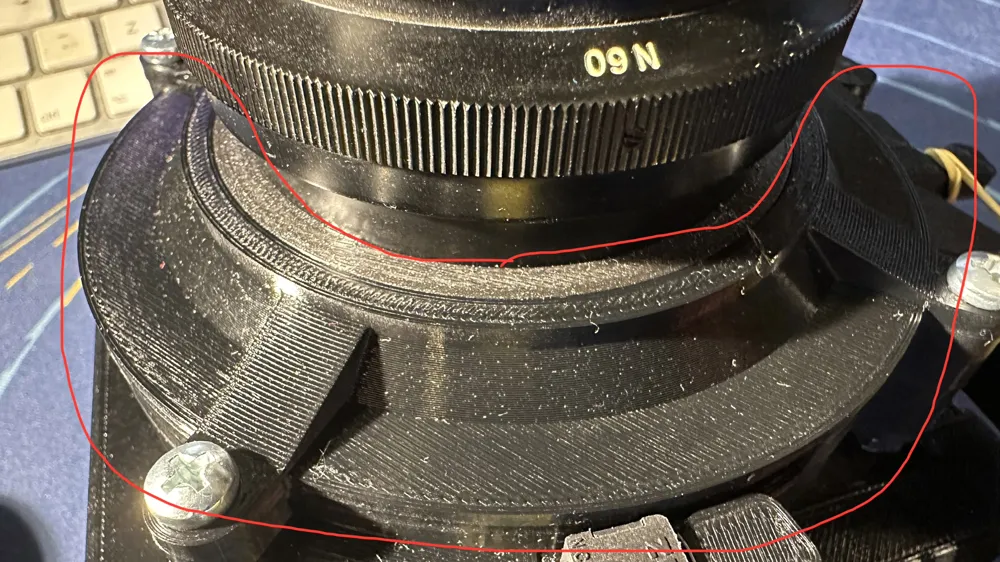

Latch to secure lens mount ring to shutter body
print 4x
needs supports

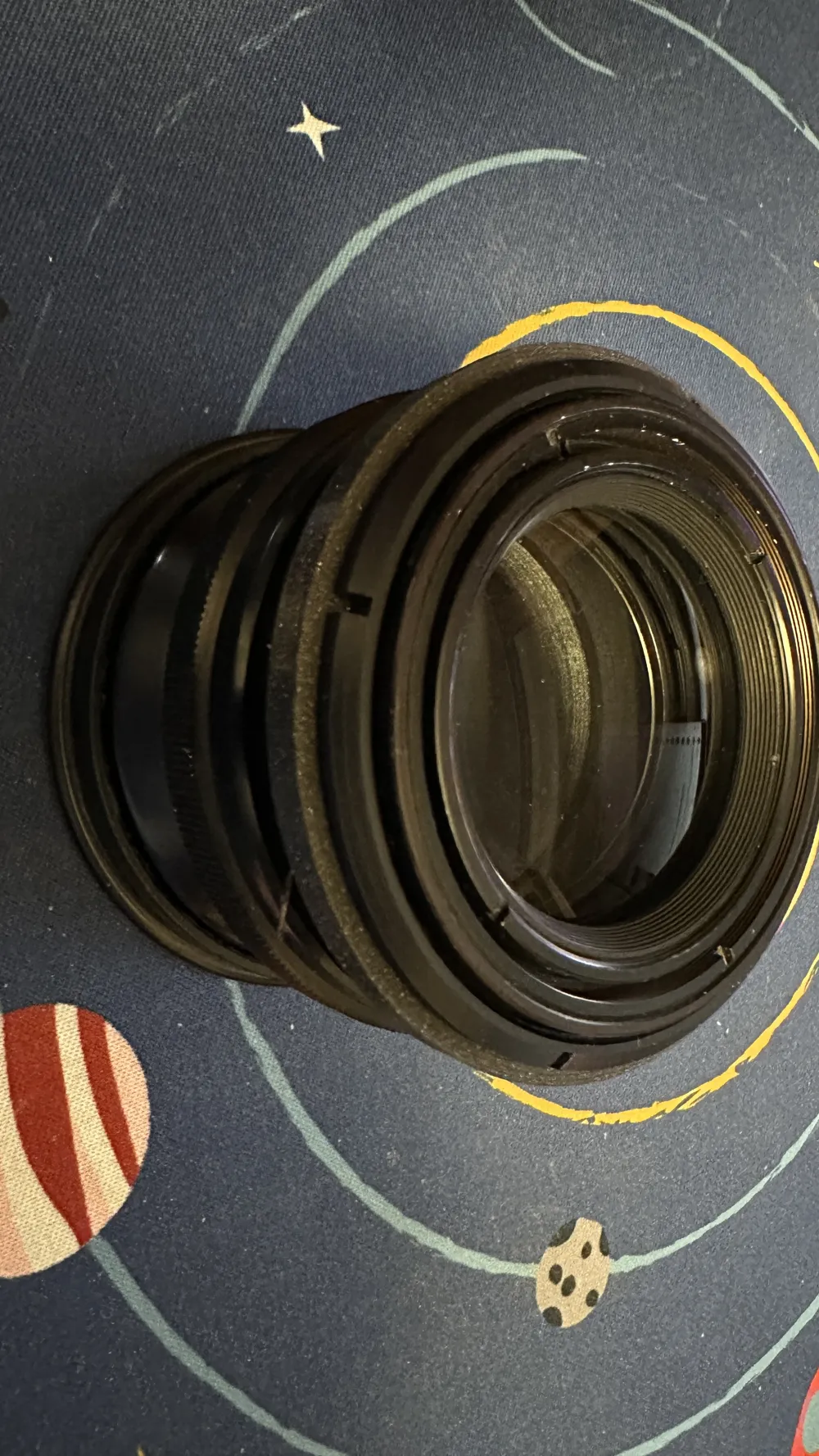

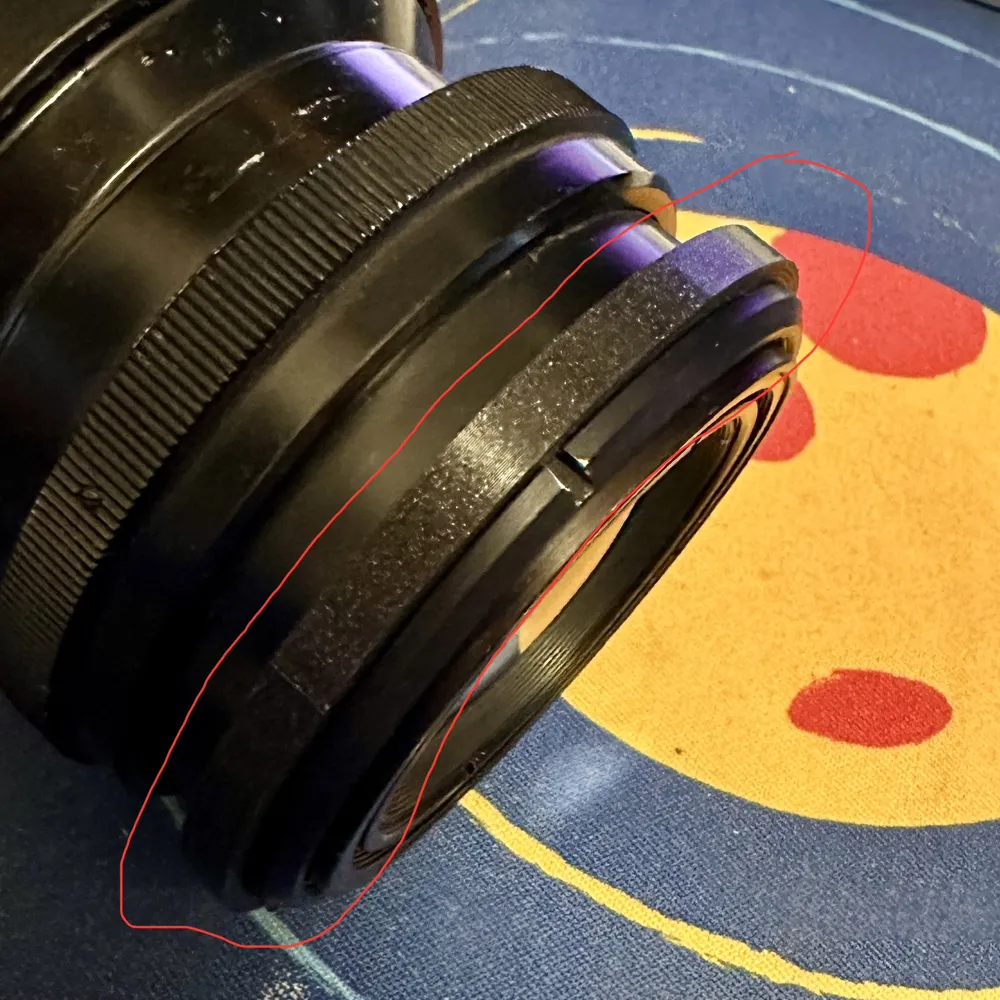

Lens mount for Carl Zeiss Jena tessar 210mm F4.5 lens
opening 62.9, secured with retaining ring

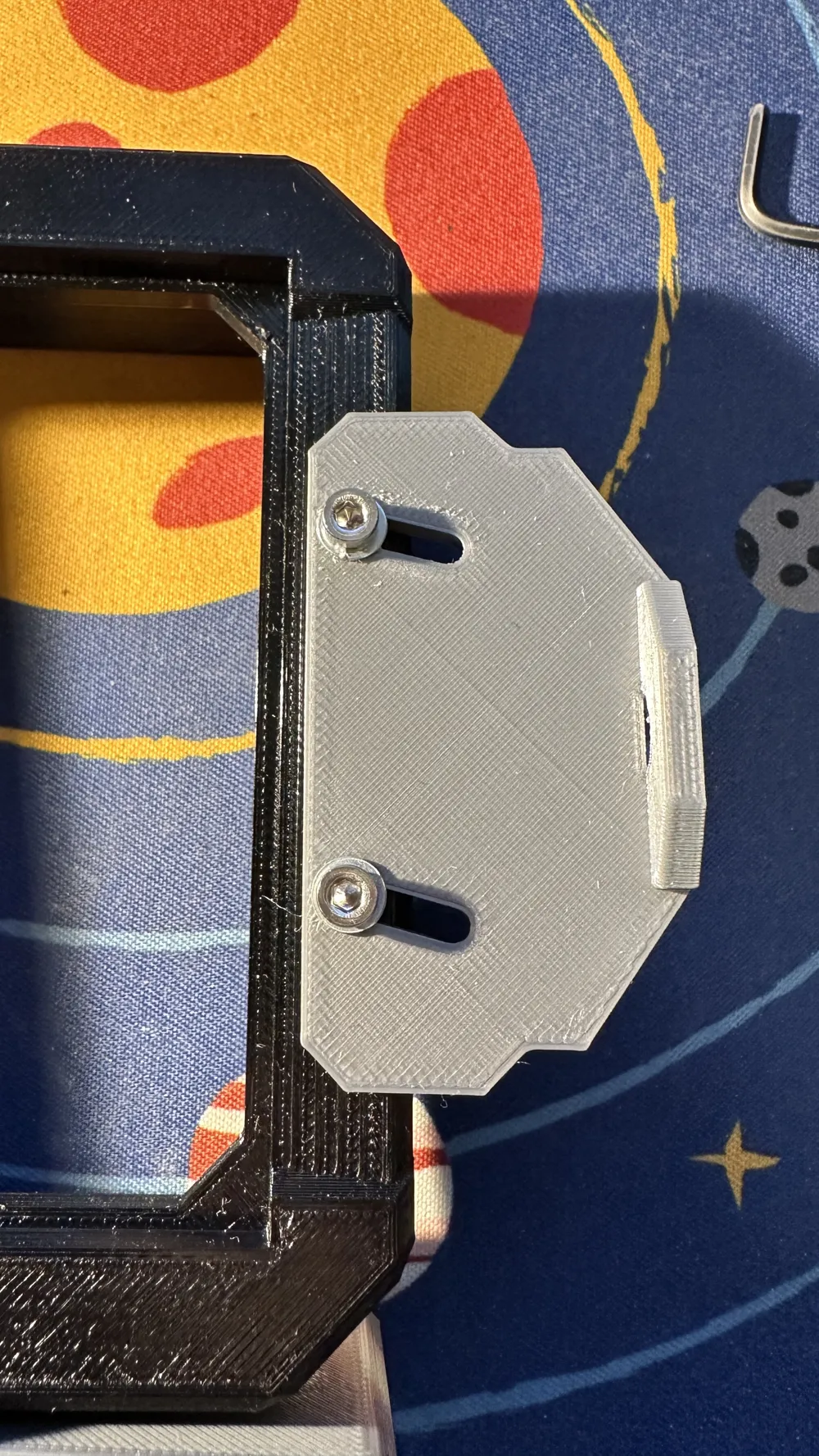

Graflock Clip v2 to remove lens board easier when leaf shutter installed
bigger clip so it can be latched and unlatched when shutter is installed
