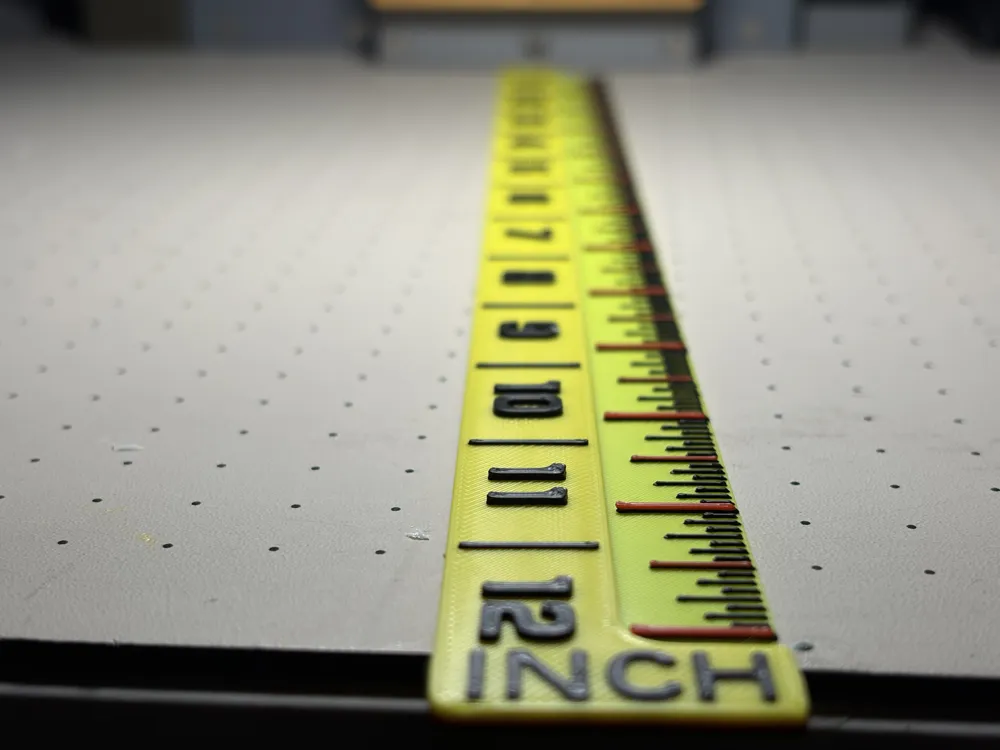

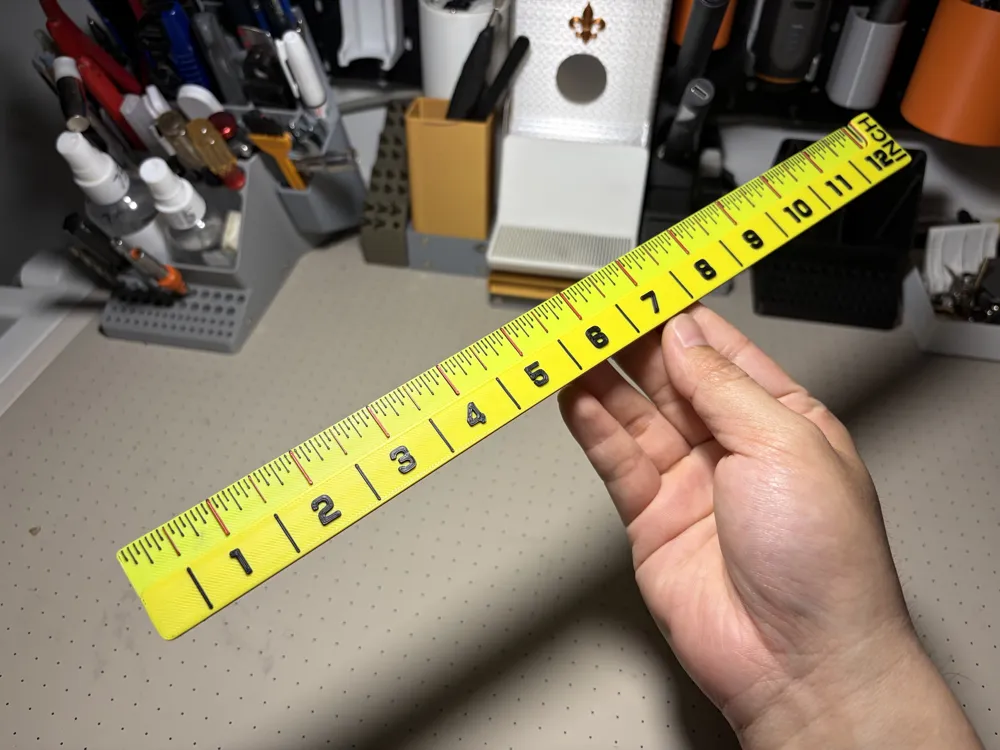

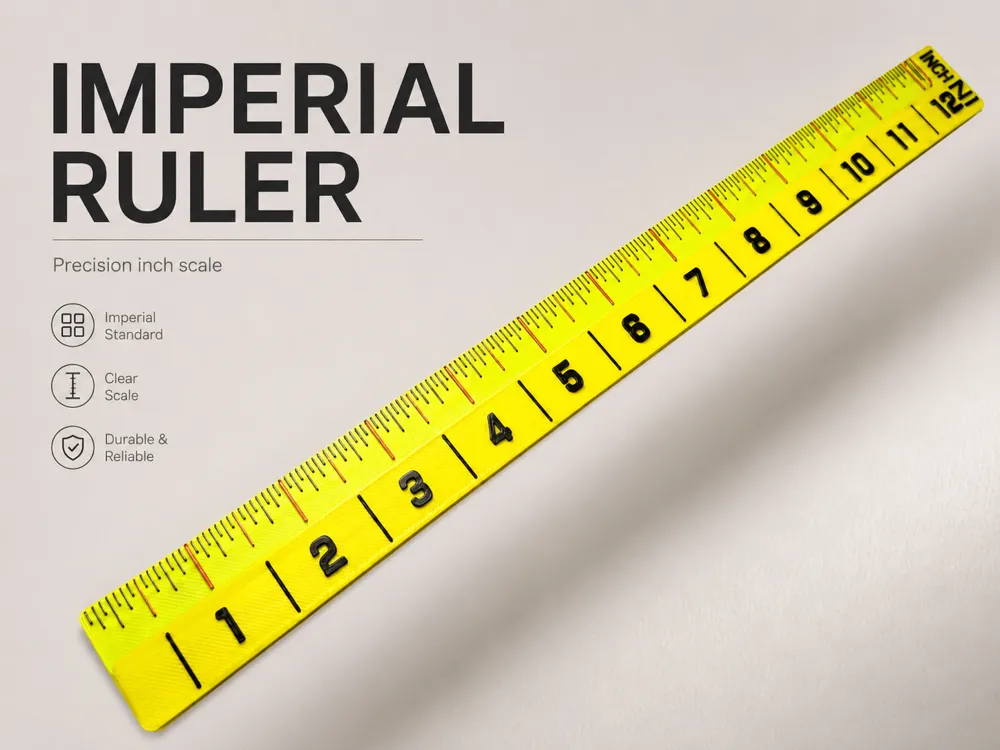

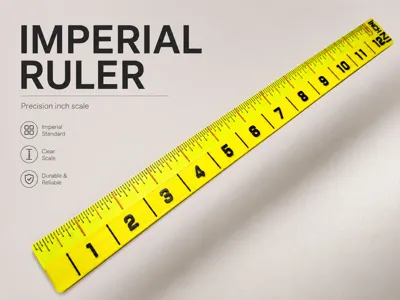

Imperial Ruler

• Standard Imperial ruler with re-optimized scale lines.
• A truly usable and strong ruler.

Appearance and Detail Design

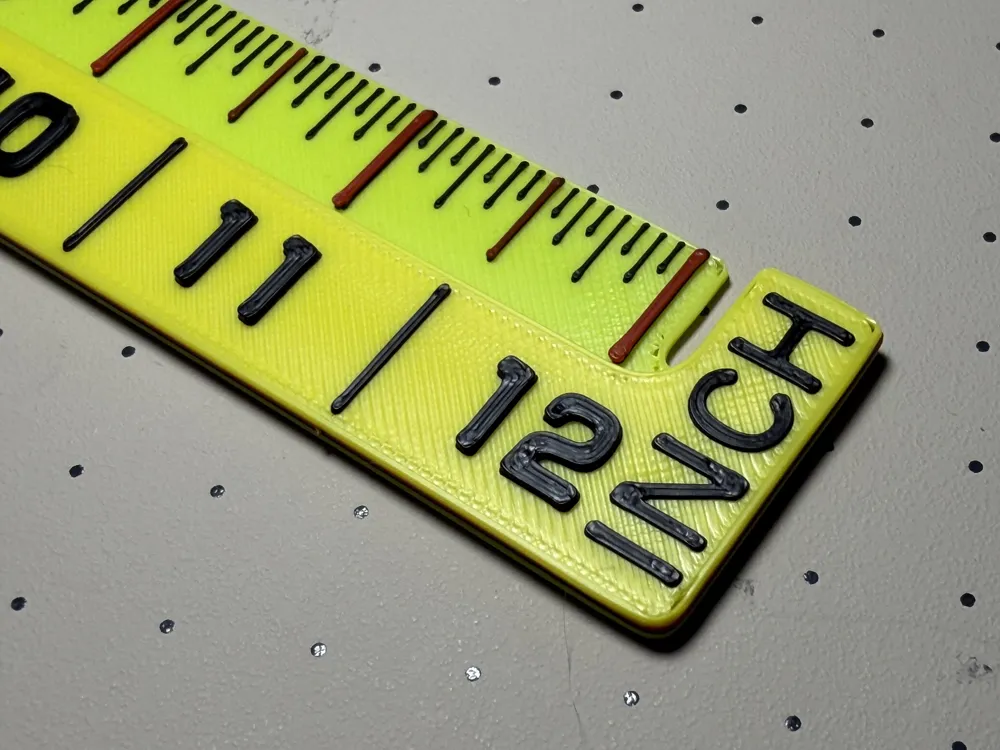

• Highly Readable Digital Font
  • Uses 'Hanyi Zongyi Simplified'
  • Clear, highly recognizable numbers, stable printing formation
  •

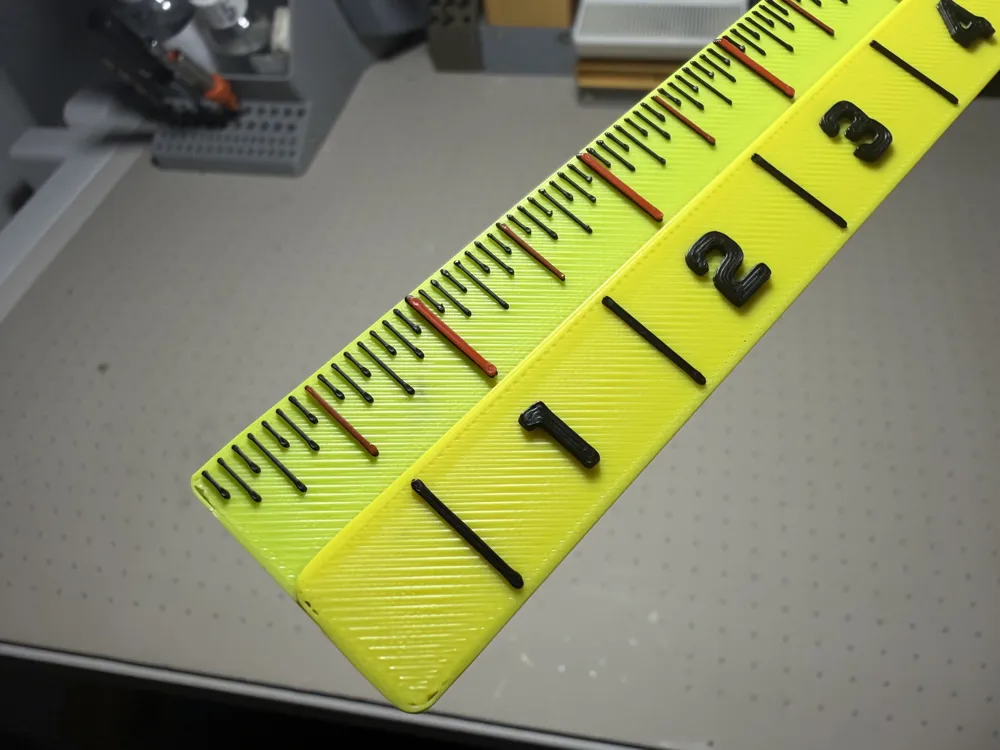

• Multi-color Layer Optimization
  • Adapted for multi-color printing (AMS users can use directly)
  • Also supports manual color change with pause layers
  •

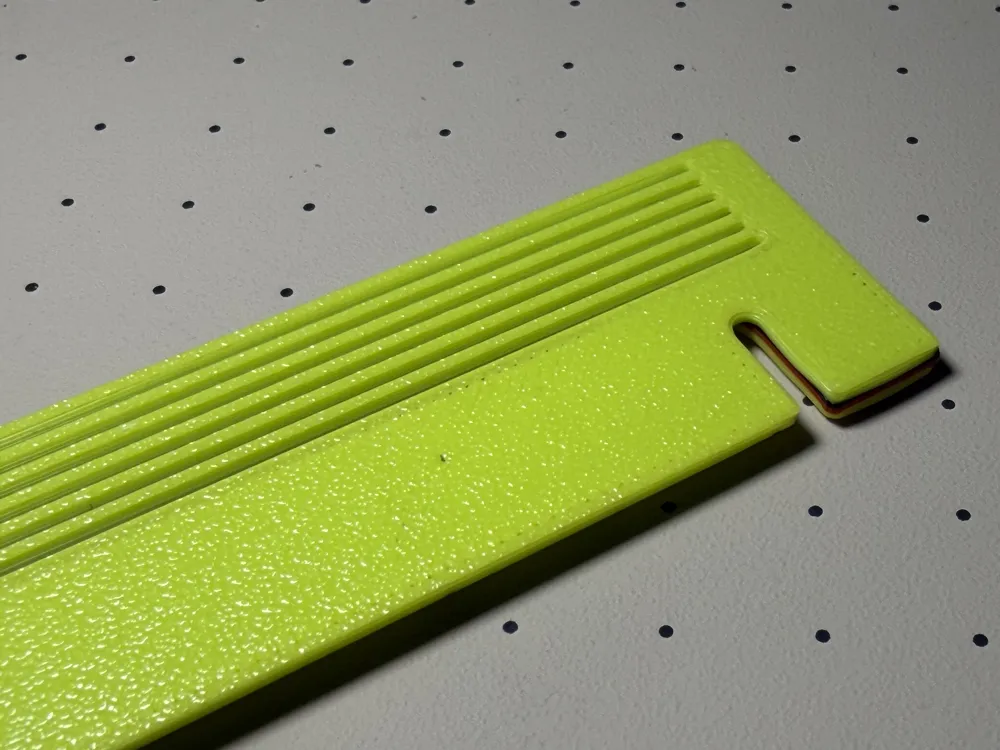

• Dirt-Resistant Design
  • Bottom uses a gray/dark color scheme
  • More durable and stain-resistant than white

📐 Measurement Logic (Key Point)

To maximize measurement accuracy, the following design is adopted:

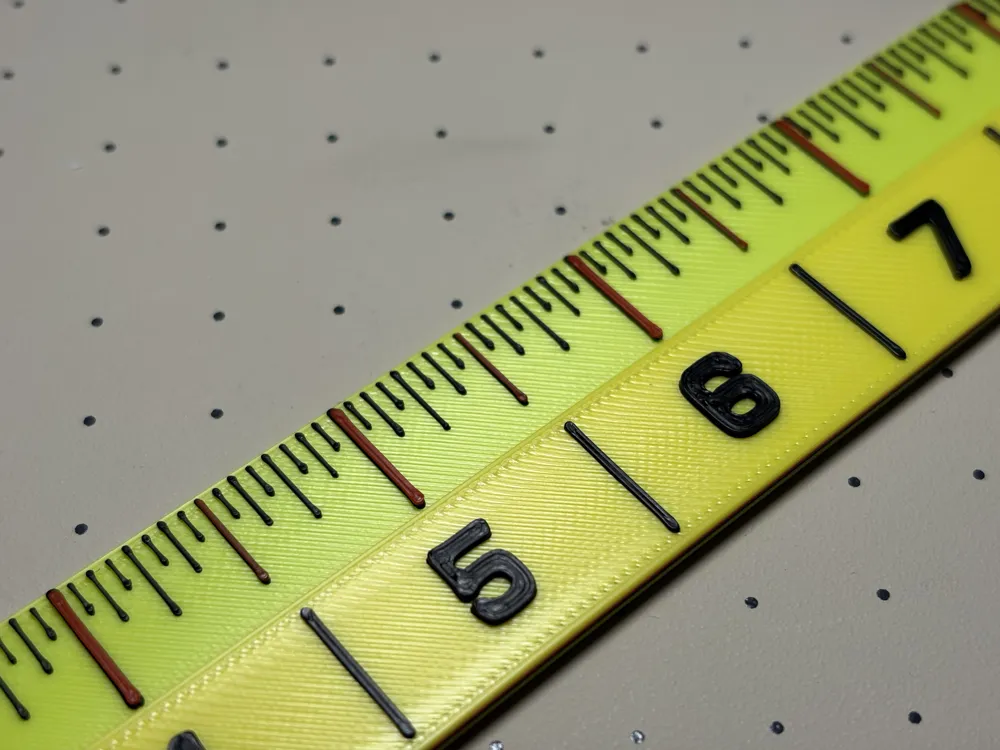

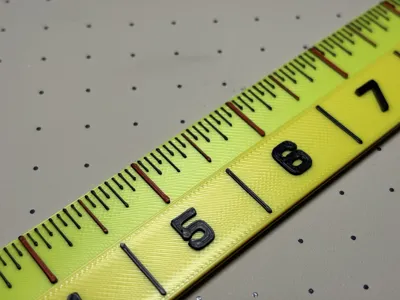

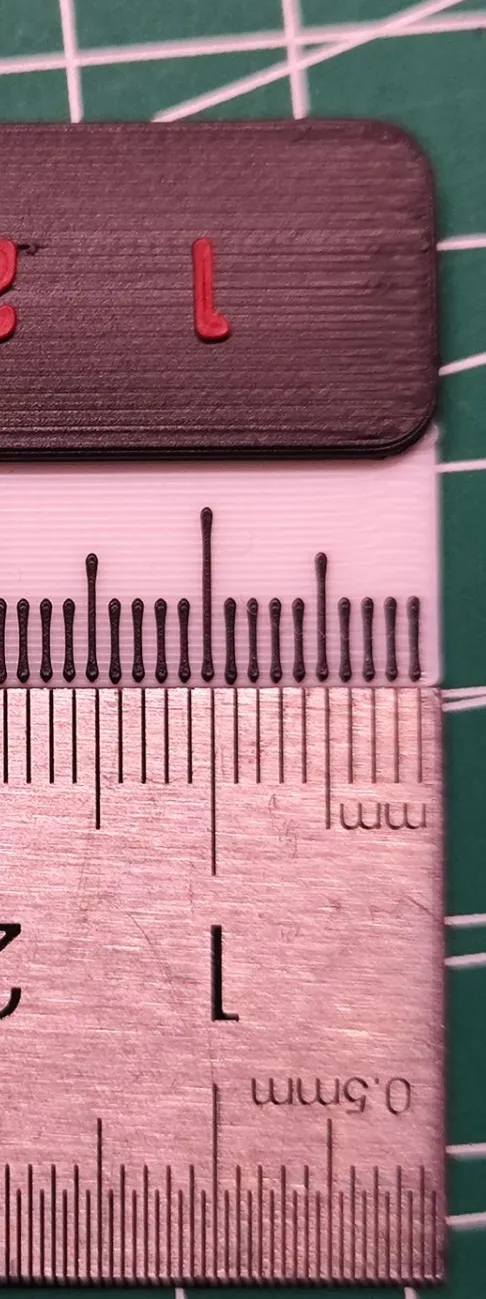

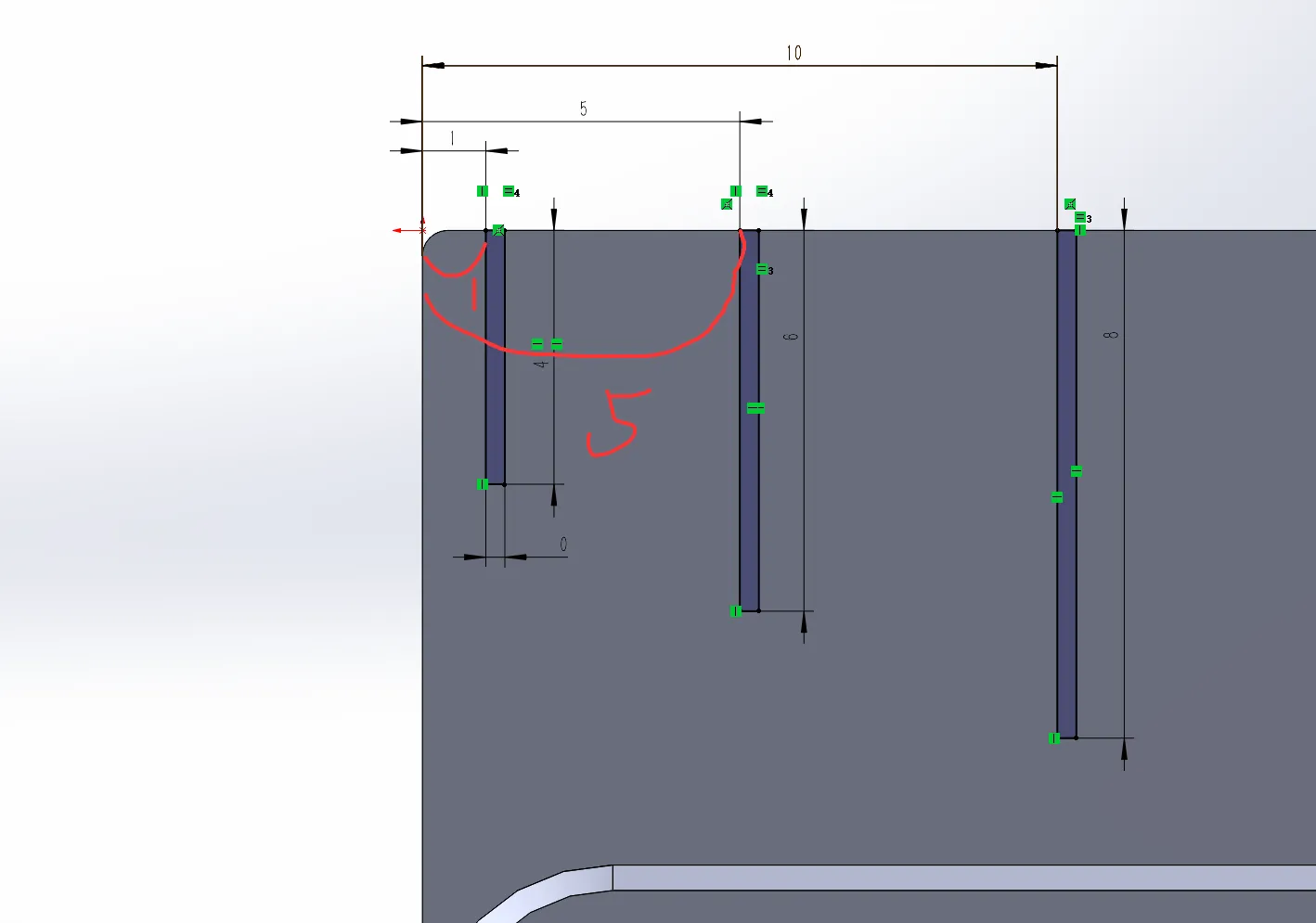

• Scale Origin Optimization
  • 1mm scale aligns with the “left side of the scale line” rather than the center line

  • Avoid cumulative deviation caused by printing accuracy errors



• Widened First Segment Design
  • The first segment being slightly larger is a normal design

  • Used to ensure overall measurement baseline accuracy



👉 Conclusion: This is a “practically usable” ruler, not just a display model

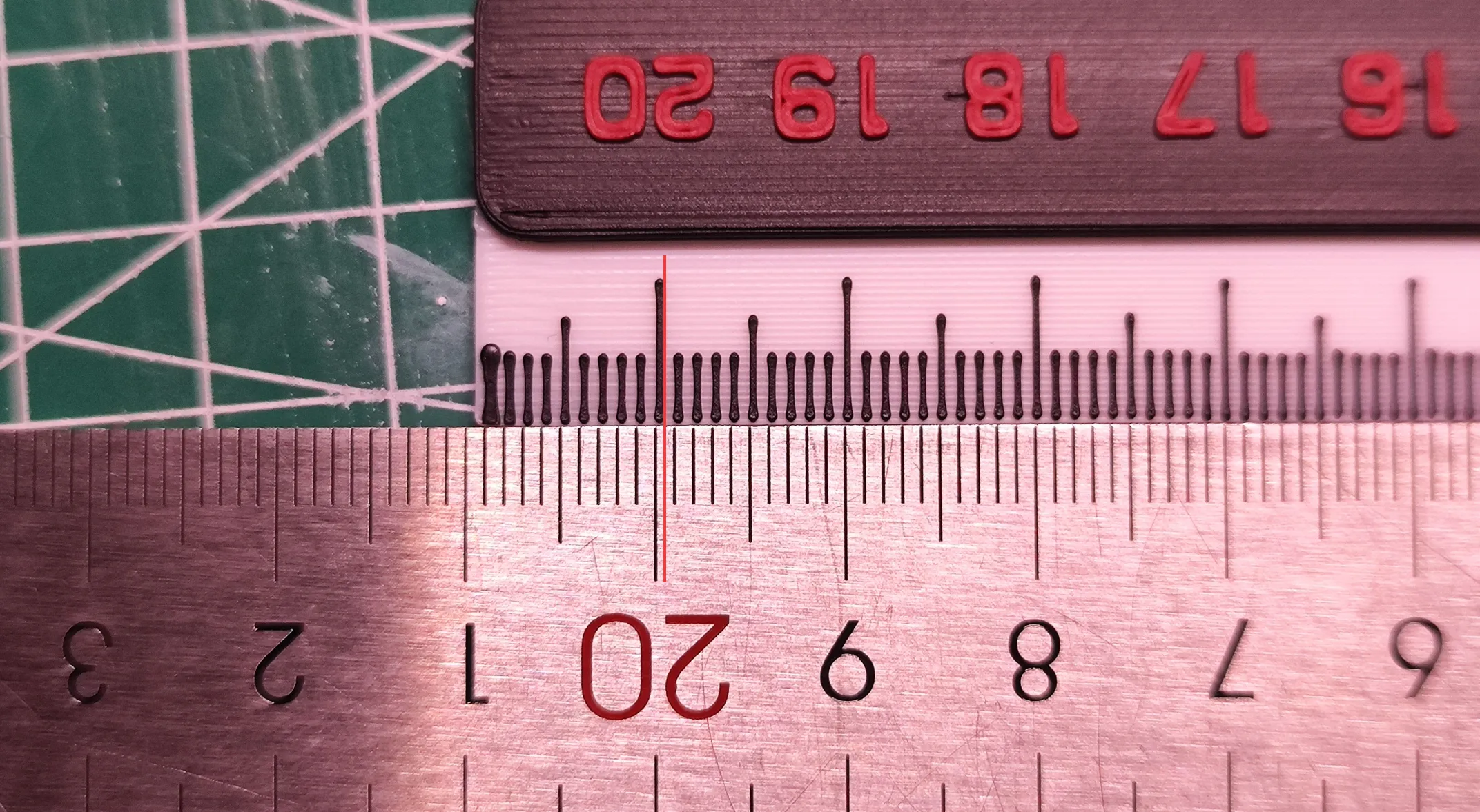

📊 Accuracy Performance (PLA Actual Measurement)

• Test length: 200mm
• Maximum error: ＜ -0.5mm

Note: Different materials have shrinkage differences, and accuracy may fluctuate slightly

🖨️ Printing Recommendations

• Material: PLA Basic (recommended)\PETG Basic,
• It is not recommended to print scale lines with materials like PLA Silk and PLA Matte, which have insufficient layer adhesion.

•

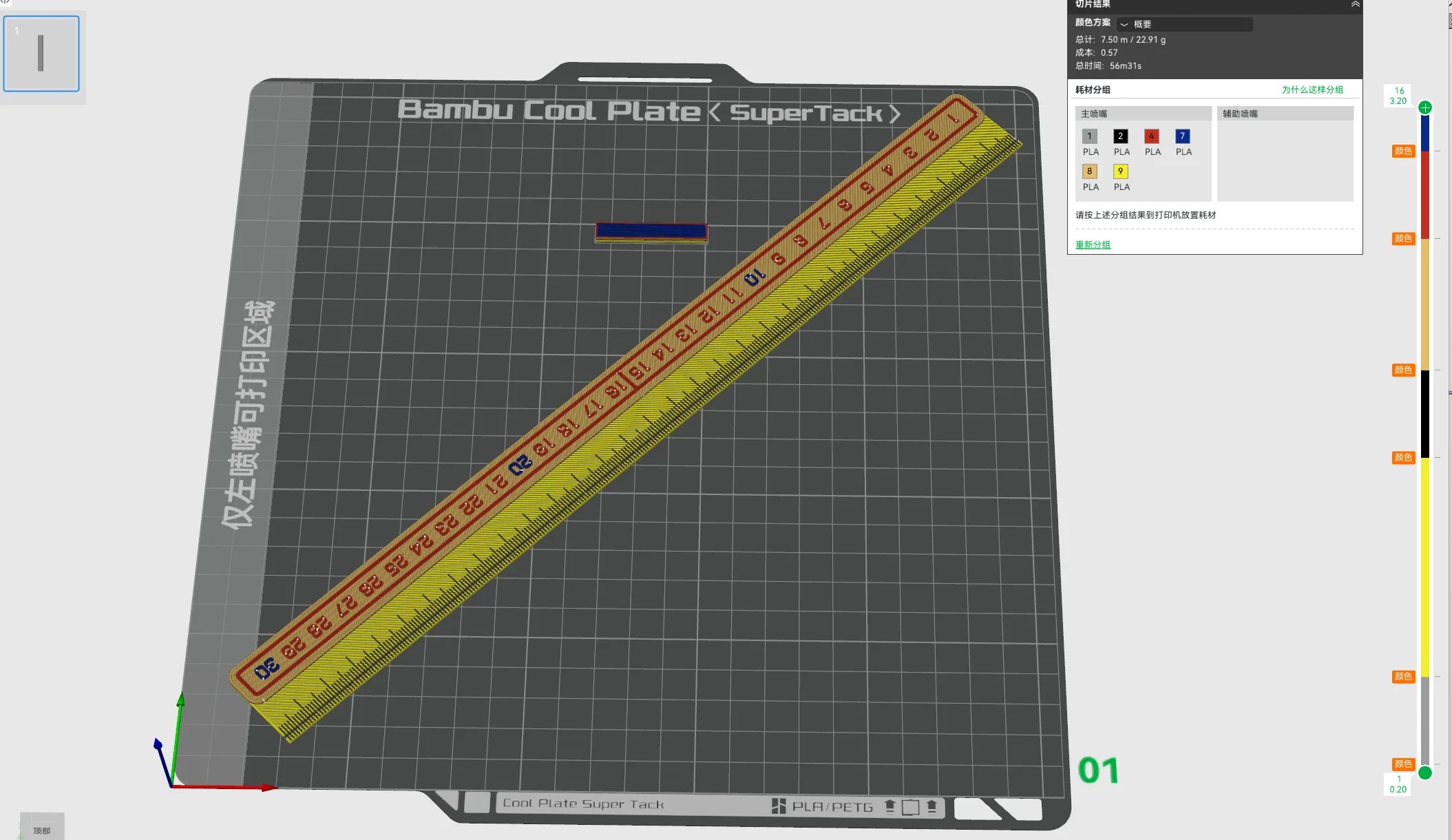

• Multi-color solution:
  • AMS: Use layered coloring directly
  • Non-AMS: Use “pause layer for color change”

Related Model Recommendations

Regular Rulers

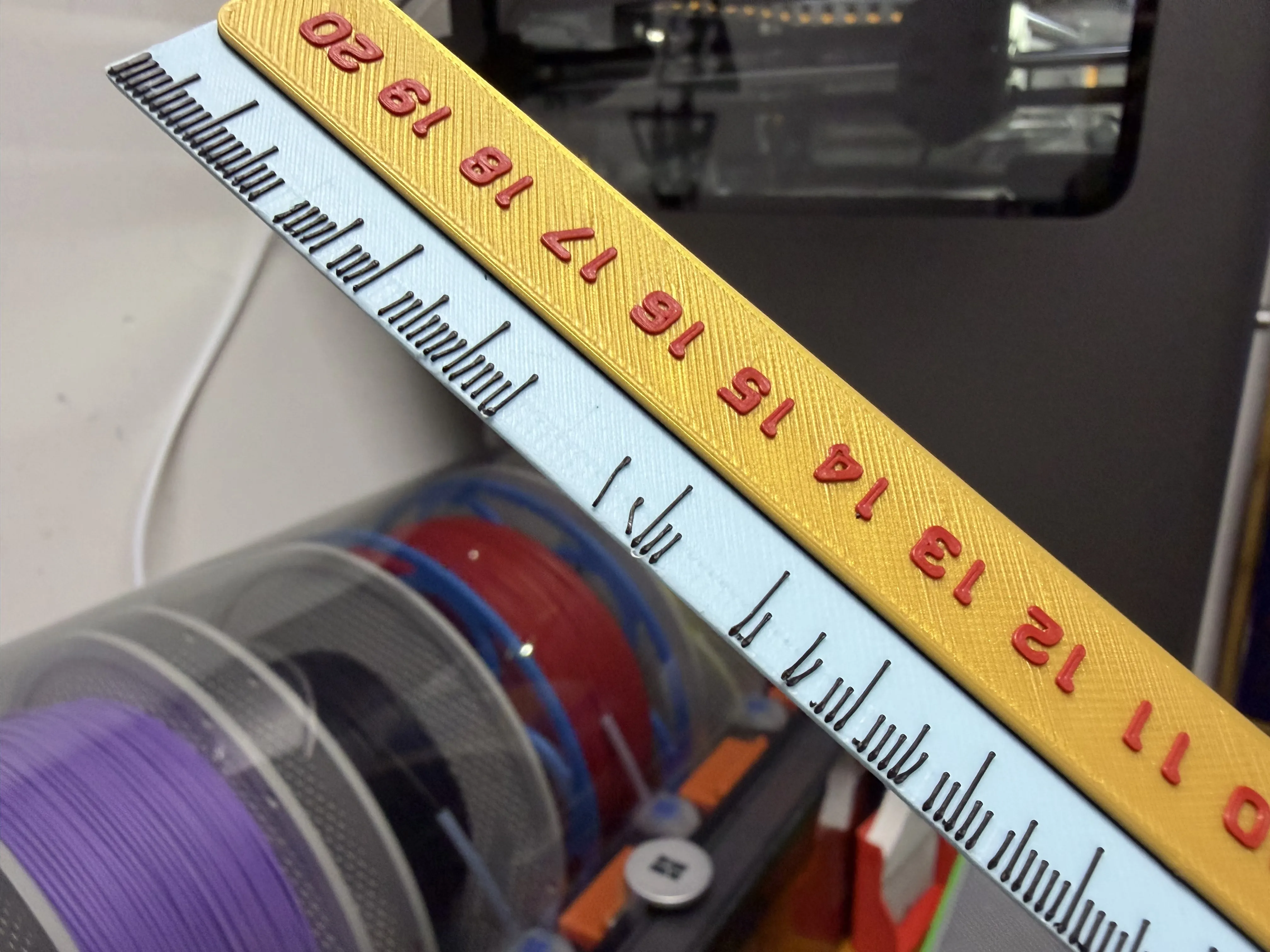

1. Metric 10-20cm
