4×5 Large Format Camera
Print Profile(1)
Description

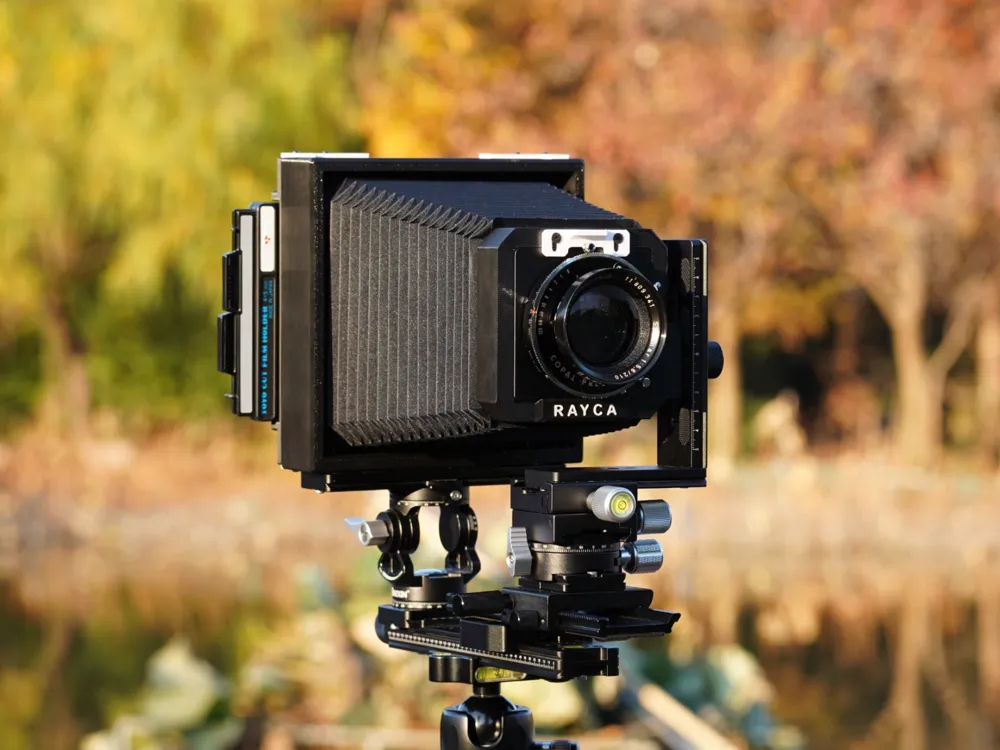

This is a large format camera for shooting 4×5 inch film, using standard film holders and Knight's 80mm lens board.
Assembly requires:
M3*10 round head screws ×4;
M3*8 countersunk screws ×14;
M2*6 round head screws ×16;
M2*4*3.2 heat-set brass inserts ×4;
1/4 inch 20*6*8 heat-set brass inserts ×3;
1/4 inch thumb screw;
Appropriate quick release plates and clamps;
127*101*2mm single-sided frosted glass, and one Fresnel lens of the same size;
and a bellows with a 110mm front opening and a 153mm rear opening.
