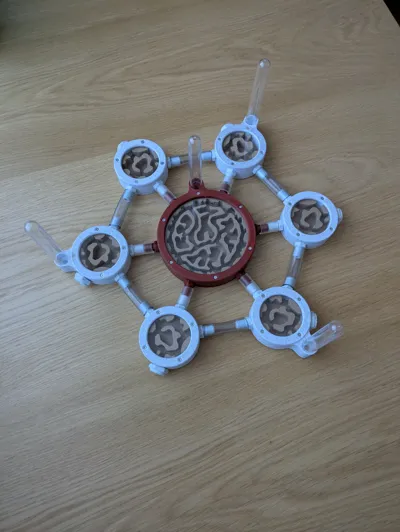

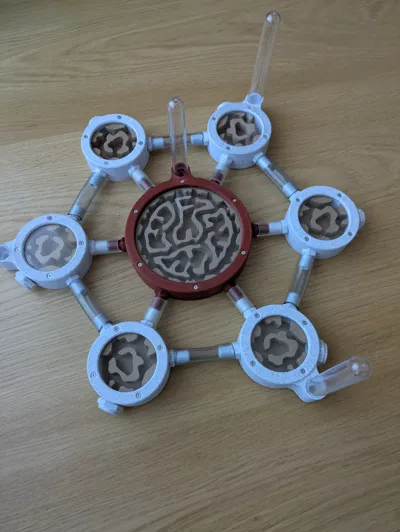

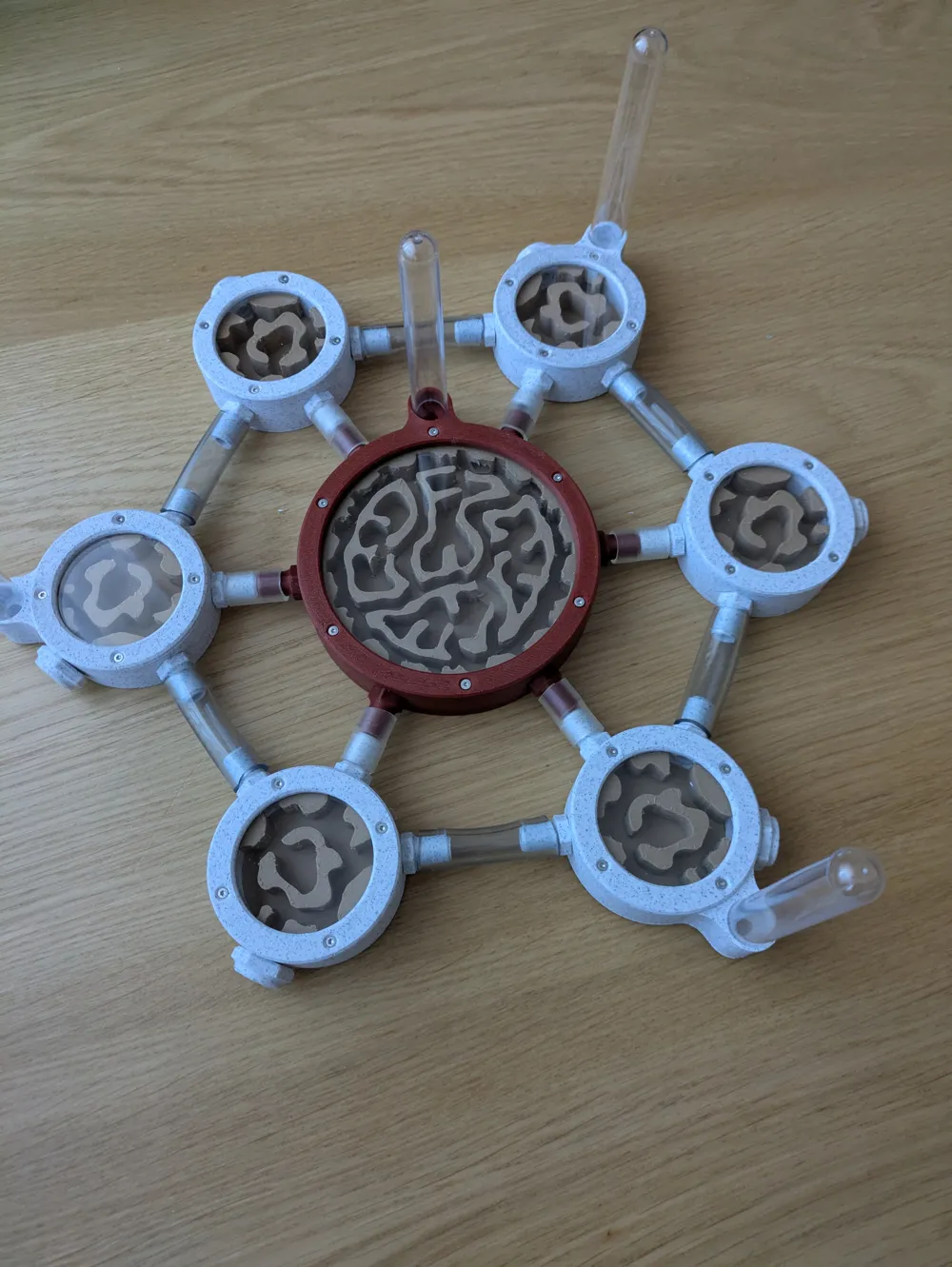

Formica Citadel – The Ultimate Modular Multi-Nest System

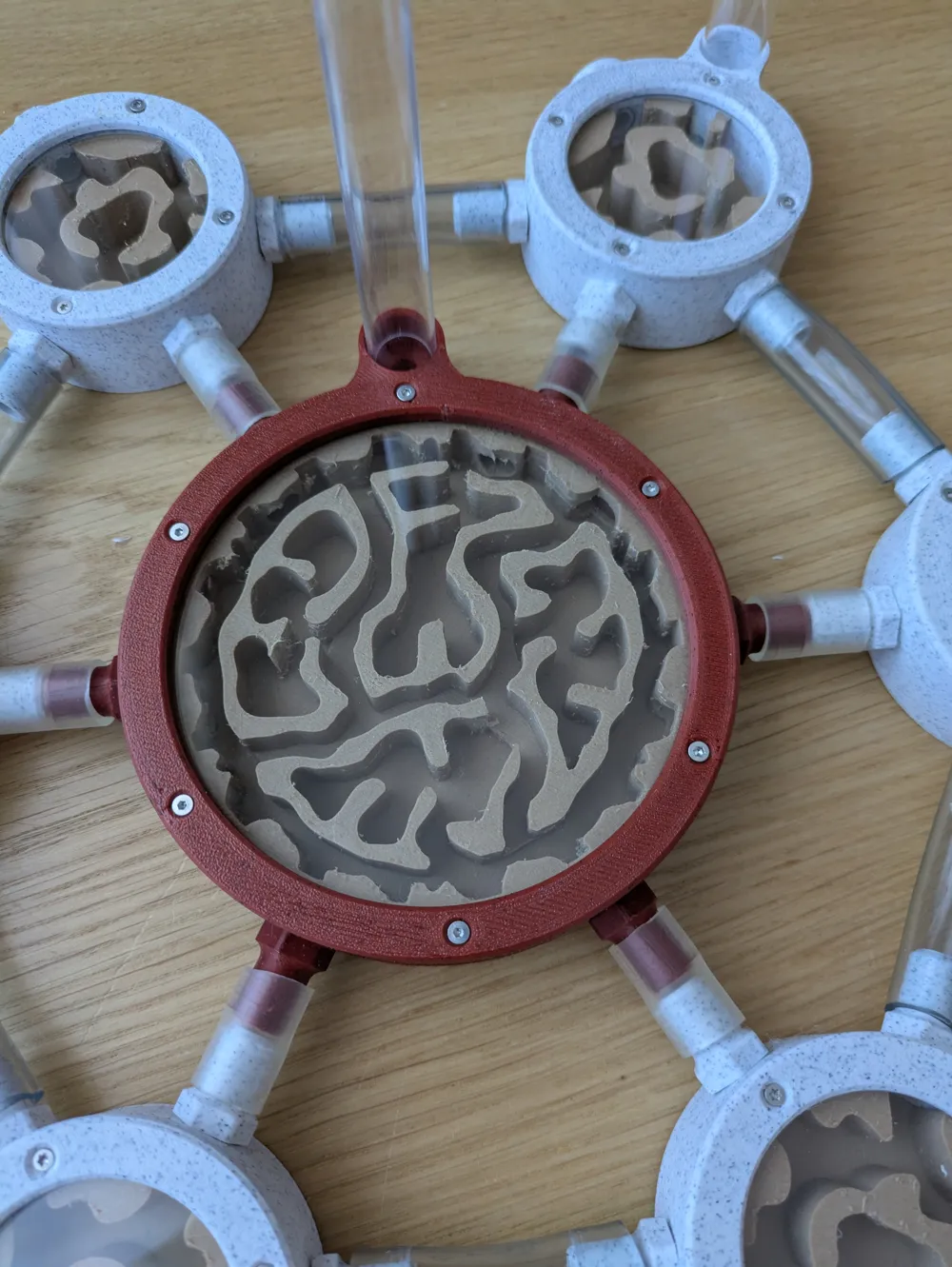

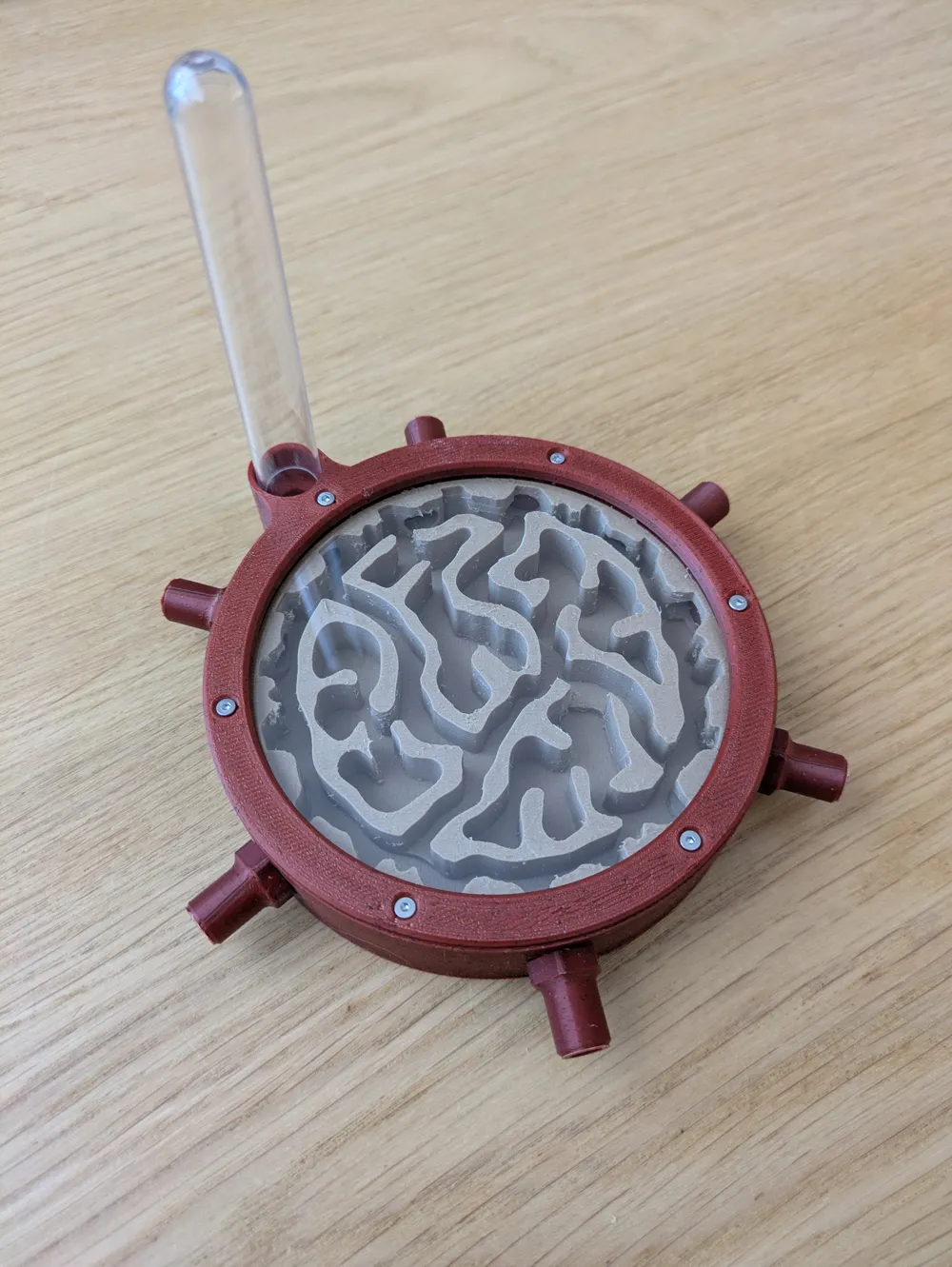

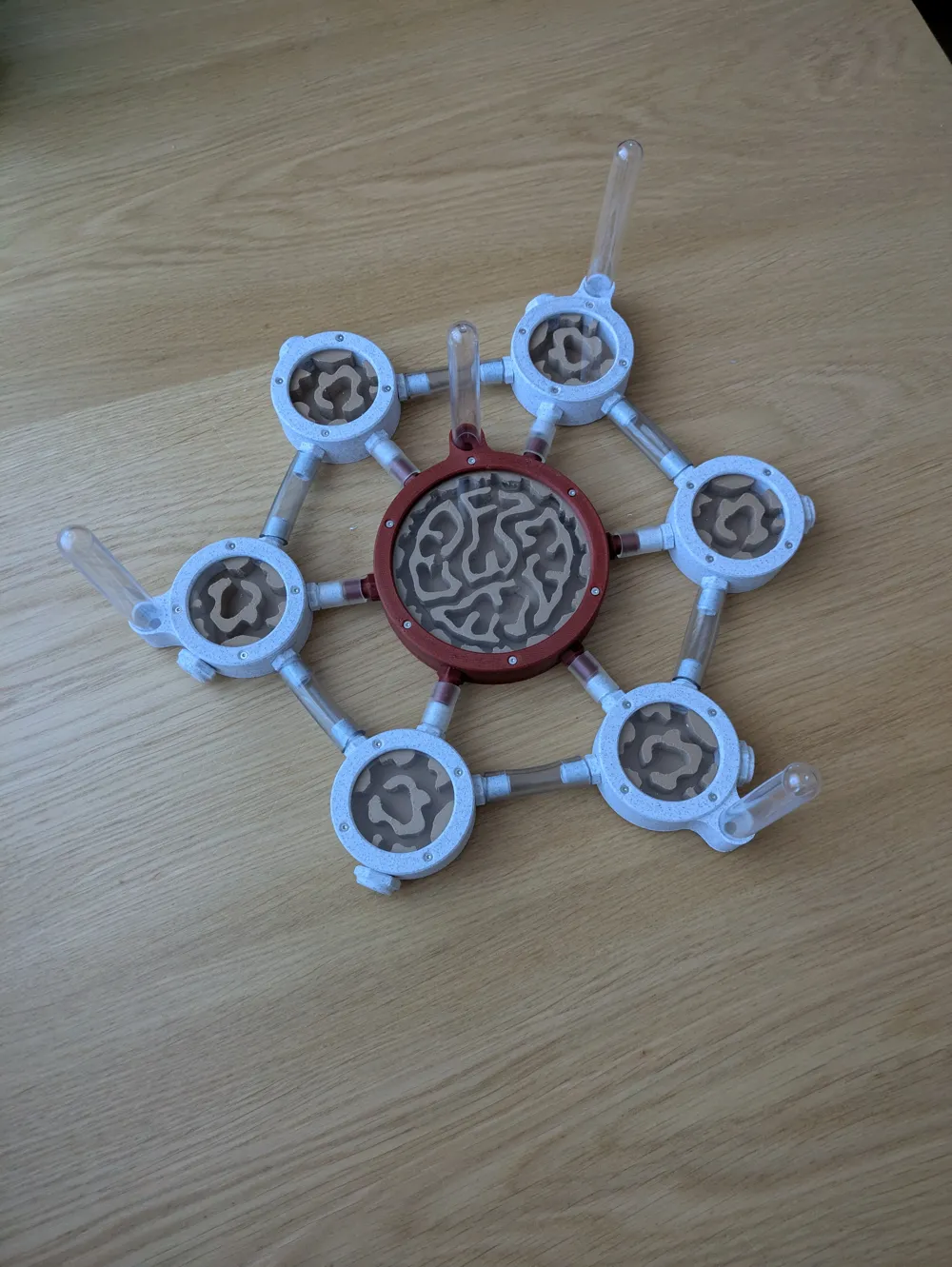

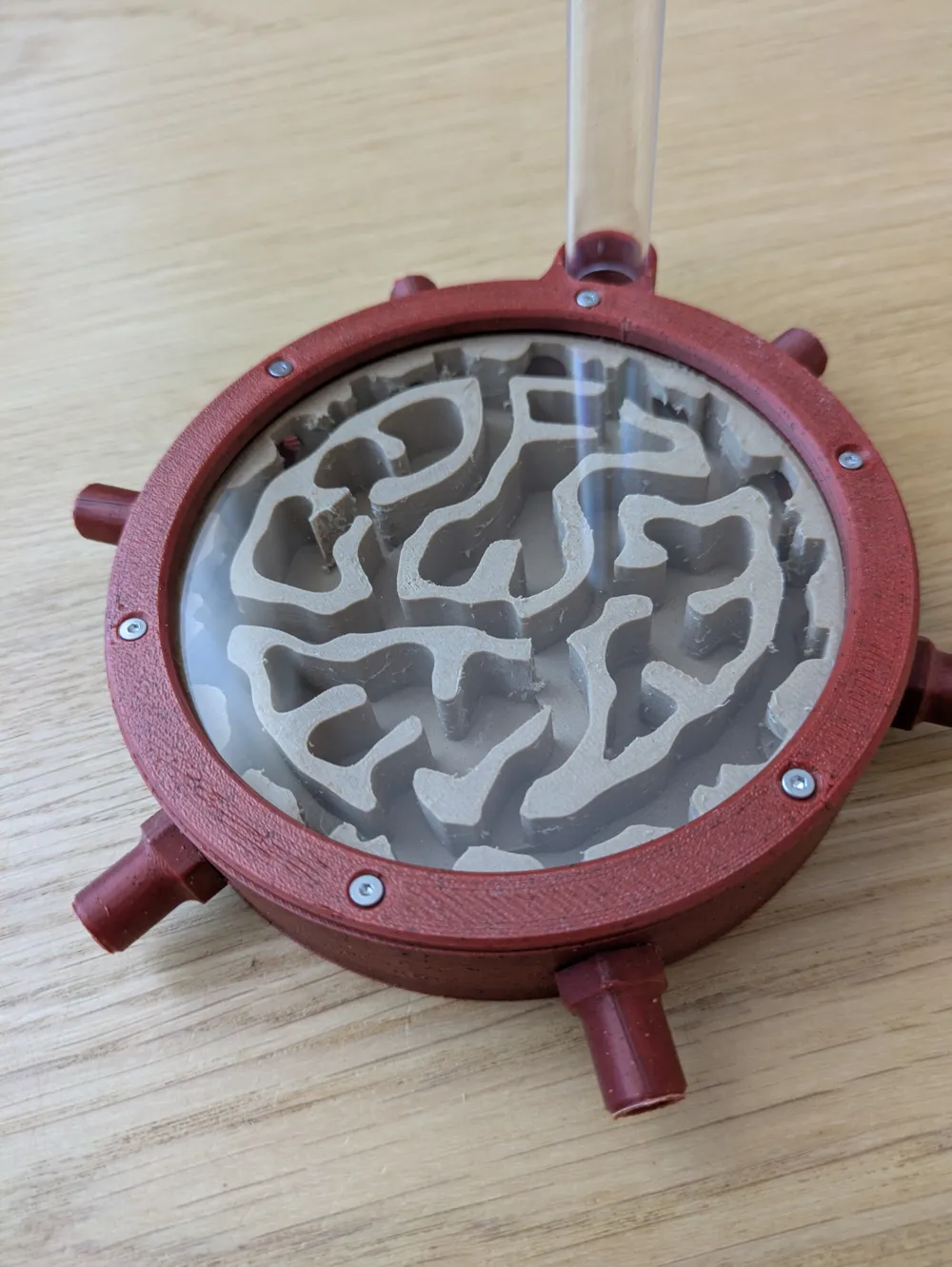

Welcome to the Formica Citadel, a premium, high-tech modular formicarium designed for growing ant colonies! This unique hexagonal layout combines a massive central hub with 6 interconnected satellite nests, giving your ants a true empire to conquer.
Whether you are a seasoned ant keeper or a 3D printing enthusiast looking for an epic project, the Formica Citadel offers the perfect balance of aesthetic design and biological functionality.
Key Features

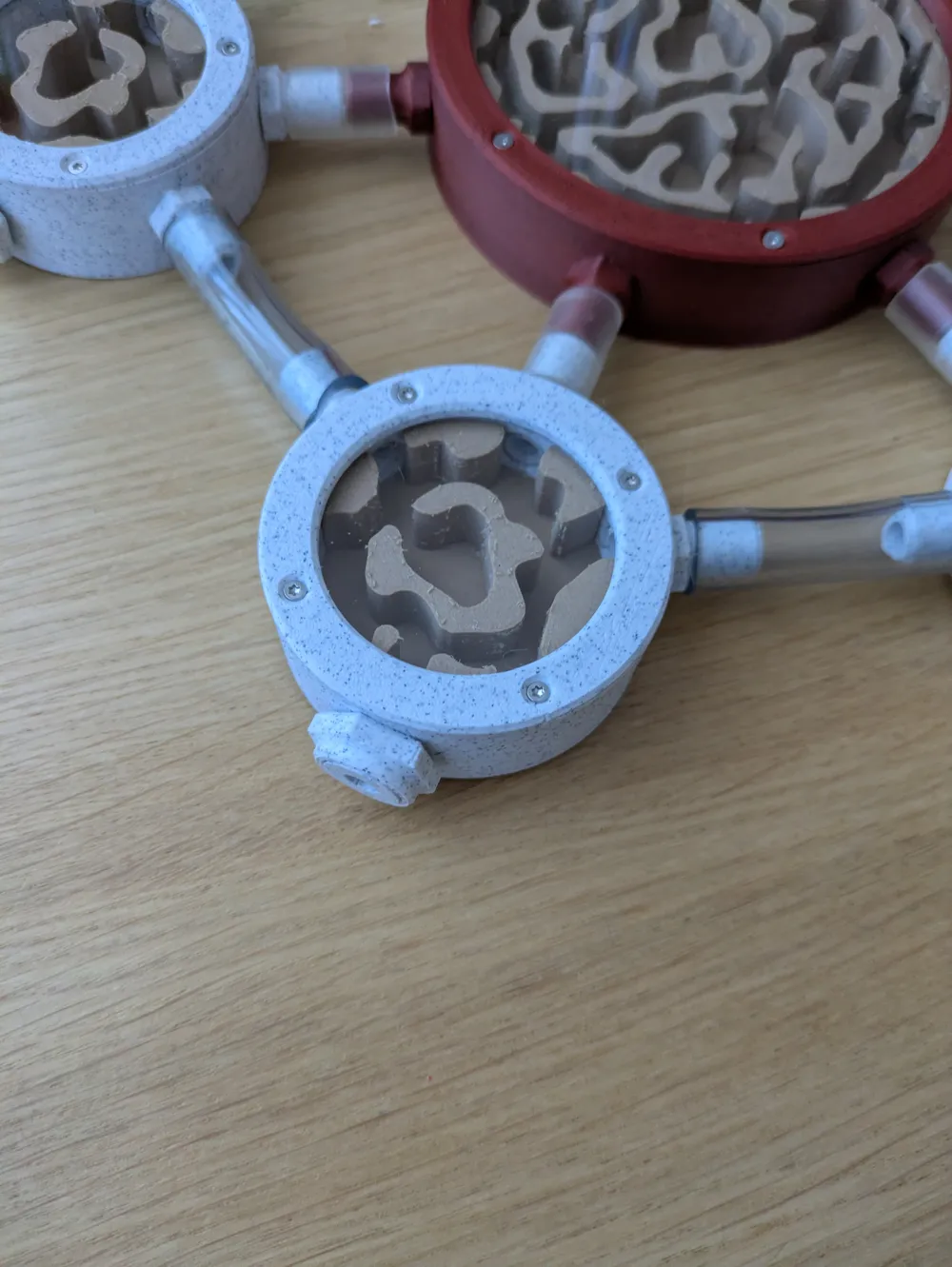

- Fully Interconnected Ecosystem: All 6 satellite nests are linked directly to each other and to the main central chamber via clear tubing. This maximizes the walking surface and mimics natural underground tunnel networks, allowing your ants to establish distinct zones for brood, food storage, and trash.

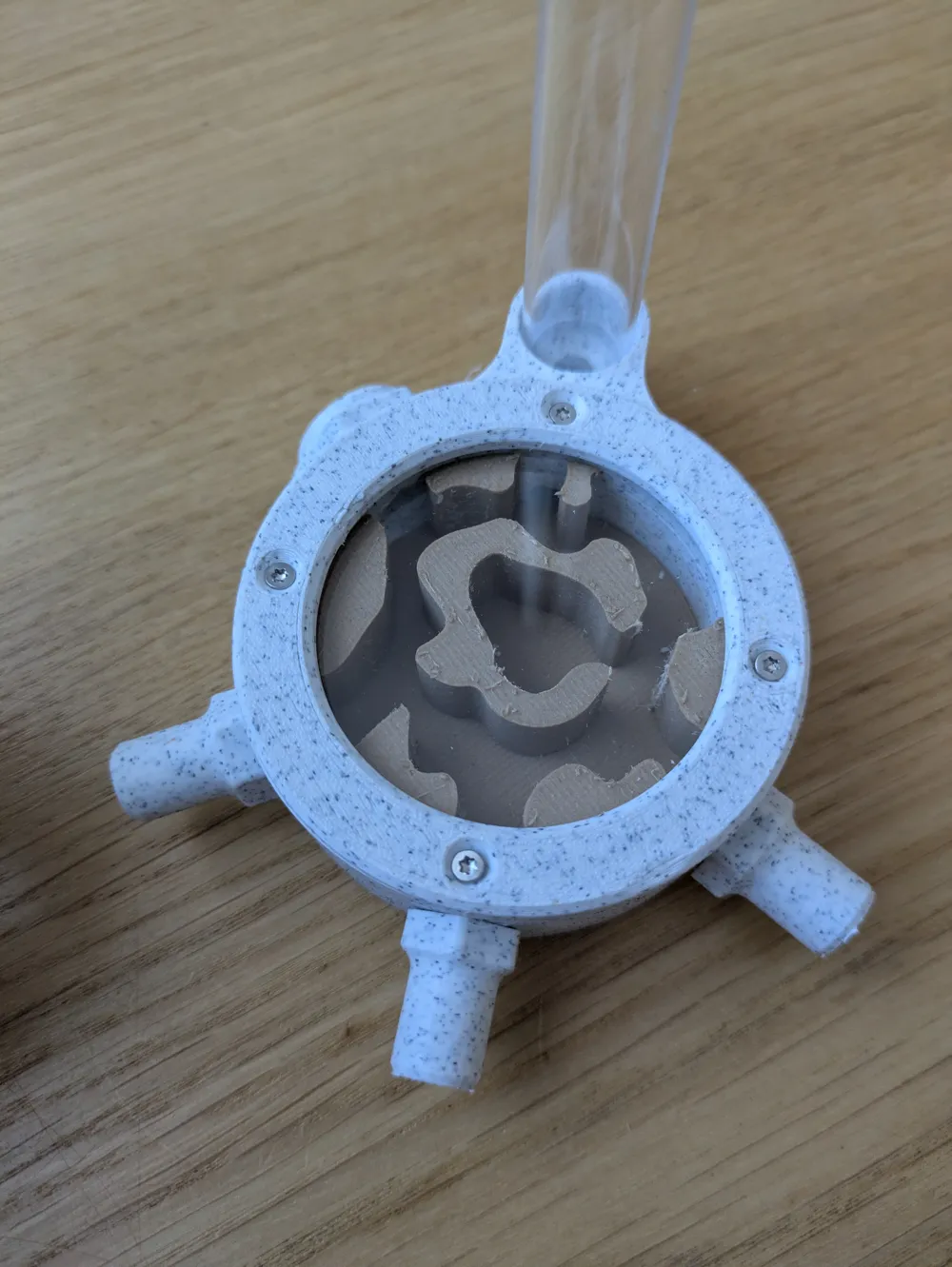

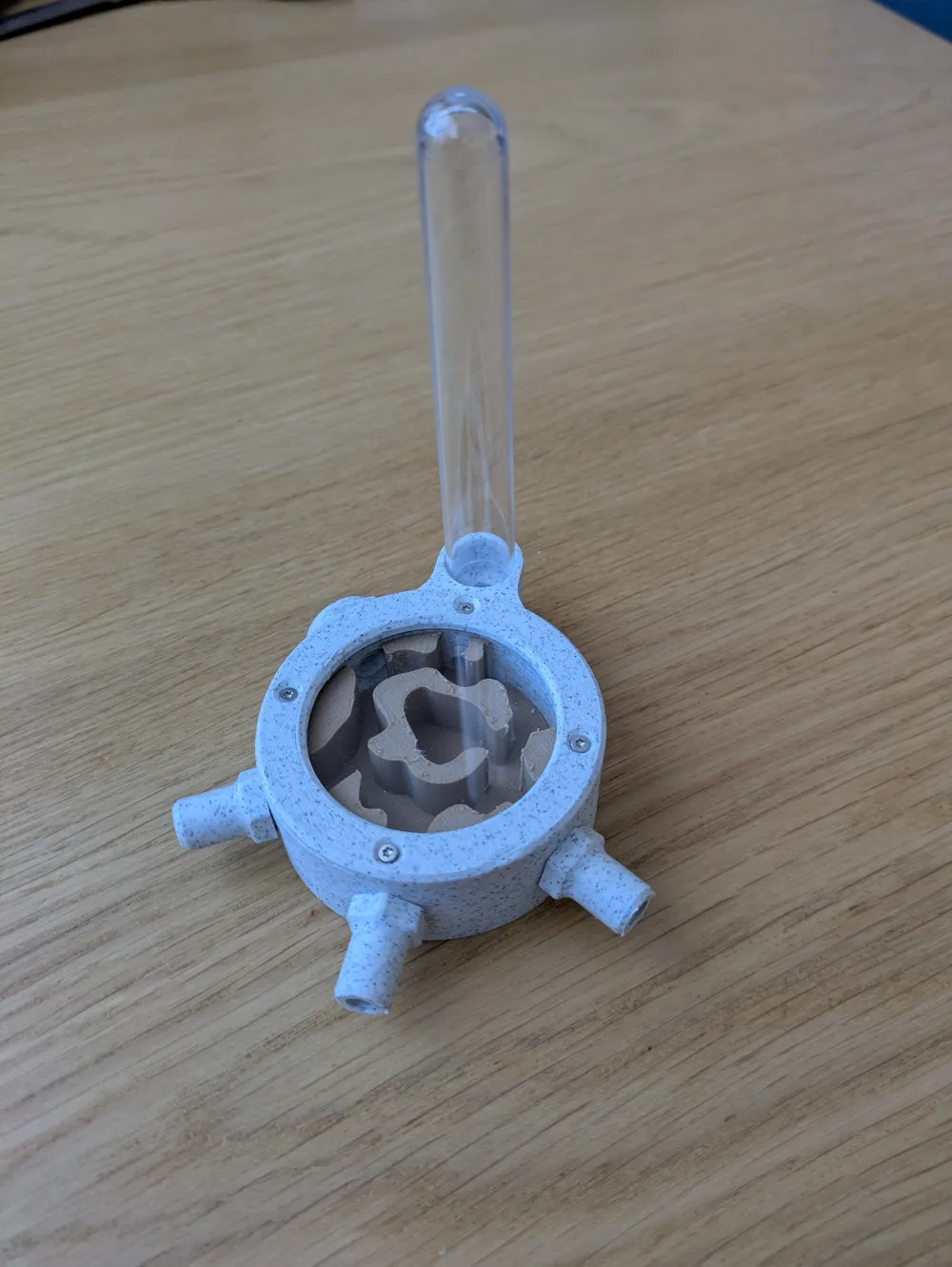

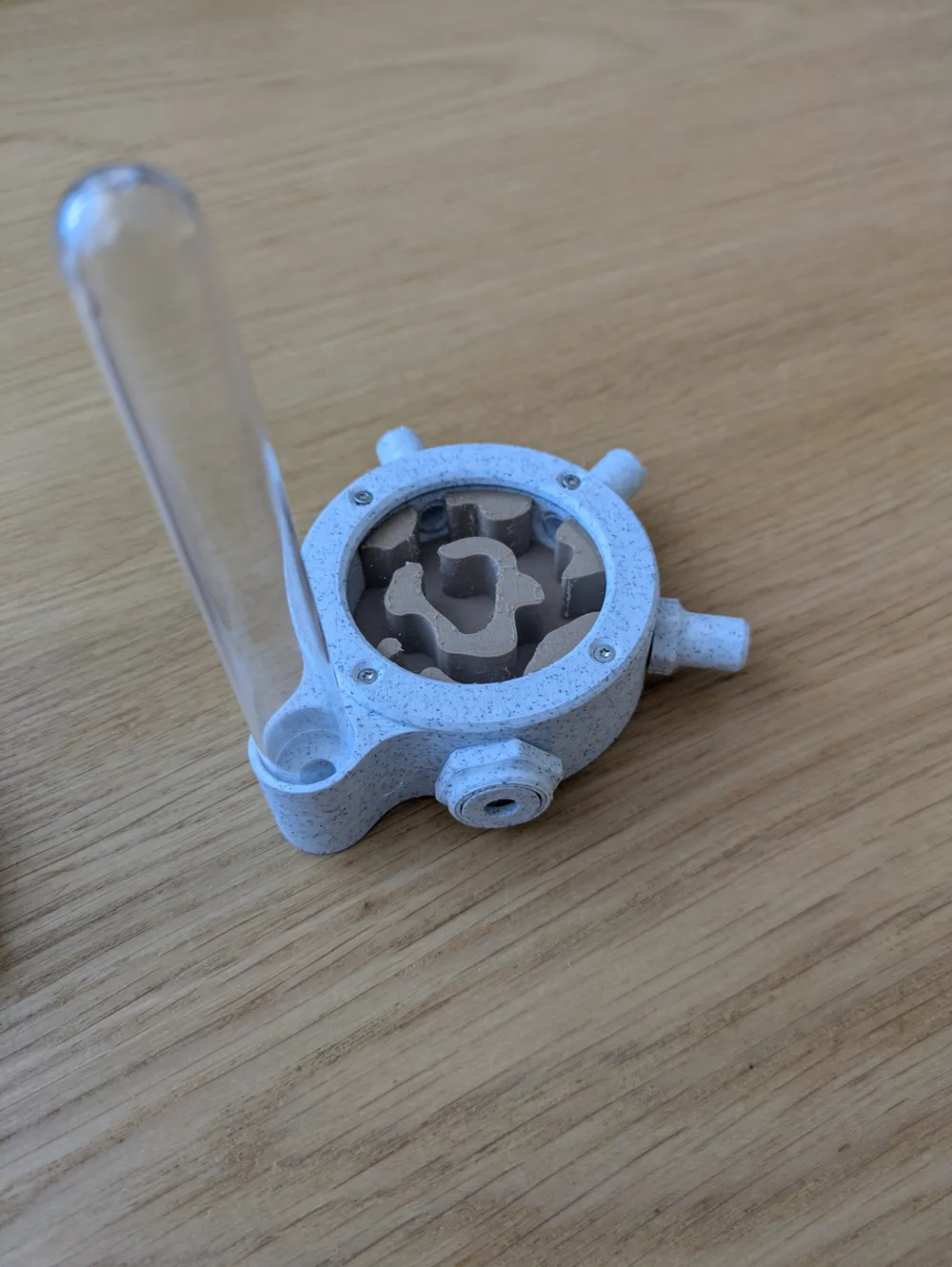

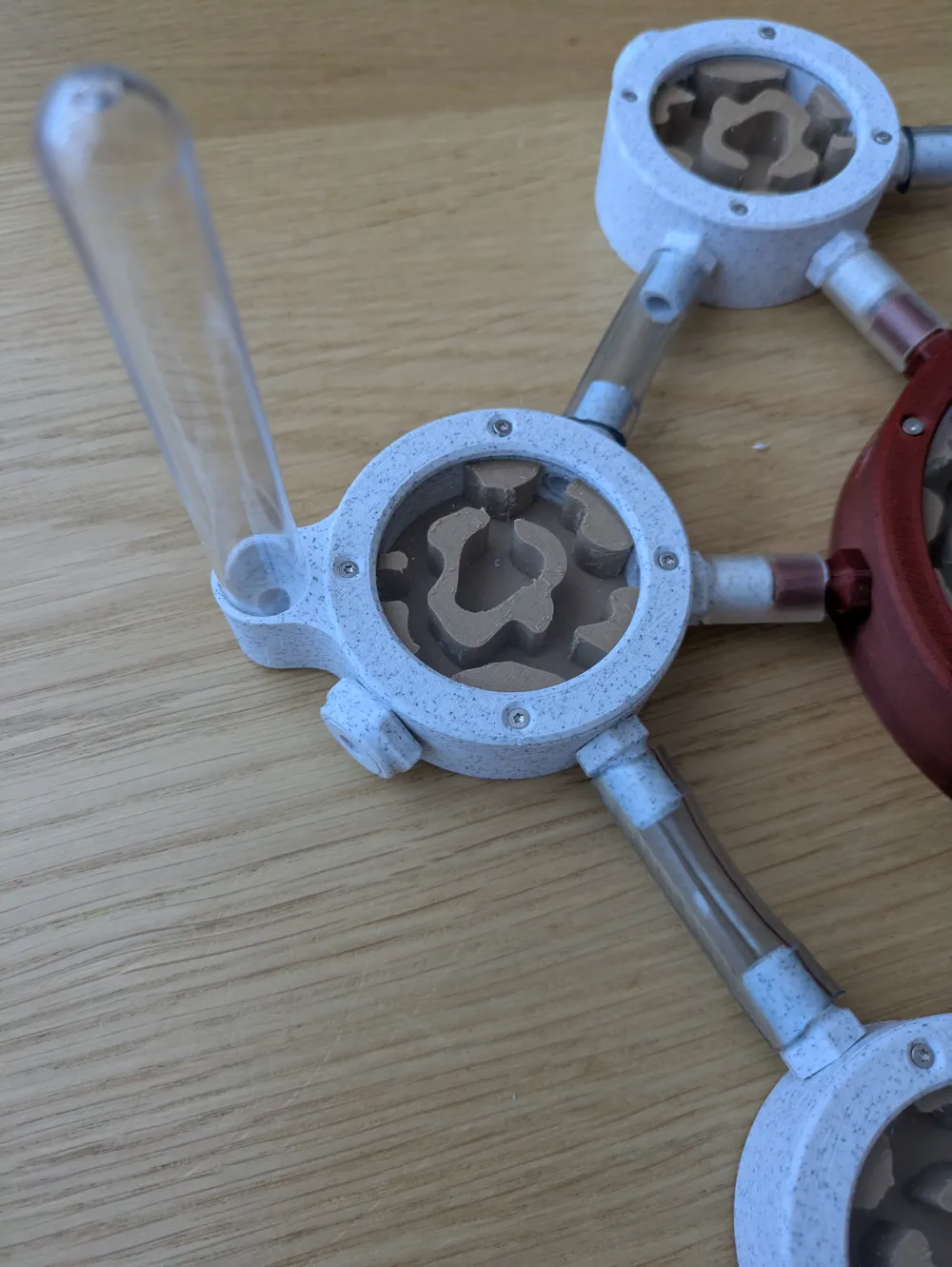

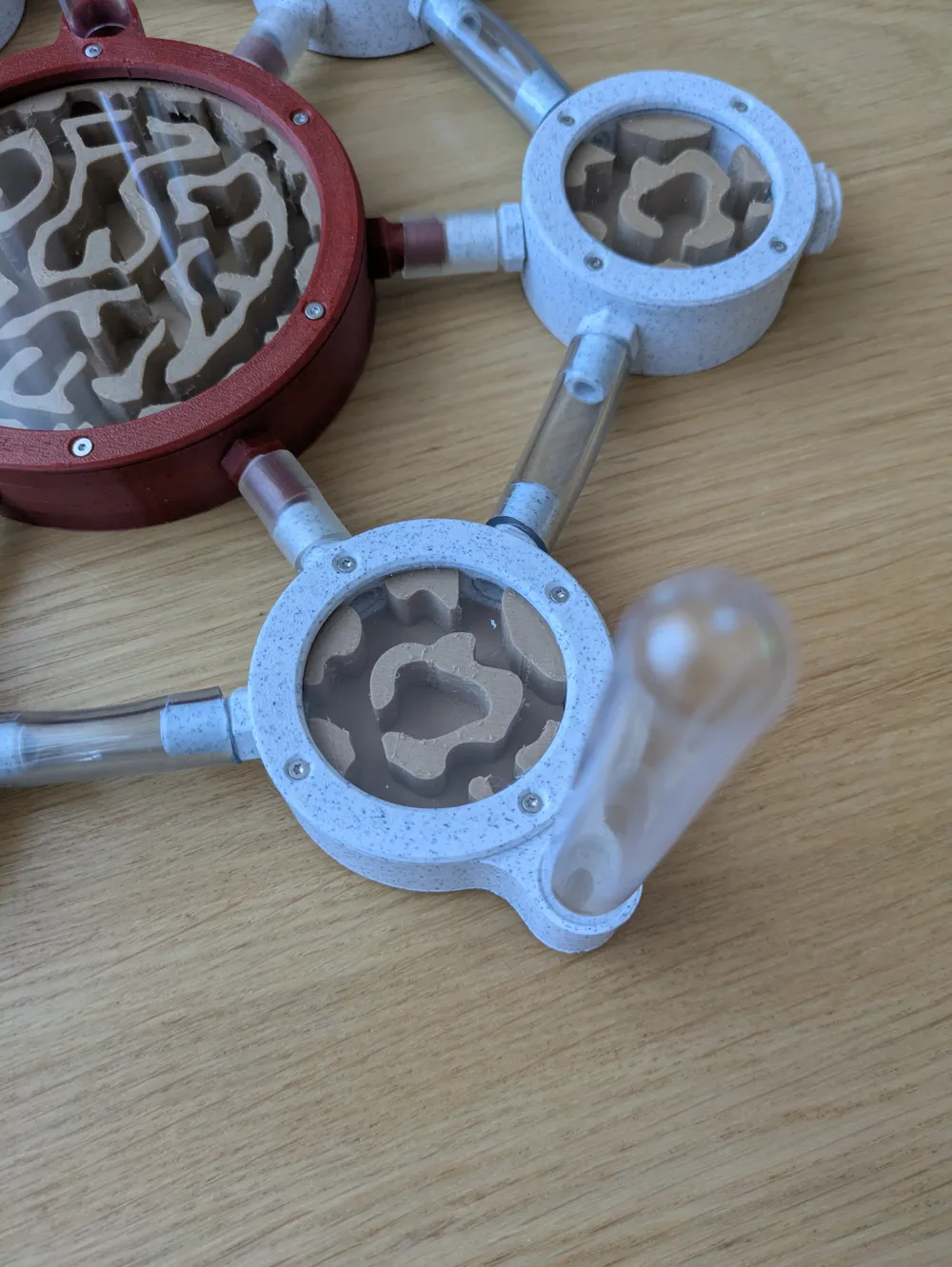

- Integrated 15mm Test Tube Openings: The outer modules feature dedicated slots perfectly sized for standard 15mm water test tubes. This makes hydration management completely stress-free – just plug in a fresh tube for a constant, reliable water source.

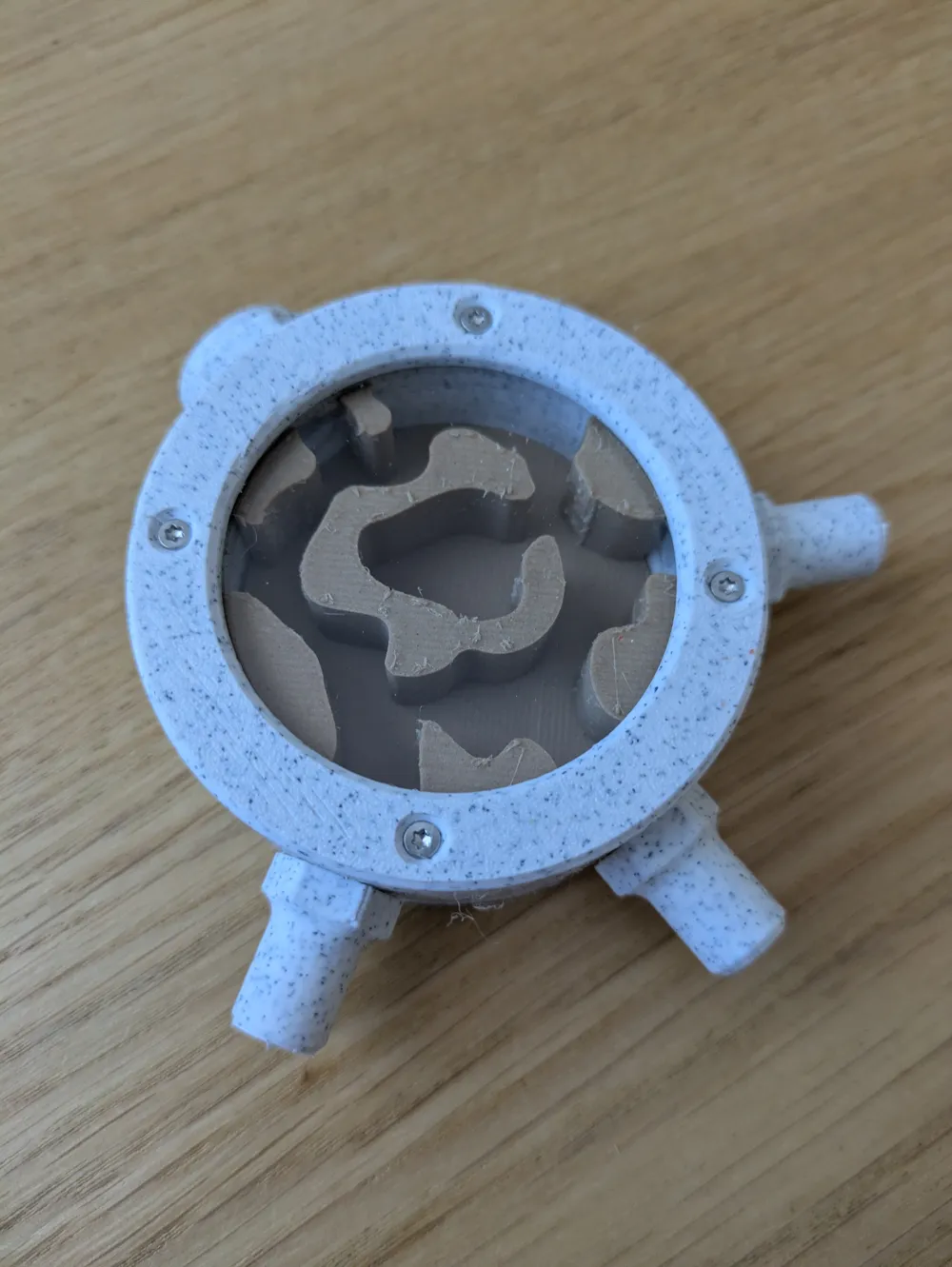

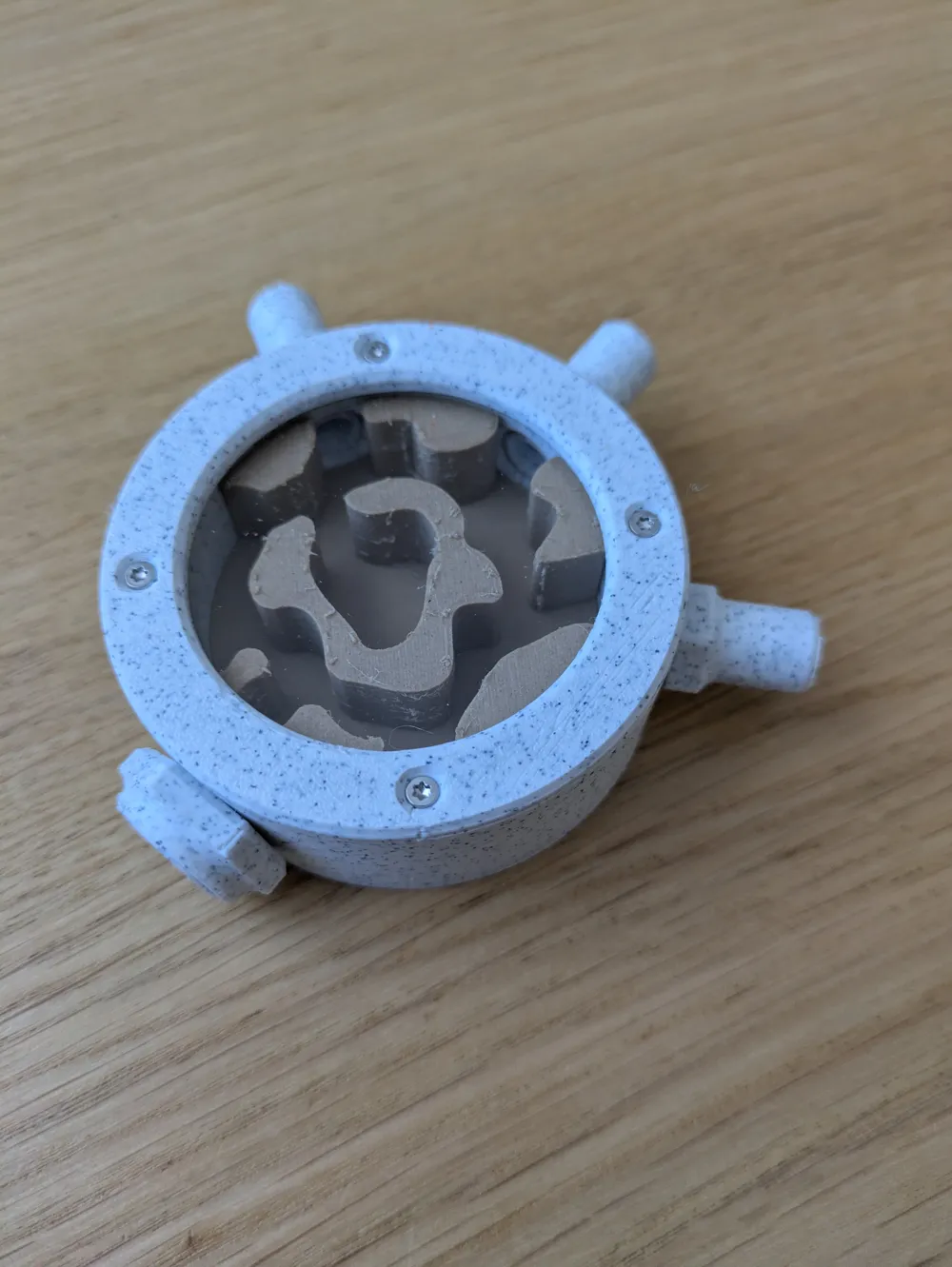

- Advanced Ventilation in Every Module: No more mold or stagnant air! Each individual nest chamber is equipped with built-in ventilation ports, ensuring optimal airflow and a healthy microclimate for your queen and her brood.
- The Perfect Showcase Piece: Designed to look stunning on any desk or shelf. Its geometric, sci-fi-inspired look will definitely catch everyone's eye on your Maker World profile.
Technical Specifications & Print Settings
- Materials Used: * Body & Frame: PLA Marble (for a natural stone look).
- Tunnels: PLA Wood (its porous texture is ideal for ant grip and brood placement)

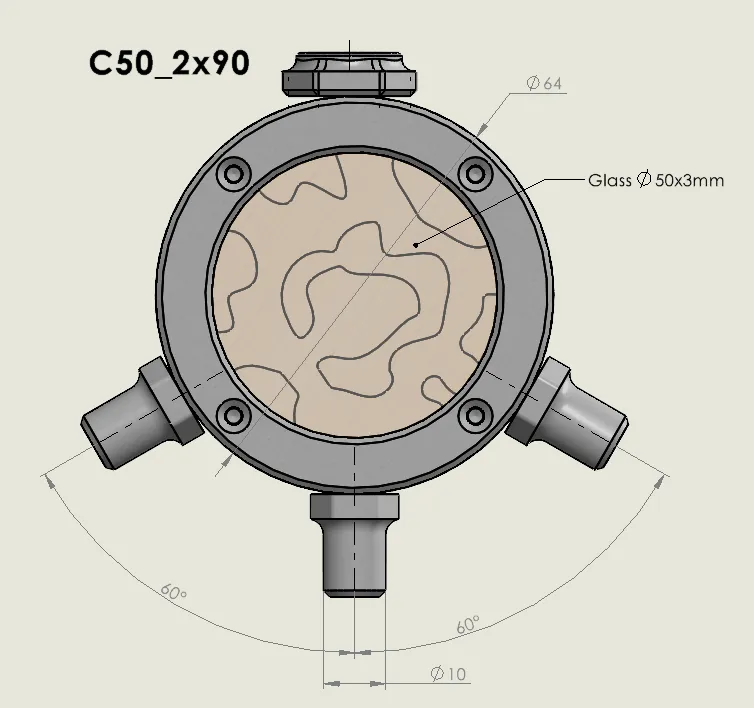

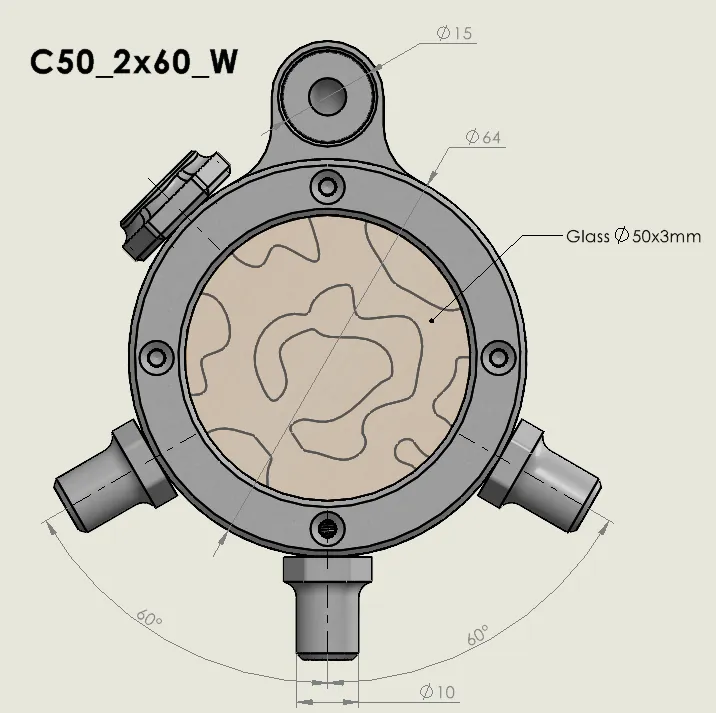

- Required Hardware (Non-printed) for C50_2x90_W, C50_2x60, C50_2x60_W
- 4x M2x6 Countersunk Screws.
- 4x M2 Brass Threaded Inserts.
- 50x3mm Glass or Acrylic Pane.
- 15 mm Diameter Test Tube.

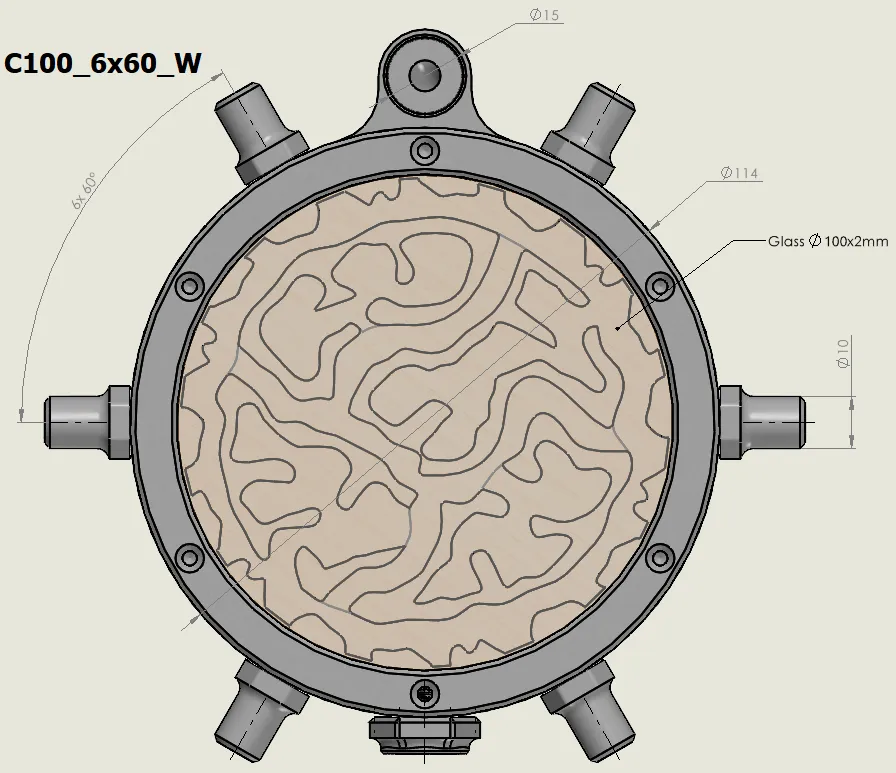

- Required Hardware (Non-printed) for C100_6x60_W
- 6x M2x6 Countersunk Screws.
- 6x M2 Brass Threaded Inserts.
- 100x2mm Glass or Acrylic Pane.
- 15 mm Diameter Test Tube.
Download, print, and watch your colony build their own empire! If you love the design, don't forget to Boost 🚀 and share your makes!
