Description

Content has been automatically translated.
Show original

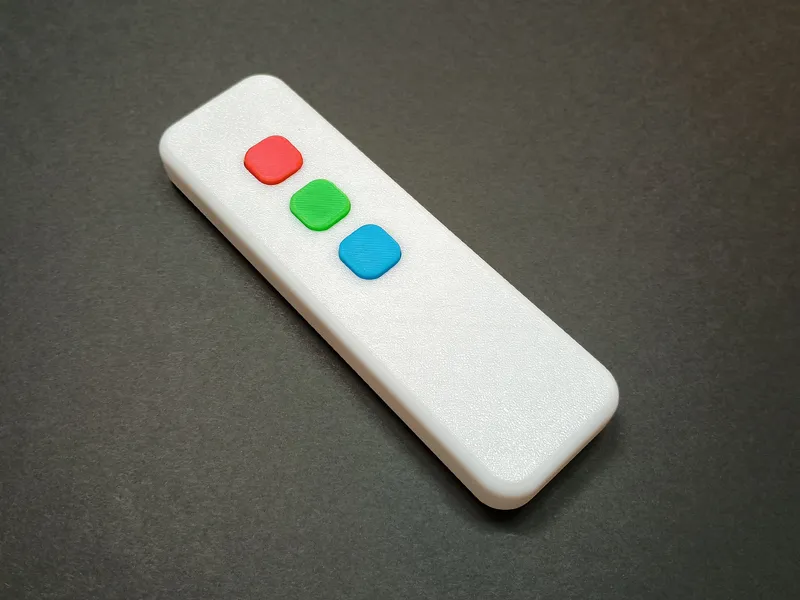

I created this for small children who like to touch the TV remote control

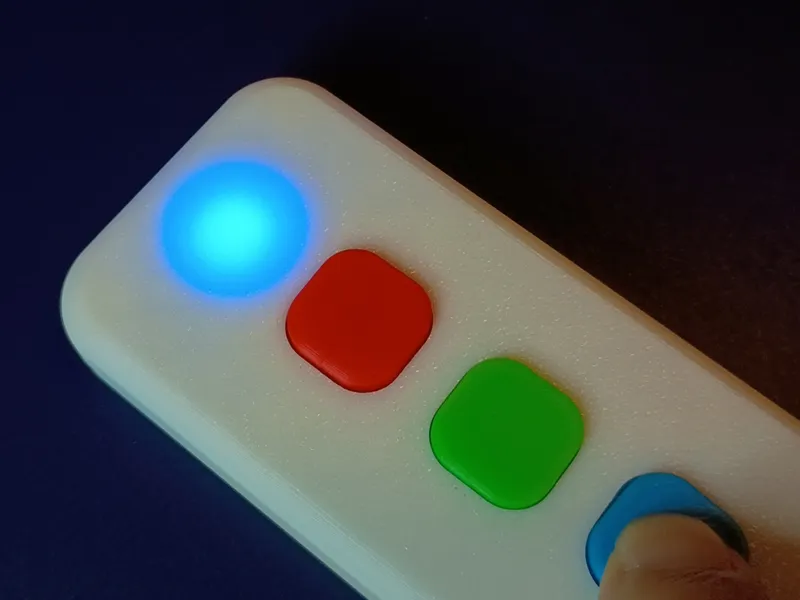

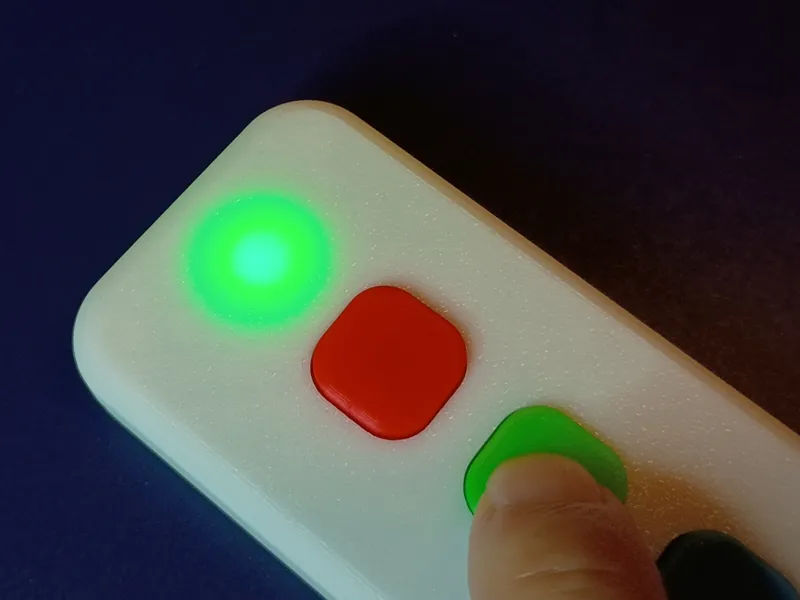

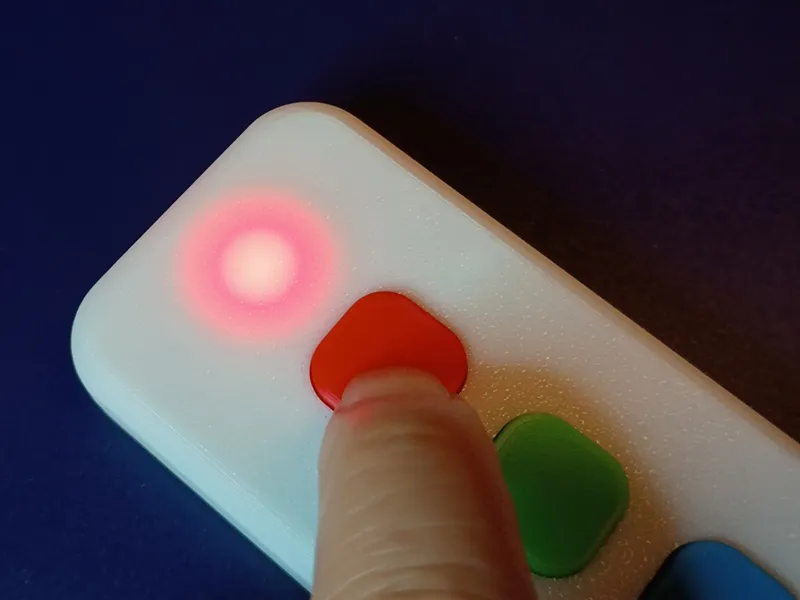

When you press the red button, it lights up red; when you press the green button, it lights up green; and when you press the blue button, it lights up blue



Pressing the red and green buttons simultaneously lights it up yellow; pressing the red and blue buttons simultaneously lights it up magenta; and pressing the green and blue buttons simultaneously lights it up cyan



And pressing all three buttons—red, green, and blue—simultaneously lights it up white

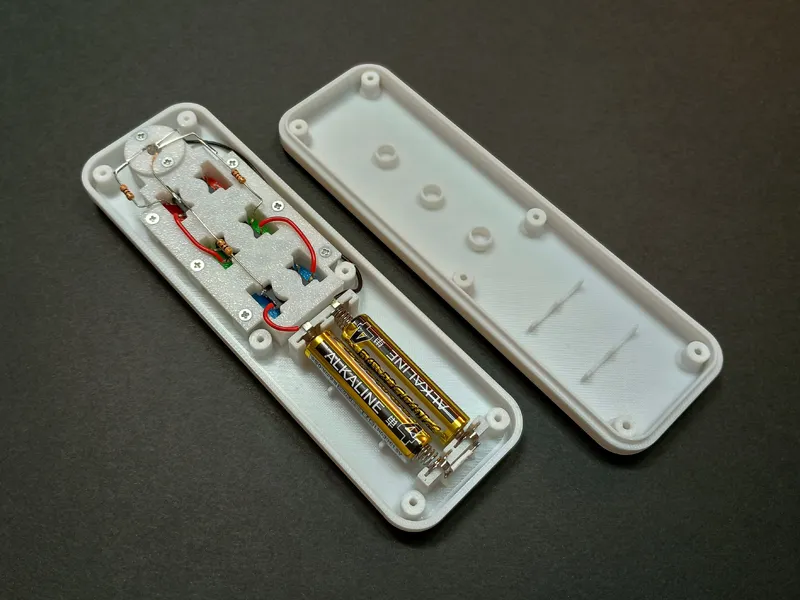

Soldering is required for assembly
