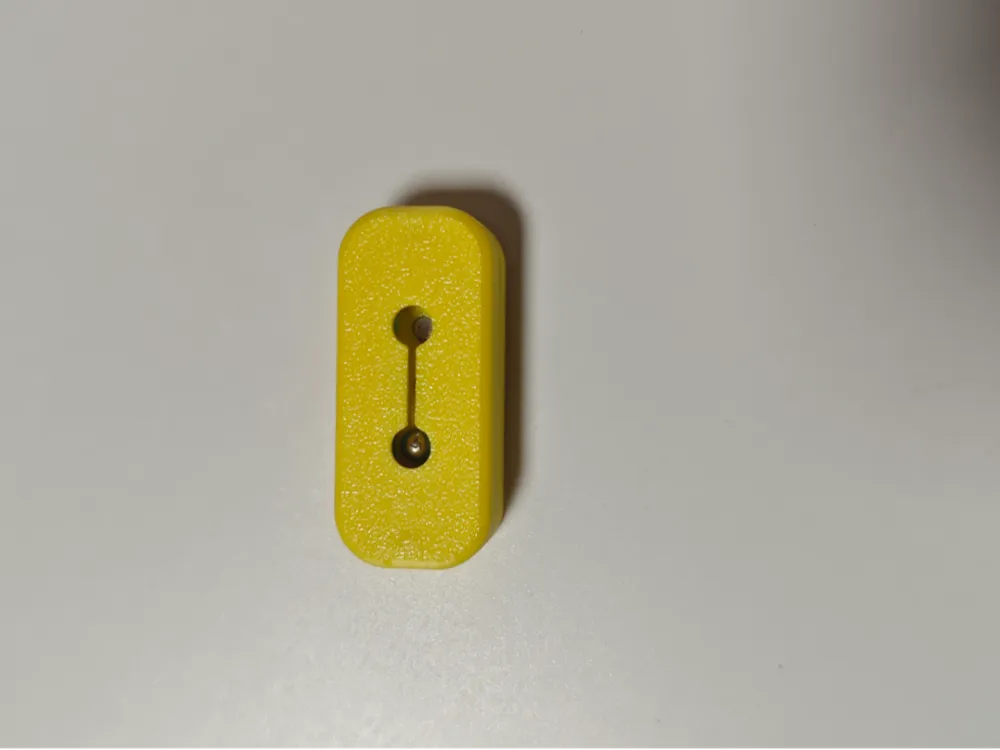

Fun Ding-Slider
Print Profile(1)
Description
A fun, compact slider with multiple tracks (high and low pitch, ultra-dense, rhythmic storage)
Requires 2*4 countersunk screws, 0.25/0.3*3*5 springs (match various materials as desired), and 2.778-3mm beads (choose material according to your preference and track requirements)
For Buckyball mode, 5mm Buckyballs are needed. The main body has three magnet holes: 3*3 on both sides and 3*1 in the middle (needs to be pushed all the way in). Three N52 magnets with like poles facing the same direction; just fit the diameter
There are two options for the cover plate; print one and delete the other. One option requires heat-set threaded inserts (stronger, prevents stripped threads from disassembly)
Heat-set threaded inserts: inner diameter 2mm, outer diameter 3mm, height 2mm
Installation steps: Place two springs and beads. Press the beads and springs, then insert them into the track piece. Cover with the cover plate and screw it on
