3D Printer Lamp
Print Profile(2)
Bill of Materials
Description

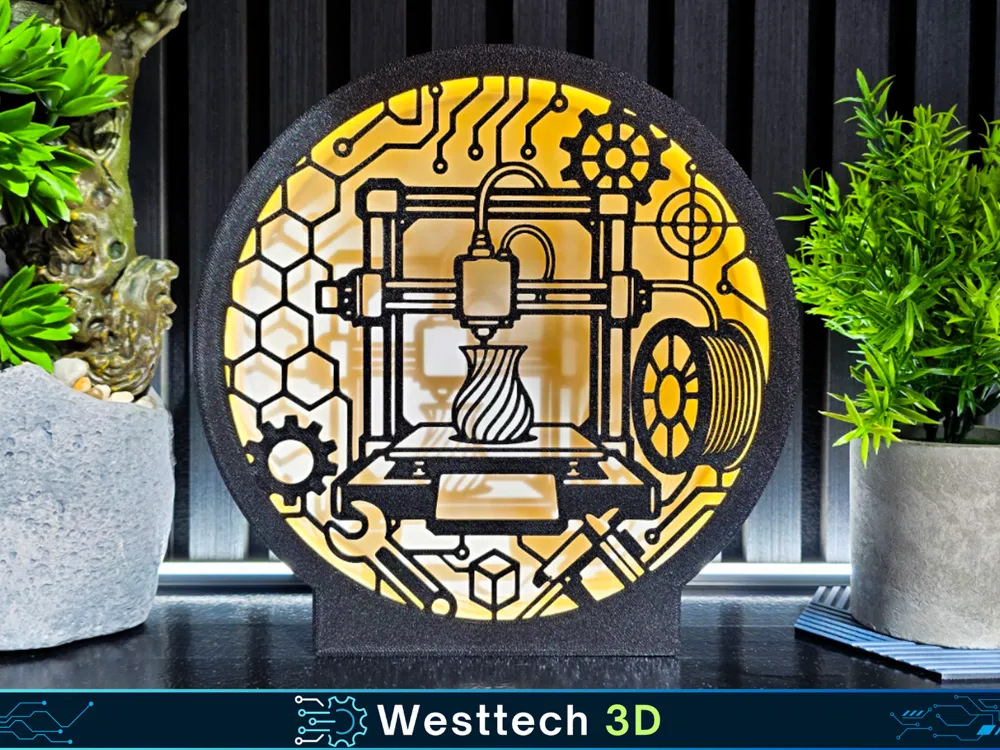

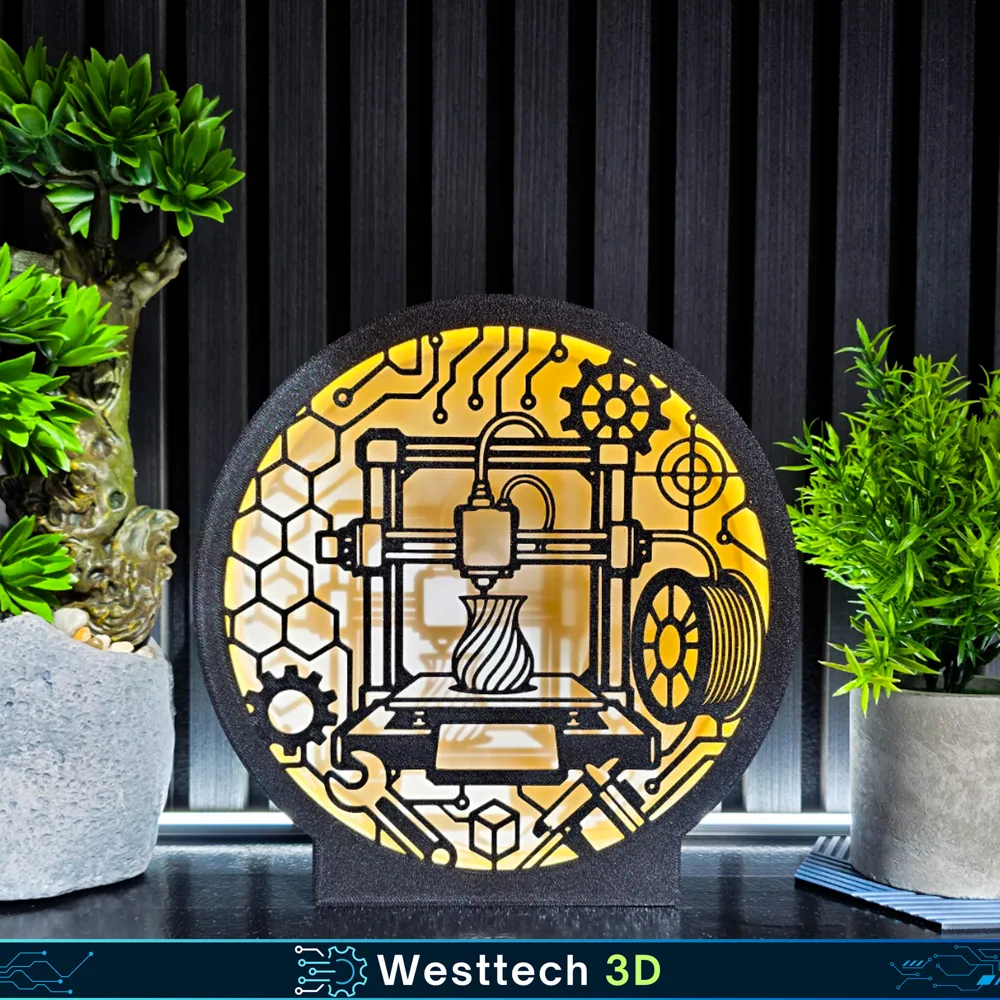

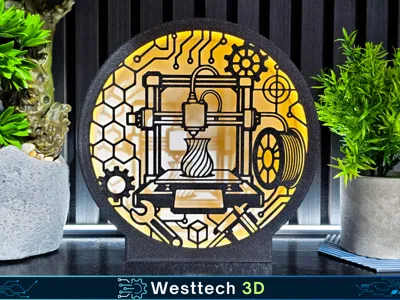

3D Printed Lamp – Stylish and easy to 3D print
Here you will find a stylish lamp that you can easily 3D print yourself – perfect for a cozy atmosphere at home.
Two versions are available:
🧷 Version 1 : Glued
🔩 Version 2 : Screwed
______________________________________
🛠️ Recommended Print Settings:
🔲 Main Part
- Optimal Layer Height: 0.16 mm for fine details
- Time-saving alternative: up to max. 0.20 mm
🪵 Back panel with diffuser
- Recommended: 0.20 mm
- Maximum: 0.24 mm
- This creates a particularly soft, pleasant light – ideal for a cozy atmosphere.
🔧 Details for the glued version

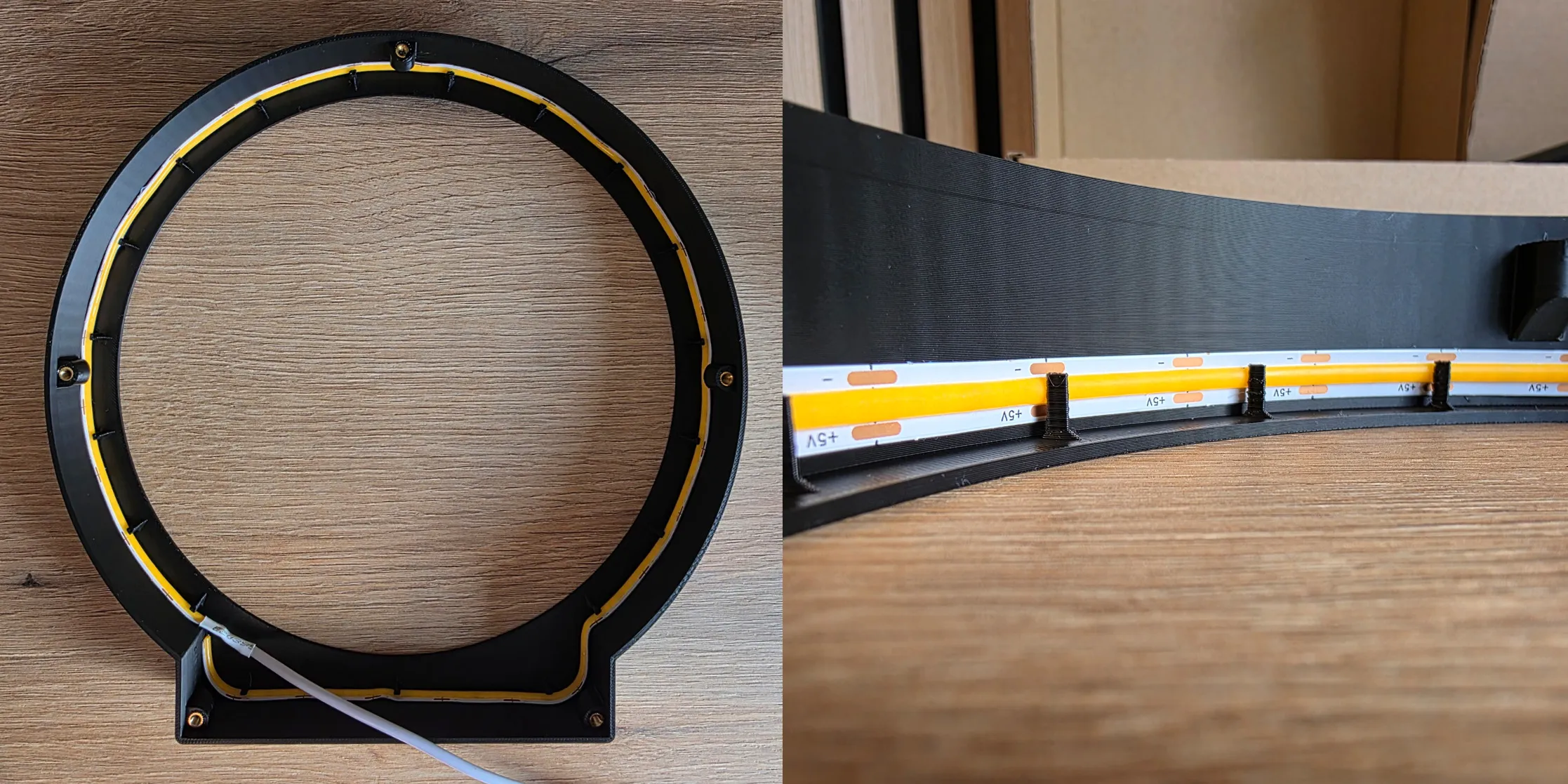

- LED Strips: Simply plug them in – thanks to the adhesive surface on the back, they usually hold well.
The printed support structure prevents the strips from detaching when heated (e.g., by COB LEDs). Recommended LED strip length: at least 74 cm
🔩 Details for the screwed version 🔩🪛
- Required accessories:

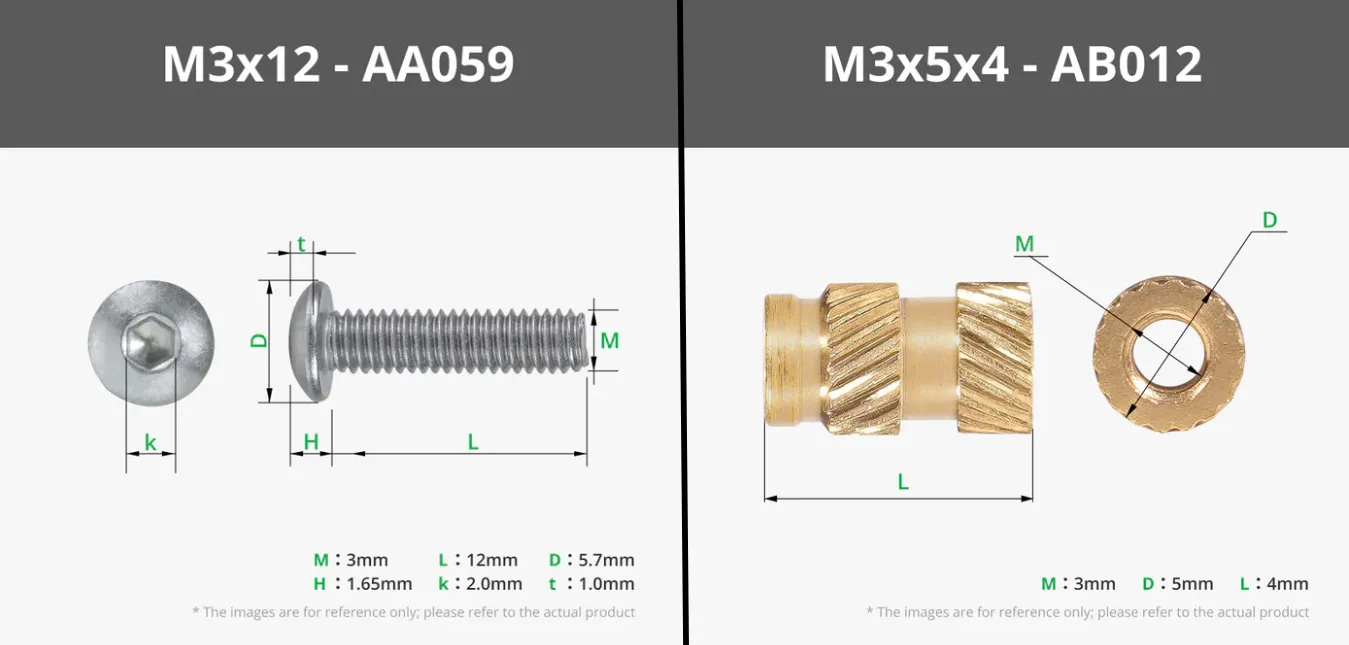

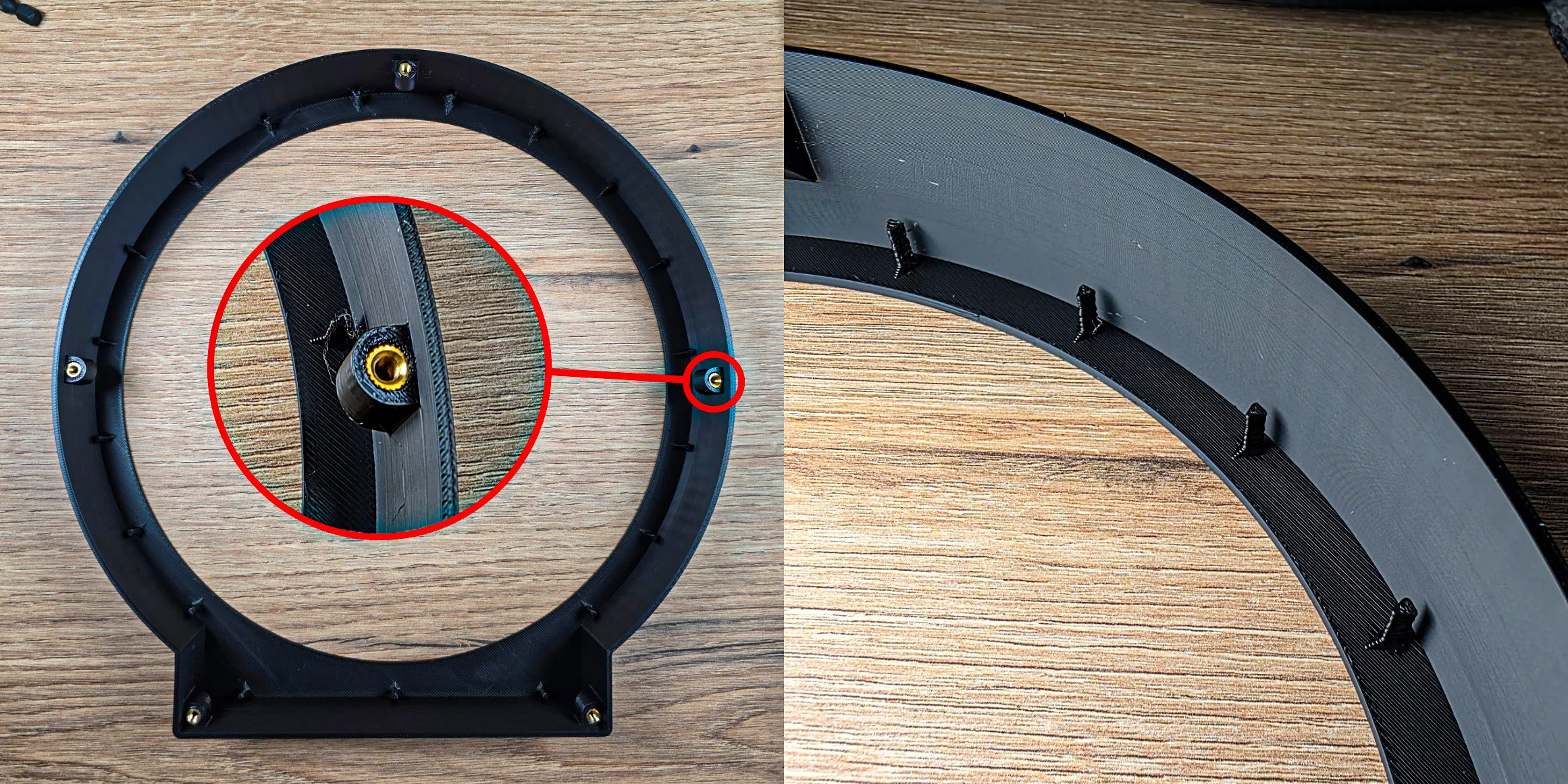

- 5x M3x6 heat-set threaded inserts
- 5x M3x12 screws

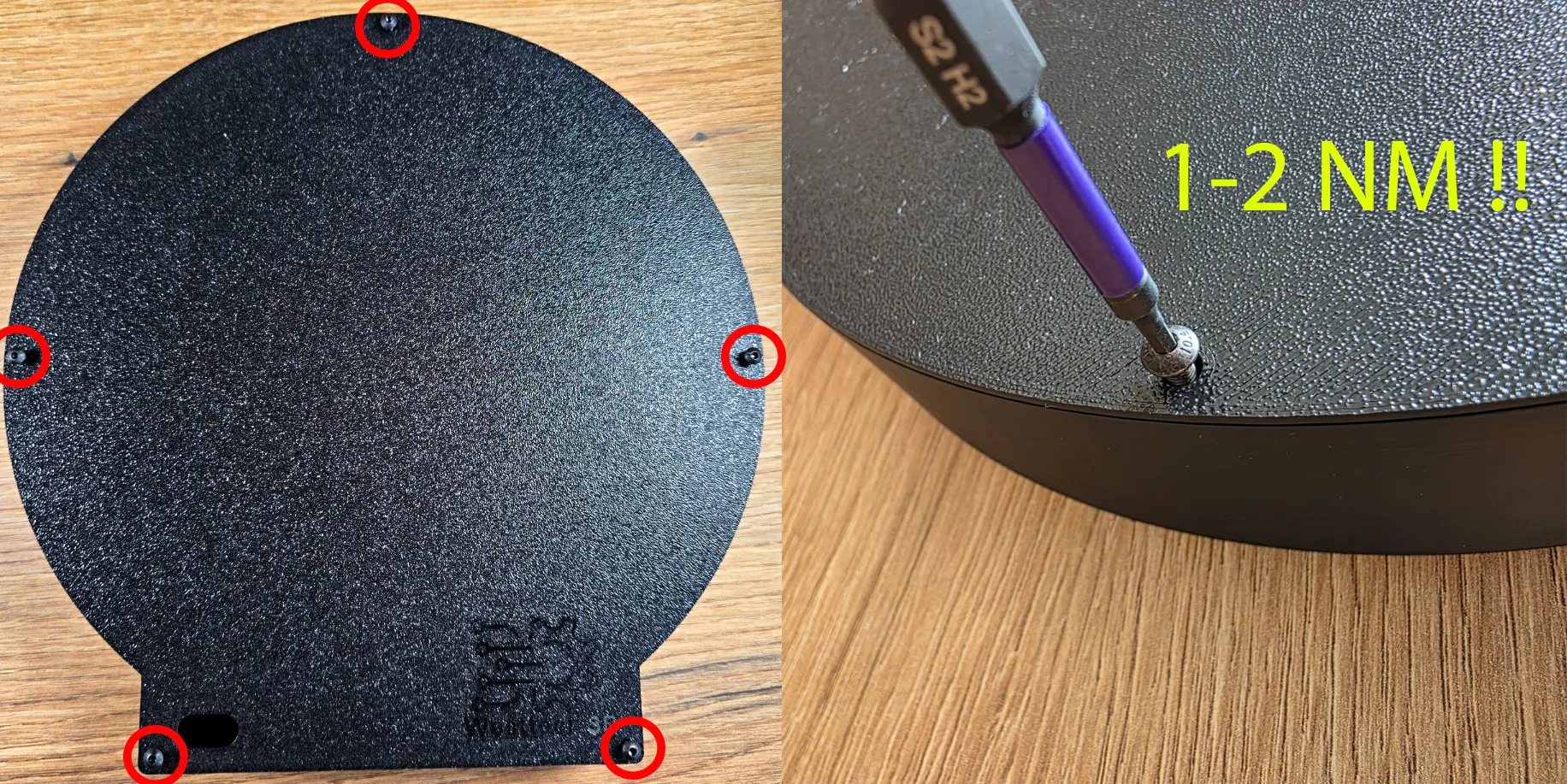

- 🔧 Tip: Please do not overtighten the screws to avoid damage.
I wish you much joy with printing and crafting! If you have questions or want to share your result, I look forward to your feedback!
Happy Printing!
