Snapmaker U1 LED Frame
IP Report
Print Profile(1)
0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill
Designer
17.6 h
4 plates
Open in Bambu Studio
Boost
36
62
29
3
40
14
Released
Description

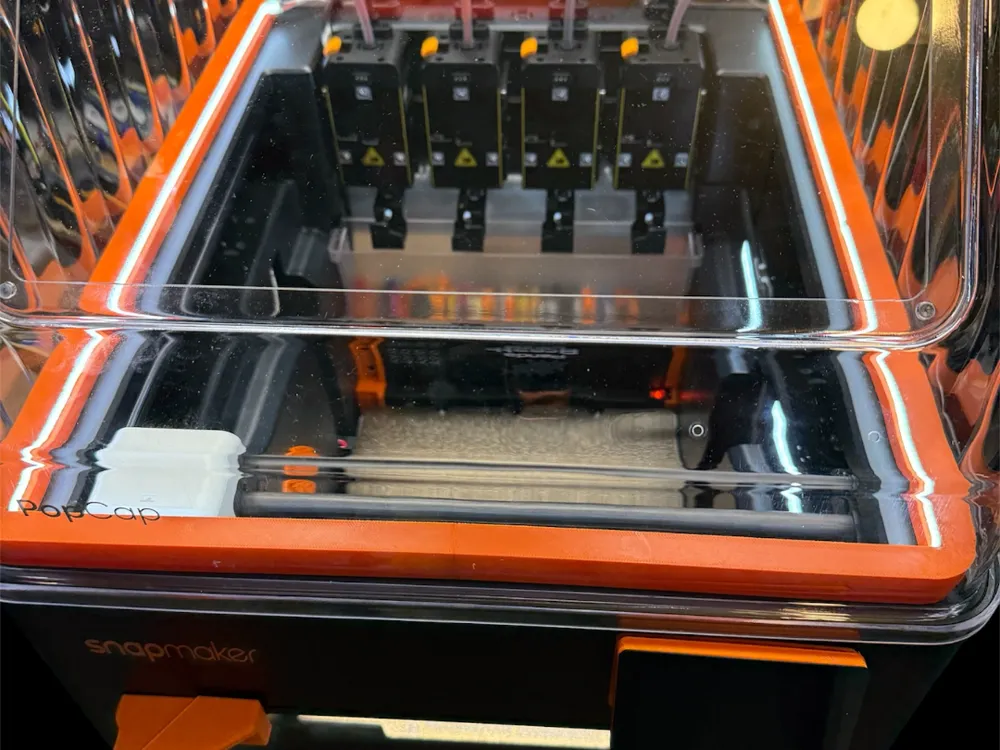

This frame covers the two sides and the front of the U1 and fits in there nicely with the Biqu Popcap. I used these LED from Amazon (https://www.amazon.com/dp/B0B1J57XS9?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1) and this was printed with ASA due to the internal heat. The LED can be connected to the USB but I added the Panda Pwr from Biqu. These have snaps to join but CA glue might be needed.
Added STLs. I added the STL for a frame with 7x7x22 cutout and 6.9x6.9x20 plugs. Dovetails didn't print well with this and this may be easier than the original connecters as you can modify to plugs to fit based on your printers tolerances.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
