Marble Lifting Machine components
IP Report
Print Profile(1)
Single or multi colour, 0.2mm layer height, fun to play with
Designer
2.6 h
1 plate
Open in Bambu Studio
Boost
2
4
0
0
3
2
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- NEMA 17 stepper motor x 1:
Description

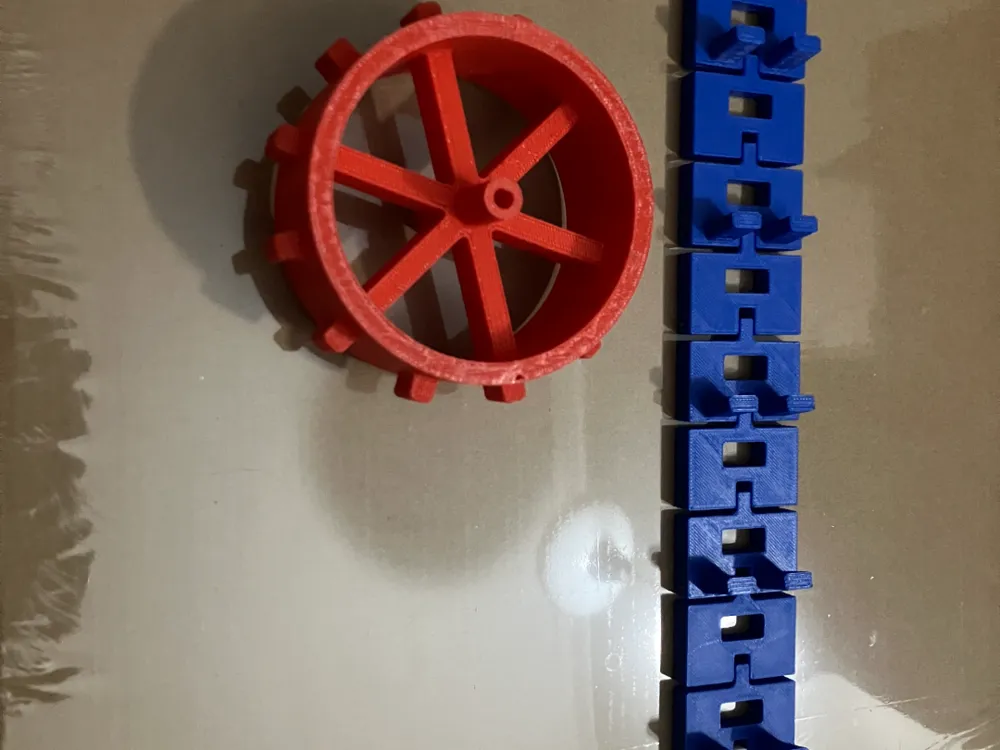

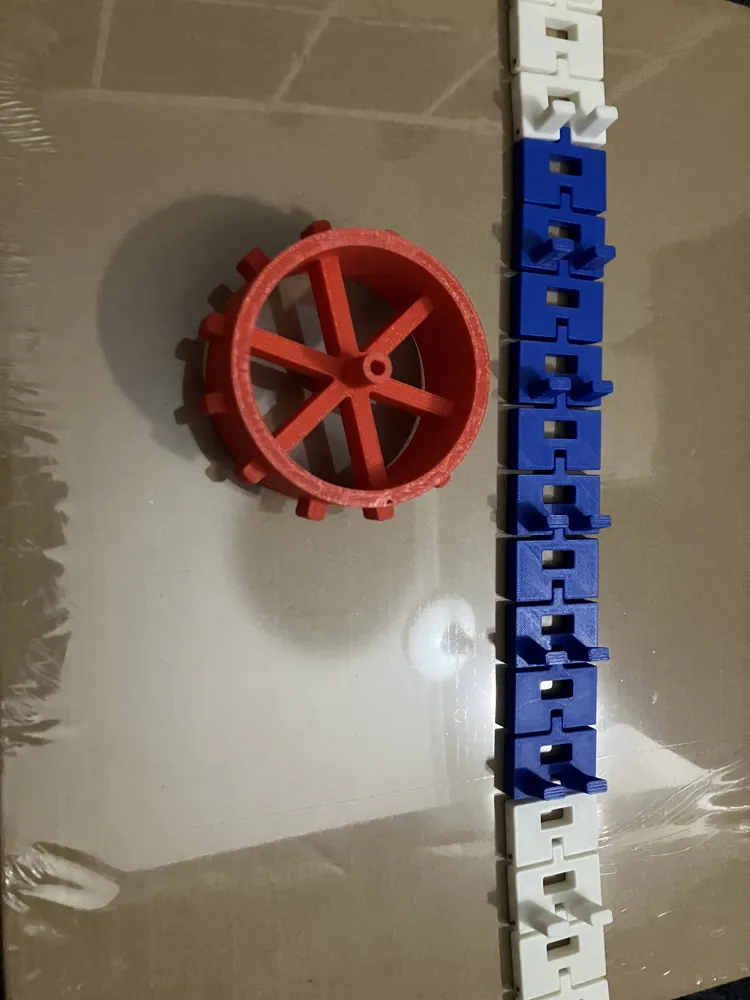

The 3D printed components required for a conveyor lift, only component required is an NEMA-17 stepper motor. If using stepper motor you will need a DC power supply so I have linked one, as well as 12mm diameter steel balls and 14mm plastic balls which can be used as marbles. I have also linked the filament colours which I think work best. You can 3D print a component to join the pieces, the connecting diameter is 1.7mm. The marble size must be greater than or equal to 12mm for it to work properly.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
