Welcome... The TinyTinToy!

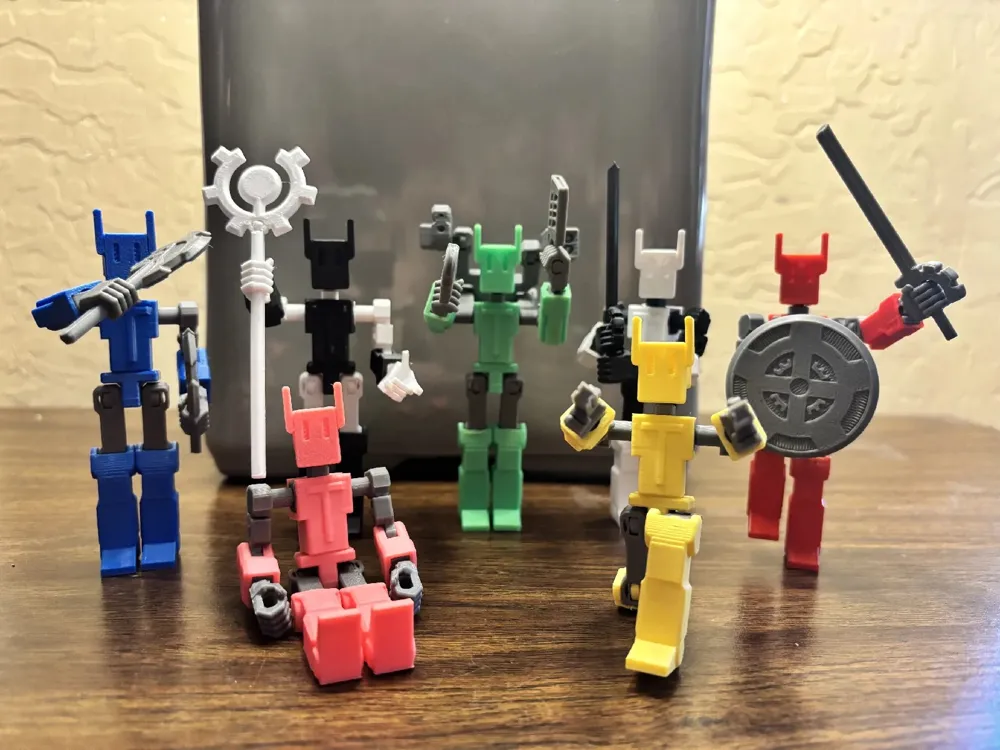

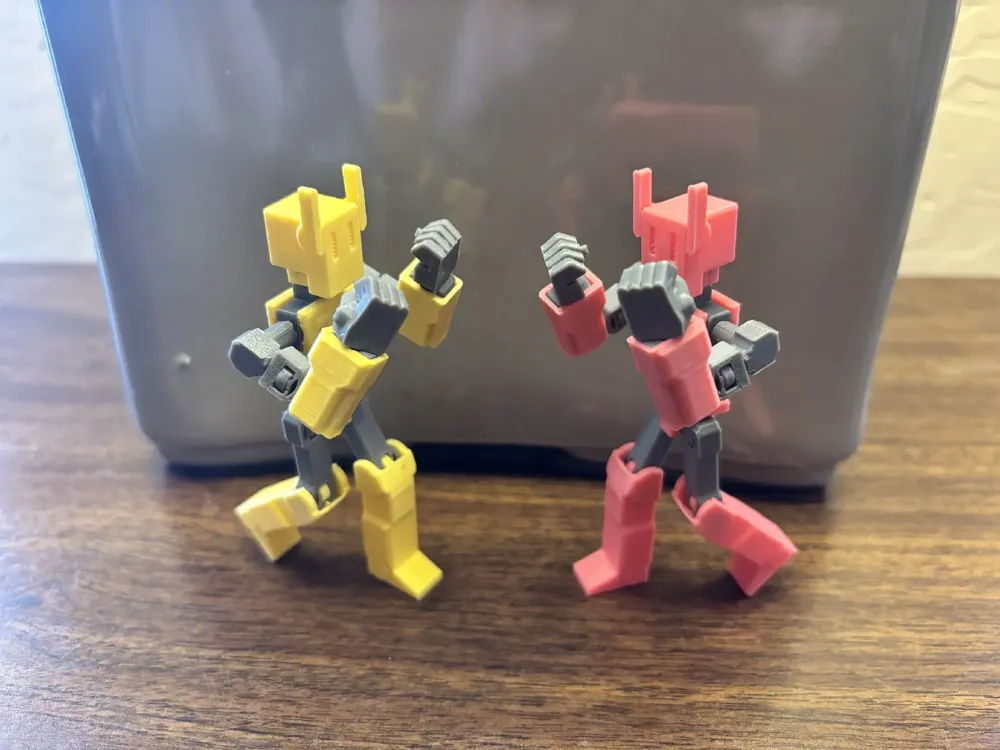

TinyTinToy is my attempt at a small action figure that will be sturdier than other 3D-printed toys. Although the more sturdy, the trade-off was more articulation. I think anyone would still have fun playing with these and the accessories. I was inspired by @soozafone's "MINI 13 Printable Jointed Figure."

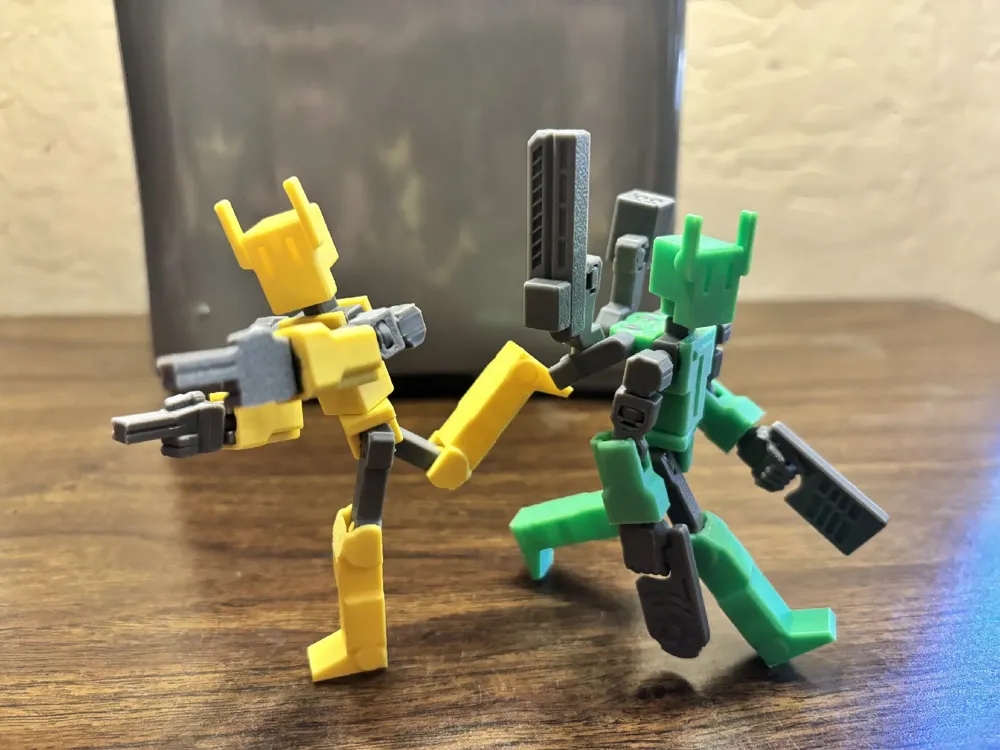

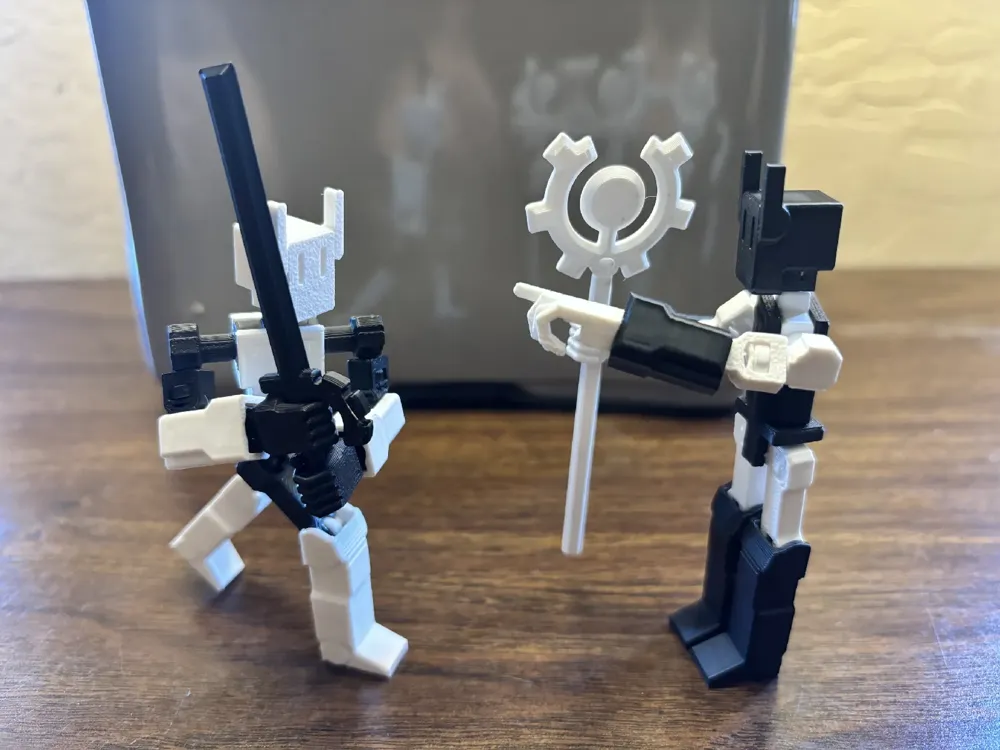

With a snap-fit frame, a fun armor set, and most importantly, WEAPONS! I have provided all the files so that you'll be able to get started and have some fun!

Printing

The first few files provided are bundles of all the parts needed for the armor, frame, and weapons. If any print does not go well, then the individual parts are also provided.

I have not made this with any material other than normal PLA and Silk PLA (I will see if any other material can be better, will update if there is)

I use the default settings for BambuStudio:

Nozzle of 0.4mm at 100% scale
0.16mm Optimal @BBL A1M
NO support needed
NO brim needed

Settings can be changed to suit whatever printer you have.

Assembly

Video:

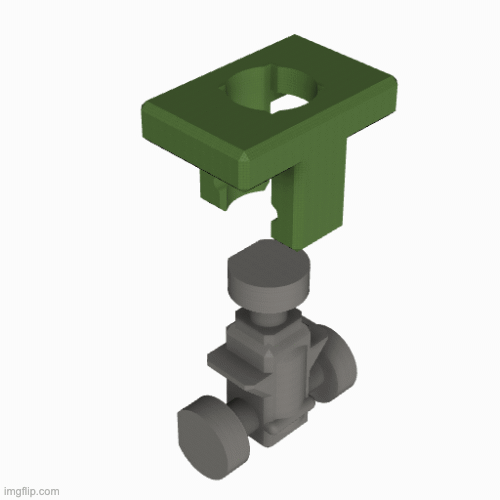

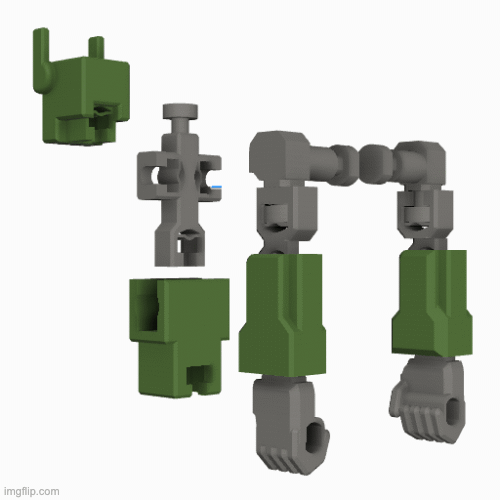

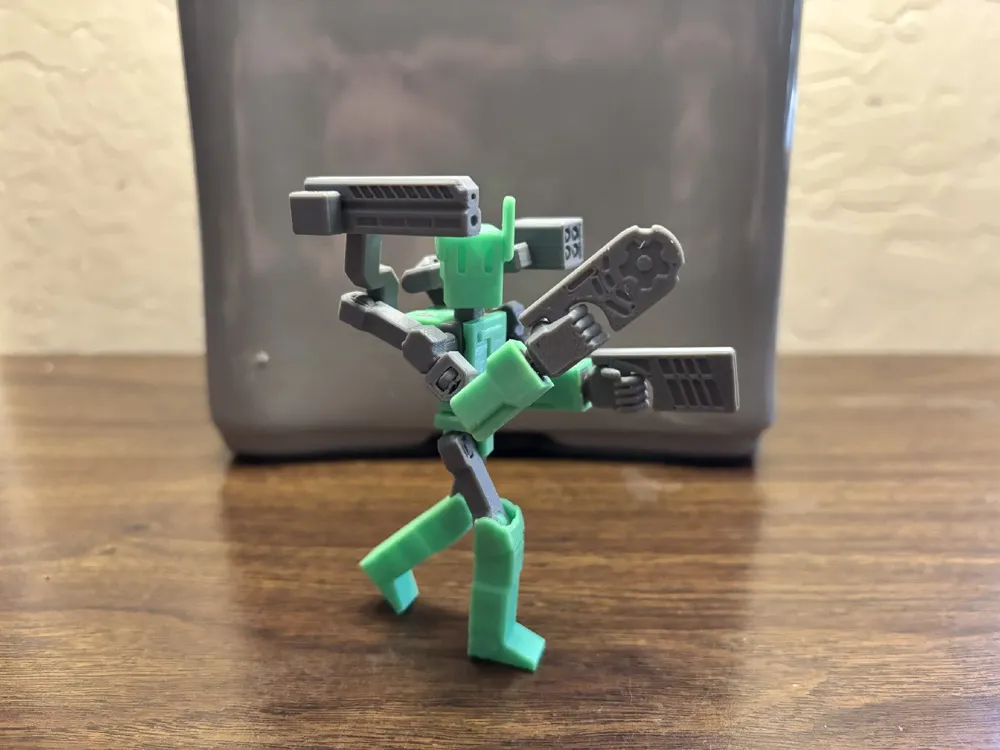

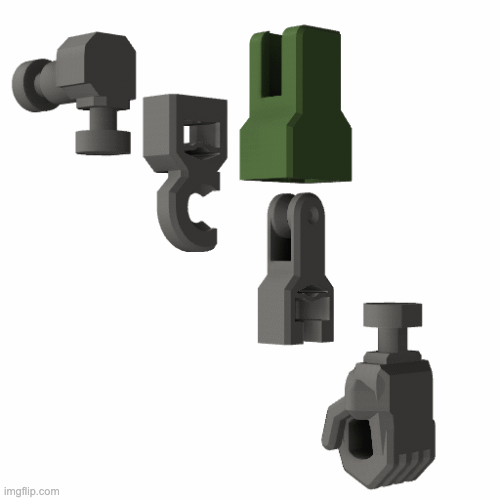

Below here will be the guide to build your very Own TinyTinToy! Also provided is a guide to make the Shoulder Mounted Guns (or SMG for short).

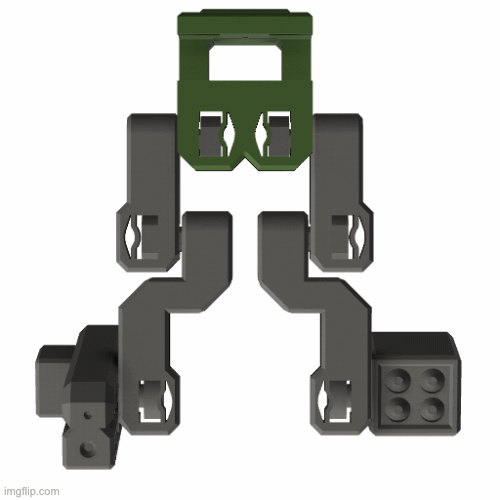

Here is the Alternate Body Armor to make the SMG.

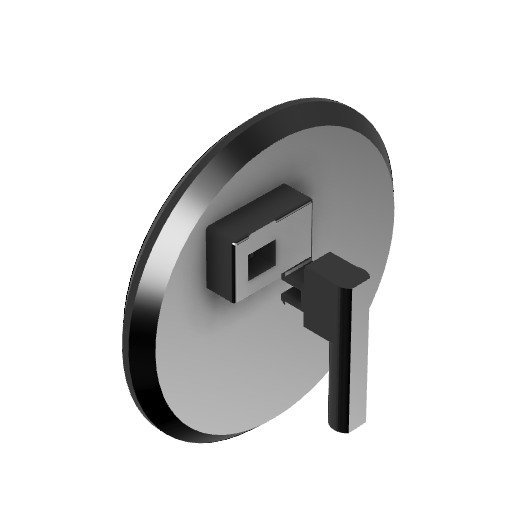

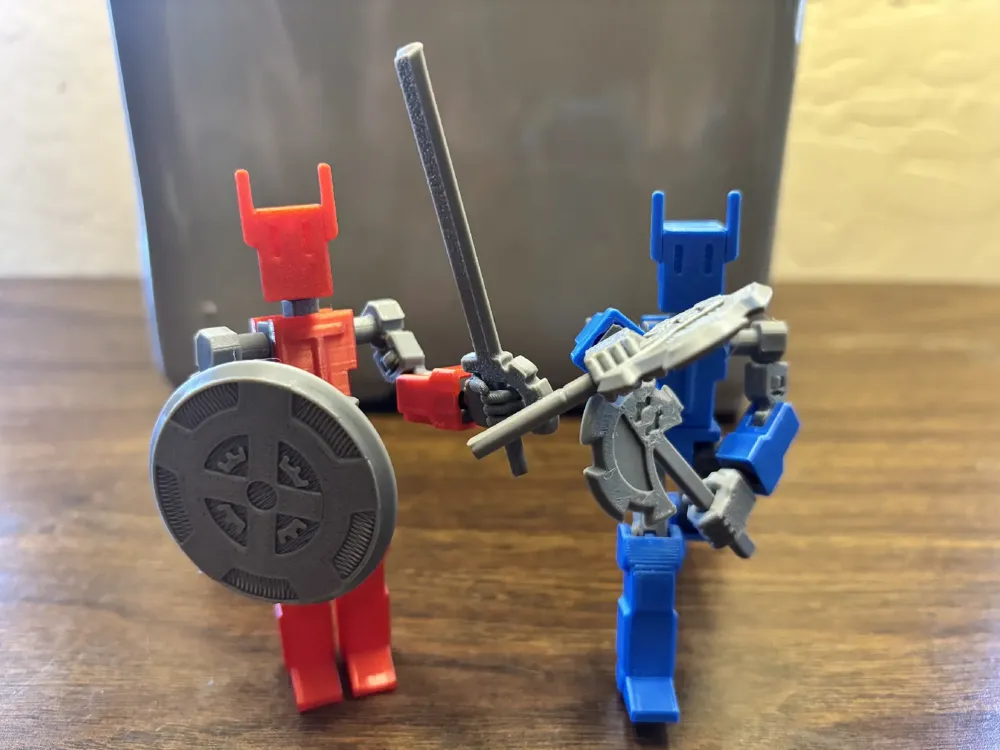

Here is how to make the shield. I finally made one where I don't need to worry about the handle permanently breaking off or the shield itself.

Customizing

I used the same measurements for the handles of the "MINI 13 Printable Jointed Figure." So if you have one, then handheld accessories will work on it! Also, it would be cool to see remixes for these. I made sure the armor wouldn't be too complicated to remix.

Tips

When printing the hands that hold accessories, sometimes they can be stuck, and to fix this, it is necessary to get a handle from a printed accessory (like the sword) and push through the bottom end of the hand.
