Parametric Handle

Description

Create fully customizable furniture handles with this advanced parametric OpenSCAD handle generator. Designed for makers, designers, and 3D printing enthusiasts, this system allows you to generate a huge variety of modern handle styles from a single highly configurable model.

From clean minimalist cabinet pulls to ergonomic textured grips and artistic twisted designs, every aspect of the model can be adjusted directly inside MakerWorld’s customizer.

This is not just a single handle model — it is a complete procedural handle system.

Included Handle Styles

• Rectangular
• Rounded Rectangle
• Oval
• Capsule
• Superellipse
• Chamfered Rectangle
• Domed End Variants
• Grip Groove Variants
• Twisted Handles

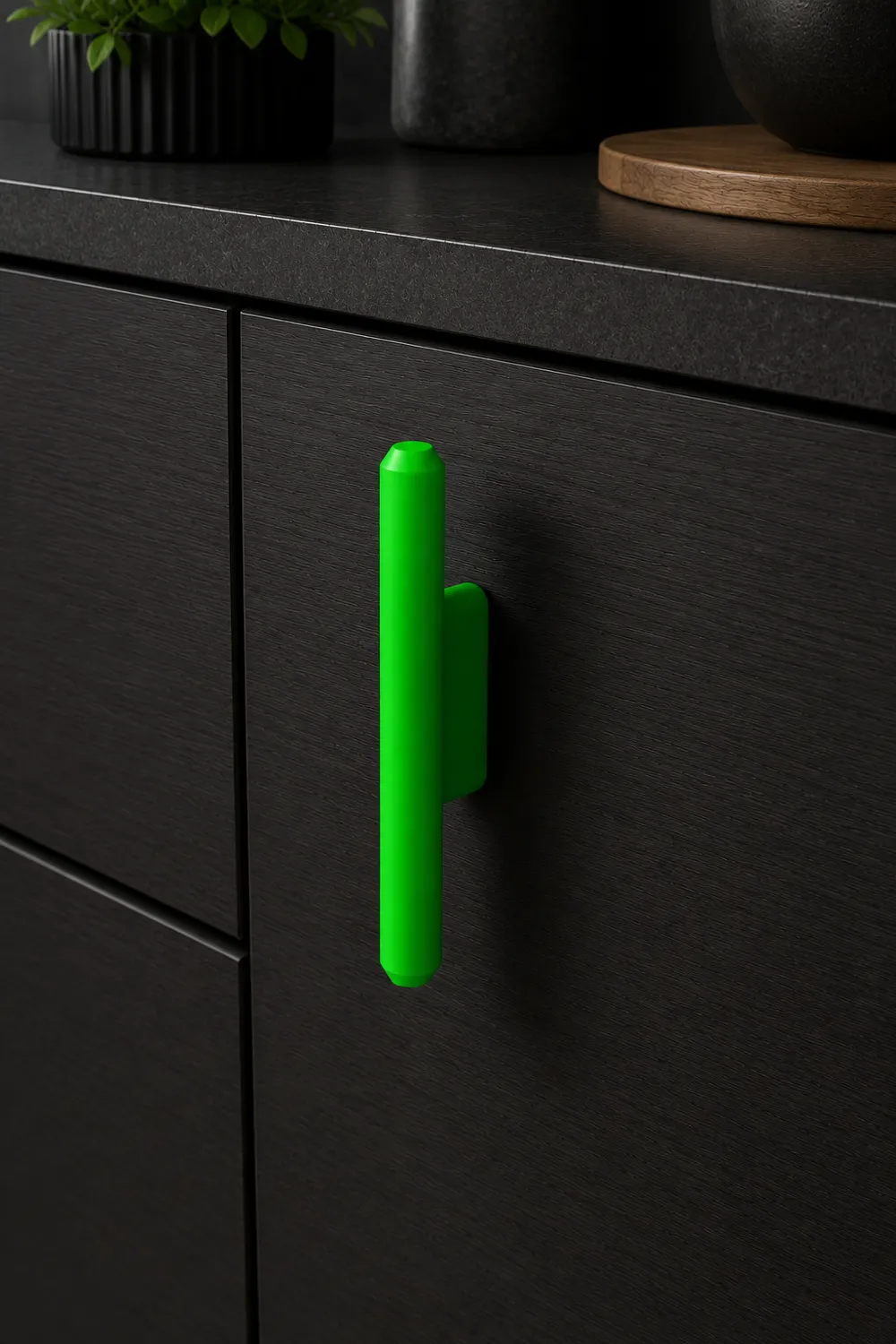

• T-Bar Pulls
• Knob Variants

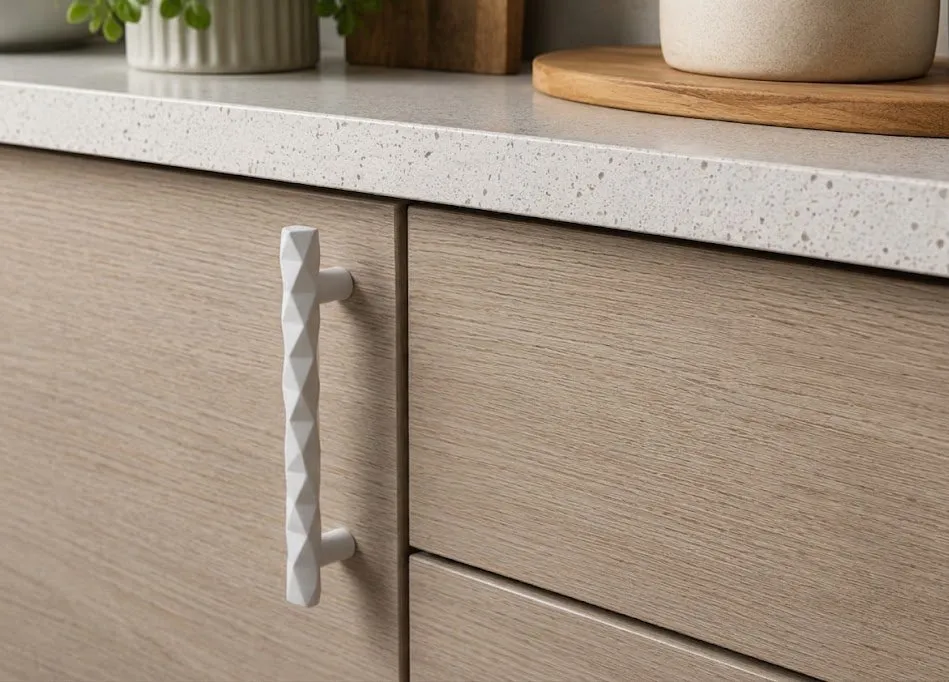

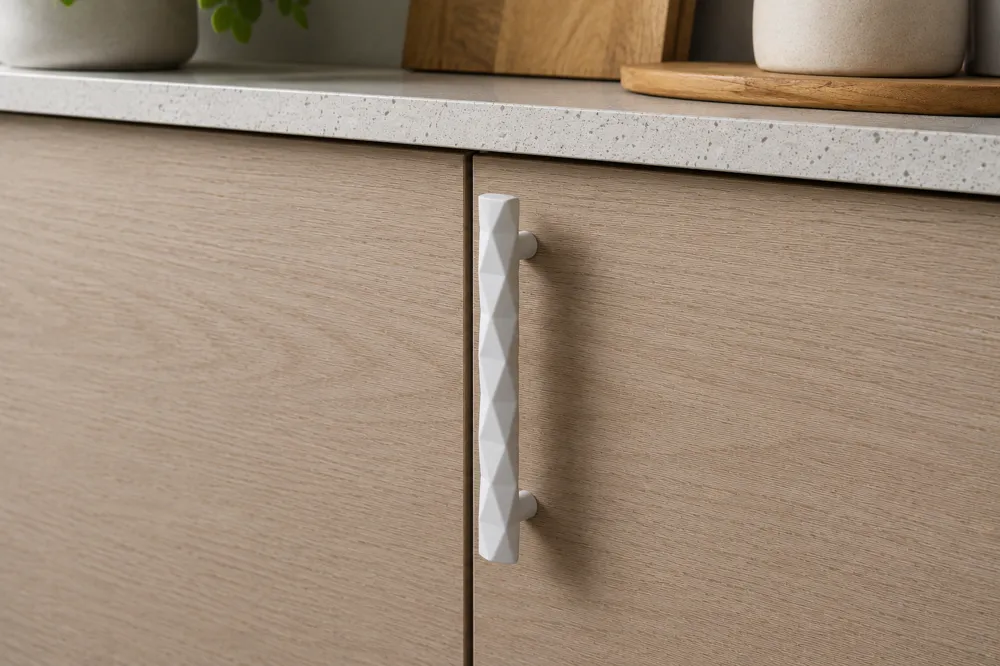

• Faceted / Low Poly Designs

Each style can be customized with independent dimensions, mounting options, curves, tapers, grooves, and twists.

Fully Parametric Features

Customize nearly every aspect of the design:

Mounting

• Preset cabinet hole spacings
• Custom hole spacing
• M3–M8 screw support
• Threaded or smooth mounting holes
• Adjustable thread pitch
• Thread fit tolerance
• Insert pockets for heat-set inserts or screw heads

Support Posts

• Adjustable post diameter
• Adjustable post height
• Cylindrical or tapered posts
• Base fillets
• Joined or separated supports
• Configurable embed depth for stronger joints

Handle Bar

• Adjustable handle length
• Width and thickness control
• Multiple profile shapes
• Flat or domed ends
• Corner radius/chamfer control
• Curved handles
• Full bar twisting
• Adjustable smoothness resolution

Grip Features

• Optional grip grooves
• Adjustable groove count
• Groove width/depth control
• Edge margin control

Knob System

• Flower knobs
• Star knobs
• Scalloped knobs
• Tapered knobs
• Domed tops
• Procedural shape generation

Advanced Geometry System

The model uses a procedural geometry core capable of generating:

• Twisted bars
• Curved handles
• Smooth profile transitions
• Procedural end caps
• Filleted supports
• Parametric profile extrusion
• Procedural faceted surfaces
• Dynamically generated screw threads

The included thread system supports:

• Metric threads
• Screw holes
• Countersunk holes
• Recessed holes
• Nuts
• Washers
• Bolts
• Rod connectors
• Auger threads

All generated directly in OpenSCAD without external dependencies.

Built-In Safety Validation

The generator includes automatic validation to prevent invalid or weak configurations:

• Minimum wall thickness checks
• Hole clearance checks
• Groove depth validation
• Support diameter validation
• Handle size validation
• Twist and curve safety checks
• Insert pocket validation

Warnings and assertions help reduce failed prints and broken geometry.

Designed for 3D Printing

Optimized specifically for FDM printing:

• Clean manifold geometry
• Adjustable tolerances
• Strong support joints
• Print-friendly curves
• Variable render quality
• Efficient polygon generation
• Procedural smoothing

Recommended materials:

• PLA
• PETG
• ABS
• ASA

Recommended FDM Print Settings

• Layer Height: 0.2mm
• Walls: 3–5
• Infill: 20–40%
• Supports: Usually not required
• Orientation: Flat on mounting side

Perfect For

• Kitchen cabinets
• Drawers
• Wardrobes
• Workshop furniture
• Toolboxes
• Office furniture
• Gaming setups
• Modern interiors
• DIY furniture projects
• Custom enclosures
• Maker projects

Render Quality Options

Three built-in rendering levels:

• Low
• Medium
• High

Higher quality settings increase smoothness for curved and twisted geometry.

Easy To Customize

The file is carefully organized into logical sections:

• Hole Spacing
• Screw & Thread
• Insert Pocket
• Post Size
• Post Style
• Bar Size
• Bar Profile
• Bar Curve
• Grip Grooves
• Rendering

This makes the model beginner-friendly while still offering deep advanced customization.

Why Use This Generator?

Instead of downloading dozens of separate handle models, this system gives you a single powerful generator capable of producing endless variations while keeping a consistent design language across your entire furniture setup.

Minimal.
Industrial.
Rounded.
Faceted.
Textured.
Twisted.
Functional.

One model. Endless styles.
