MIXER32

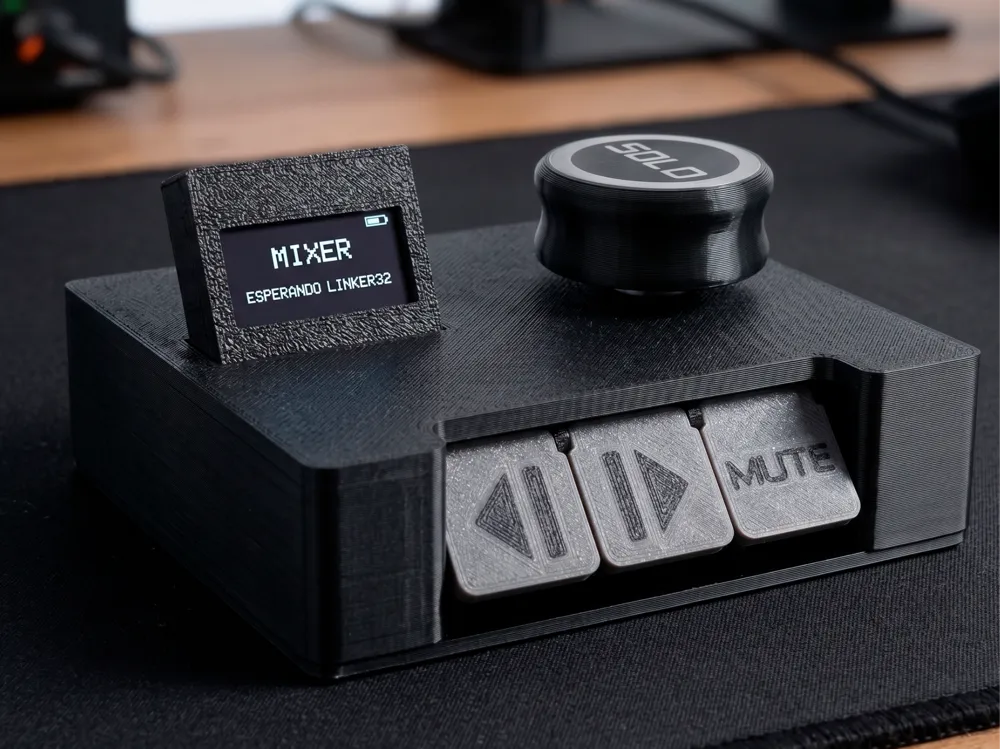

🎛️ Mixer32 - Wireless Audio Controller for PC (Linker32 Ecosystem)

Mixer32 is the official enclosure and physical hardware for the Linker32 ecosystem, a system designed to give you absolute, physical, and tactile control over the Windows volume mixer and your multimedia content

Forget about Alt+Tabbing in the middle of a game or a meeting. With Mixer32, you can isolate channels, mute the microphone, or lower the volume of Spotify, Chrome, or Discord independently using a rotary encoder and mechanical buttons, all with real-time visual feedback thanks to its OLED screen

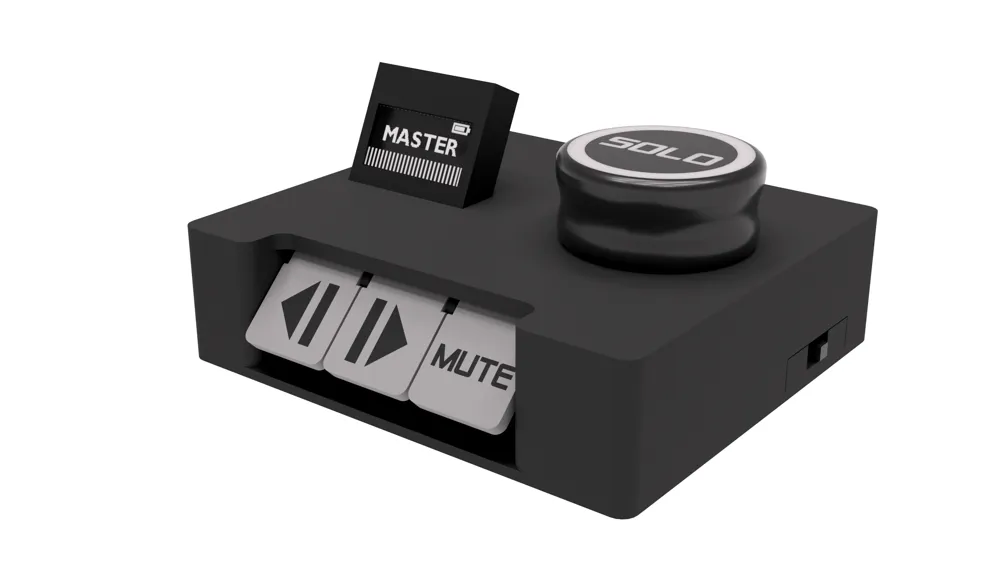

📐 About the 3D Design

This enclosure has been designed for maximum ergonomics and a professional finish:

• Angled Screen: Housing for an OLED (SSD1306) screen with the perfect inclination to be read at a glance from your chair
• Mechanical Buttons: Front slots with ergonomic inclination designed to mount 3 Cherry MX mechanical switches (or clones), providing a fast and satisfying feel to the multimedia controls (Previous, Play/Pause, Mute)
• Master Control: Top space for a KY-040 rotary encoder with support for a large knob (SOLO / Volume function)
• Portable Design: The interior has enough space to house an ESP32, a TP4056 charging module, a LiPo battery (e.g., 2000mAh), and a side slot for a power switch (SS12F15VG4), making the device 100% wireless via Bluetooth

💻 The Software: Linker32

This enclosure is not just an ornament. Mixer32 comes to life thanks to Linker32, a desktop application developed in C# .NET that runs in the background on your PC. Linker32 extracts Windows audio sessions, communicates with this hardware via Bluetooth, and features OTA (Over-The-Air) Updates, meaning the peripheral updates itself wirelessly

🛠️ Assembly Instructions, Code, and Materials

This 3D model is just one part of the project. All technical documentation, wiring diagram, Arduino firmware, and Windows software are available for free on GitHub

👉 Visit the official repository to build your own: https://github.com/roberben/Mixer32

Designed and programmed by Rober Ben. If you print and assemble your own Mixer32, upload a photo to the comments
