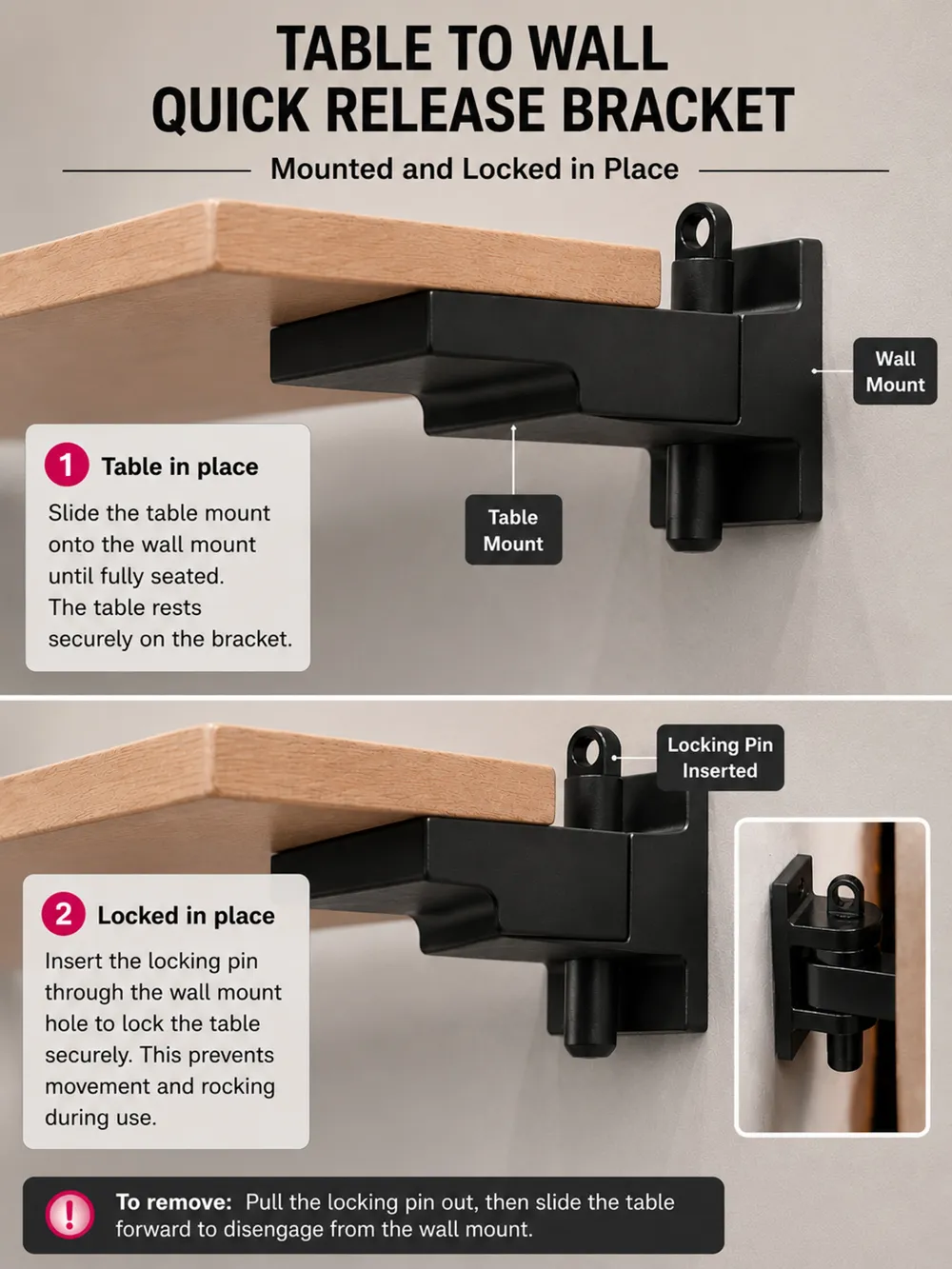

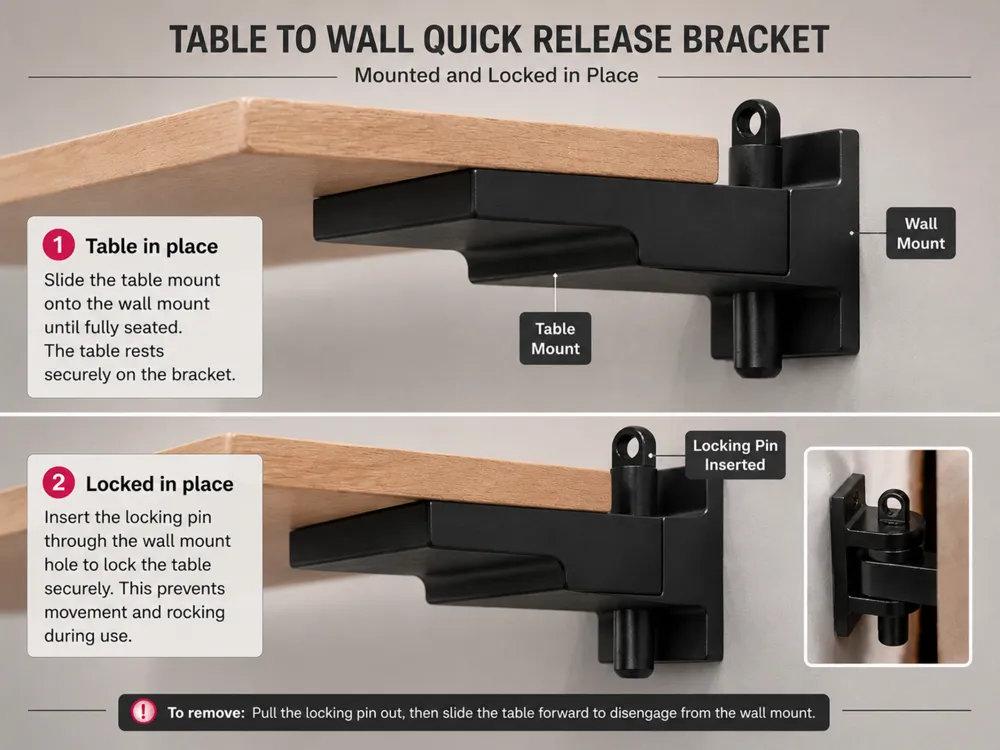

***Yes, the cover photos are AI generated, I could not get good photos from under my tables… haha You will notice that with the other photos. If you have questions, feel free to reach out.

Stop table movement and rocking caused by vibration from 3D printers, CNC equipment, workbenches, or other heavy-use setups with this heavy-duty quick release wall support bracket system.

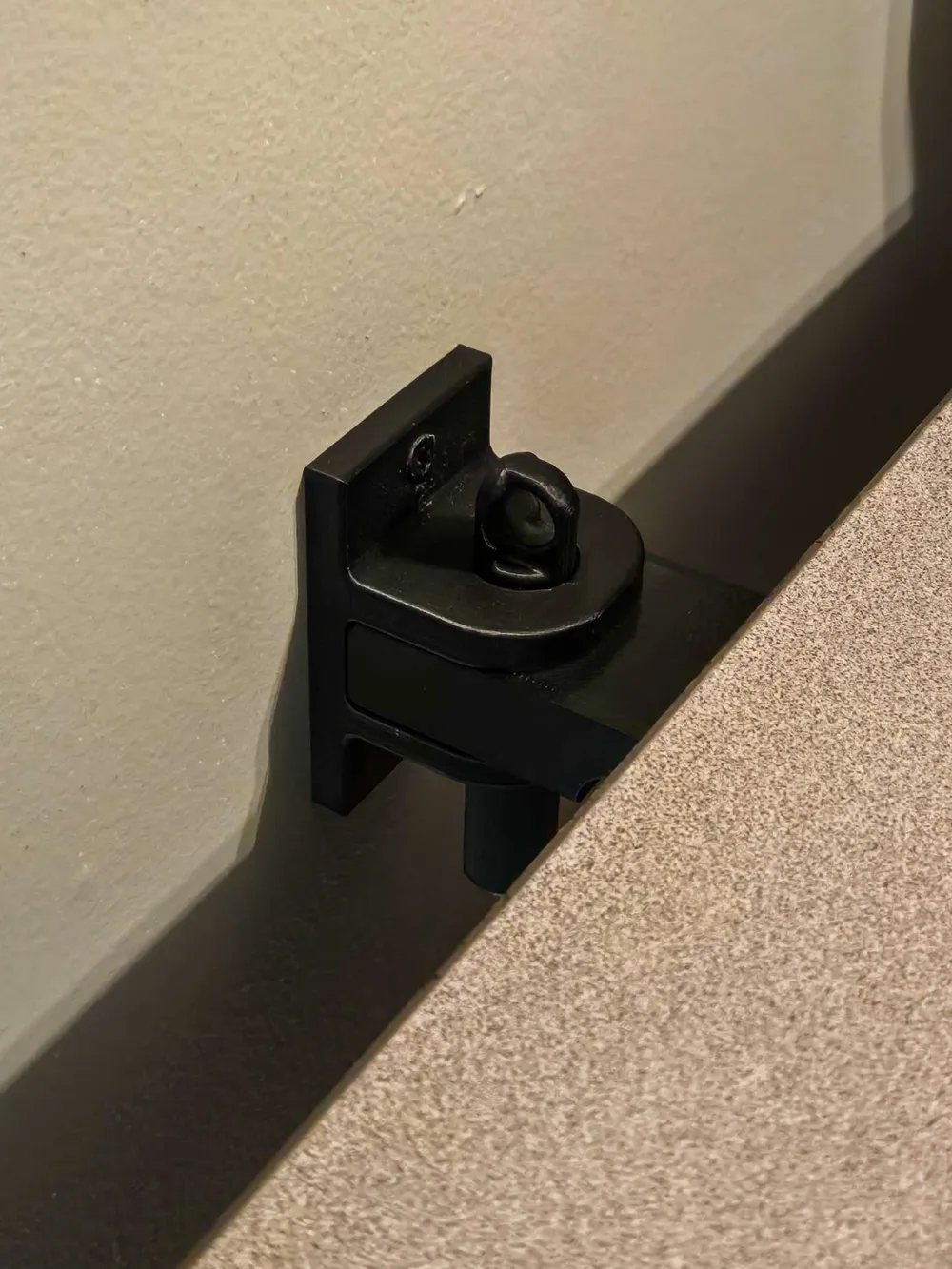

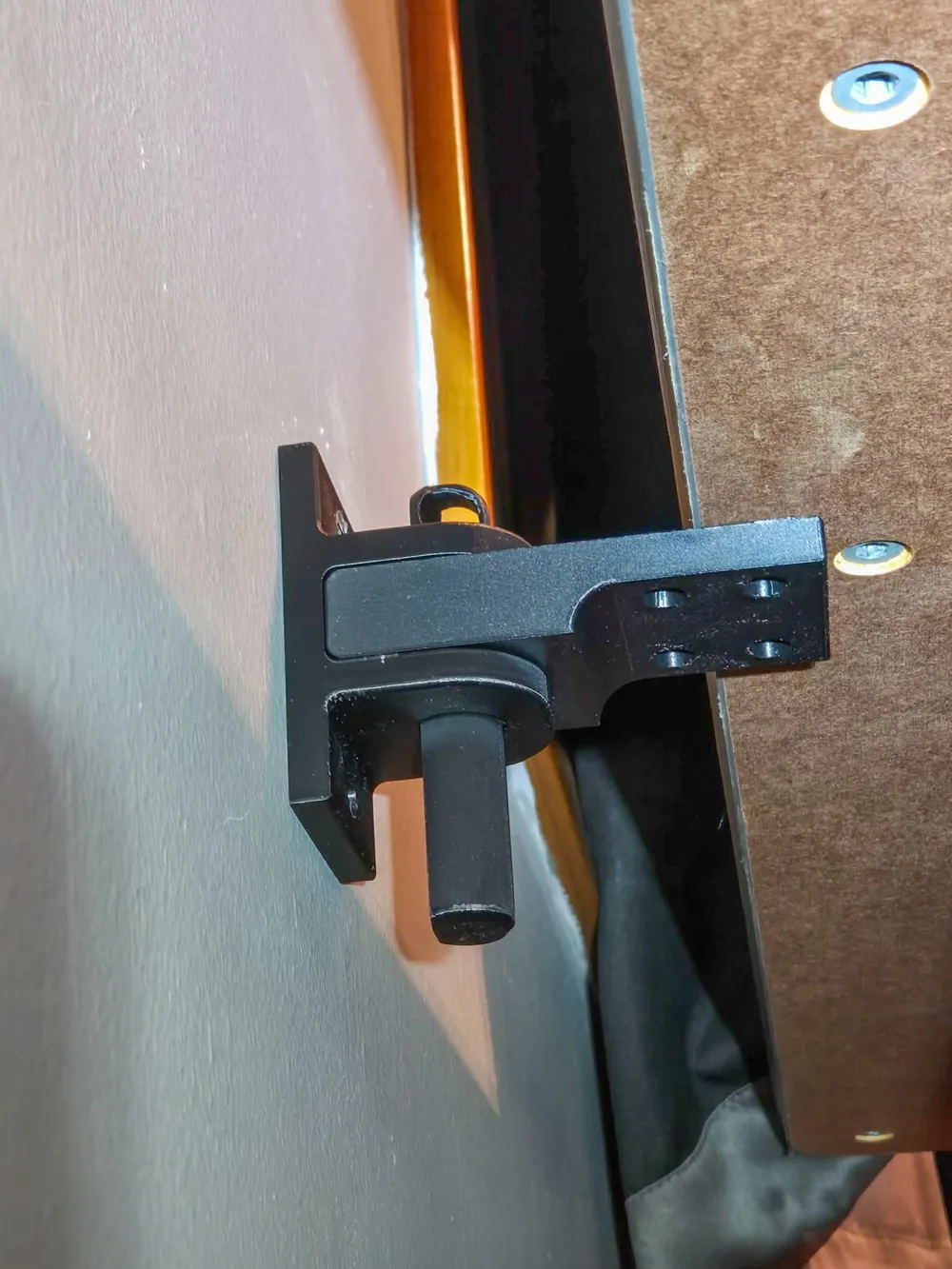

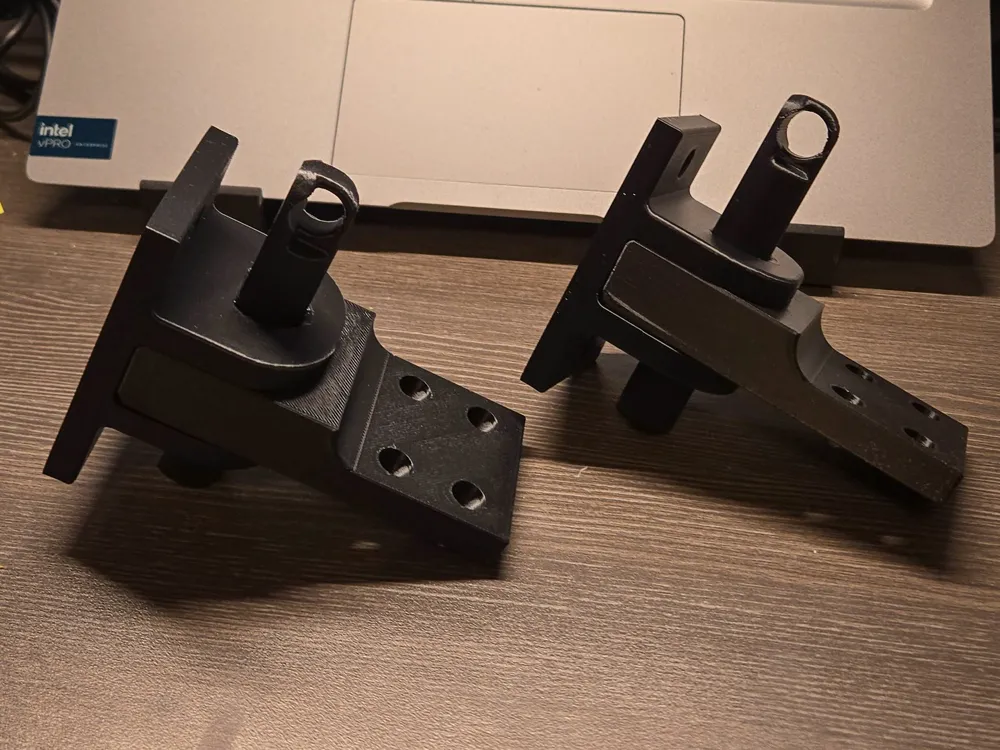

This two-piece bracket system securely locks your table to the wall while still allowing quick removal when needed. The table-side bracket slides tightly into the wall mount and is secured using the removable locking pin for a strong, snug fit.

Designed and printed in PETG with strength and durability in mind, these brackets are optimized for rigidity and long-term use.

Installation

For easiest installation, assemble both bracket halves together with the locking pin inserted before mounting.

1. Attach the table-side bracket to the underside of the table using 2–4 screws.
2. With the brackets assembled together, place the table where desired against the wall.
3. Mark the wall mounting hole locations.
4. Remove the locking pin and separate the brackets.
5. Secure the wall bracket to the wall.
6. Slide the table bracket back into place and insert the locking pin.

Once installed, the bracket helps eliminate unwanted table movement and vibration during operation.

Features

• Quick release removable design
• Helps prevent table rocking and movement
• Snug interlocking fit for added stability
• Removable locking pin system
• Printed in PETG for strength and durability
• Optimized for strength and rigidity
• Great for 3D printer tables and workbenches
• Easy installation and removal
