Magnetic Level
Print Profile(1)
Bill of Materials
Description

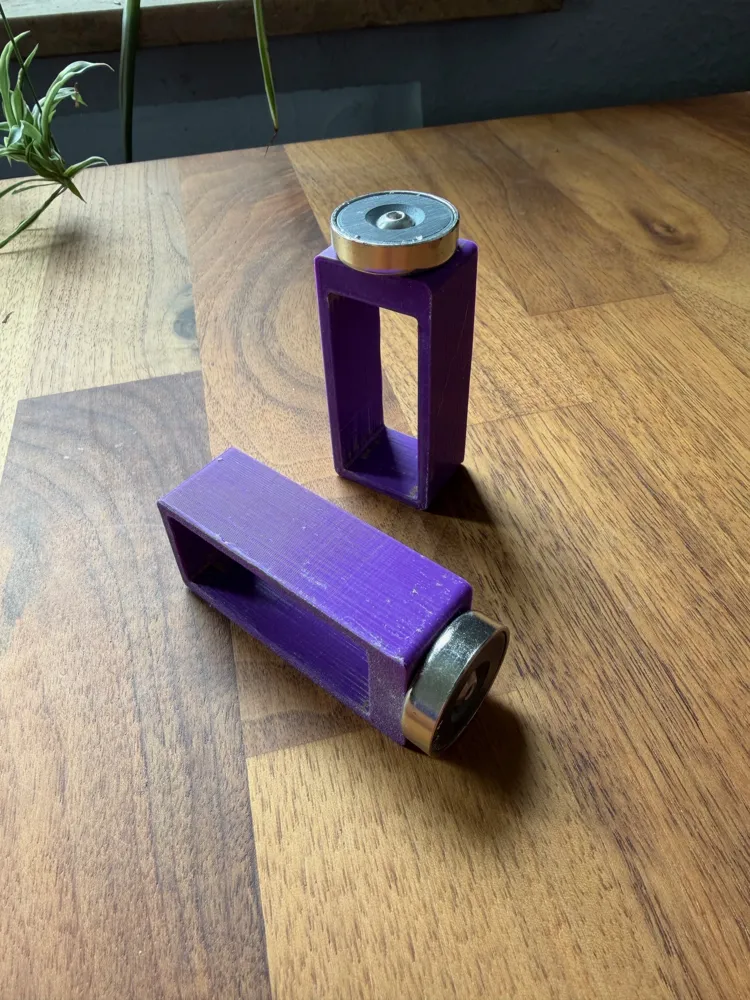

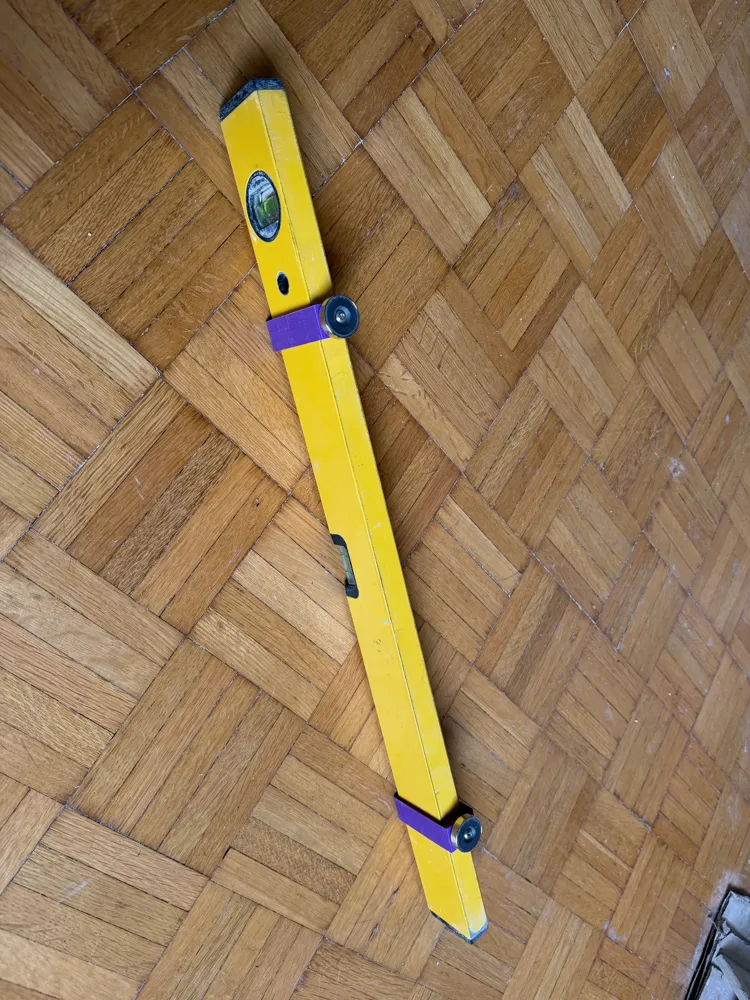

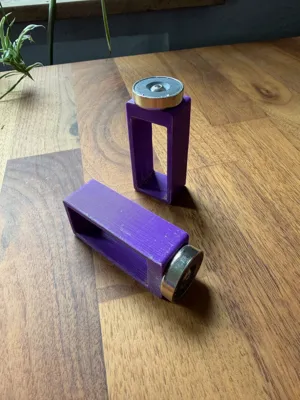

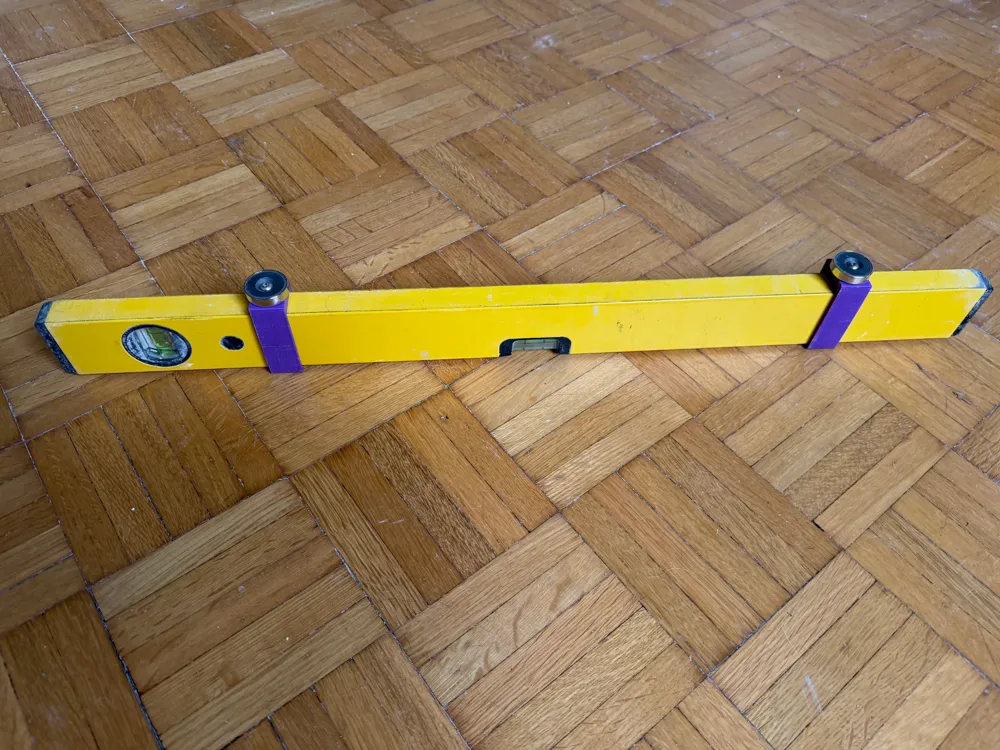

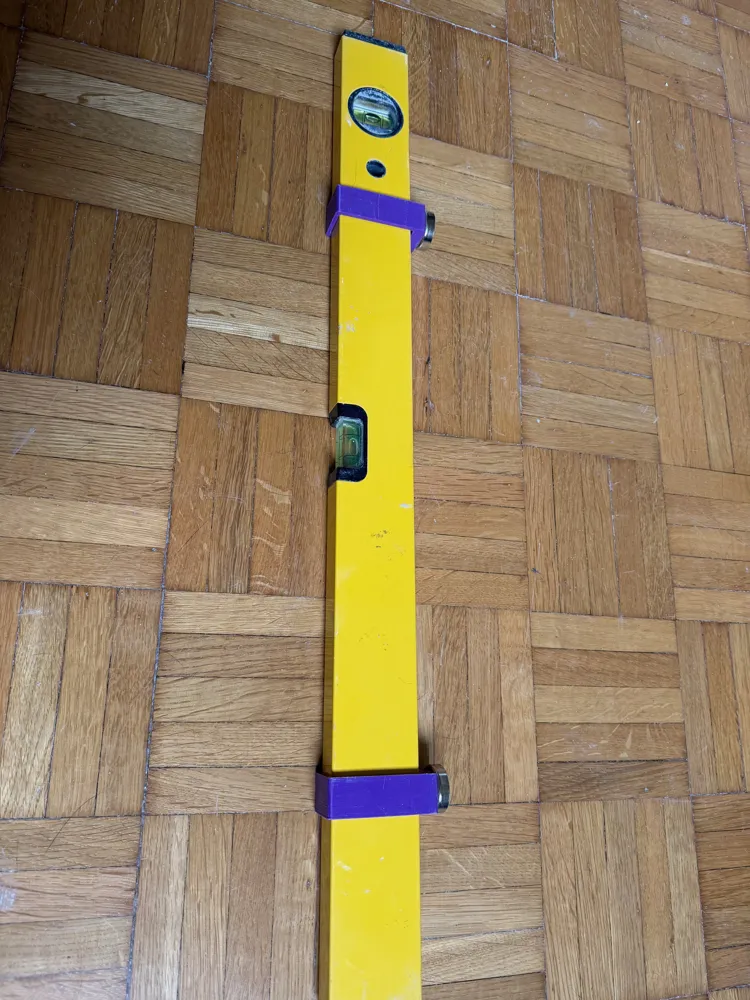

A small print to turn a normal spirit level into a magnetic spirit level.

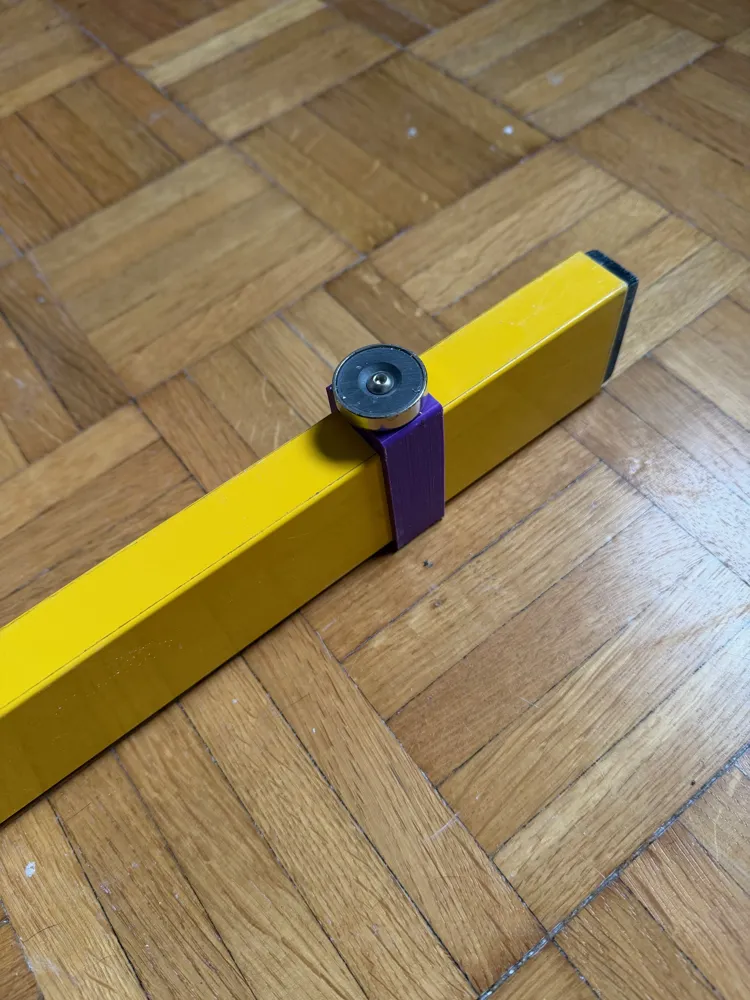

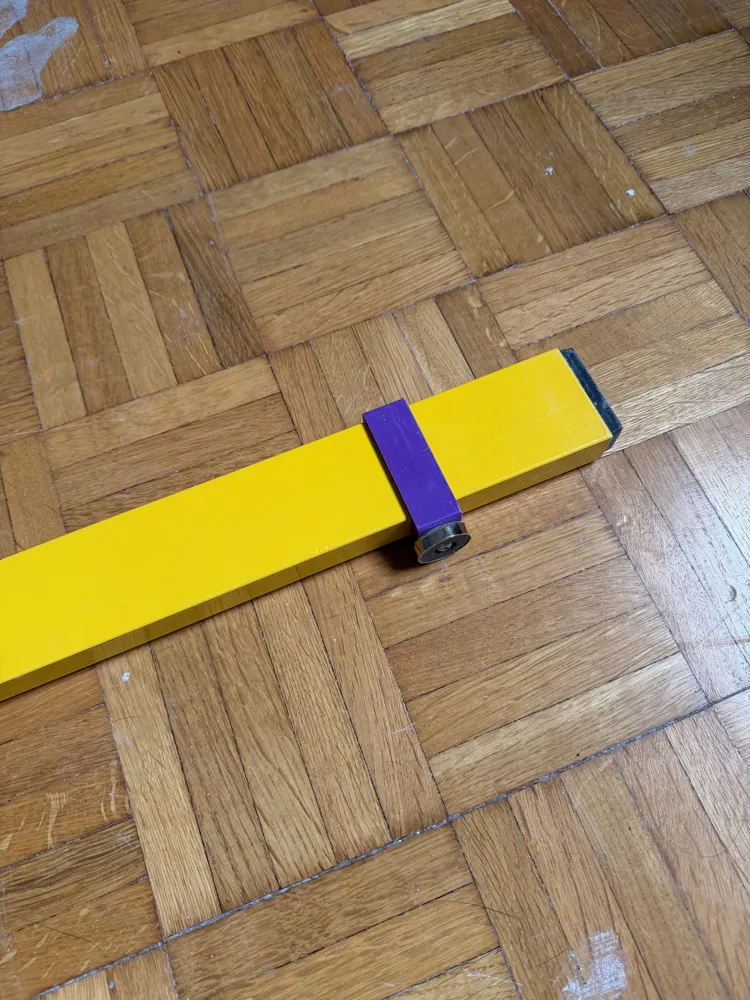

The part was designed for a 200cm Stabila spirit level with outer dimensions of 50mm x 21mm and slides on well with a little force.
In addition to the printed part, an M4 hex nut, a countersunk neodymium magnet (here 25mm diameter), and an M4 countersunk screw about 14mm long (depending on the magnet's thickness) are required.

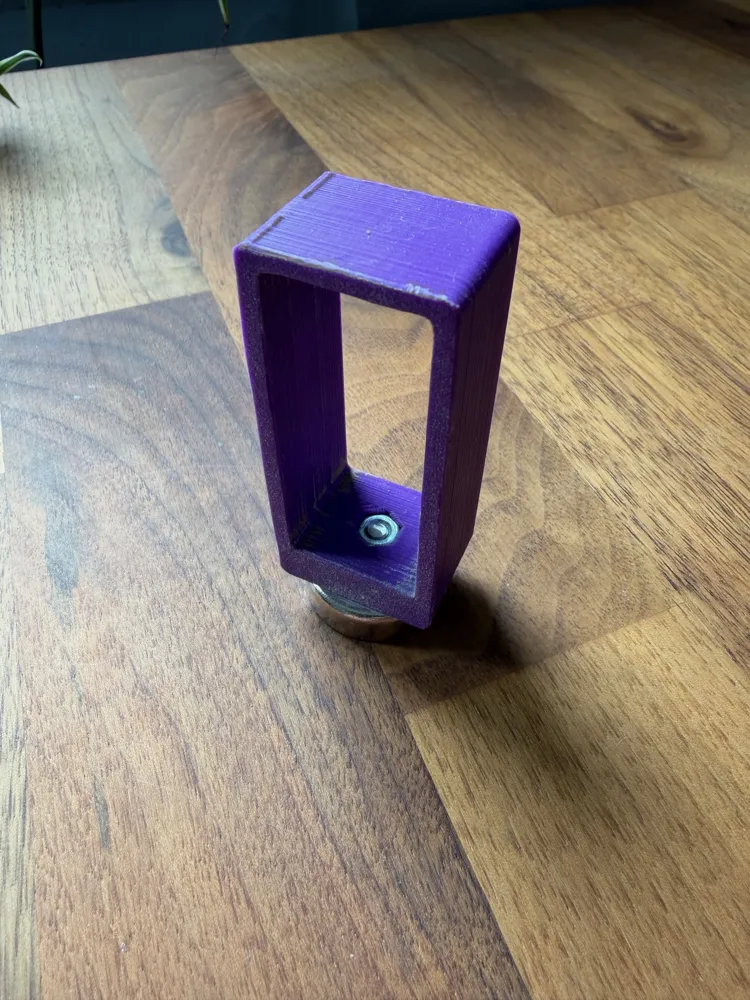

The M4 nut is pressed from the inside into a corresponding recess after printing.
