Cube Longtail Footrest Riser Adapter
Are your child's feet not reaching the footrest? This adapter raises the footrest by approximately 60mm, making the transport of small children significantly more comfortable and safer.

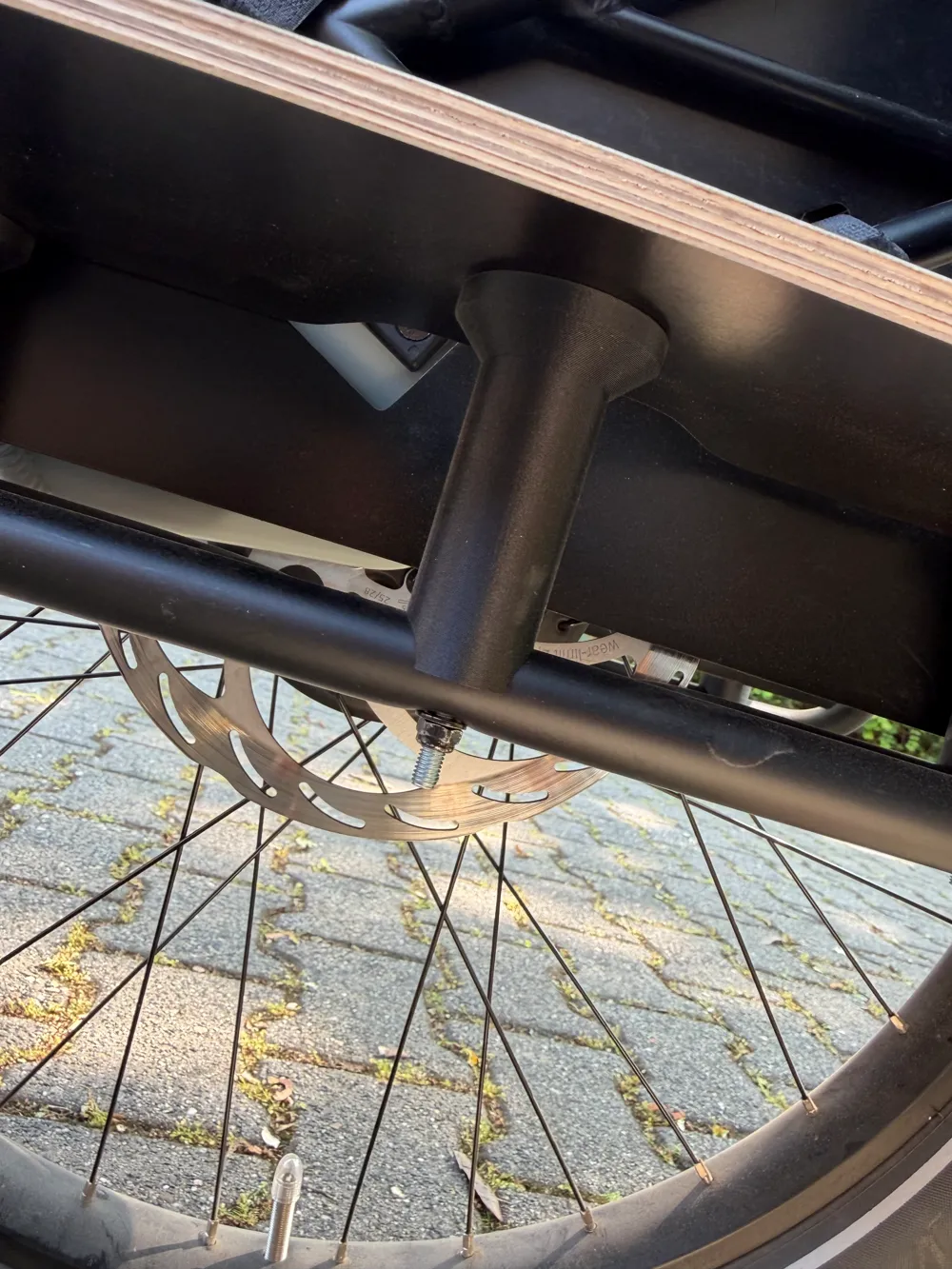

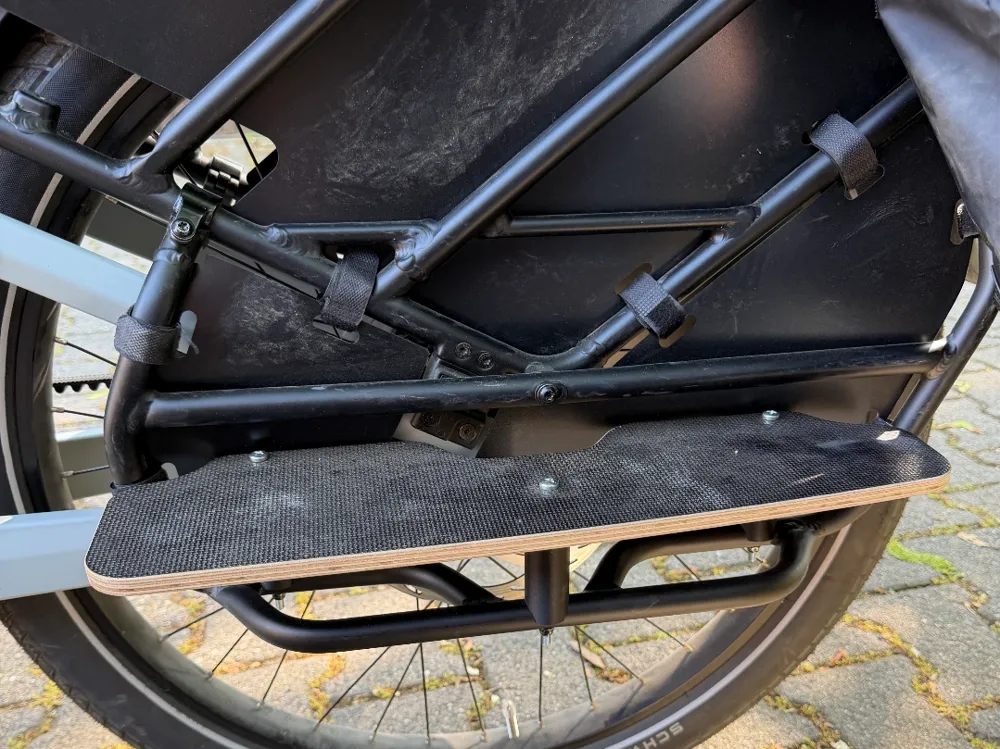

Specifically designed for the Cube Longtail cargo bike, the spacer sits between the original footrest and the frame tube. The wider contact surface distributes weight more evenly and provides a stable footing for small passengers.
Print Settings:
• Solid material / 100% Infill for maximum stability and safety
• Recommended material: PETG, PETG CF or ASA (weather-resistant)
• No supports required
Material Required:
6x M5 × 100mm screws (original screws are too short with the adapter)
• Original nuts/washers can be reused

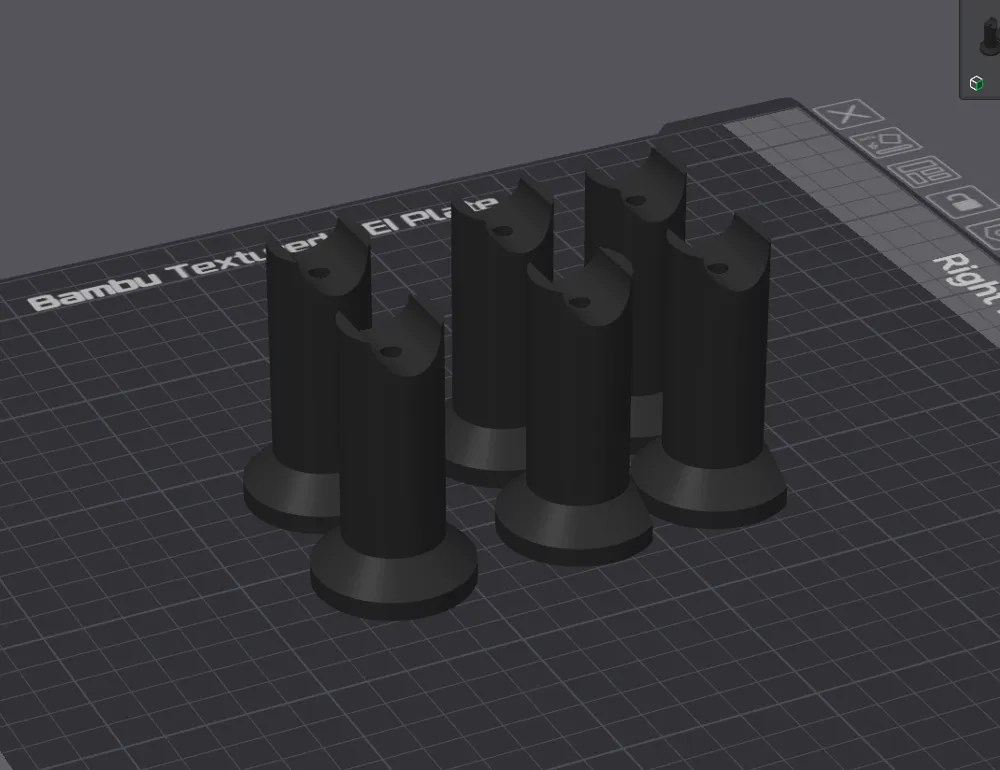

Number of Prints:
• Print 6 adapters in total (3 per side)

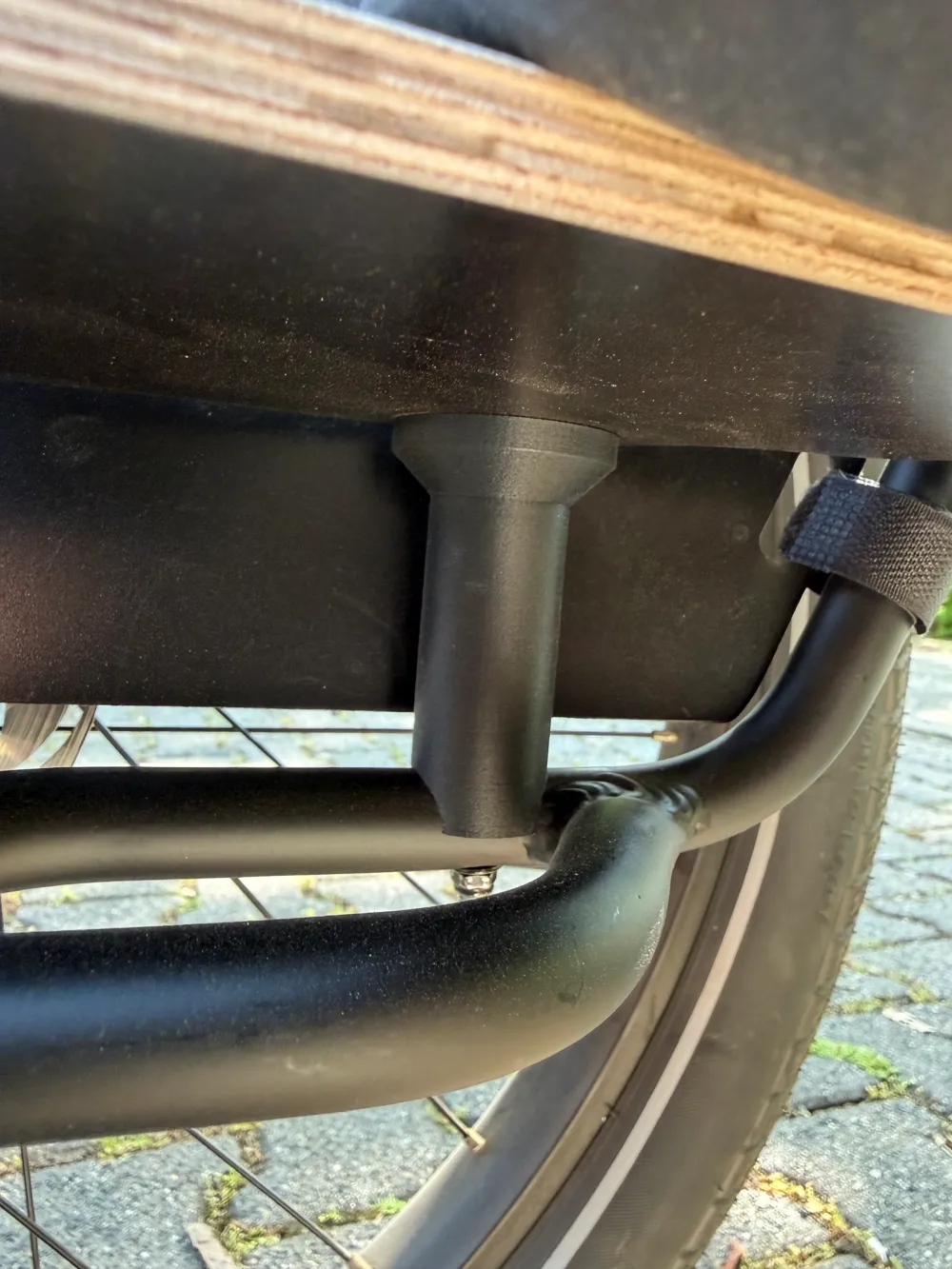

• Adapters with a flattened side go on the outside (left & right)

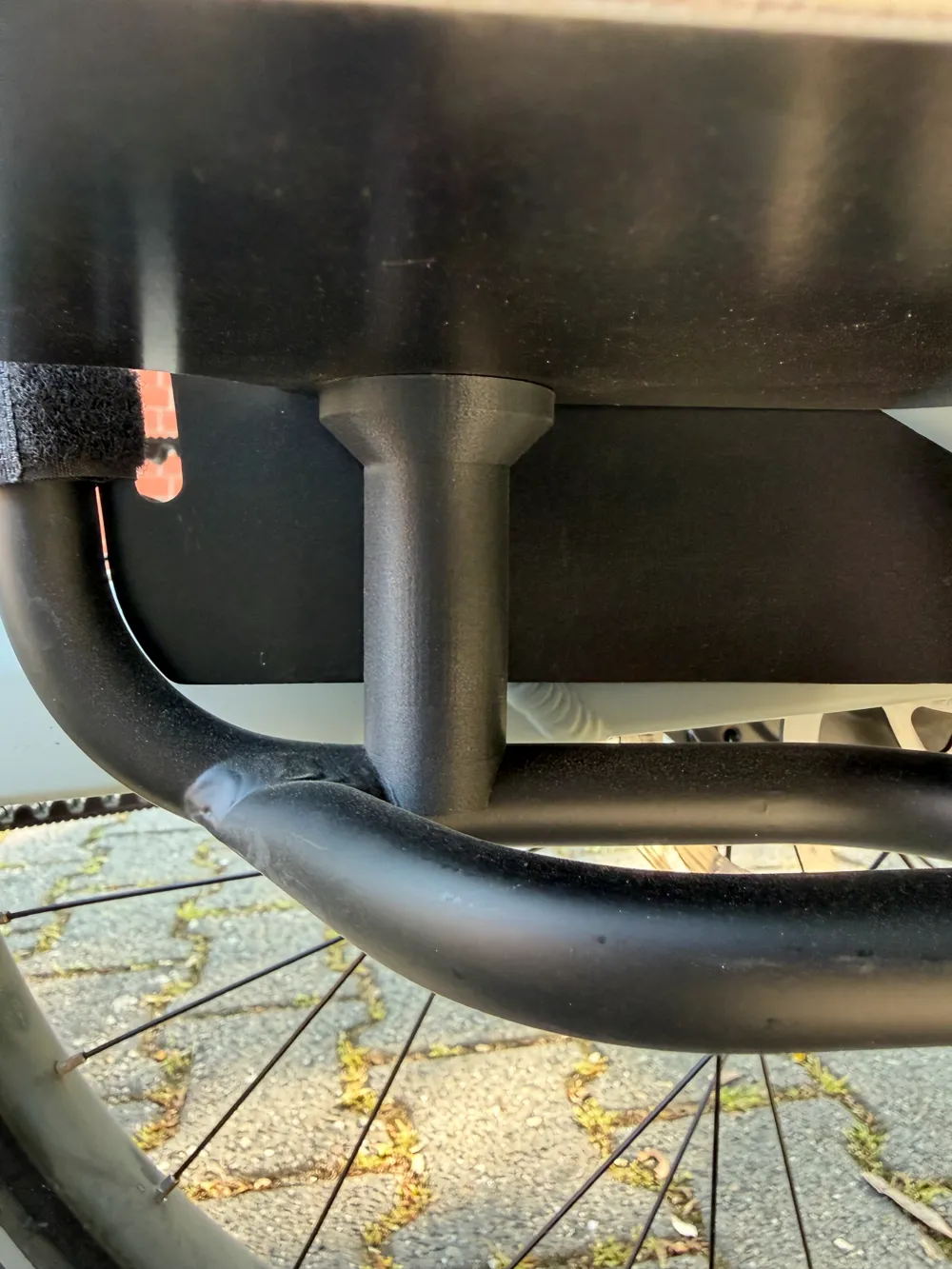

• Adapter without a flattened side goes in the middle
