Round wall Light
Print Profile(2)
Description

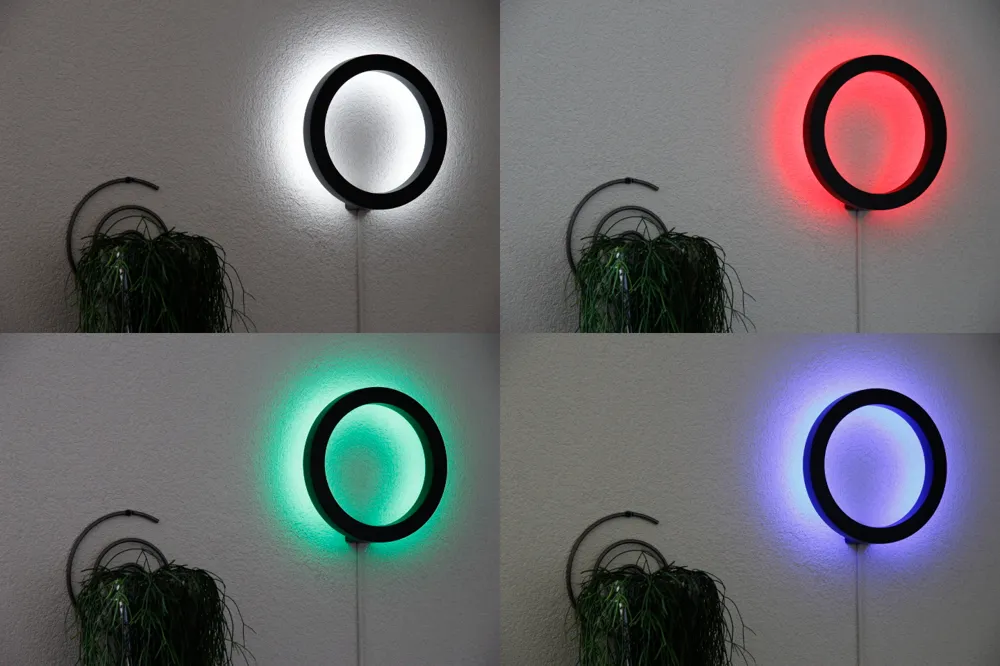

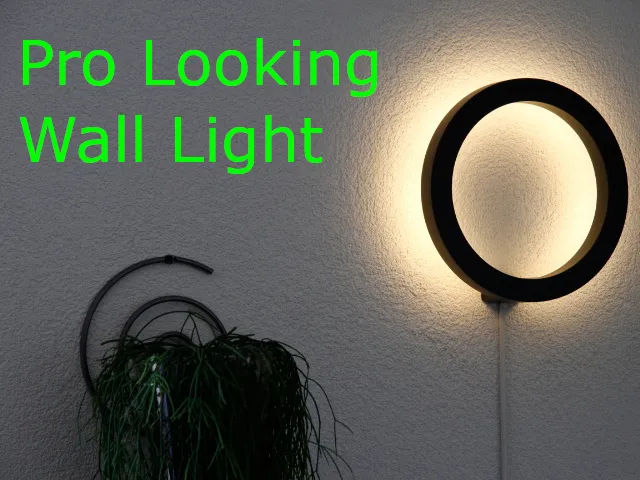

A professionally styled round wall lamp.
There are several Wall Light designs, with different shapes/orientations, click here to see them all.
To prevent deformation caused by the heat generated by the LED strip, it is recommended to print the lamp using PETG filament. For the outer shell, use a dark-colored filament to avoid light bleeding through the material. The lamp can then be finished in any color using spray paint.
Dimensions
Height: 240 mm
Width: 240 mm
Depth: 62 mm
Distance from wall: 40 mm

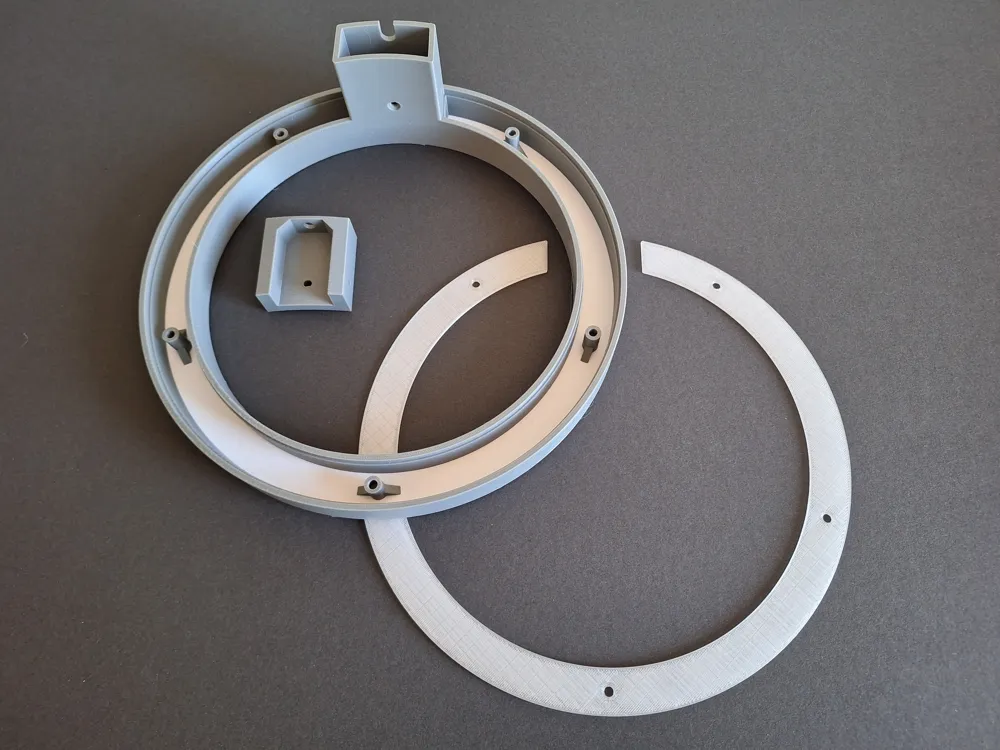

Parts List
• White PETG filament (improves light reflection inside the lamp)
• Dark-colored PETG filament
• Translucent PETG filament (for the LED diffuser)
• LED strip with compatible power supply and controller
• Cable (for example: Lumonic 6x0.34 mm² RGBW CCT LED control cable)

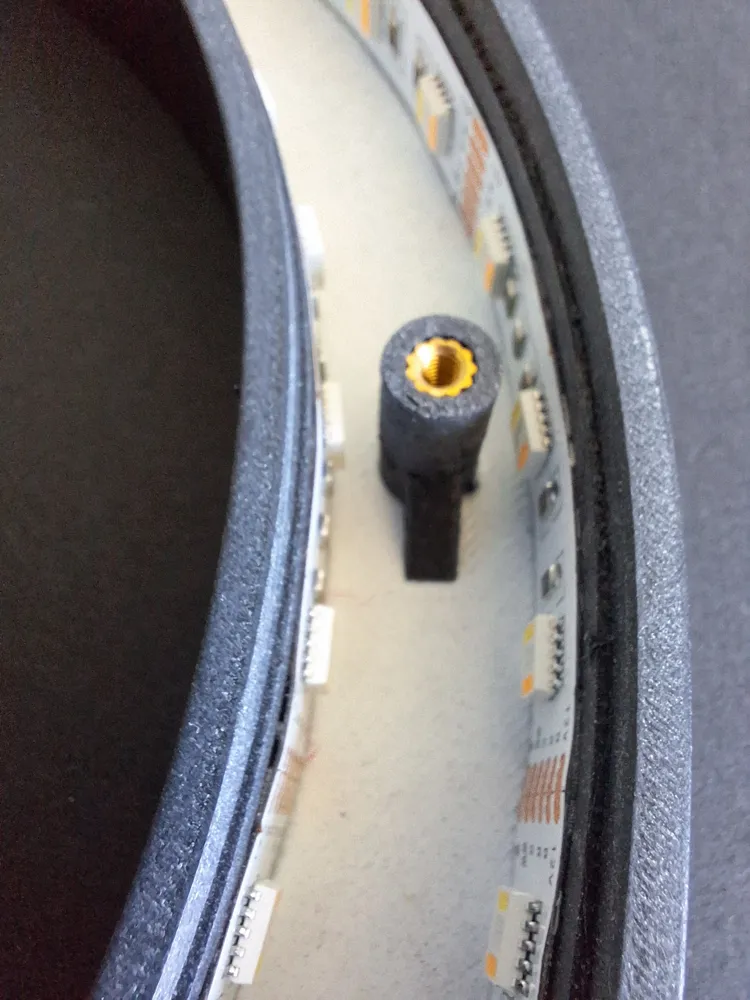

• 8 × Ruthex M3 threaded heat inserts
• 7 × M3x6 button head screws
• 1 × M3x6 countersunk screw
Optional Finishing
Spray putty
Spray paint in your preferred color
With light sanding, spray putty, and spray paint, the lamp can achieve a smooth, highly professional finish.
Example LED strips:
• 5-in-1 Chip LED Strip 12V RGB+CCT, RGB + White + Warm White (2800K to 6500K)
• FCOB COB LED Strip Flexible High Density Warm White 2700K/3000K
(Both available on Amazon, along with the required controller and power supply.)
• Philips Hue LED strip
• IKEA ORMANÄS LED strip
• WS2812B, for generating lighting patterns and effects. Due to the absence of dedicated warm and cool white LEDs, it is less suitable for pure functional lighting.
