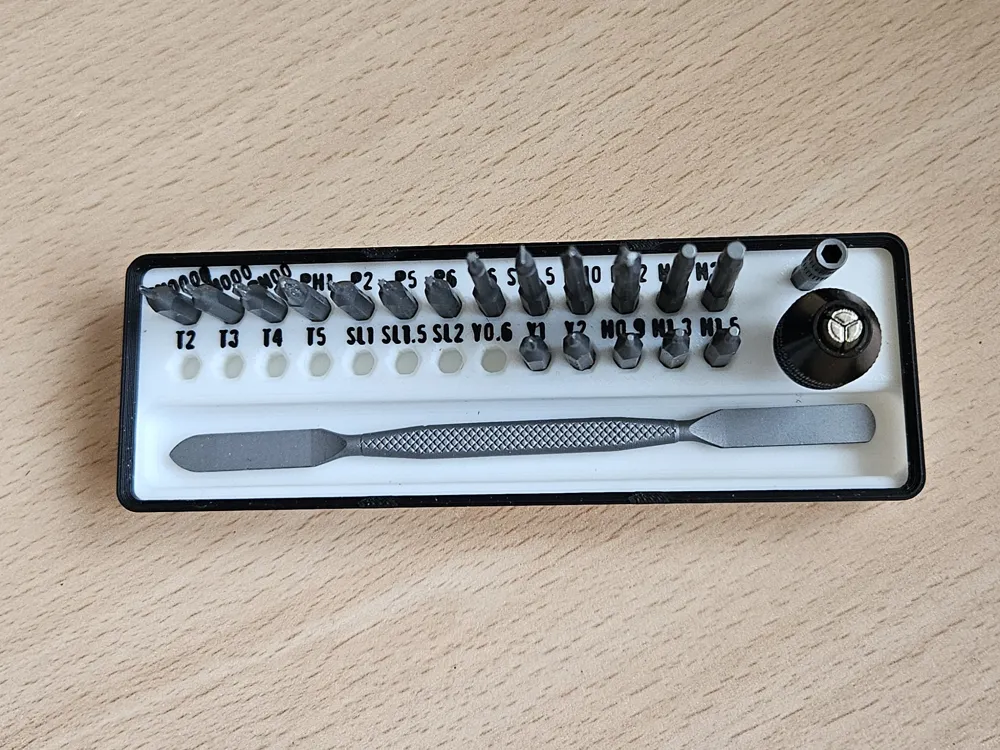

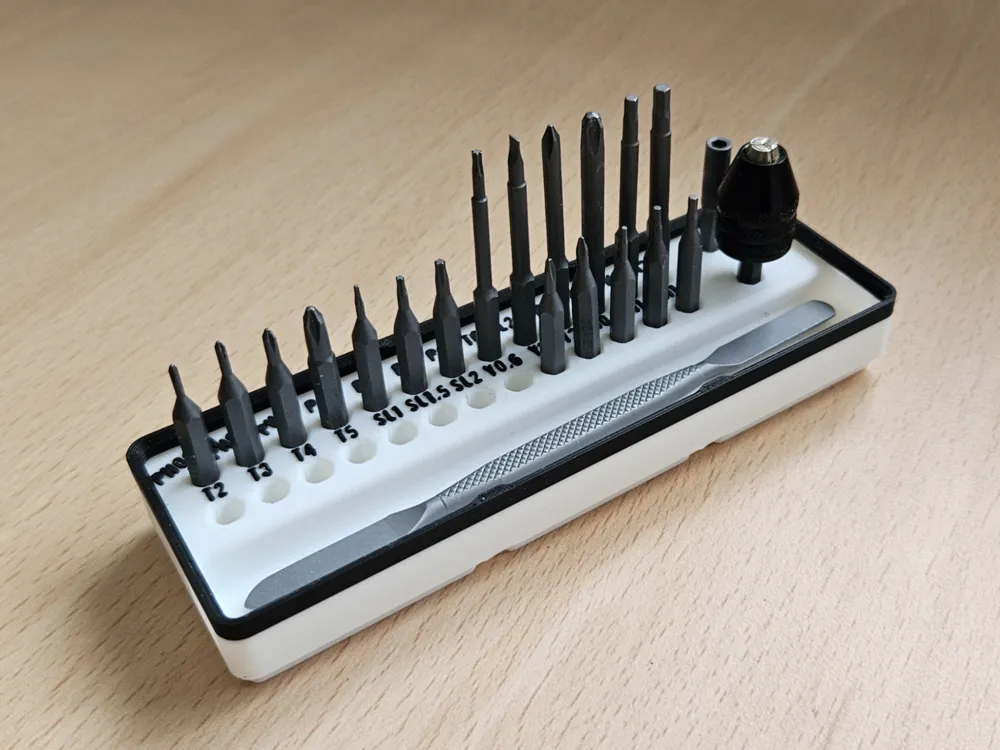

Gridfinity 26-Bit Precision Driver Bin

1x3U Gridfinity organizer for 26 precision screwdriver bits and small driver accessories.

Originally made for the CreationSpace CS0802A, but should fit other similar 4 mm / H4 precision screwdriver bit sets.

Includes:

• 26 vertical bit slots
• 2 separate accessory slots for parts like a sleeve / bit adapter and small drill chuck
• small tray area for loose accessories
• separate bodies for label text for easy recoloring / text removal
• included Fusion design file for remixing

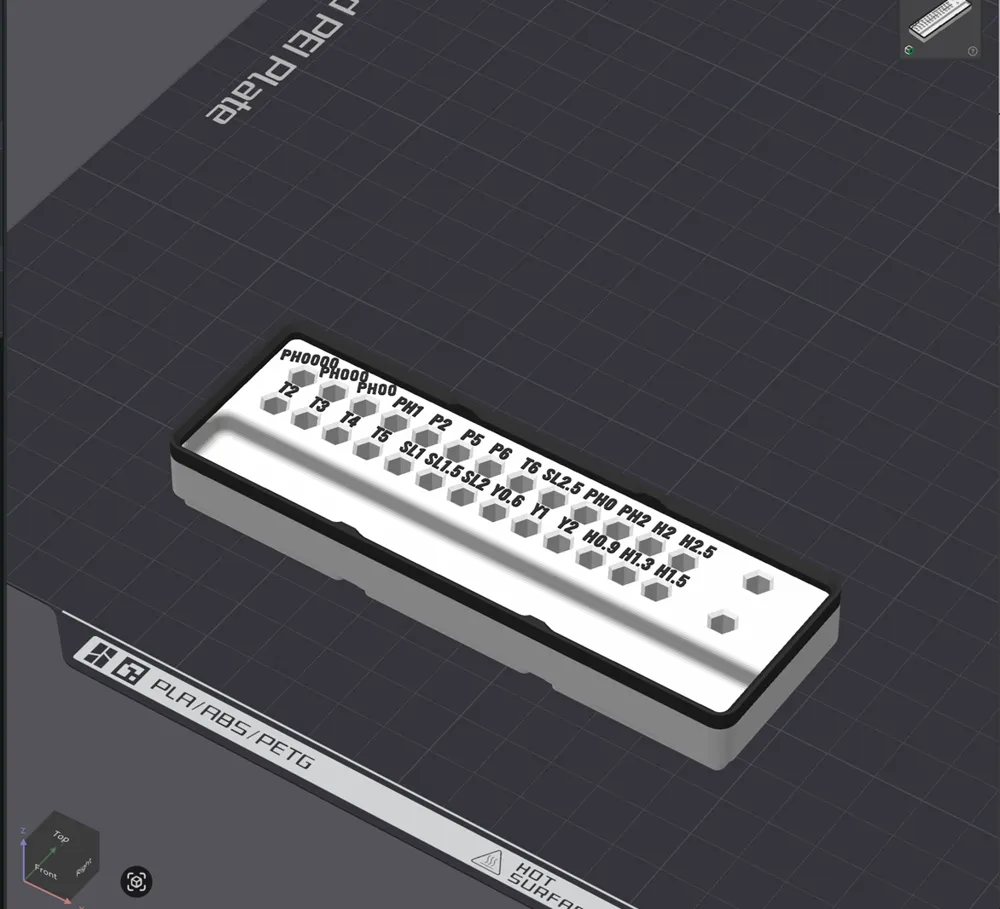

Printed with a 0.4 mm nozzle. The small label text is not perfect at that nozzle size, but it is perfectly usable. The included 3MF has tuned print settings to help the text come out better. For cleaner lettering, print with a 0.2 mm nozzle.


Magnet slots are 6.1x2.1mm, so a bit of force is needed to put them in.
