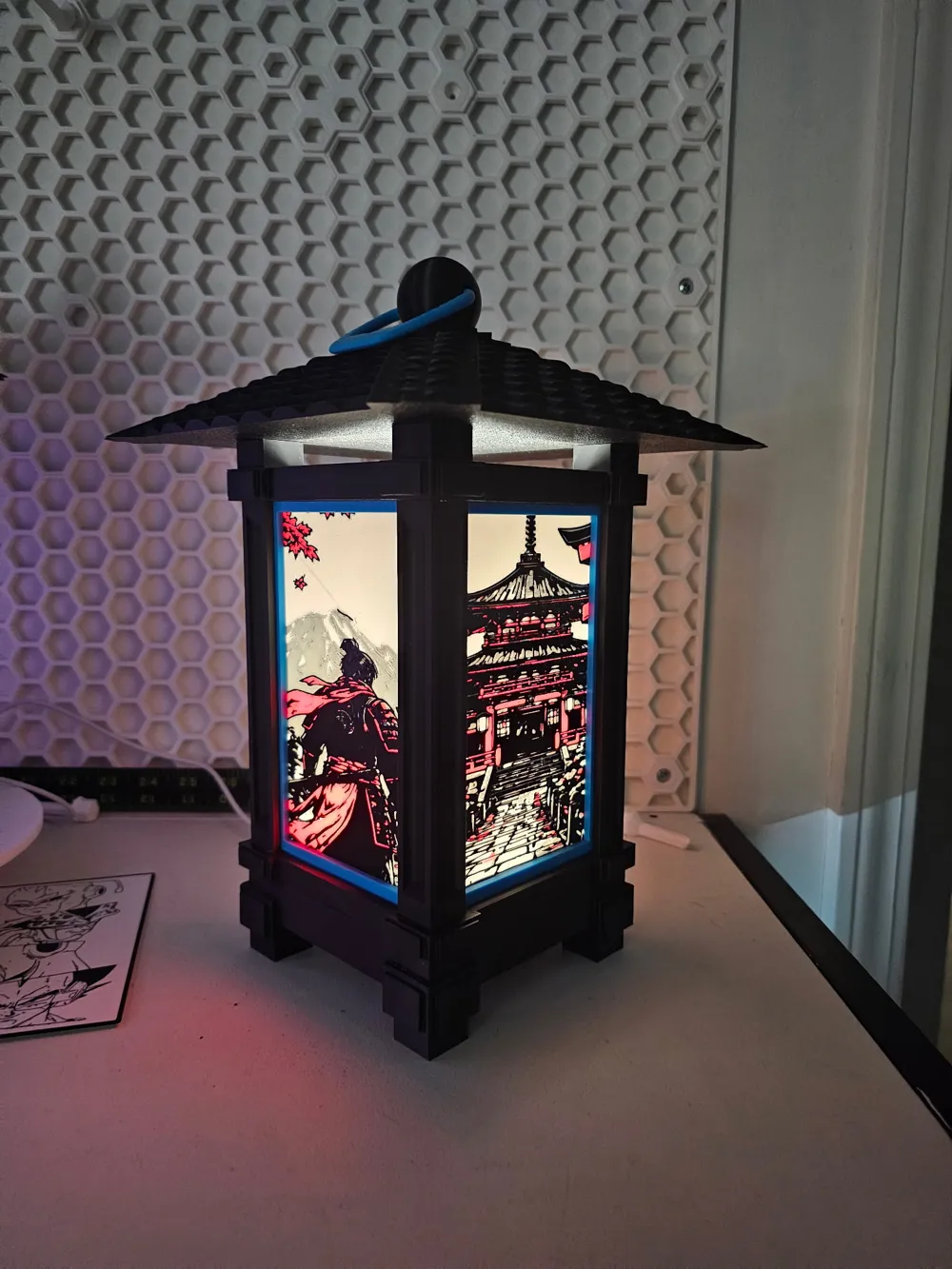

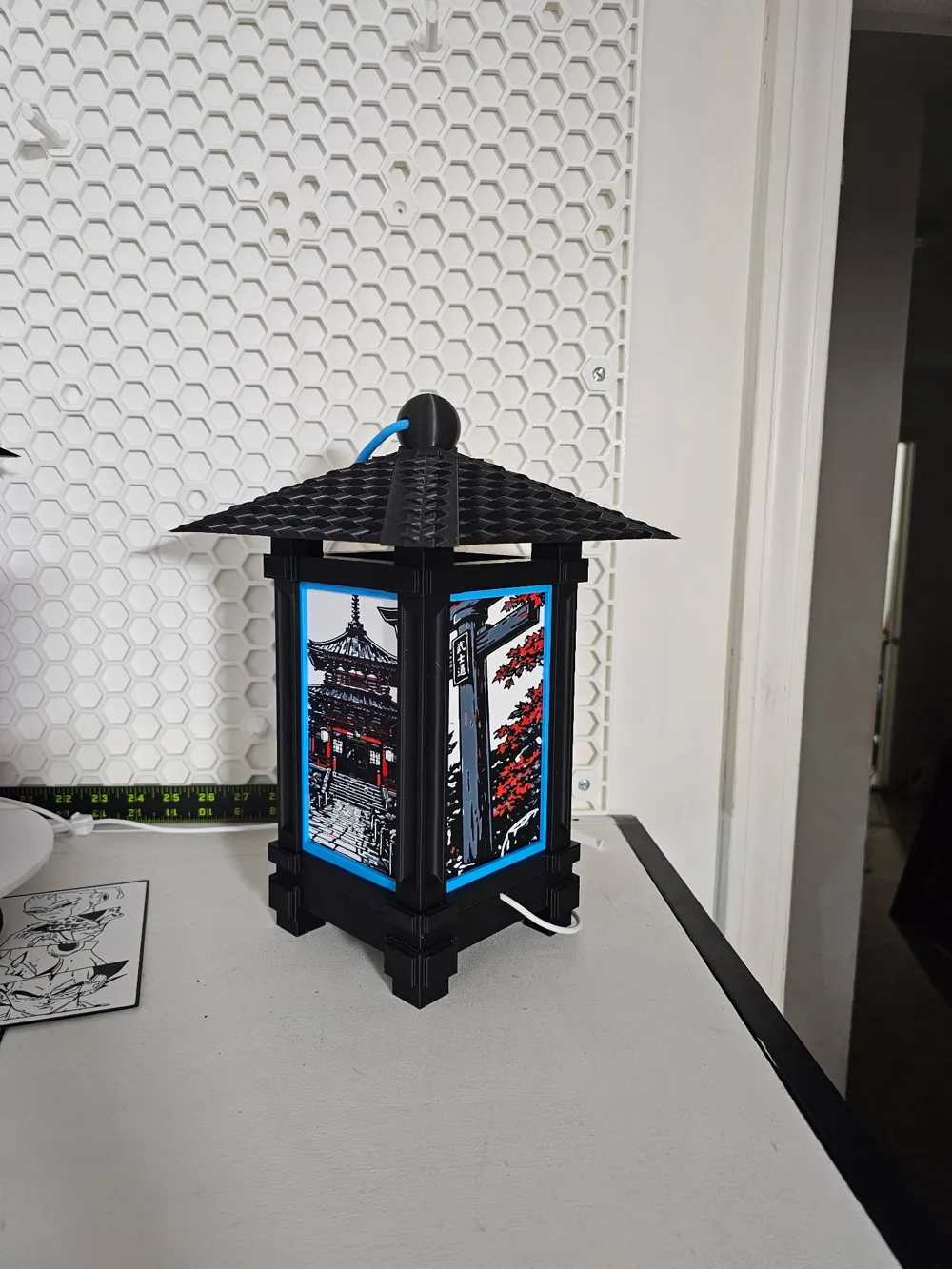

Mad Mongo Lantern

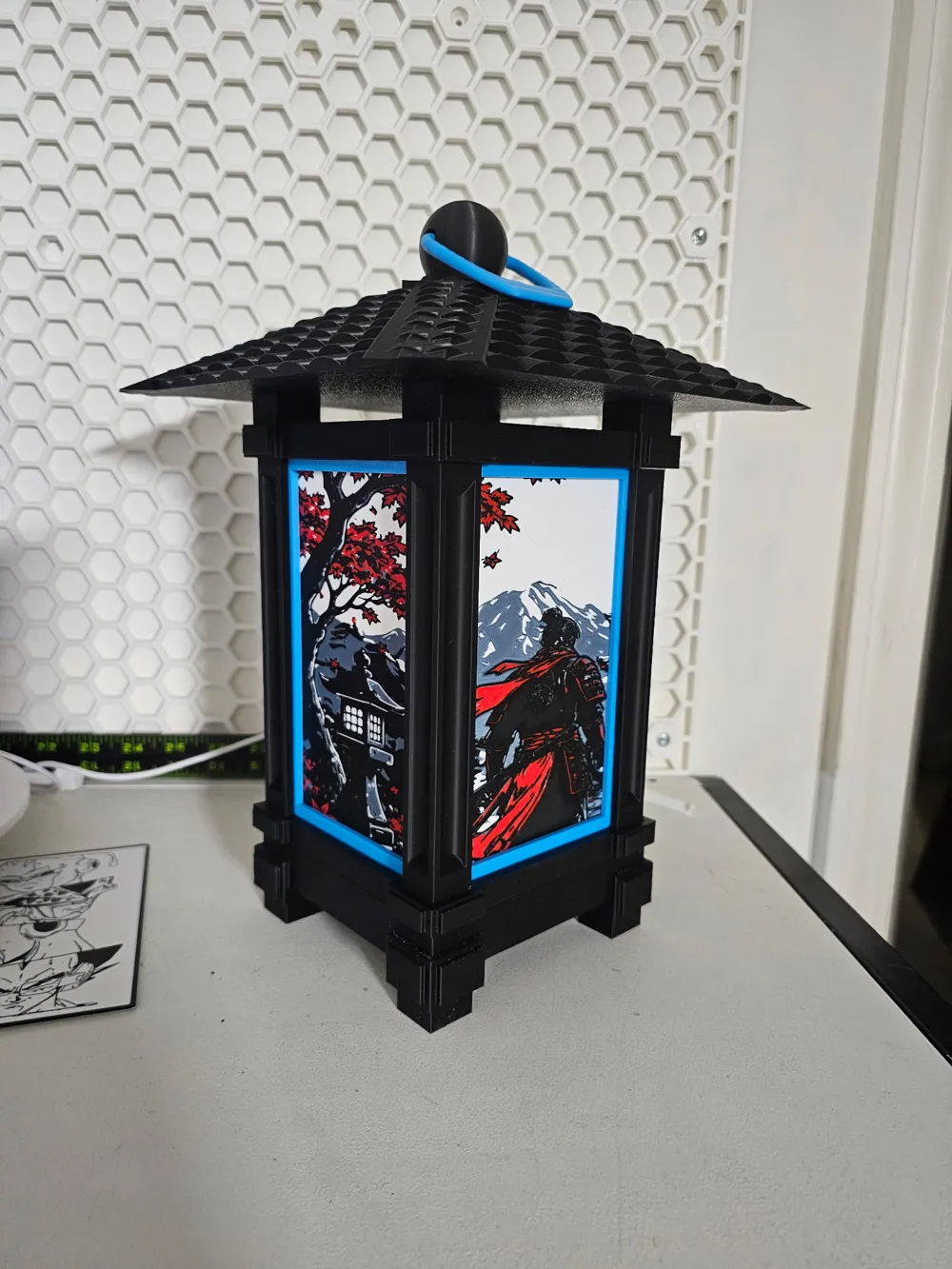

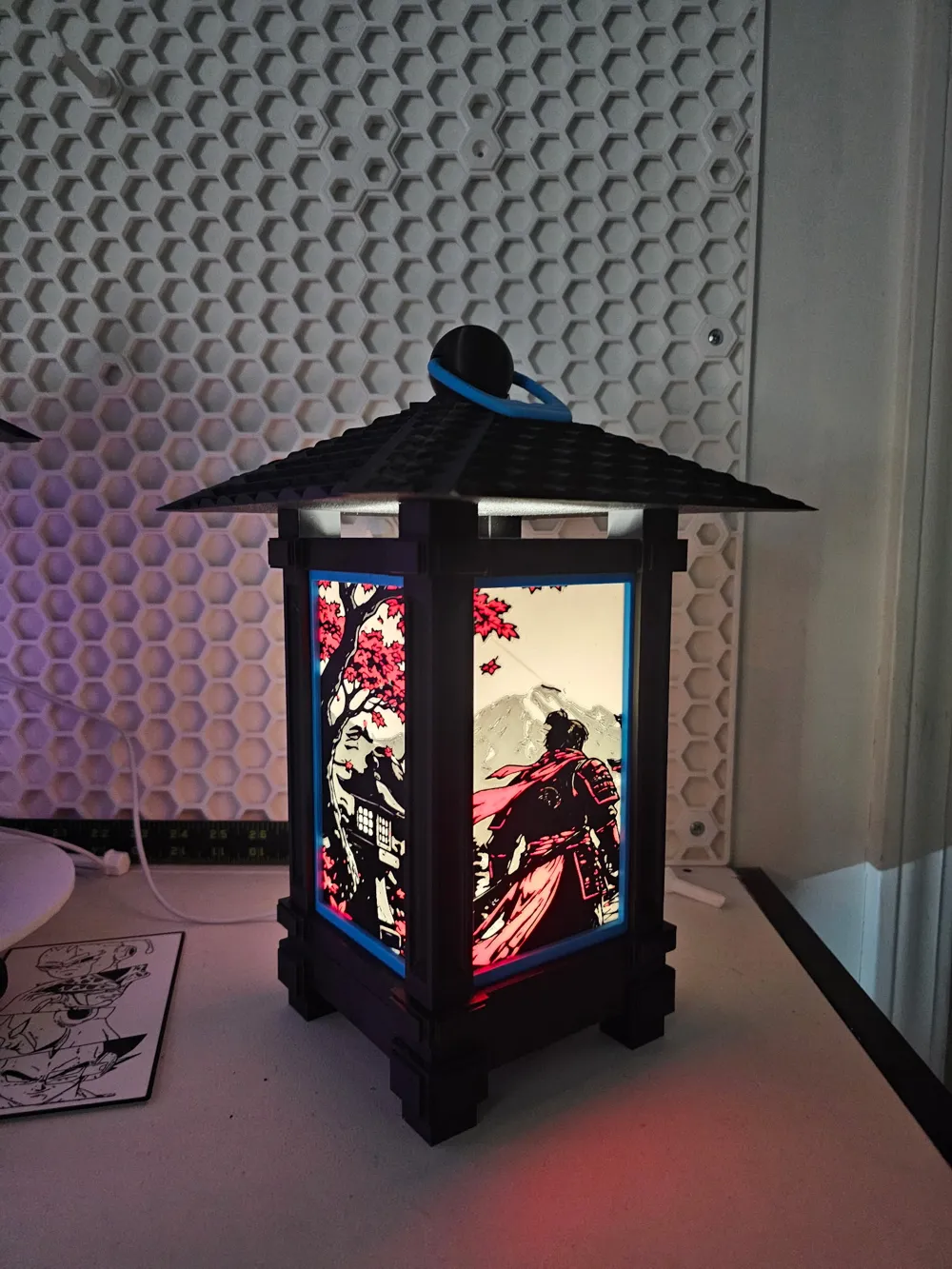

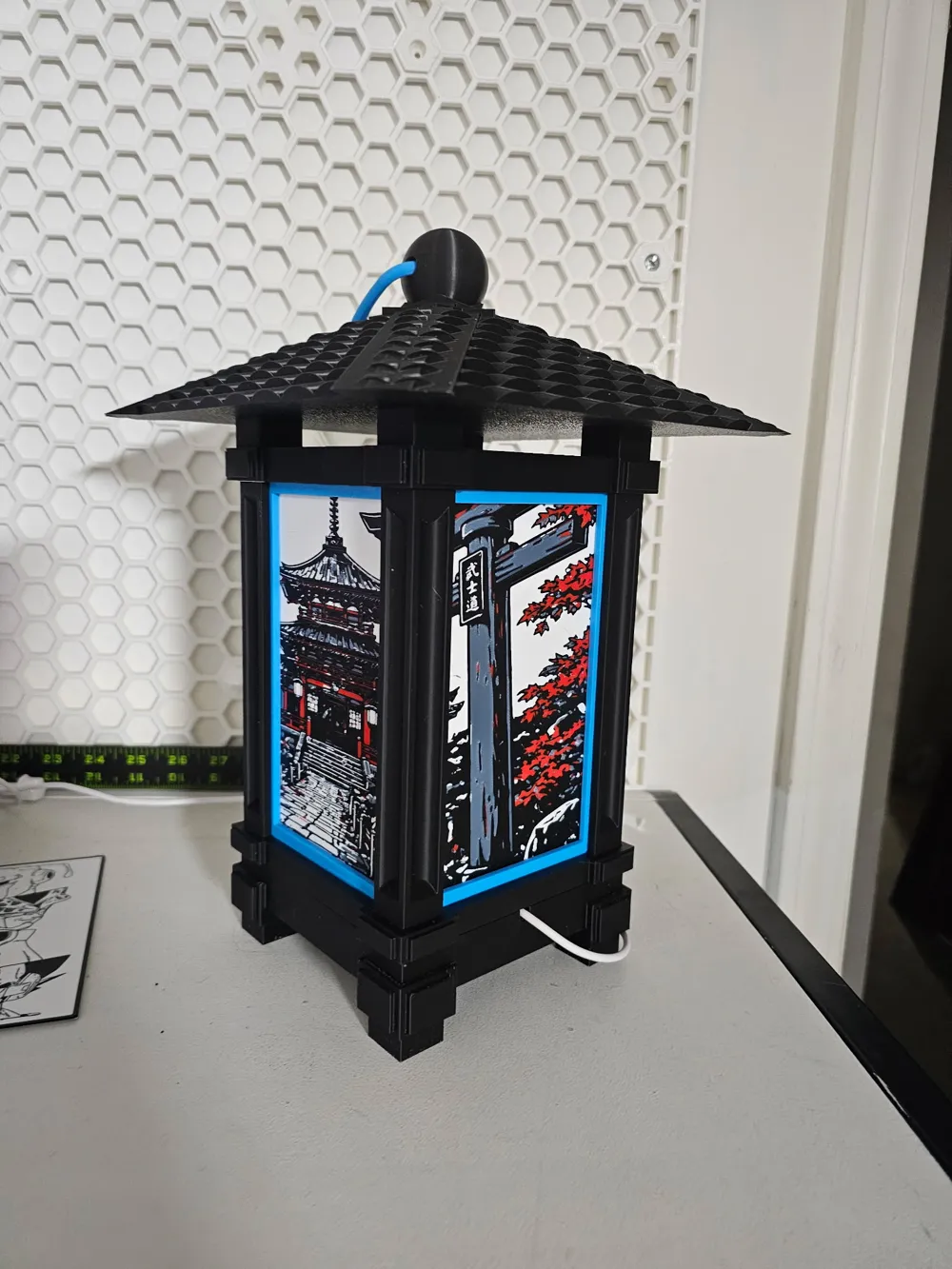

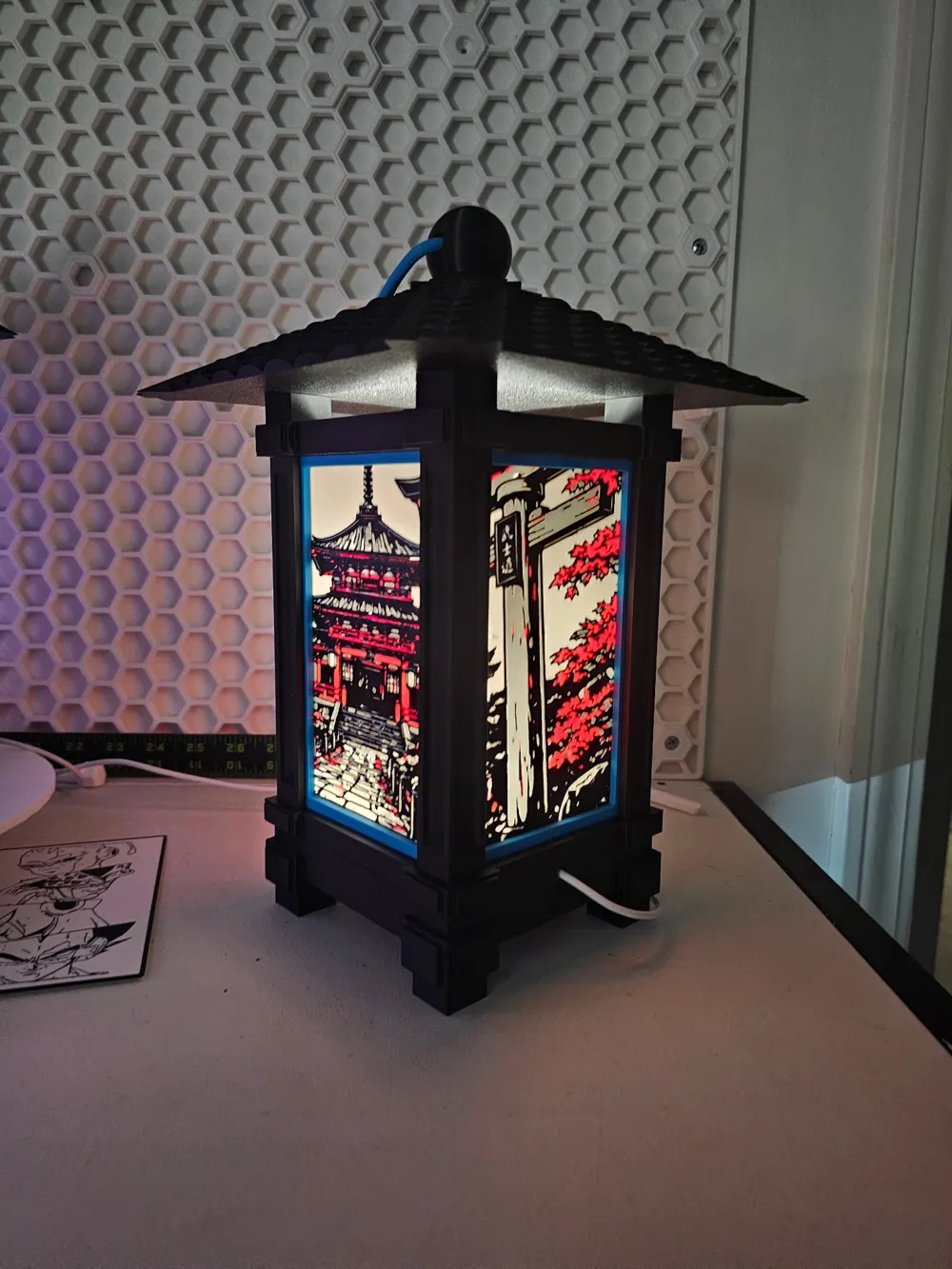

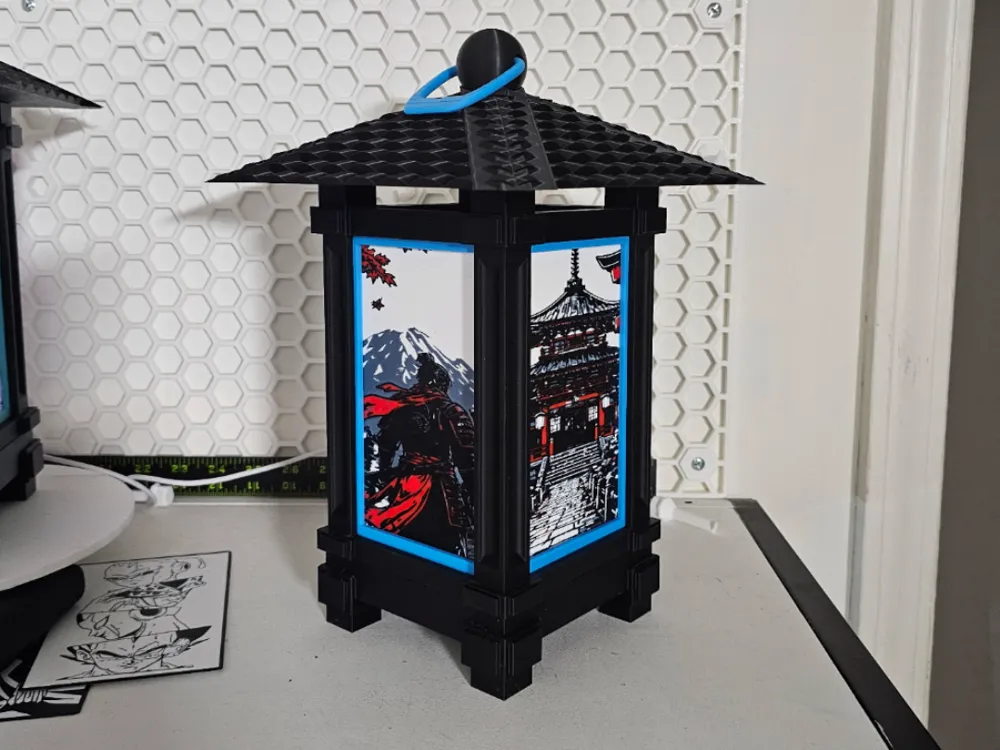

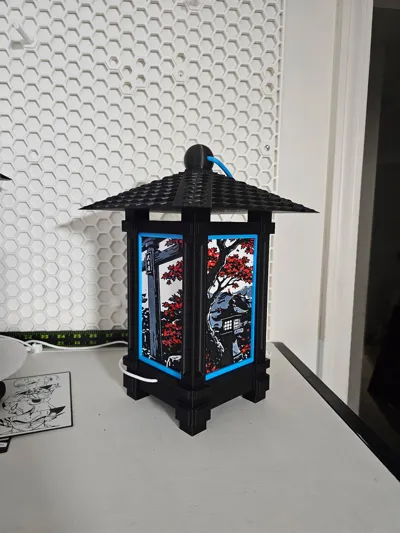

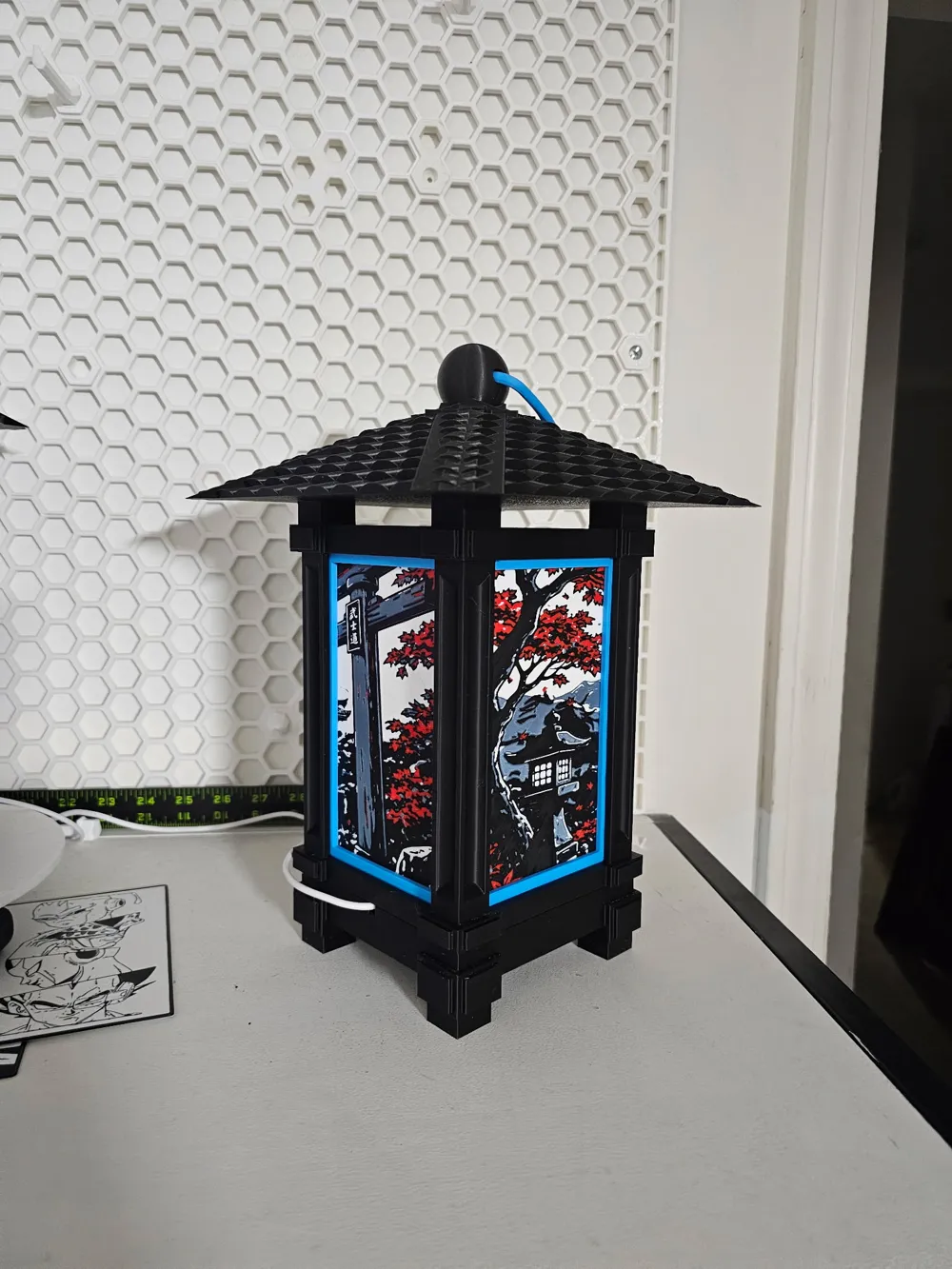

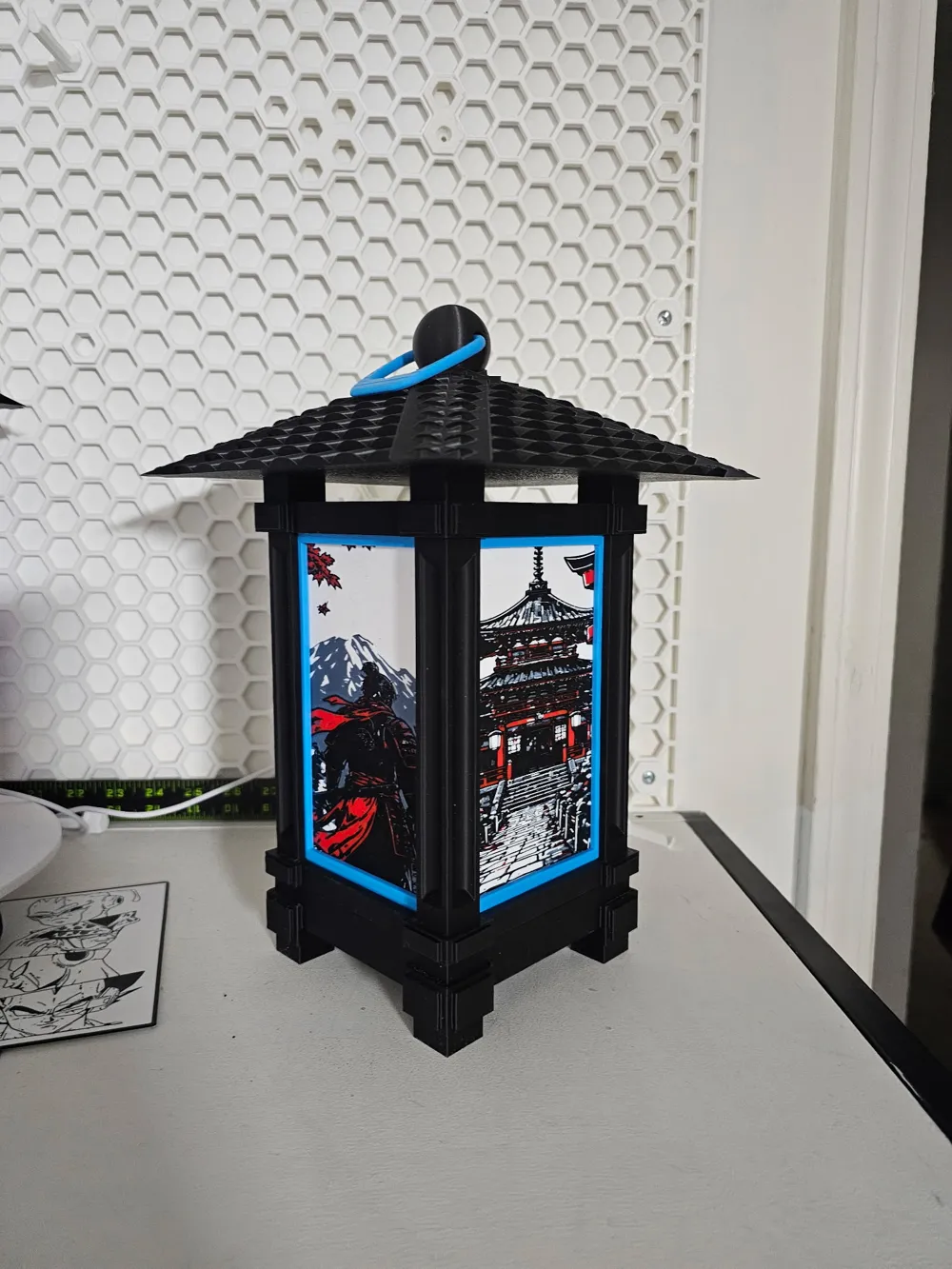

This lantern is a modular, customizable piece of home decor. It features interchangeable inserts, allowing you to swap designs and create different ambiances, this lantern combines a sleek design with the warmth of personalized illumination. Perfect for any space!

Lantern Assembly

1)  The main body and upper body cap locator pins and alignment holes are designed for a snug fit. Glue is not required, but it may be applied for a more permanent assembly. if using glue, ensure both parts are properly aligned before applying adhesive.

2) Once the main body and upper body cap are assembled, install the M5 heat-set threaded inserts into the bottom mounting holes on the main base.

  Using a soldering iron or heat-set insert tool, slowly press the inserts into place until they are fully seated and flush with the surface.  Avoid applying excessive force or heat to prevent damage to the printed parts.

3)  The tiled roof and upper body cap are designed to be glued together.

Before applying glue, align the locator pins and alignment holes, then slowly rotate the parts until they seat together naturally. The pieces should fit together smoothly without forcing them. once properly aligned, apply glue and secure the parts together.

4) Take the outer frame, insert panel, and inner frame, then slide them into the four main body insert slots. Once all panels are properly positioned, install the frame and insert supports into place to secure the assembly

5) Place the (LED Lamp kit) light in the center of the bottom base. once positioned correctly, align the mounting holes and secure the bottom base using (4) M5 x 8 Allen head screws. Tighten the screws evenly until the assembly is secure.

parts needed

(4) M5 x 8 Allen head screw

(4) M5 heat-set threaded inserts

(1) LED Lamp kit on Maker world

This is the first in a growing collection of insert panels. The Samurai edition marks the beginning

-many more unique designs are on the way!
