Umbrella Deck - The Base (by Wesker)
Here is the complete Umbrella Deck project, a fully customizable control station (Deck Style) based on an Arduino Nano. This project brings together all the engineering needed to create your own shortcut interface
🛠️ What this project contains
STL/3MF Files: The main enclosure, support, and internal mechanisms

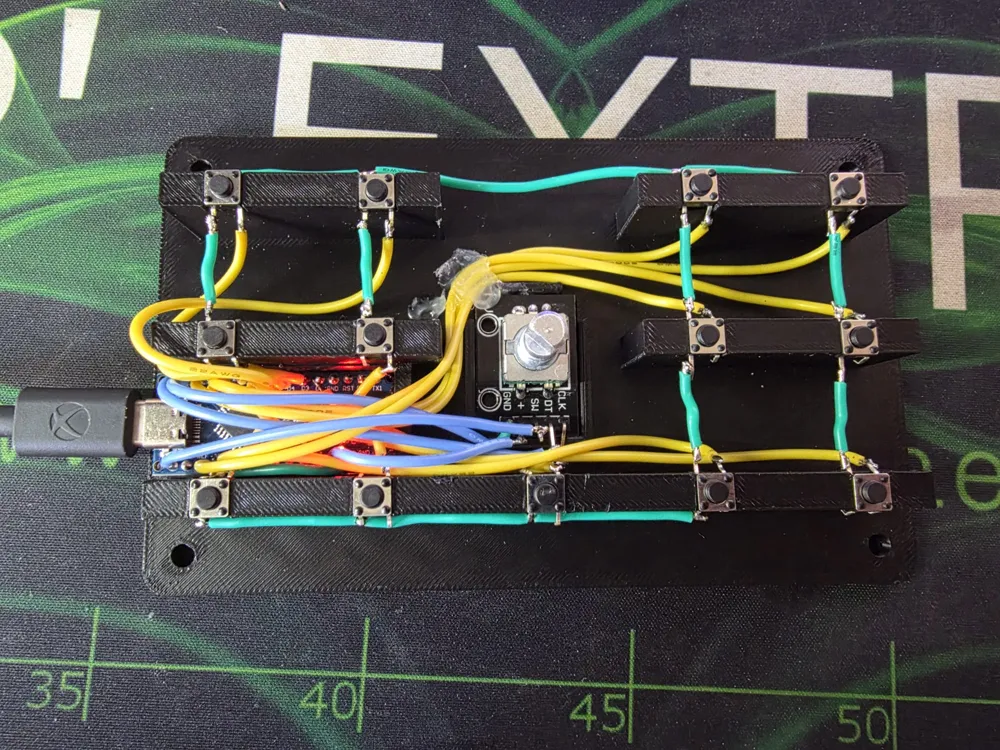

Electronics: Designed for an Arduino Nano, a rotary encoder (KY-040), and 12 push buttons

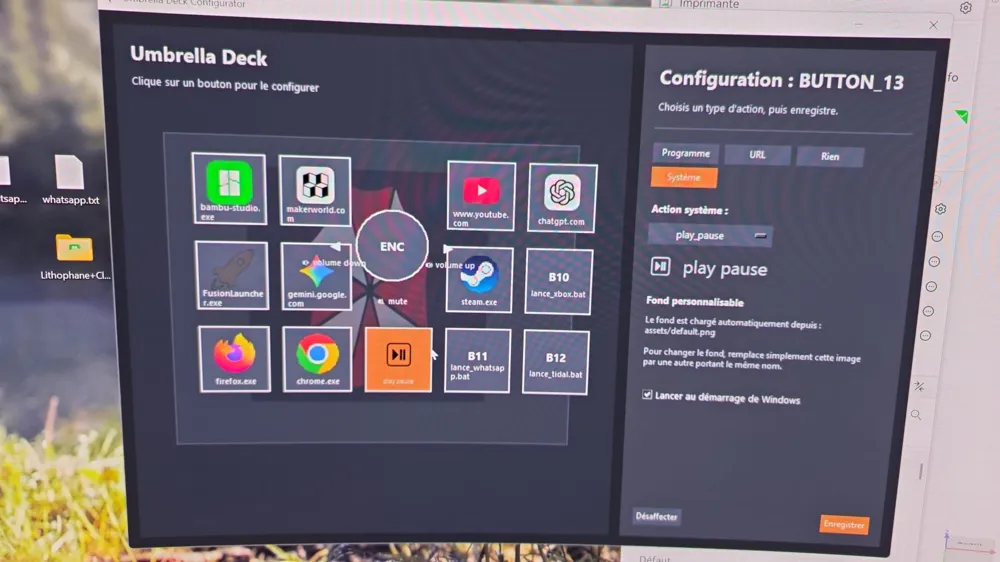

Code: The link to the program to configure your keys and the encoder's functions
🤝 Customization & Keycaps

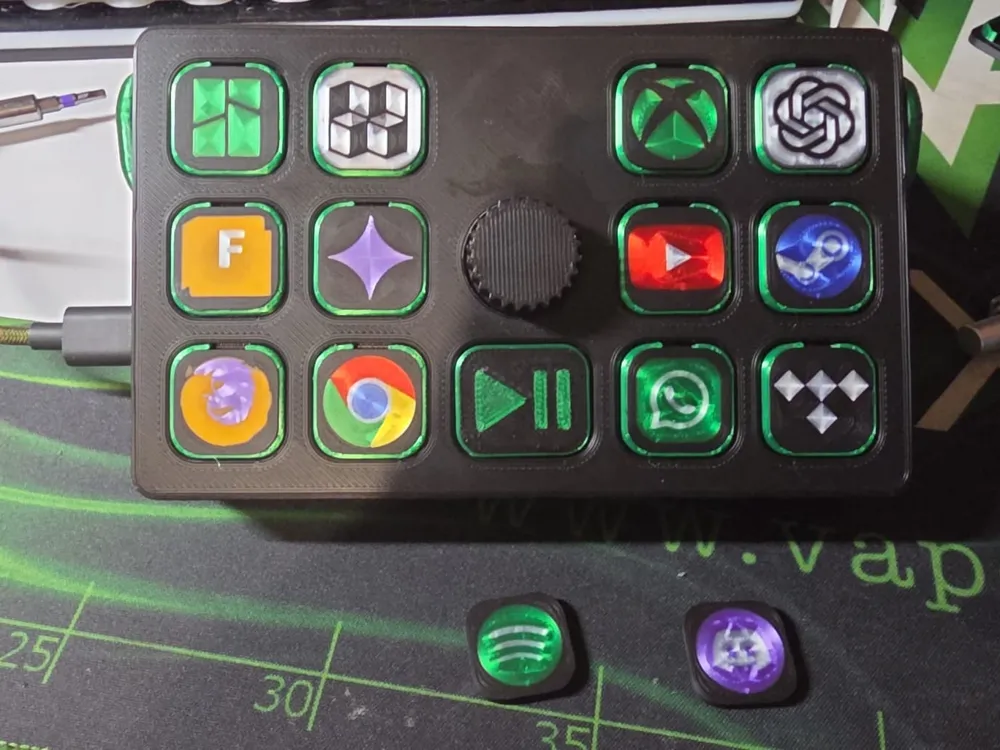

The base is designed to accommodate interchangeable magnetic keycaps

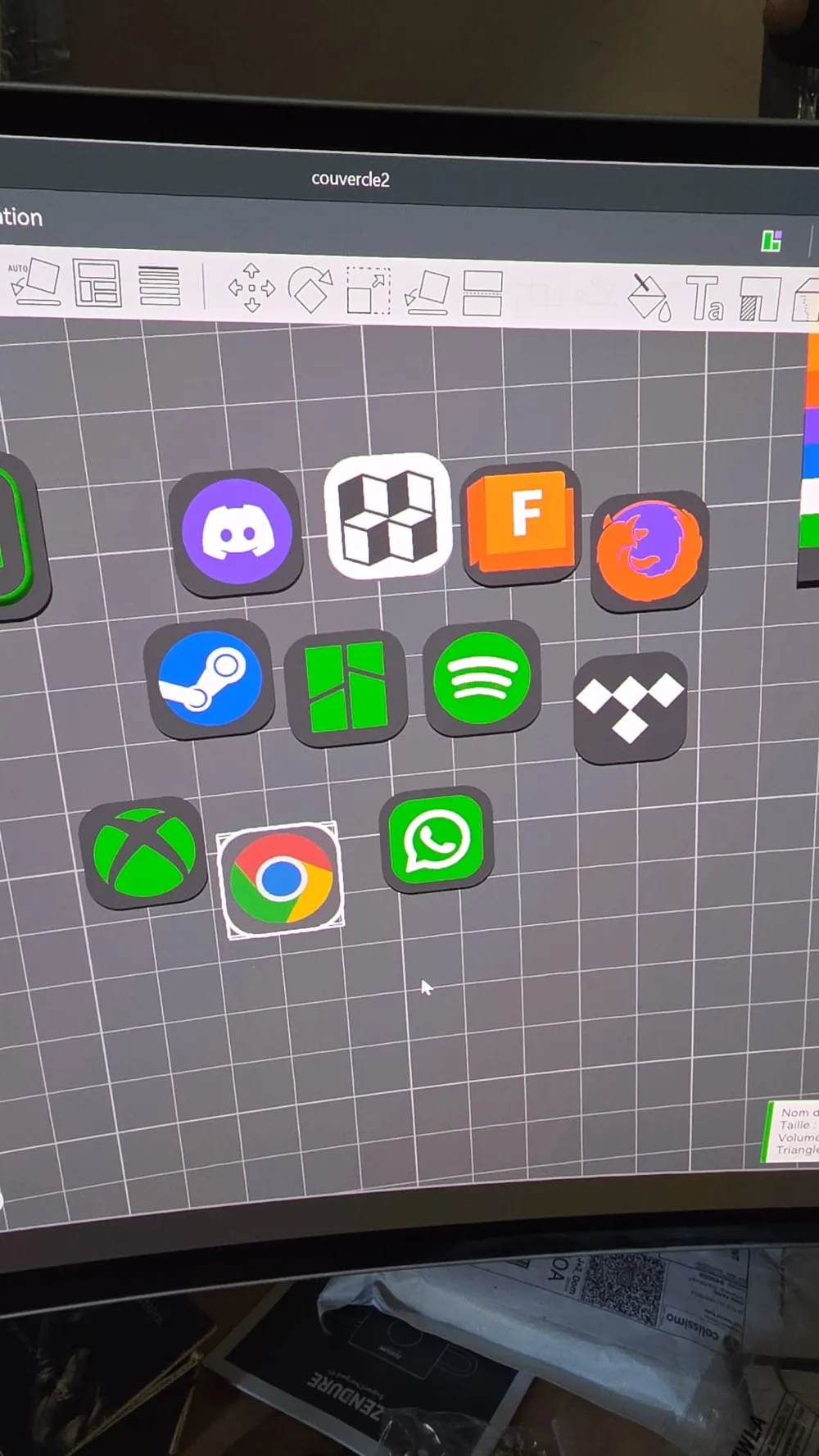

Logo Keycaps: To complete your deck with multicolored logos (YouTube, Spotify, Discord, etc.), find my optimized magnetic keycap collection here: [HERE]
The keycaps are designed for 6x2 mm magnets, perfectly aligned with the slots in this base
⚙️ Installation Tips
Print the base with your usual settings (0.4mm is sufficient for the enclosure)
Follow the wiring diagram provided by Wesker for the Arduino
Insert the magnets into the base, observing the polarity so they attract the keycap inserts
