Description

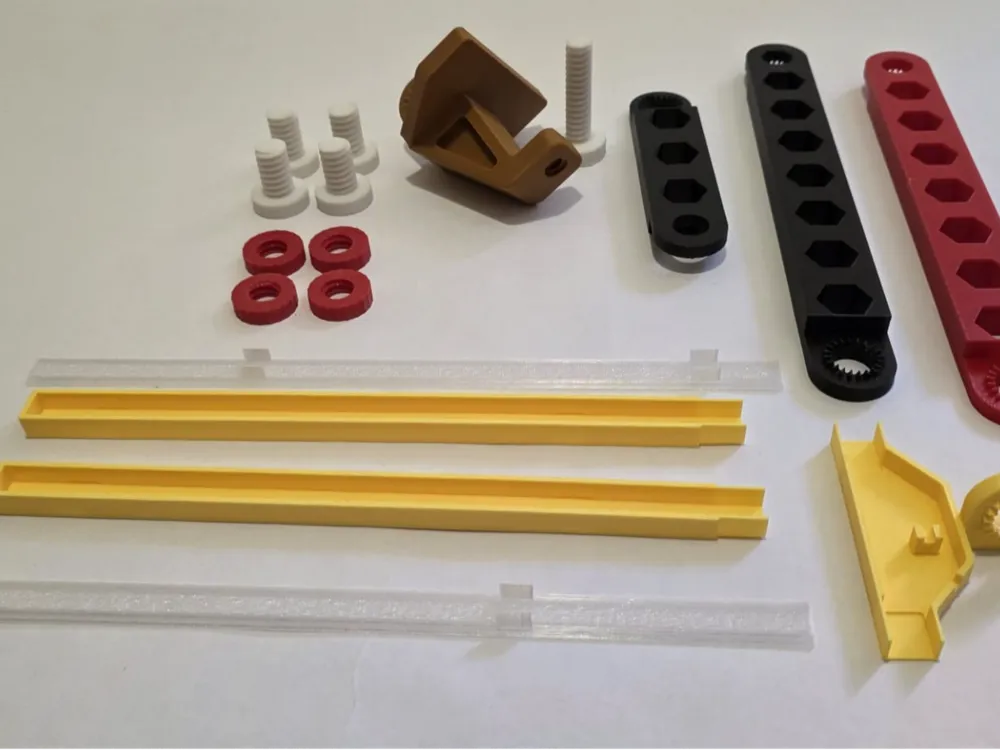

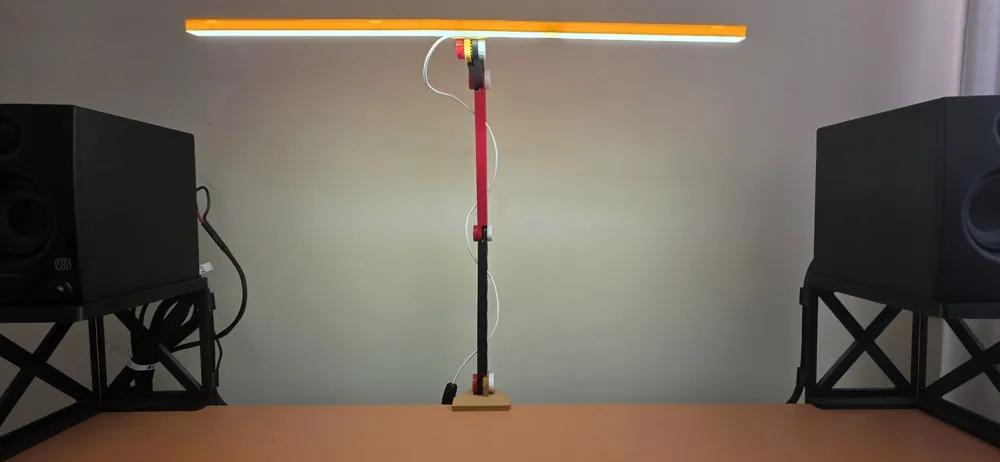

Modular table lamp where the lamp structure can be assembled with large or small rods according to individual needs.
I recommend printing plate 7 with 2 walls and 5% infill, using transparent material.
The rest of the project is recommended to be printed with 4 walls and 15 to 20% infill to be more robust, especially plate 1.

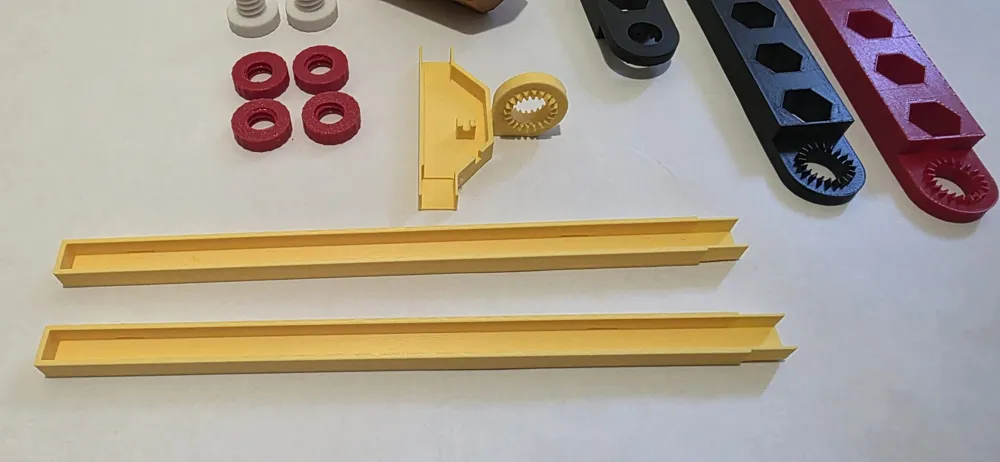

The LED holders (plate 7) are glued to the ends of the LED support (plate 5).
The screws connecting the rods do not need to be overtightened, as the rods have protrusions that allow them to be placed at the required angle and will lock the rods in that angle.
For Plate 4, which contains the screws and nuts, I recommend printing WITHOUT supports. Everything else can be printed with supports, although some plates may not require them.
The entire project was printed in PETG.
