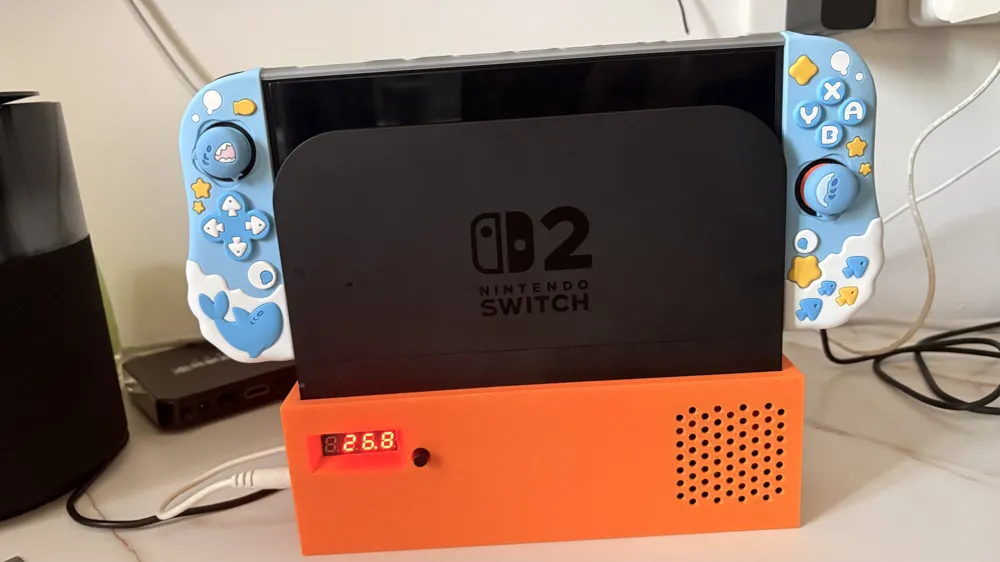

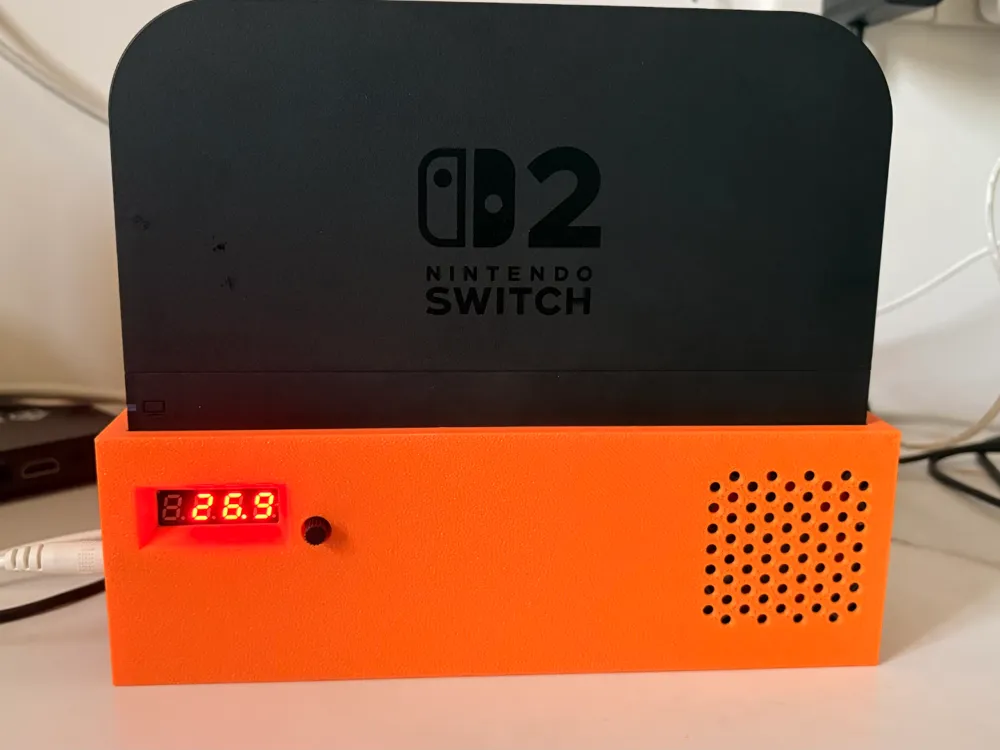

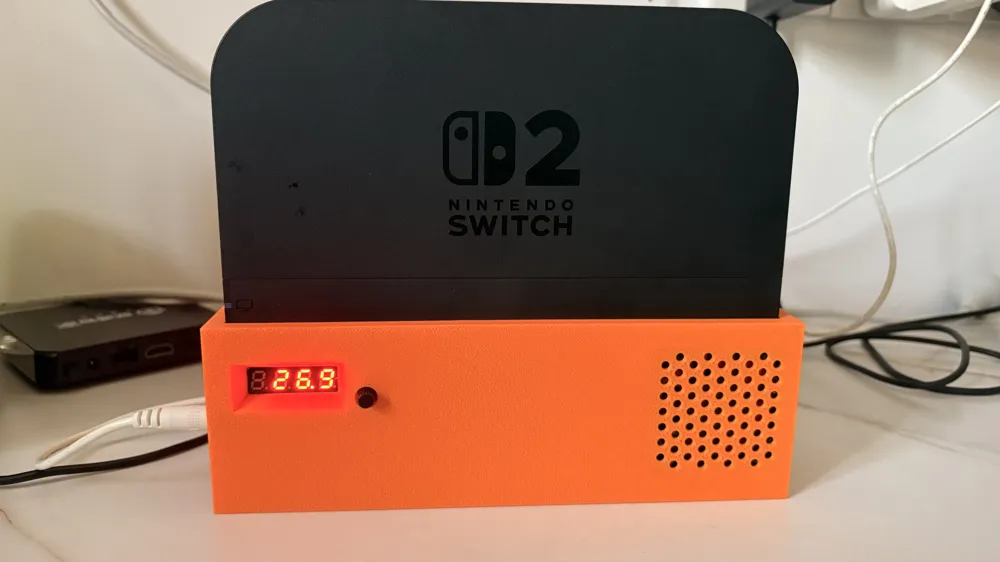

SWITCH Automatic Temperature Control Base

Accessories:

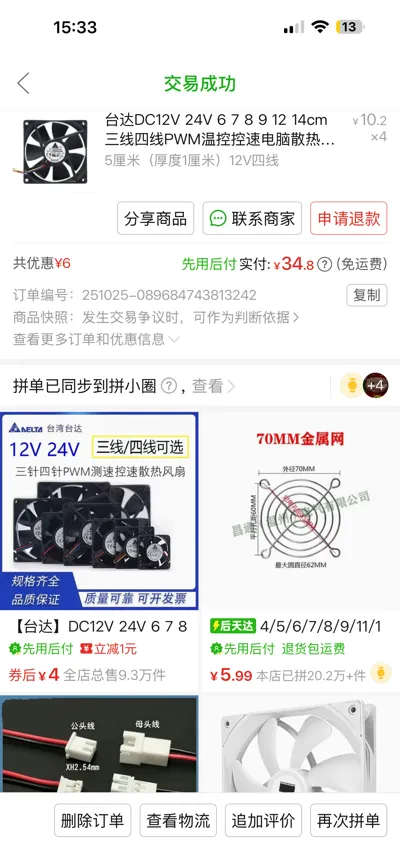

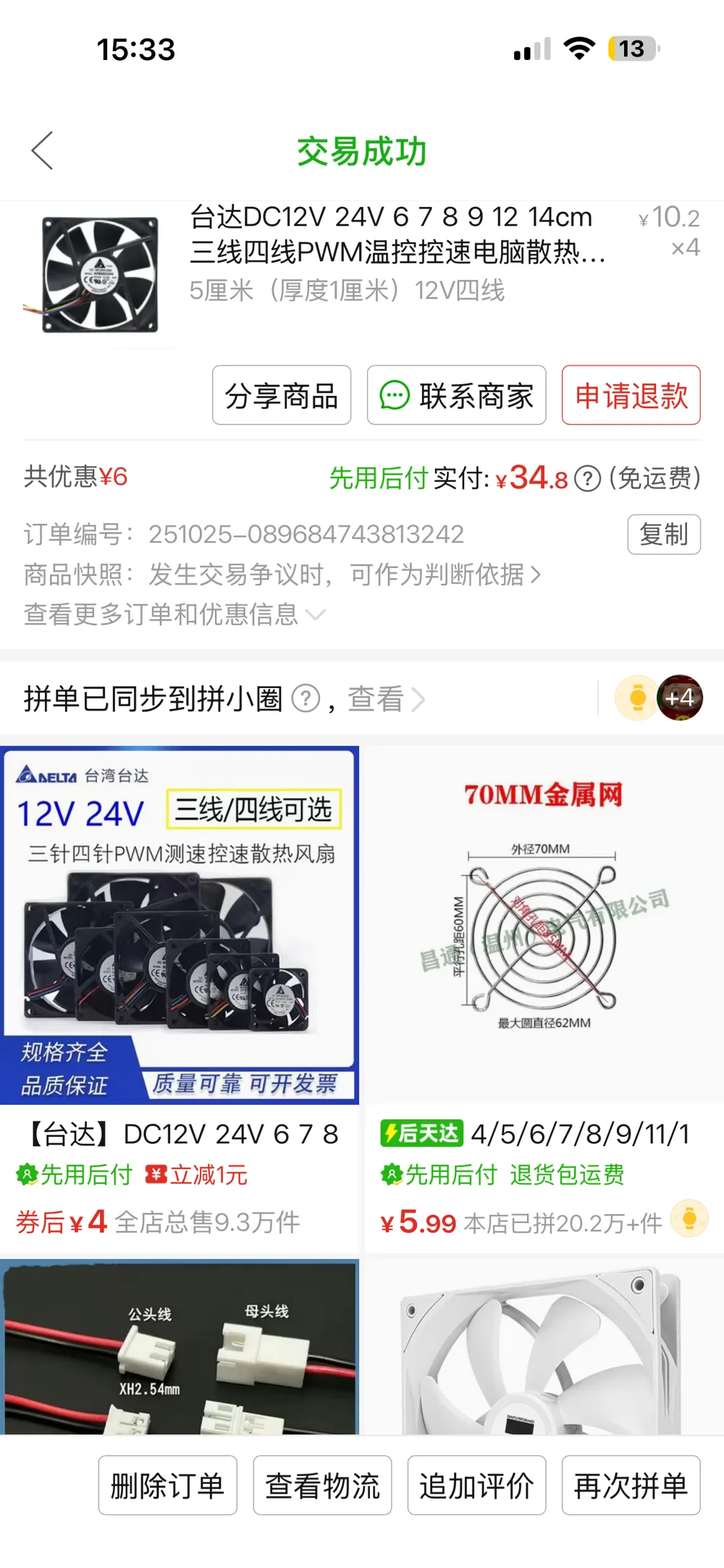

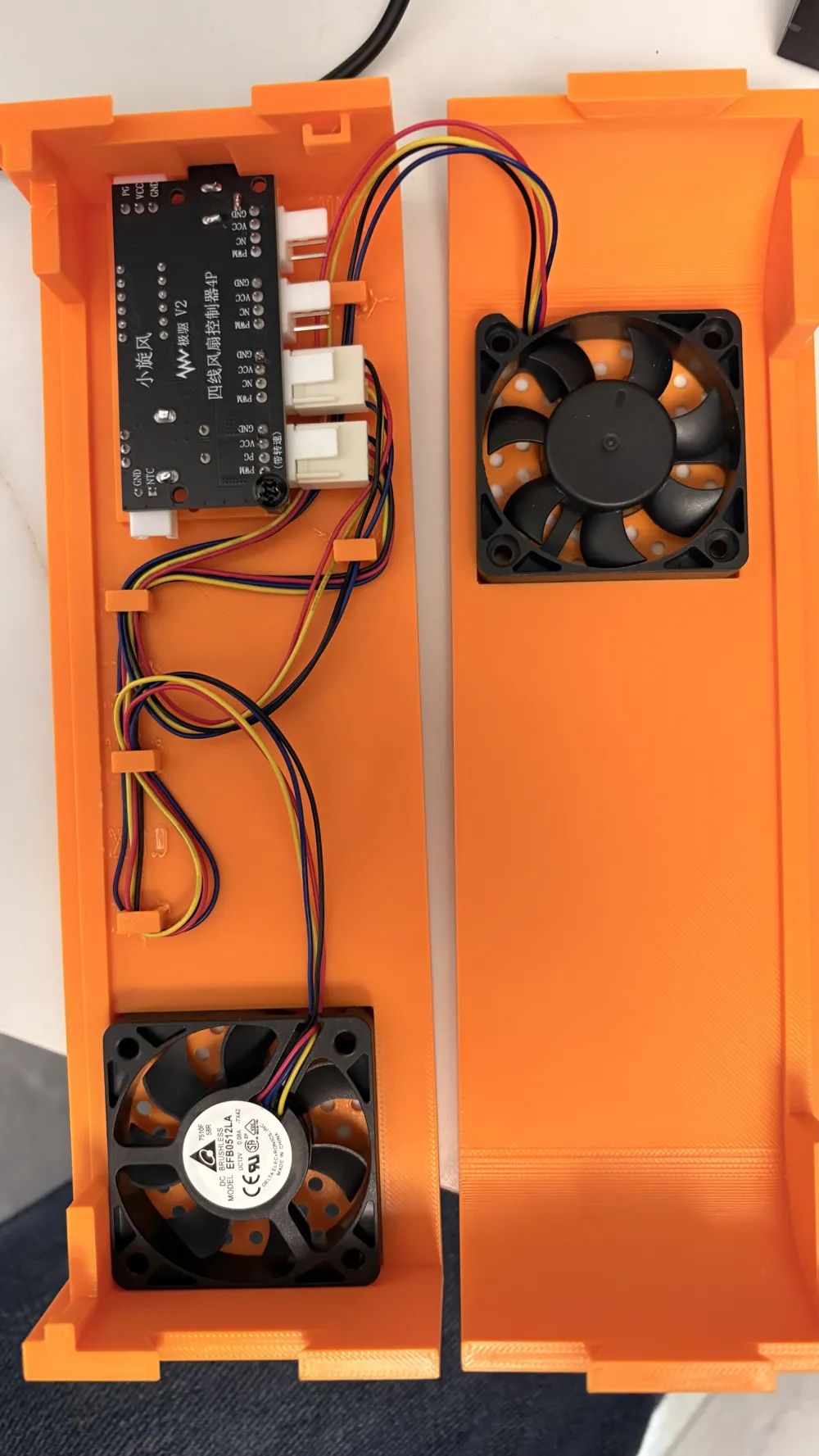

1. Delta 5cm 4-wire PWM Fan

• Specifications: 5cm (50×50×10mm, ultra-thin model), 12V, 4-wire PWM
• Features:
  • 4-wire with PWM speed control + speed detection, not a fixed-speed fan. It can automatically adjust speed according to temperature, balancing heat dissipation and noise.
  • Delta's industrial fan, with high airflow and long lifespan, is very suitable for modifying base heat dissipation.
  • The 5cm size fits perfectly into the internal space of the Switch base, making it one of the "golden sizes" for heat dissipation modification.

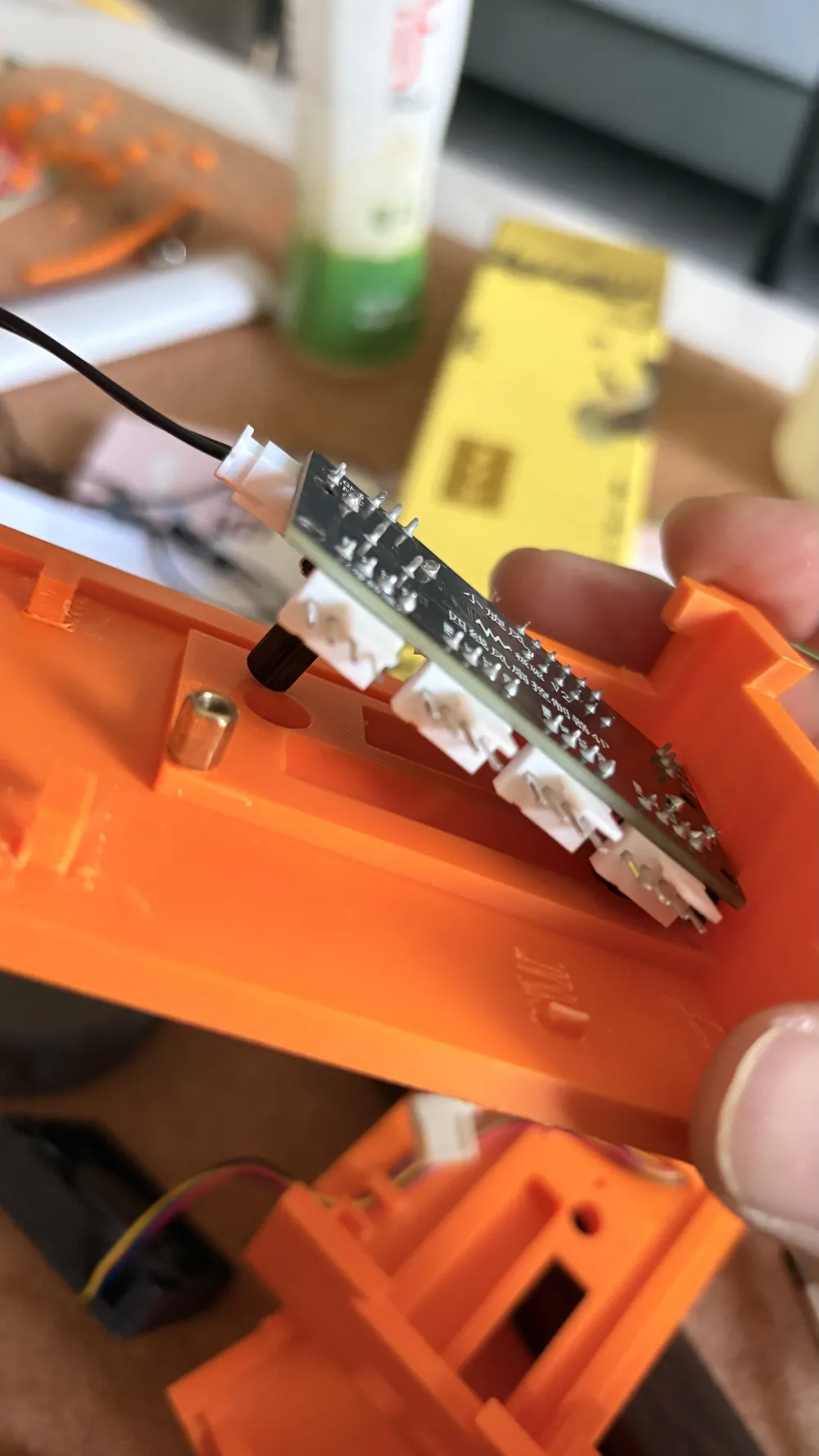

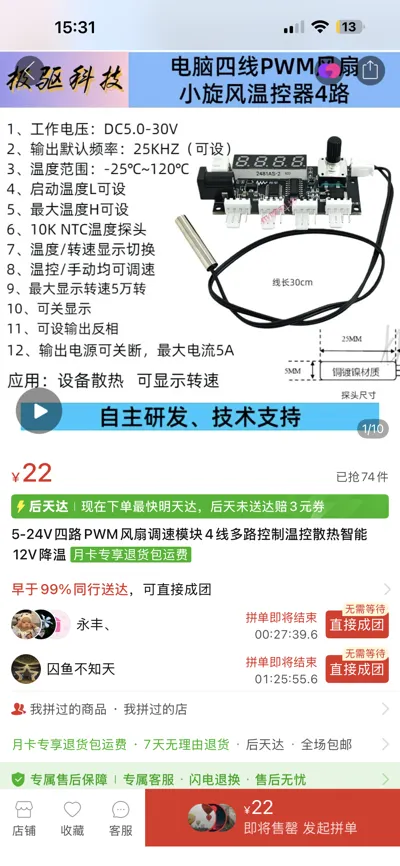

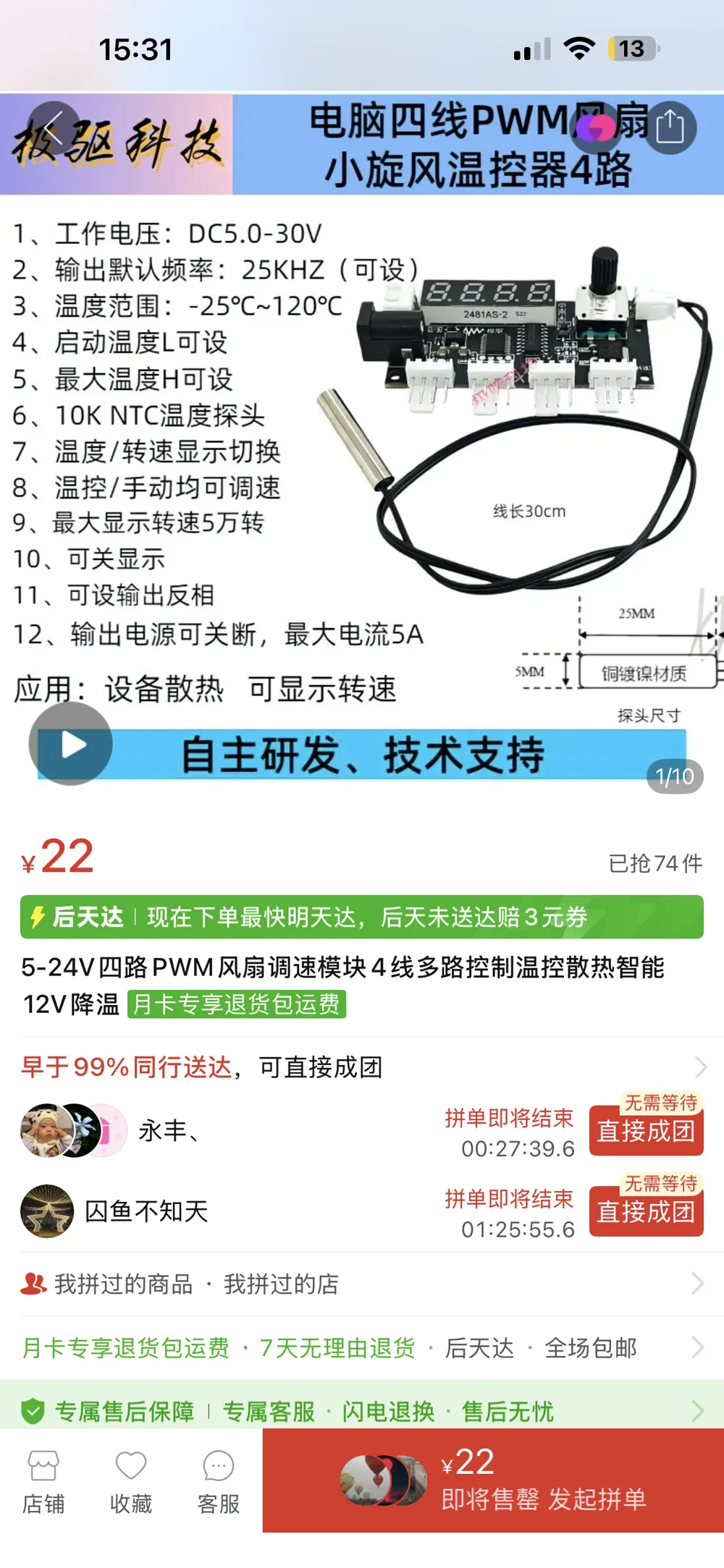

2. Four-channel PWM Temperature Control Speed Adjustment Module

• Specifications: 5-30V universal, supports 4-channel 4-wire PWM fans, with NTC temperature probe
• Core functions:
  1. Temperature-controlled automatic speed adjustment: Use the temperature probe to detect the internal temperature of the base. You can set the "start temperature (e.g., 40℃)" and "full speed temperature (e.g., 60℃)", and the fan speed will change linearly with temperature.

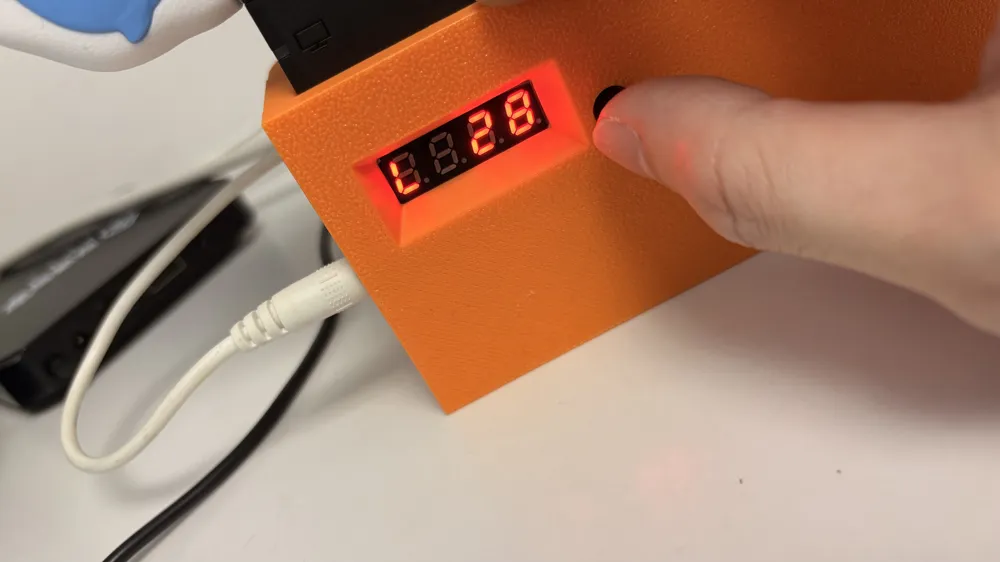

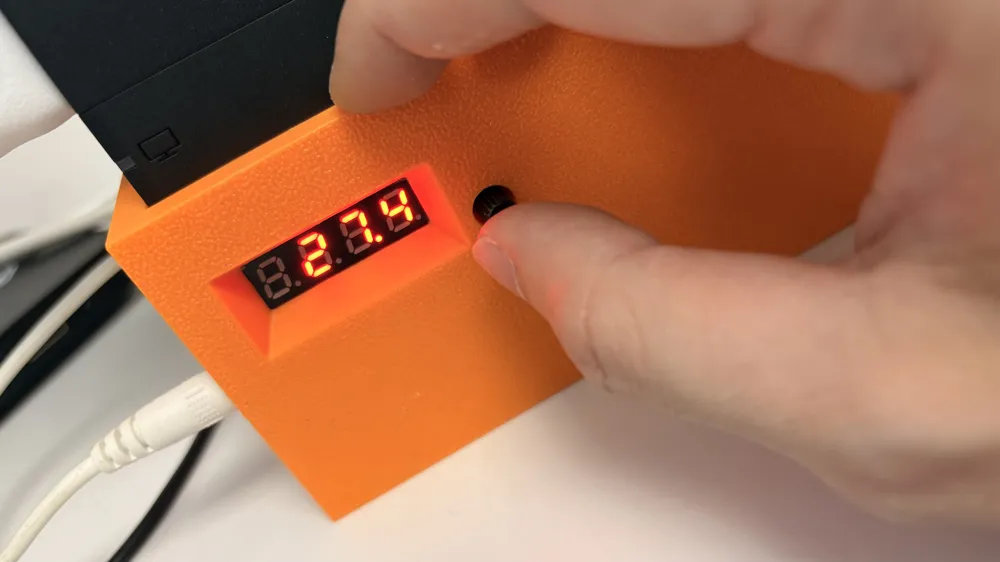

  2. Manual speed adjustment + speed display: You can also use the knob to manually fix the speed, and the digital tube can display the current fan speed or temperature in real-time.
  3. Multi-fan expansion: Supports up to 4 fans. If you want to create a "intake + exhaust" dual-fan setup, you can control them together.

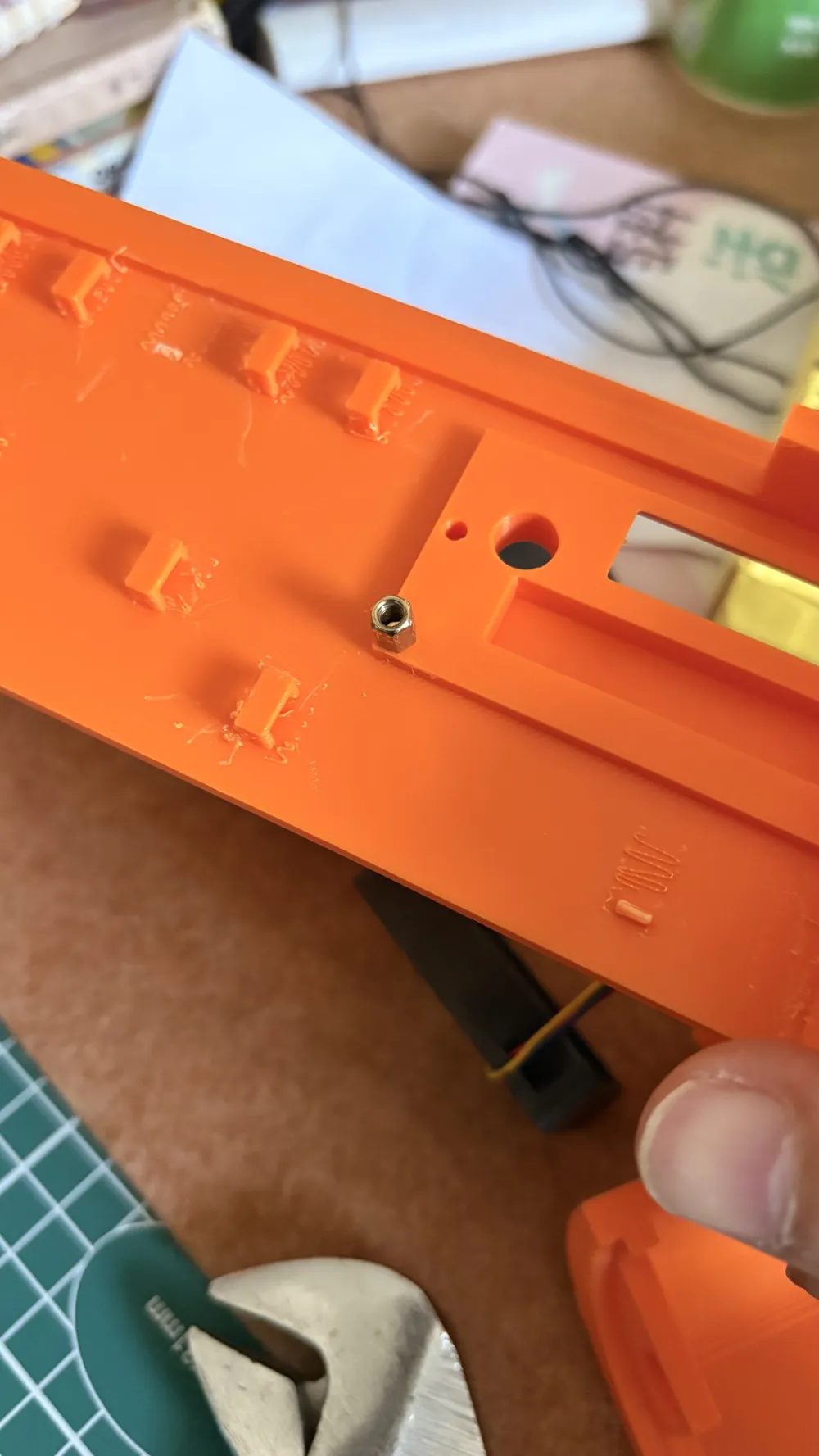

3. One motherboard fixing screw (if you don't have one, print a small cylindrical post for fixation)

4. One power connector

I still haven't finished a base; I'll add it when I have time
