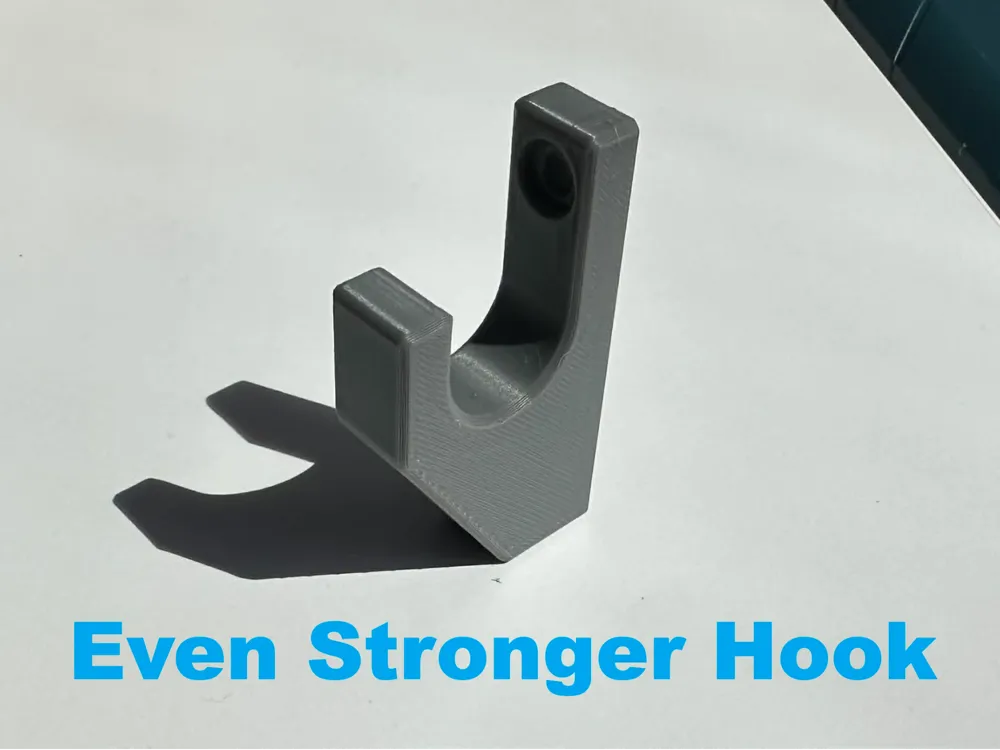

Even Stronger Hook
Print Profile(1)
Description
So I decided to design yet another hook but this time I overengineered it as much as I can :D
If your hook will be on direct sunlight then use at least PETG

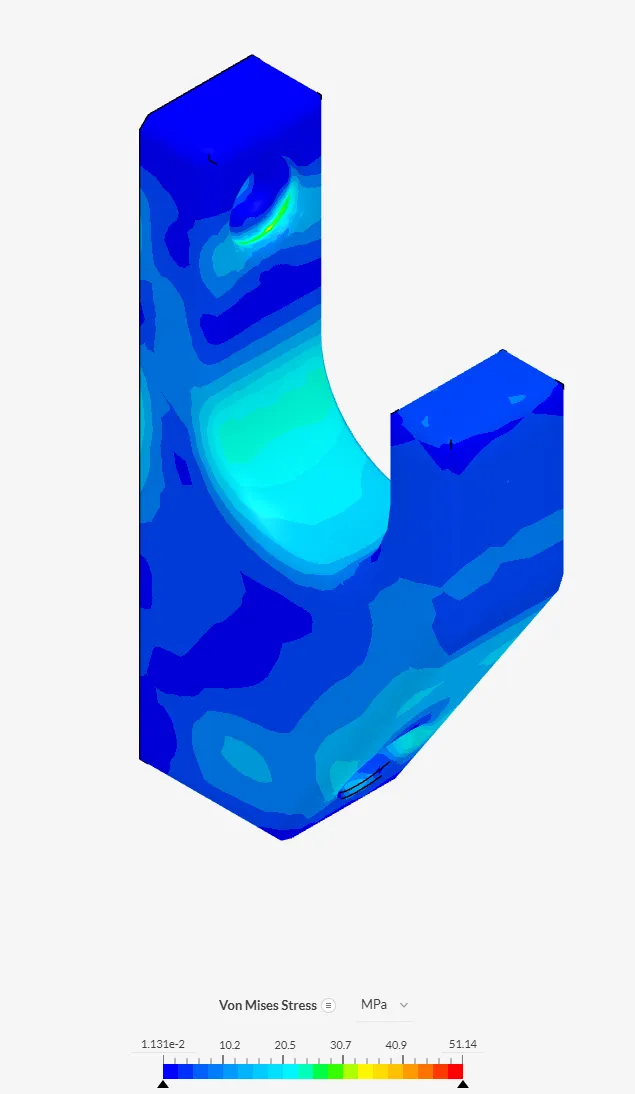

I did few FEM simulations and this hook should hold 40 kg on the top of hook, and max stress would be around 25MPa.
But taking into account safety factor of 2 I would not recomend hanging more than 20kg.

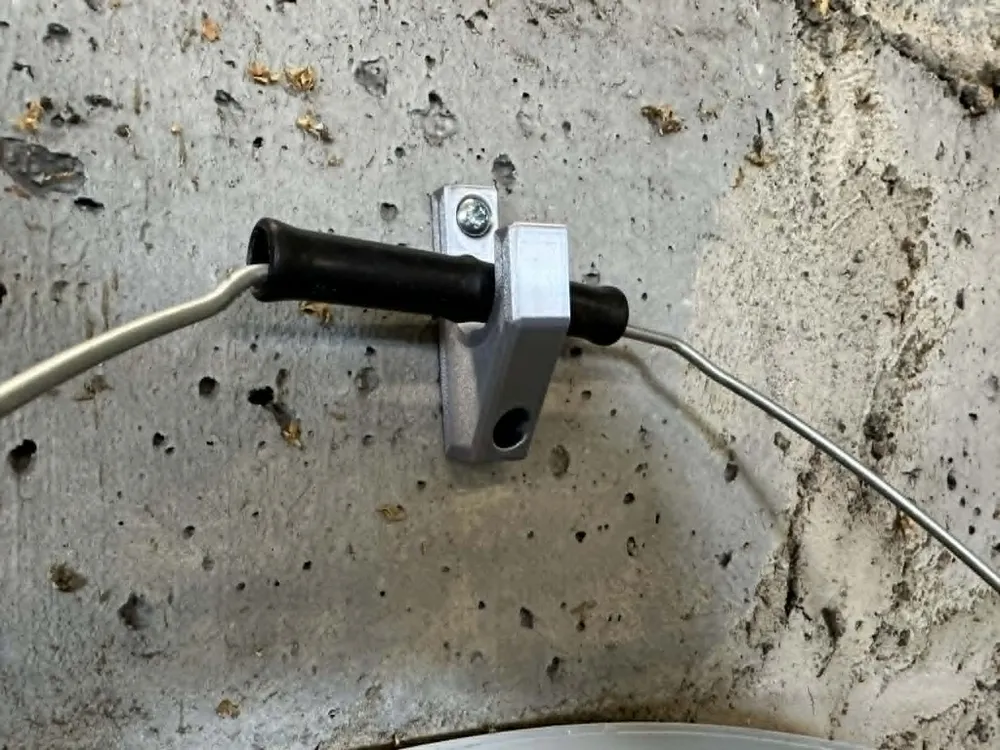

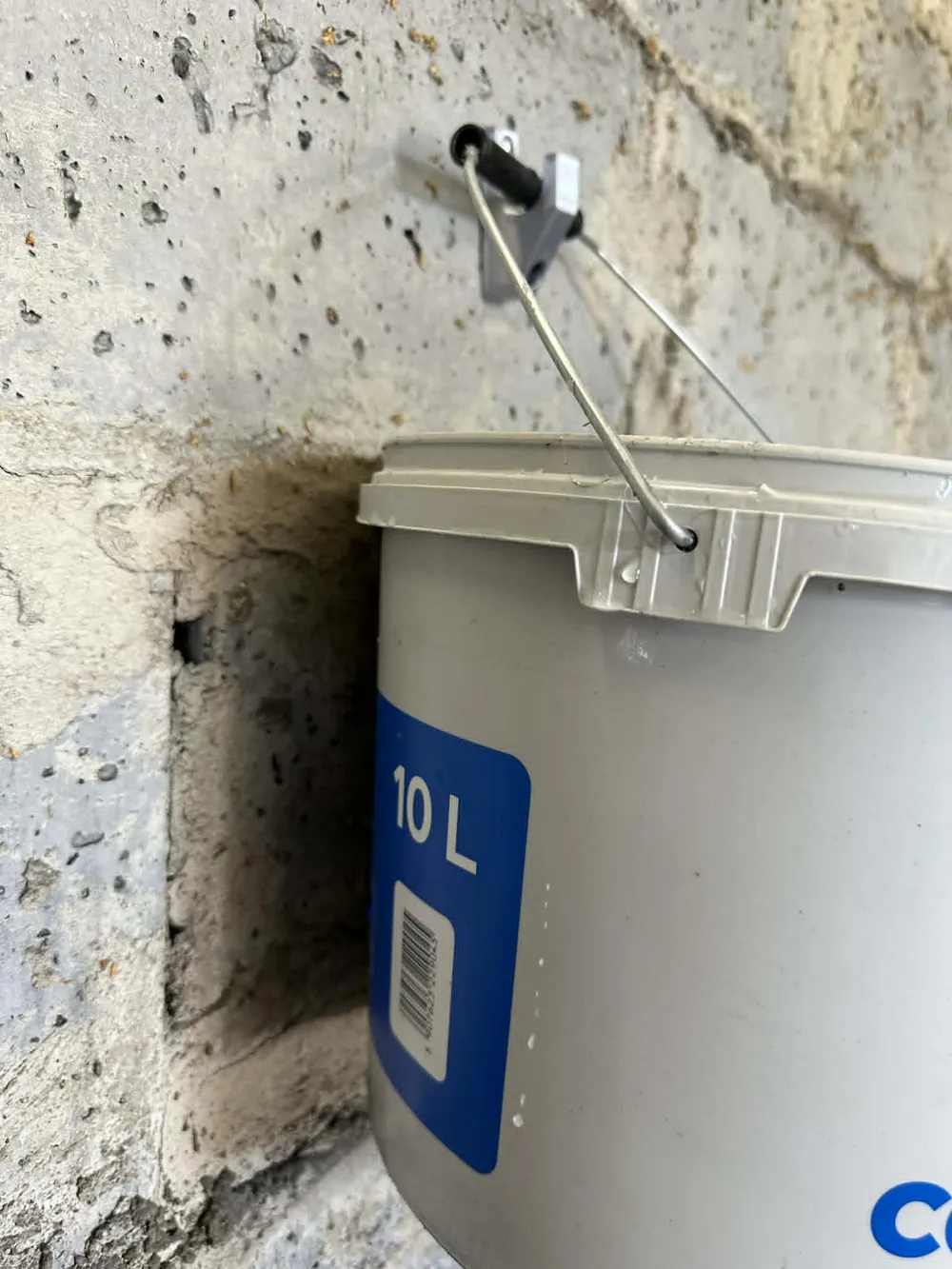

My empirical tests proven that this hook can hold 10 liters bucket of water for whole night, on only one 4mm wall anchor.

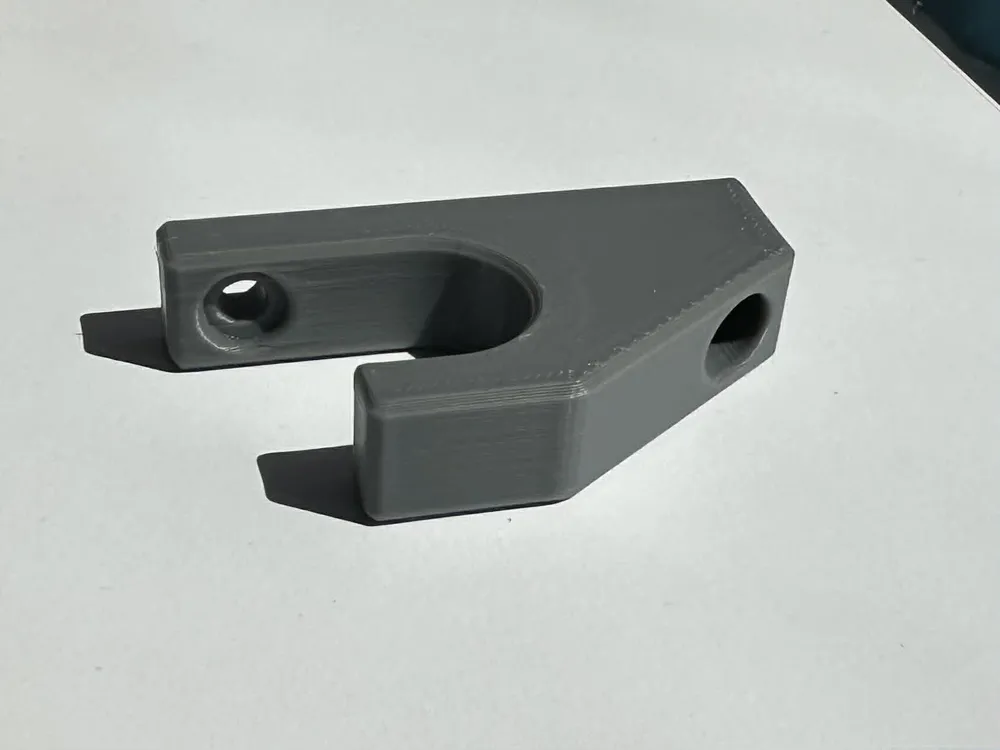

Hook is designed for use with two 4mm wall anchors
