Hello,

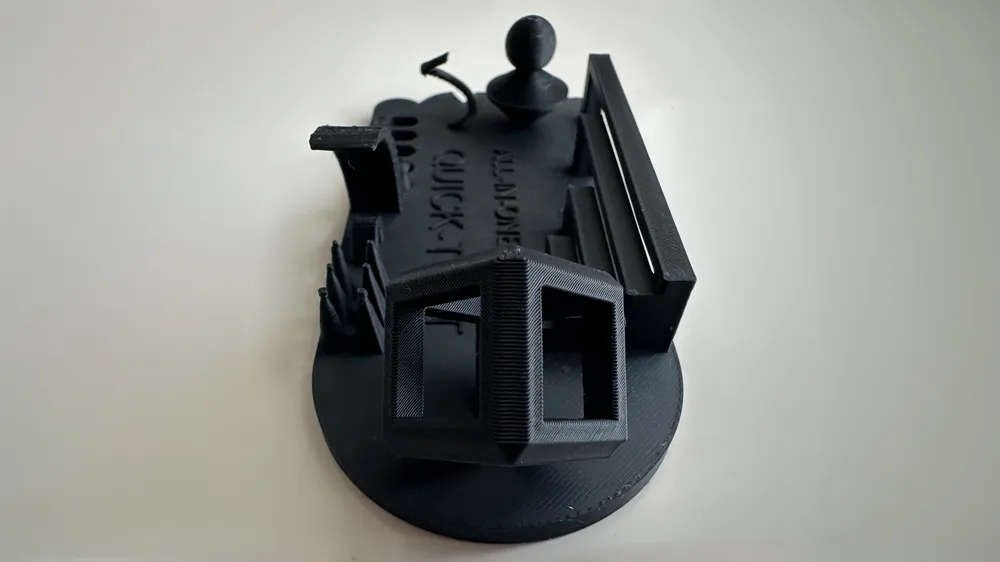

I would like to introduce a simple test model for 3D printers.

This model will help you understand the limits of your printer and identify which settings need to be adjusted to achieve the best possible results. With it, you can easily test accuracy, fine details, and overall print quality.

It is ideal for both beginners and advanced users who want to get the most out of their printer.

Give it a try and take your print quality to the next level.

If you see hairs or stringing here, you need to adjust the temperature, retraction distance, and retraction speed.

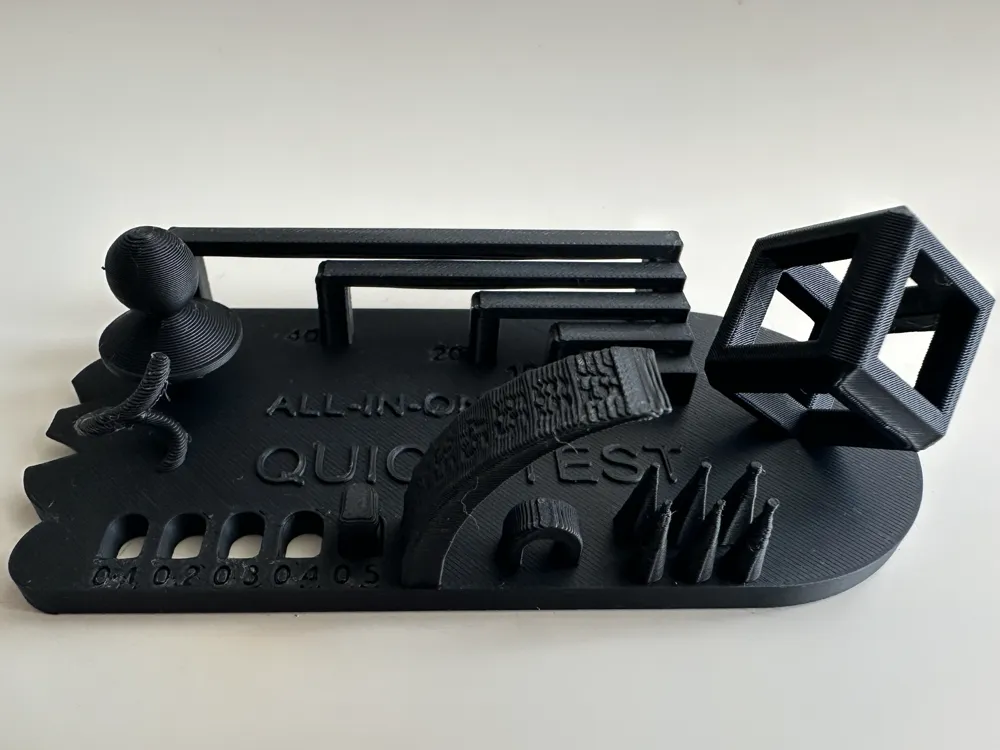

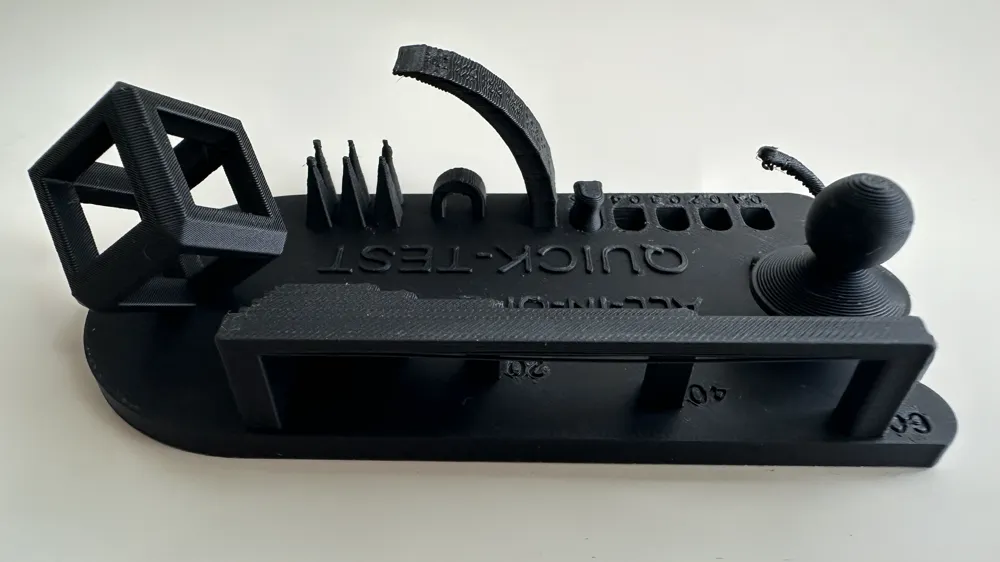

Bridge test 5/10/20/40/60 mm. For better results, adjust settings like bridge flow, bridge speed, and improve cooling.

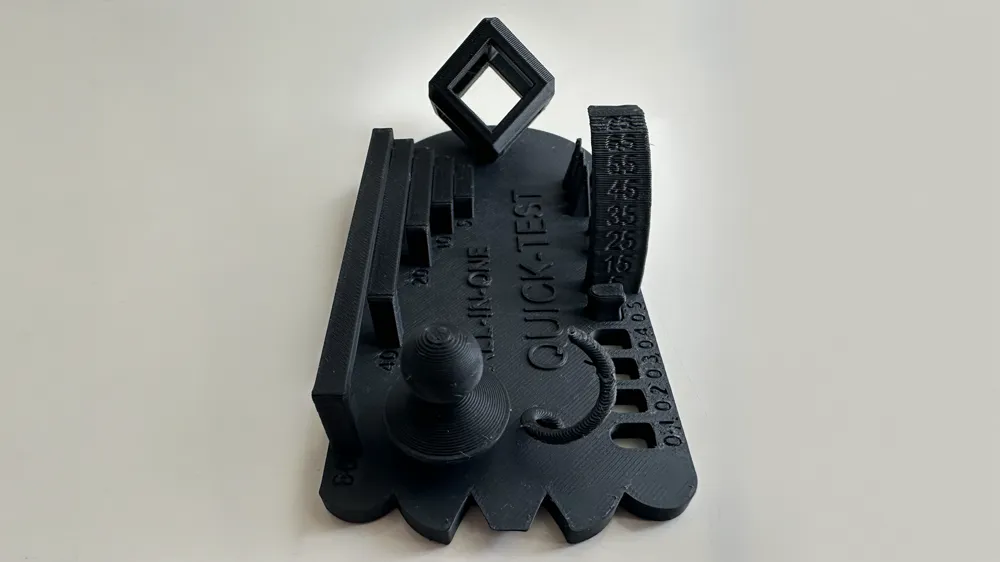

Overhang test 5/15/25/35/45/55/65/75 degrees. For improved results, adjust settings such as overhang speed, enable "slow down for overhangs," lower the temperature, improve cooling, or reduce the flow rate.

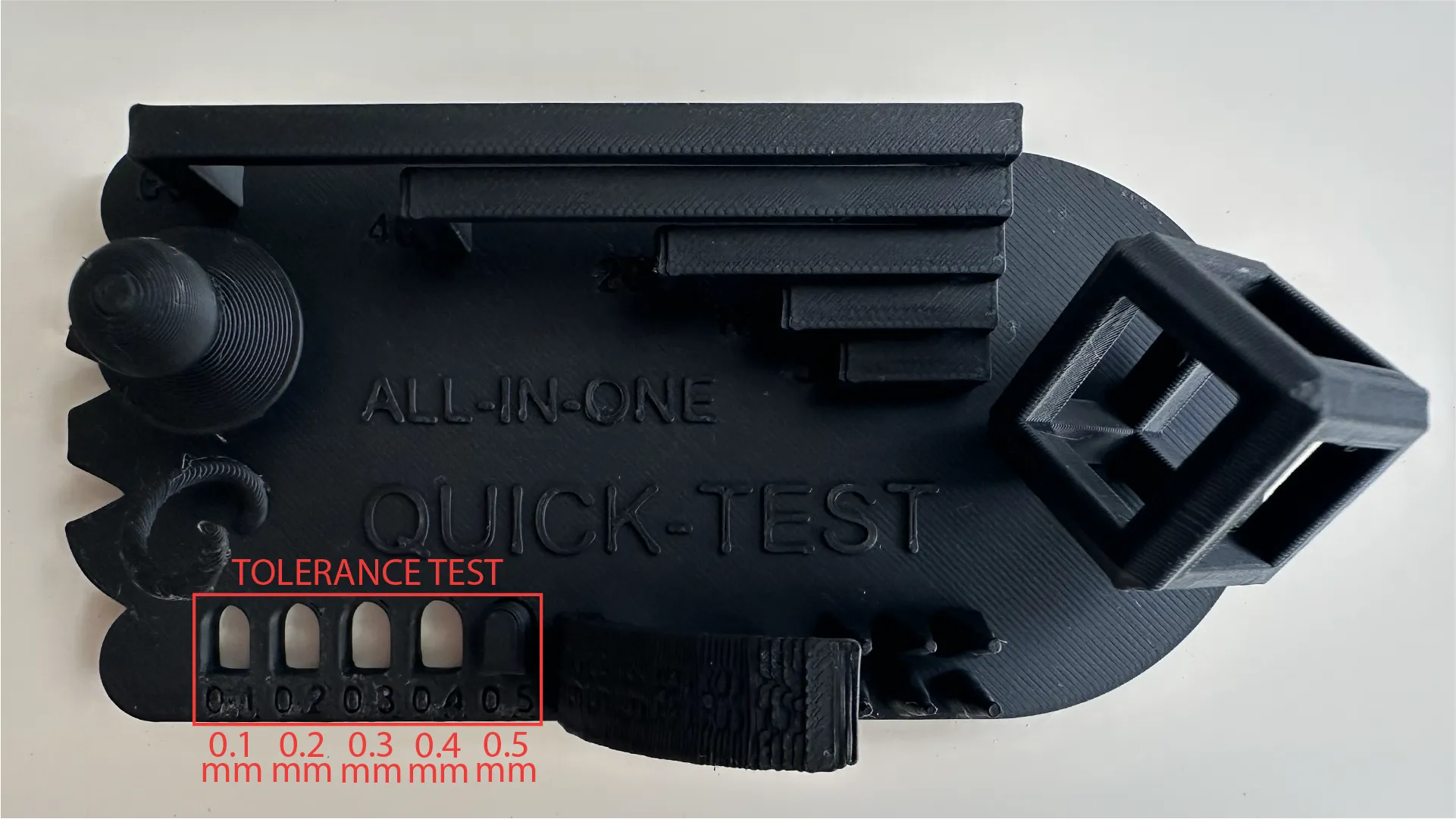

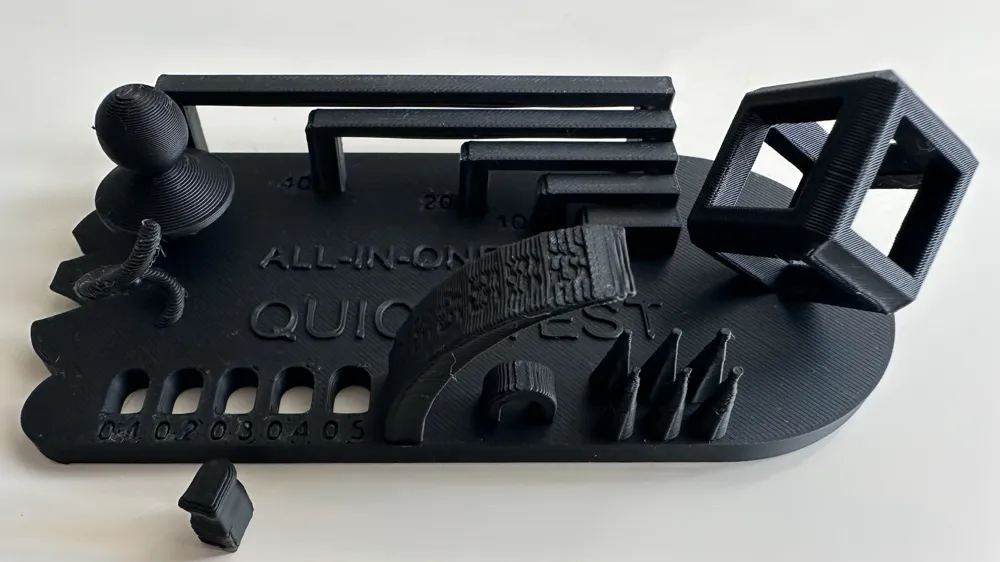

Remove the small test piece and try inserting it into the holes. The holes are larger by 0.1/0.2/0.3/0.4/0.5 mm.

If you’re unable to fit it into the holes and want more precise results, try setting the wall order to outer/inner wall, and slightly lowering the flow rate and temperature.

Standard spiral test. If you can’t print it successfully, slow down the print speed, lower the temperature, improve cooling, or reduce the adaptive volumetric speed.

Round test + sphere. For a cleaner result, try using adaptive layer height and a scarf seam joint to eliminate seams on round models.

For better quality, you need to have well-calibrated flow and temperature; optionally, you can reduce the line width.

If all your settings are properly calibrated, the final model will have clean edges.

These are all basic settings that will help you take your 3D printing to the next level. If you have any questions, feel free to contact me.
