Magnetic ring
Print Profile(3)
Description

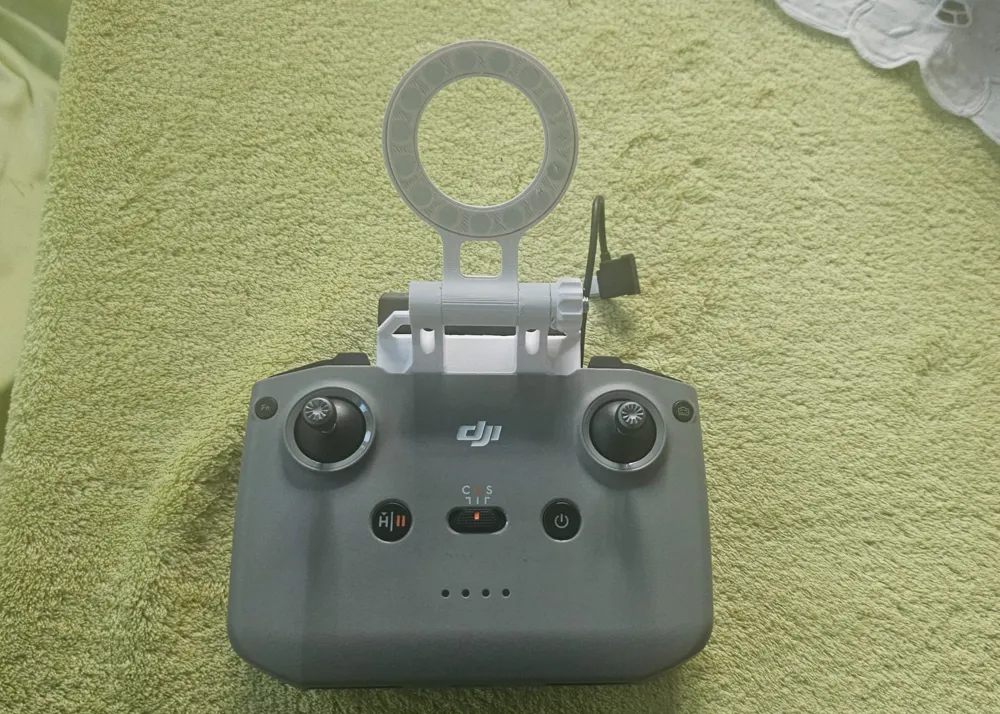

I find Luckyco's phone holder for the DJI controller great (https://makerworld.com/en/models/2337238-articulated-rc-dji-magsafe-mount#profileId-2554579): easy to print and assemble, a total improvement in handling.
Unfortunately, the ring magnet mentioned in his model was not available to me, conversely, I have neodymium magnets at home and some people simply glued them in.

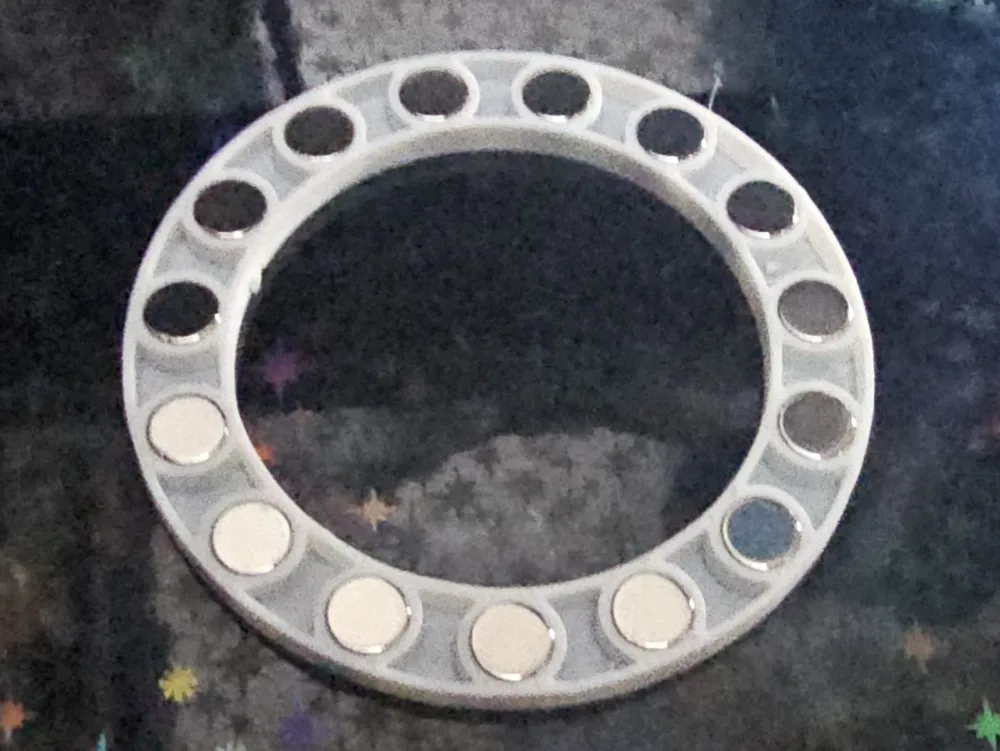

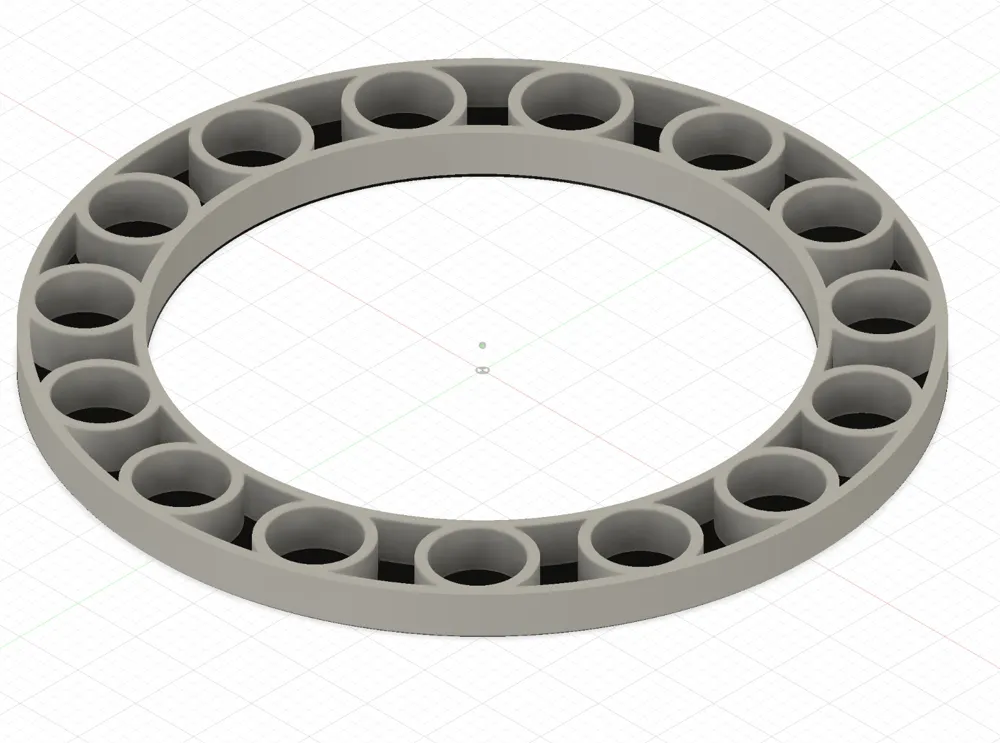

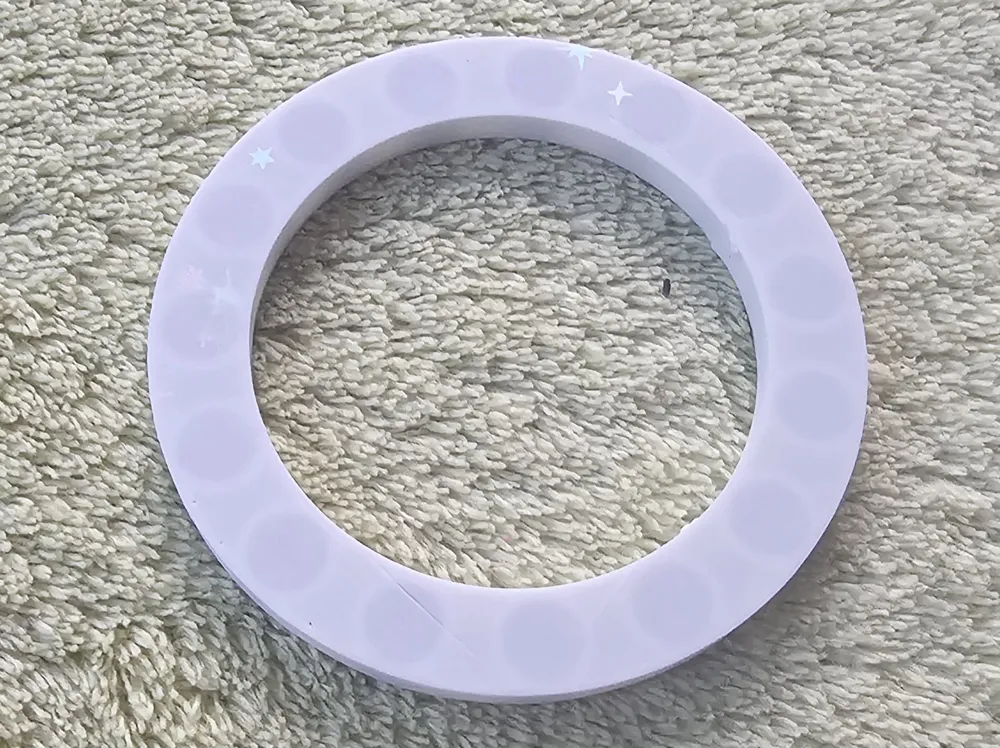

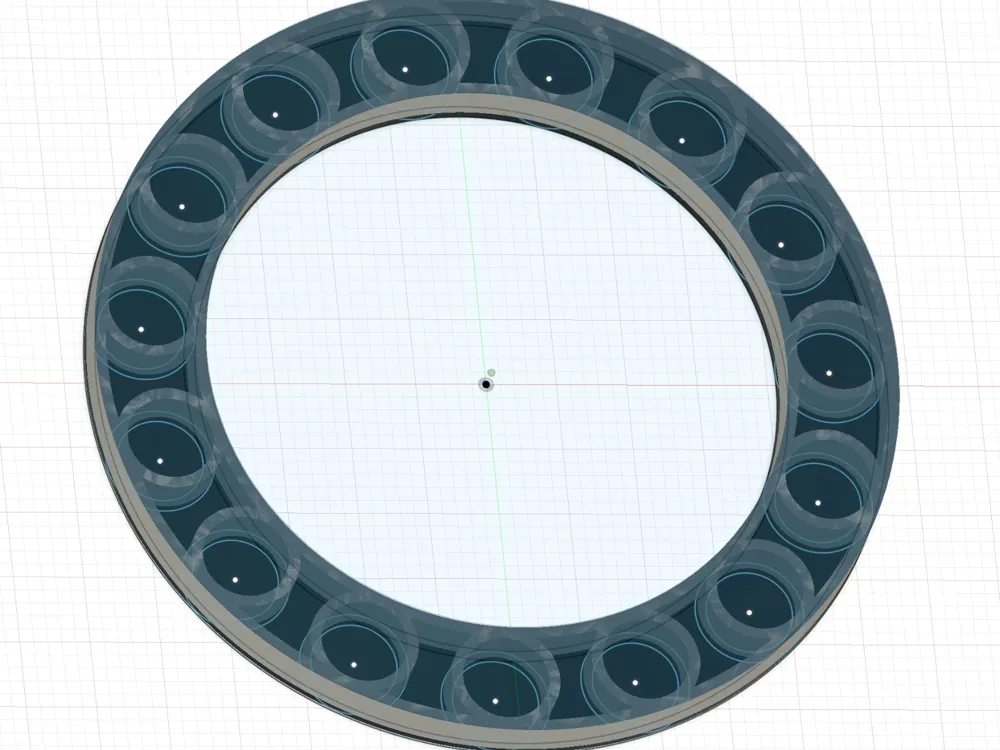

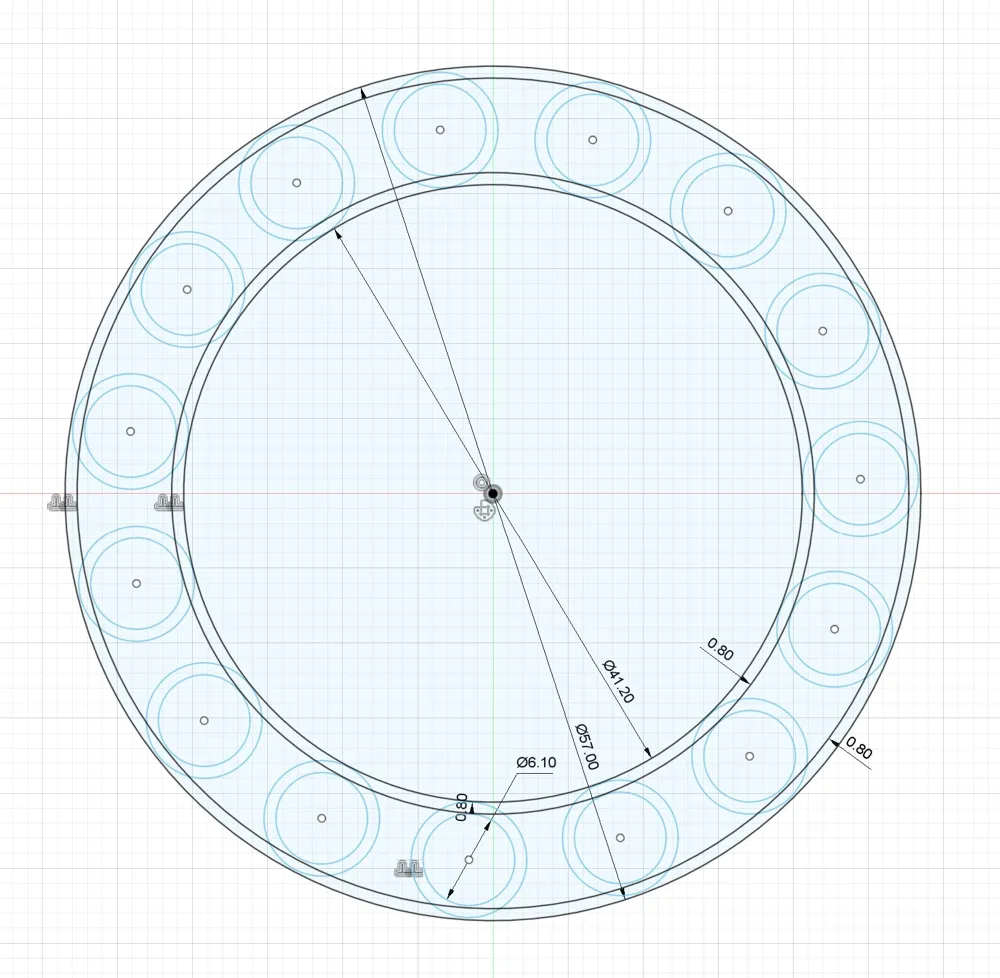

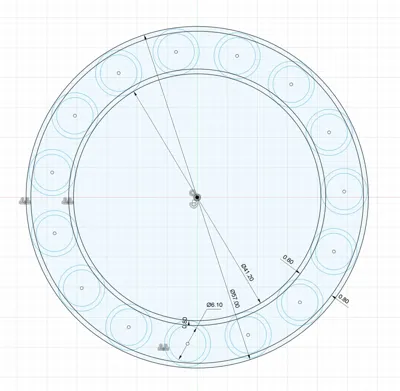

I thought there was a better way and designed a neodymium magnet holder in Fusion360 (for 15 pieces of 6x3 magnets), where the printer pauses for magnet insertion and then encloses them, so you don't need any glue
Meanwhile, I have also uploaded a version for 8x3 magnets: fewer pieces and slightly stronger
6x3 magnets (60 pieces for about 6 €) are available here, for example: https://amzn.eu/d/097tJfGY
8x3 magnets (50 pieces for about 7 €) here: https://amzn.eu/d/07GCBtaB

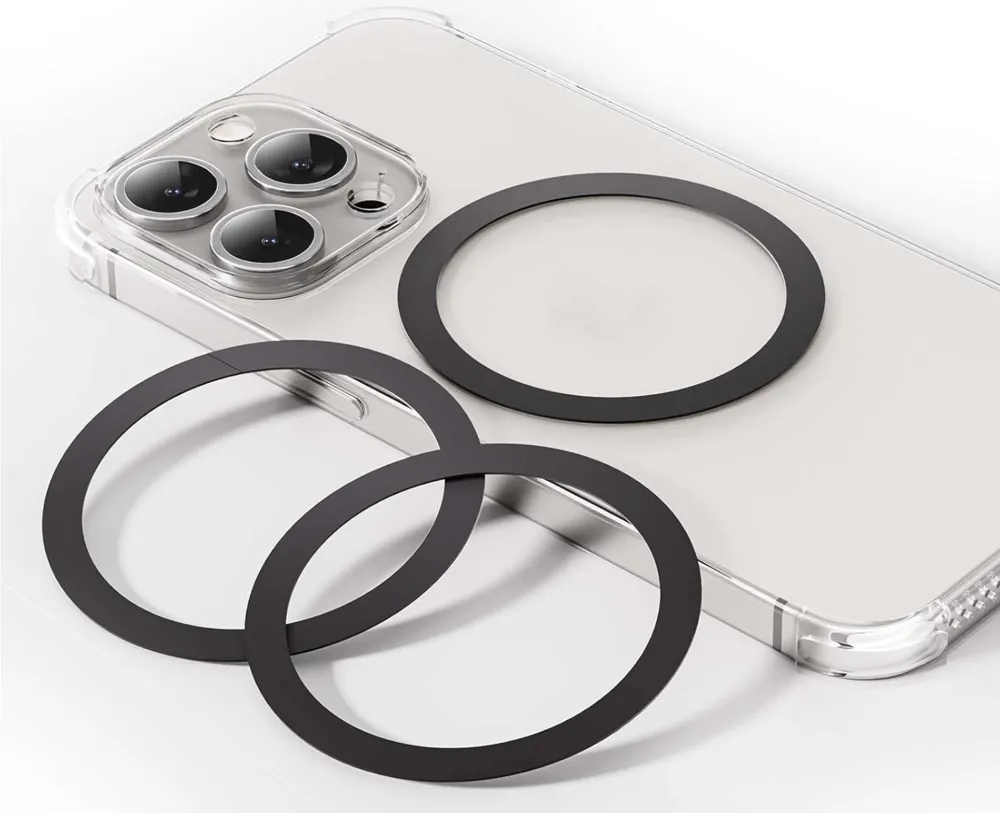

By the way, I recommend gluing a metal ring to the phone case (3 pieces for approx 6 € on Amazon: https://amzn.eu/d/0cJzv2nQ),
as otherwise the phone might be disturbed by the magnets or not adhere strongly enough
I aligned all the magnets in the same direction and it holds incredibly securely
