Temperature controller w3230
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
0
3
0
0
5
1
Released
Description
Content has been automatically translated.

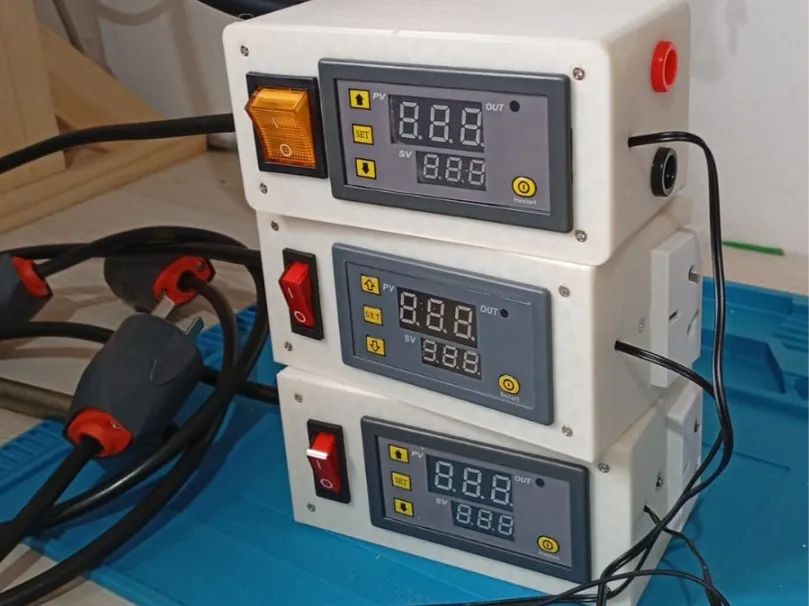

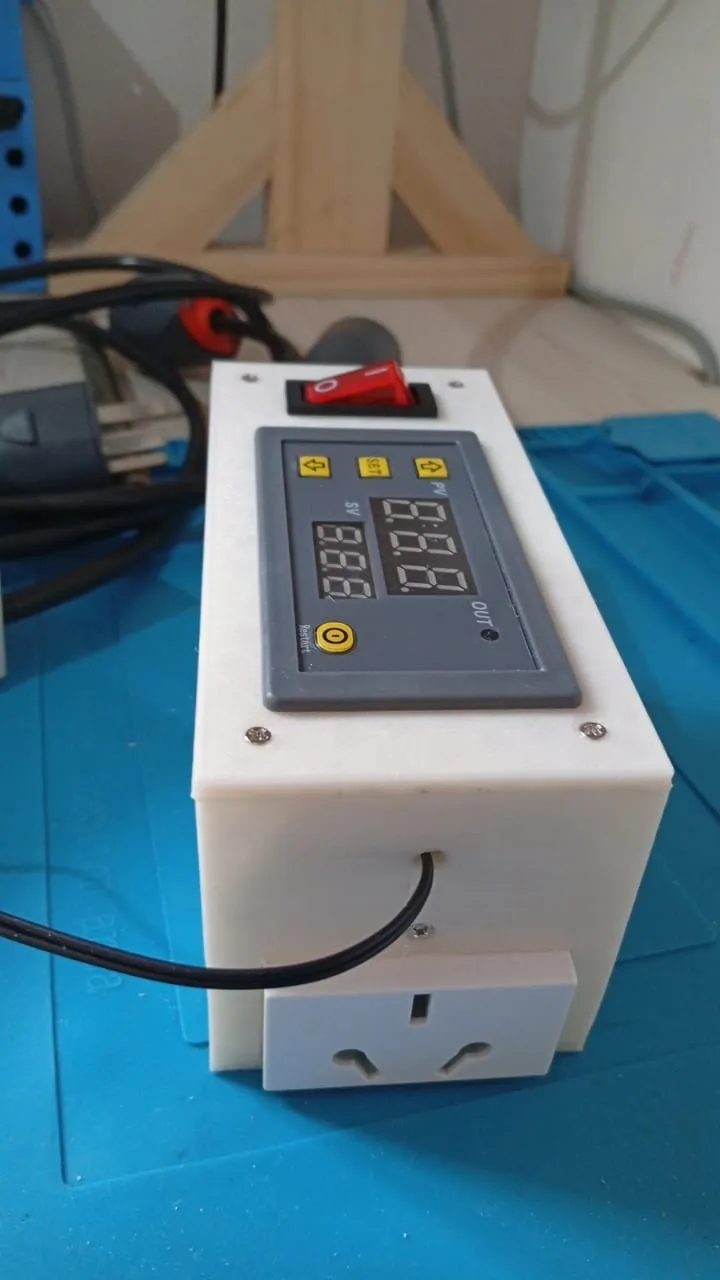

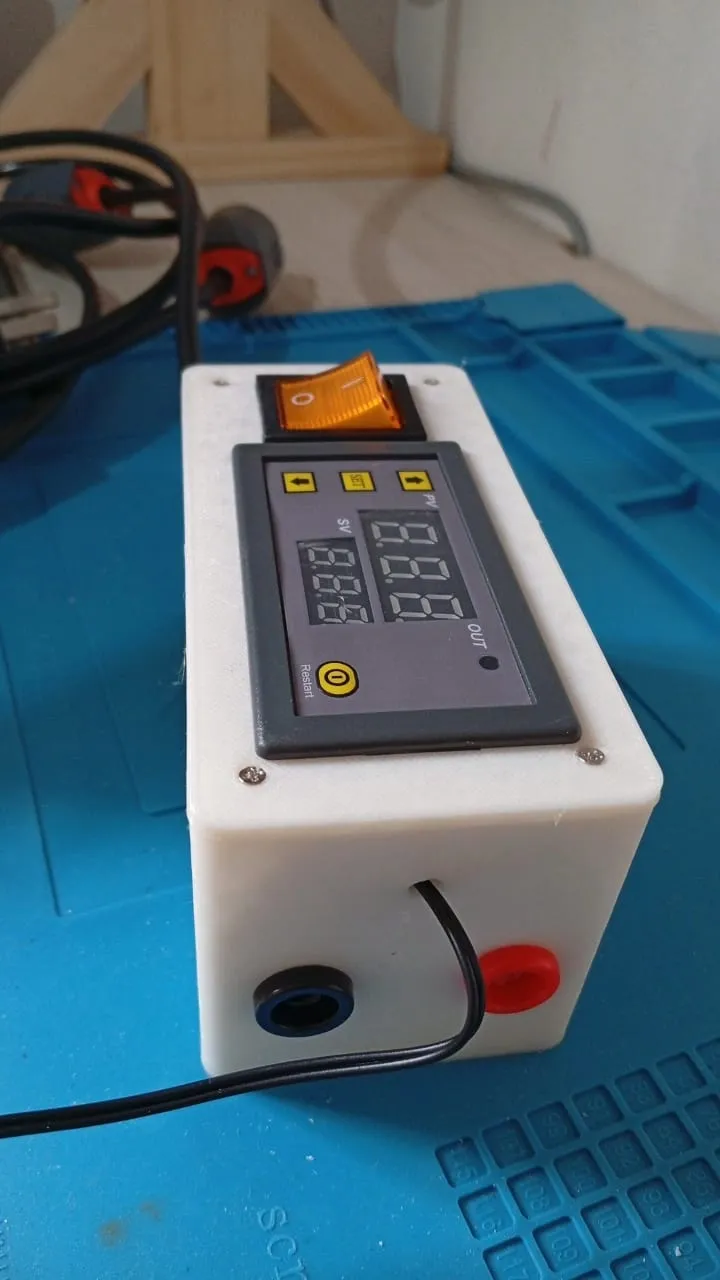

Structure for W3230 temperature controller, there are two models, one for general outlet modules (preferably Jeluz) and another for 10mm safety banana connectors. For both, 3x1.5mm2 TPR cable must be used, because the cable gland is already sized. Both use M2 screws in all holes, 20mm is suggested for the "fitting" of the outlets (3 screws) and 8mm for the others. Preferably use PETG with a minimum of two external and internal layers, especially to withstand the force on the outlet. The one for banana connectors is made for a KCD4 DPST rocker switch while the one for outlets is for an SPST KCD3
