Quick Clamp

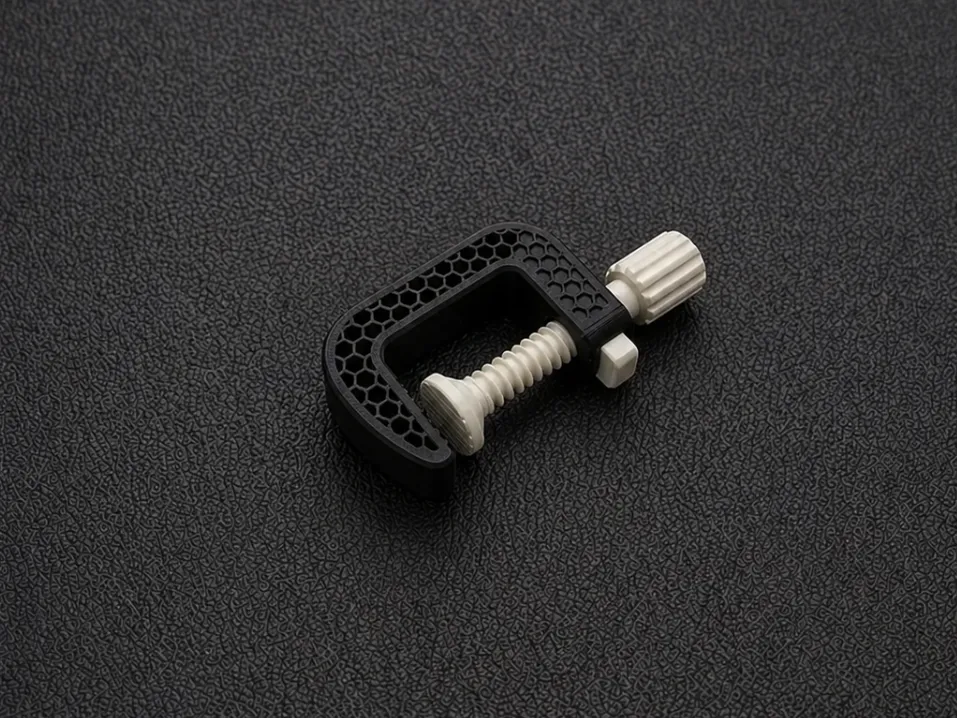

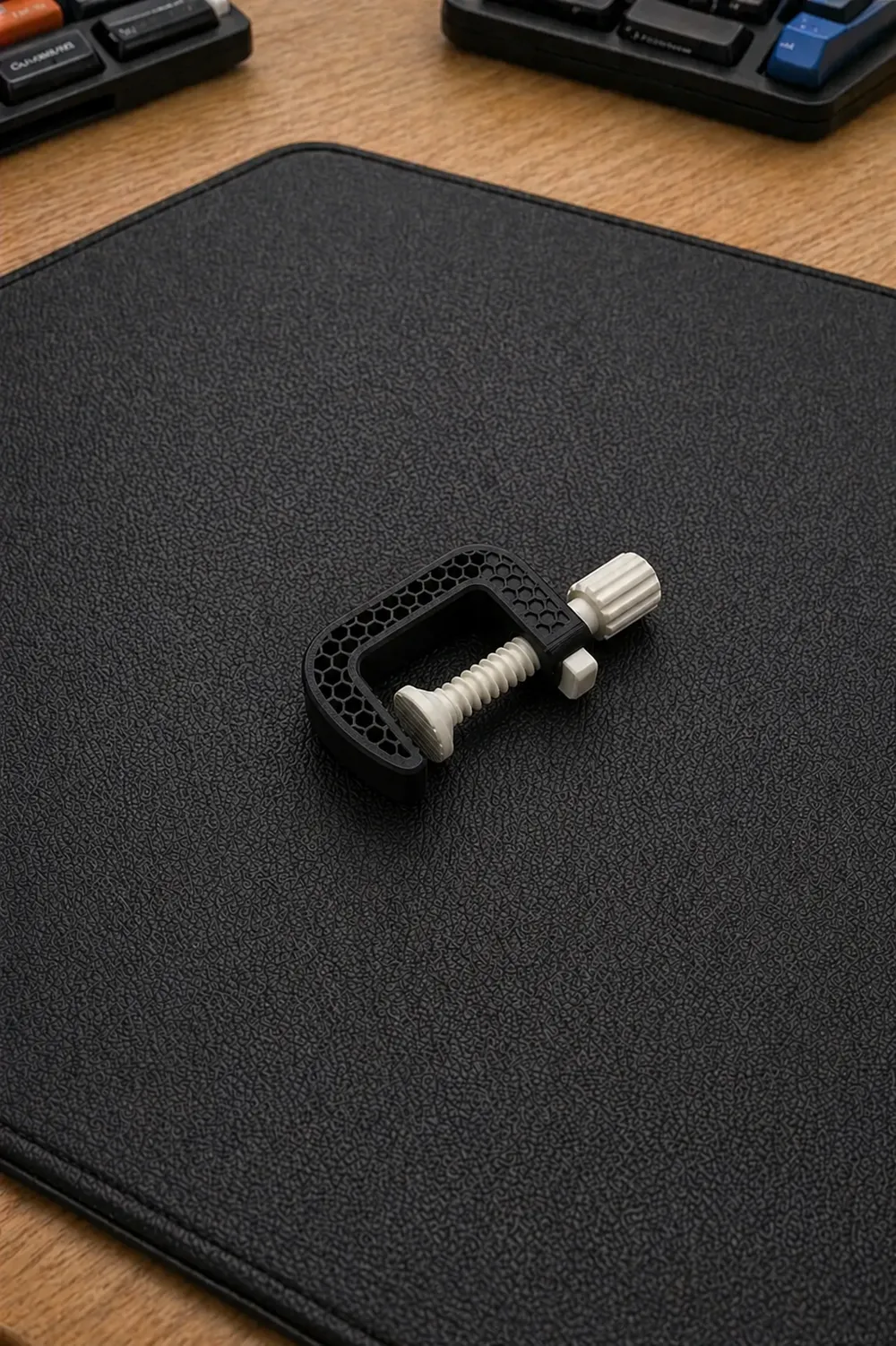

Compact clamp with a quick opening and closing system. The main body measures 105 × 66 × 30 mm, with a clamping range of 0 to 50 mm and a depth of 45 mm.
It is designed for easy printing without the need for additional parts. It is strong, reliable, and comfortable to use.
Key Features
- Print time: ~3.5 hours
- Material: ~90 g
- Quick opening system
- Honeycomb pattern structure for increased strength
- Compact and practical design

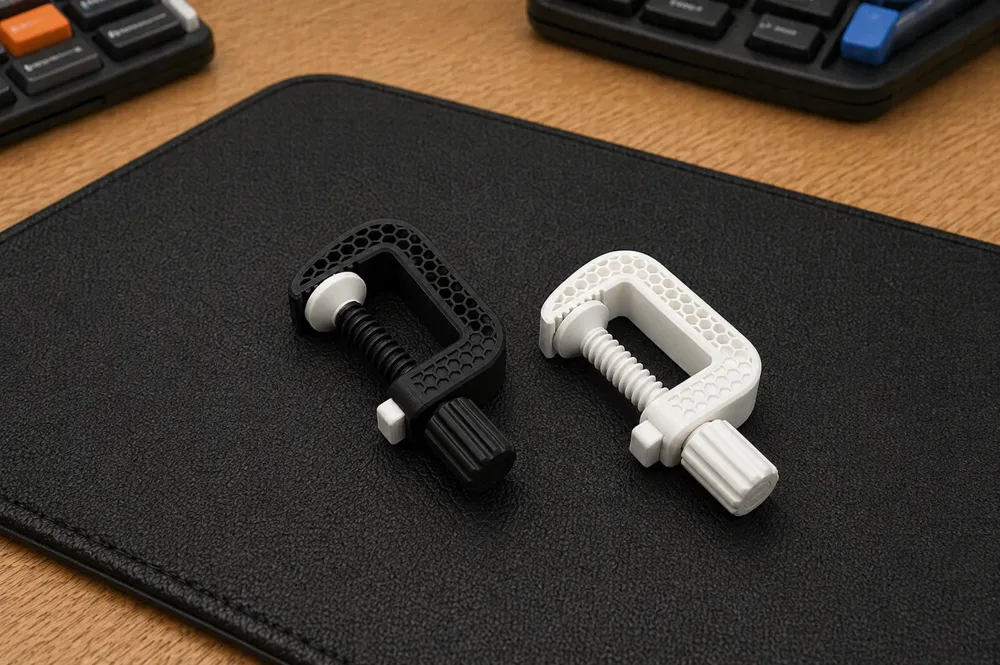

- Scalable for other sizes

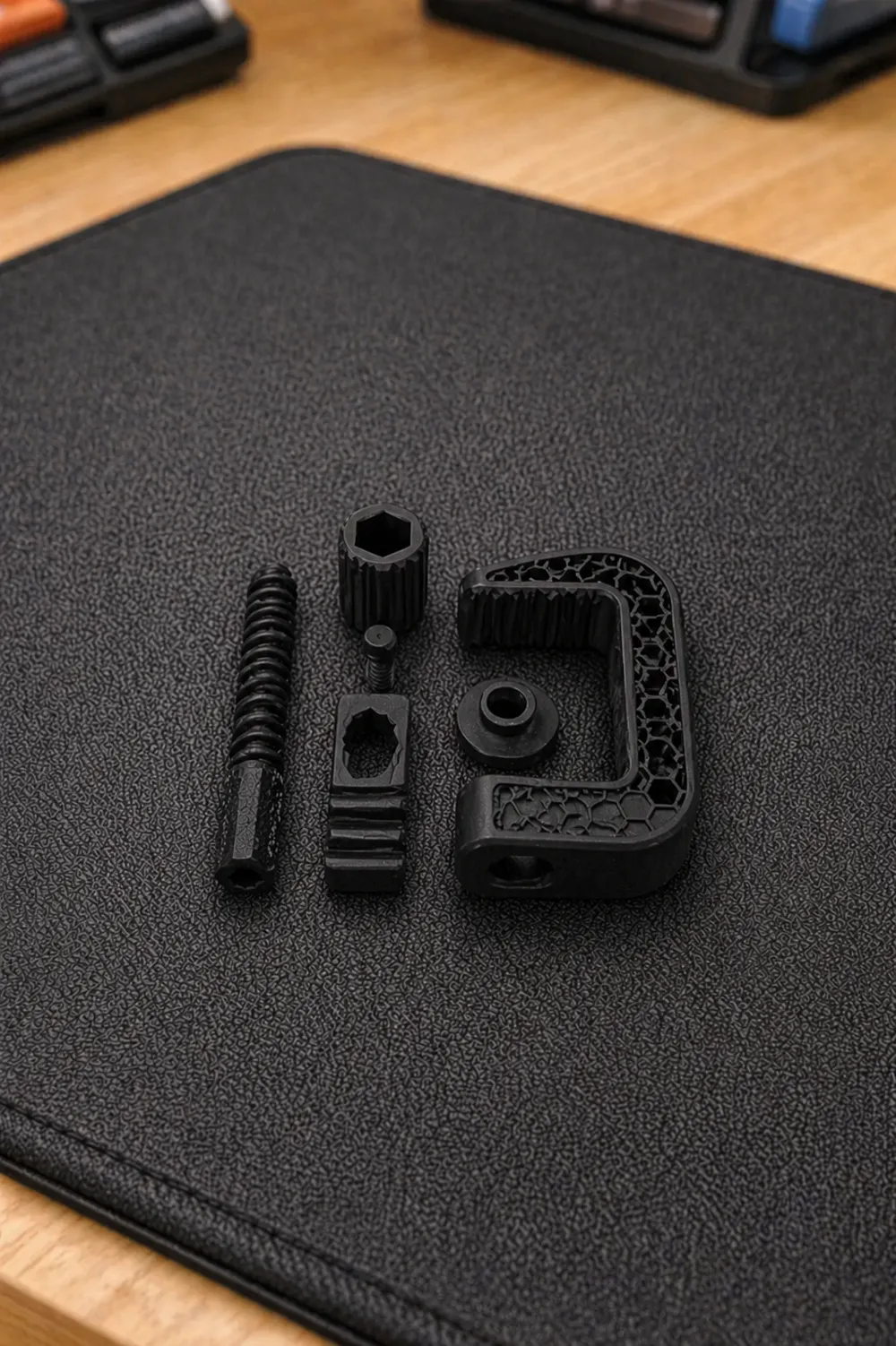

Assembly
- Connect the handle and the bolt with a small screw (use a screwdriver).
- Insert the spring before closing (it has no specific orientation).
- Snap the clamping pad into place by pressing.
- Optional: add a little lubricant for smoother movement.
- The small joints on the bolt break during use; this is normal. You can smooth them if you prefer.
