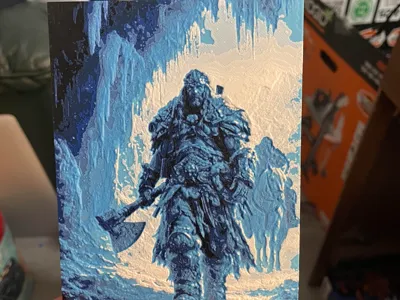

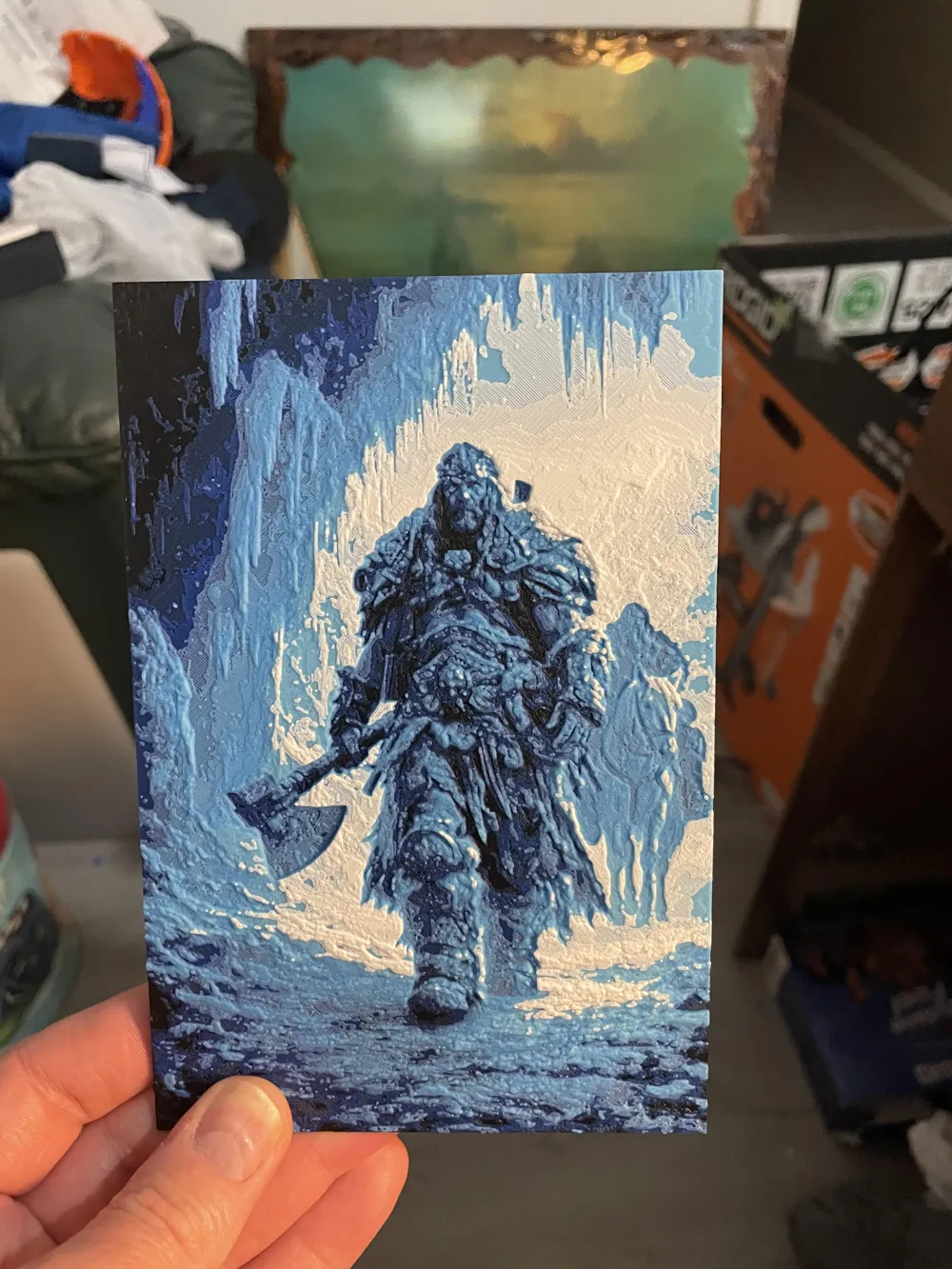

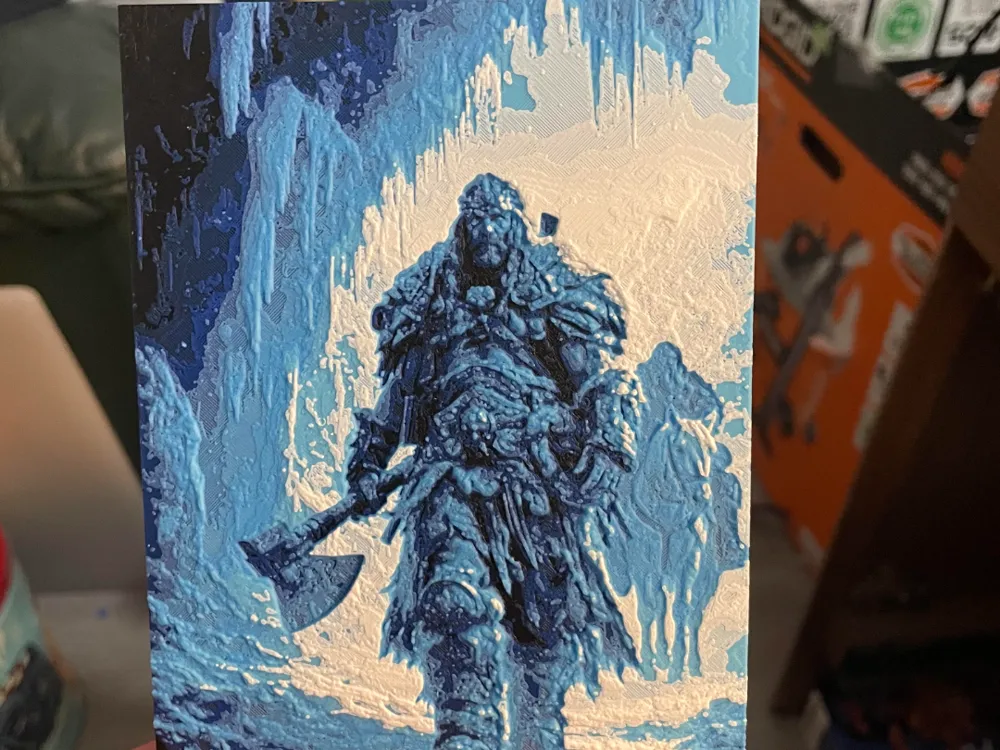

Ice Giant Hueforge
Print Profile(2)


Description
Project: Ice Giant_V2_5Colors.hfp
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
The Model is 108.4x162.6mm in size
You may print at higher layer heights below the Base Thickness of 1.52mm
The Max allowed Thickness is 3.52mm and the Actual Thickness is 3.51997mm
#000000 PLA Sunlu Meta Black Transmission Distance: 1
#00358e PLA BambuLab Basic Blue Transmission Distance: 4
#0086d6 PLA BambuLab Basic Cyan Transmission Distance: 3.5
#56b7e6 PLA BambuLab Matte Sky Blue Transmission Distance: 1.3
#ffffff PLA Sunlu Meta White Transmission Distance: 8
This print uses 5 unique filaments
Swap Instructions:
Start with Black
At layer #21 (1.76mm) swap to Blue
At layer #23 (1.92mm) swap to Cyan
At layer #29 (2.4mm) swap to Sky Blue
At layer #33 (2.72mm) swap to White for the rest. (swap with Black)
