BottleBrick

You know that moment when you open your storage area and the bottles look like they’re planning a rebellion?

Yeah. That ends now.

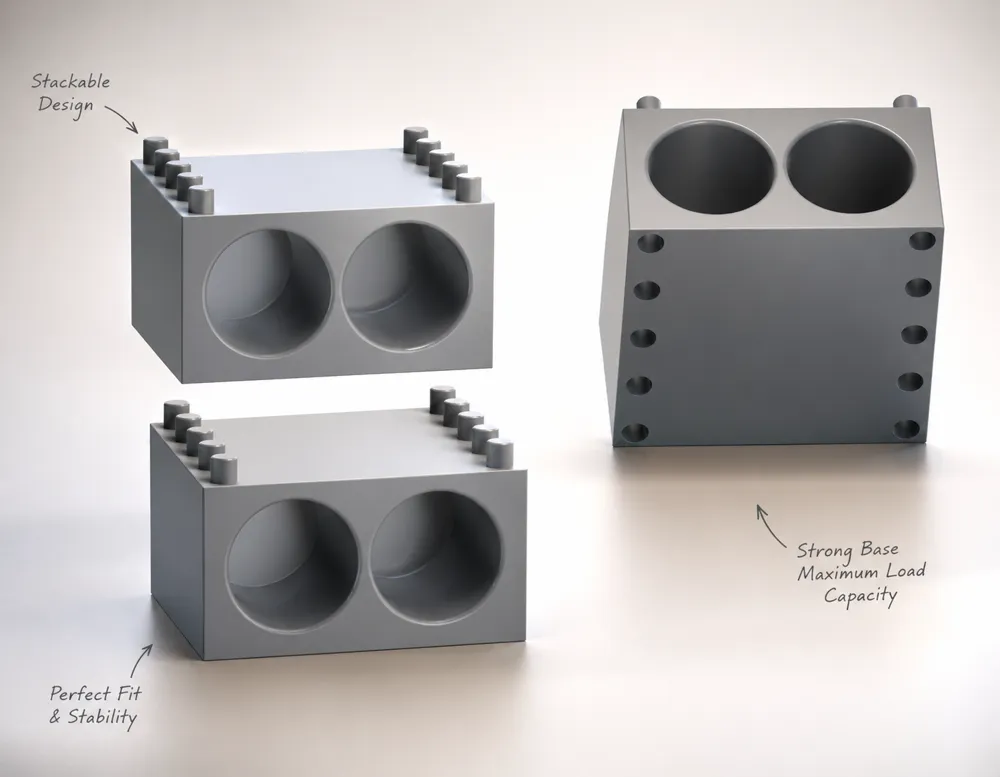

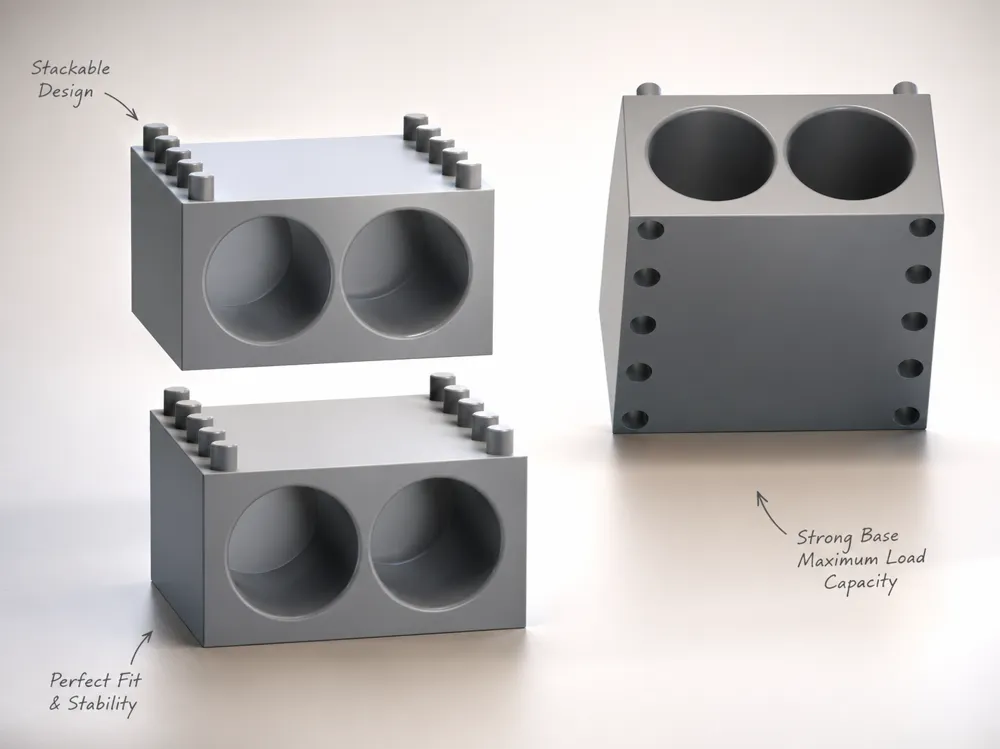

BottleBrick is the stackable module that takes your liquid chaos and turns it into something actually respectable.

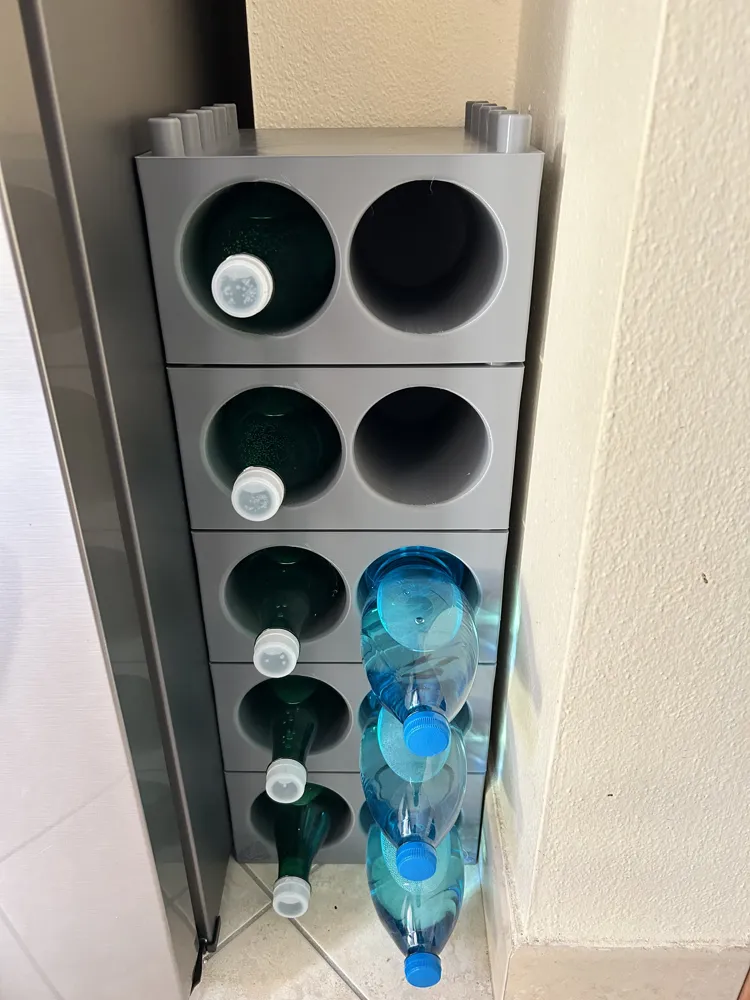

Print one… then another… and before you know it, you’ve built a tower that challenges logic, gravity, and probably your life choices. But hey... it holds! Really well.

This thing wasn’t designed “by feel.” These specs are calculated to handle real weight, not hopes and dreams.

👉 You can stack 12–15 bricks without the bottom one collapsing like your motivation on a Monday morning.

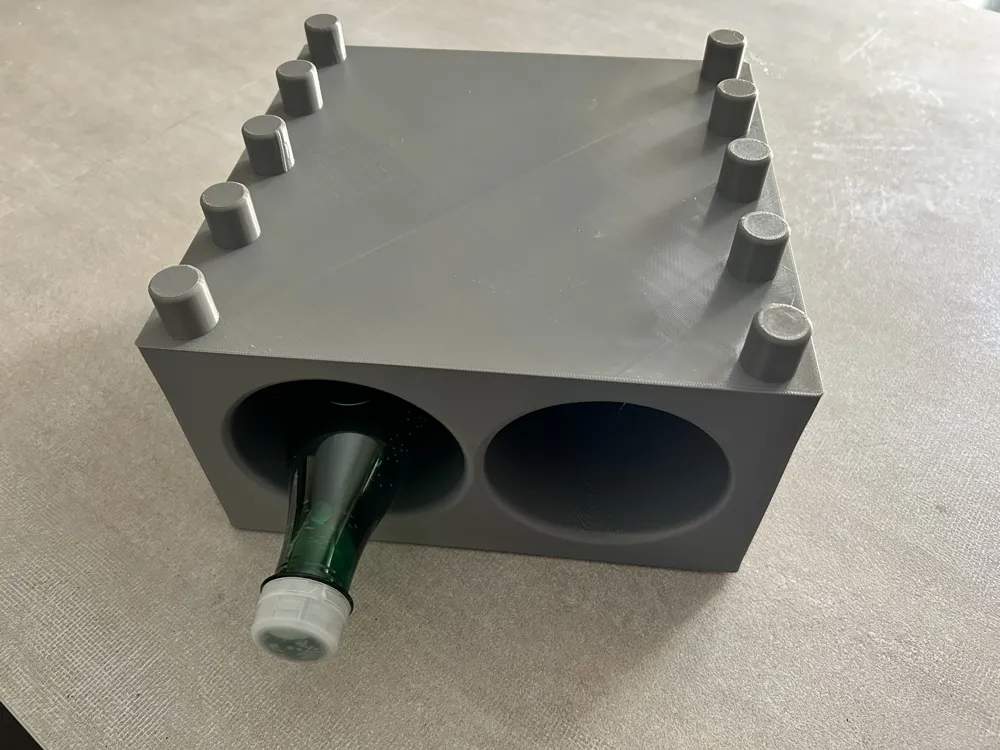

Bottles sit nicely, the design is clean, and you suddenly look like someone who has their life together.
(Don’t worry, I won’t tell anyone.)

And no, those bottle slots aren’t straight by accident: they are slightly tilted toward the back to help balance the load and improve overall stability.
Yeah… there’s actual engineering in this thing.

Perfect for:

• water
• wine
• soda
• that emergency stash you swear you’ll use “soon”

Minimal on the outside, engineered on the inside. And most importantly: it actually works.

🧾 TECHNICAL FEATURES (DON’T MESS WITH THESE)

• Dimensions: ~225 × 235 × 145 mm (scalable)
• Designed for real load-bearing
• Stackable up to 12–15 modules safely
• Bottle slots slightly angled backward to balance the load
• Optimized for standard bottles

🧵 PRINT SETTINGS (TESTED, NOT “I THINK SO”)

⚠ These settings are NOT random. Change them = you’re gambling with stability.

• Layer height: 0.28 mm
• Infill: 5%
• Walls: 4
• Material: PETG
• Supports: NO
• Brim: NO

📦 Material usage: ~840 g per brick
⏱ Print time: ~18 hours per brick

Yes, it’s long. No, you don’t want to redo it because you “optimized” something.

Build your tower. Stack without fear. Watch chaos surrender.
