Parametric handle
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 25% infill
Designer
3.4 h
2 plates
Open in Bambu Studio
Boost
0
2
0
0
1
0
Released
Description
Content has been automatically translated.

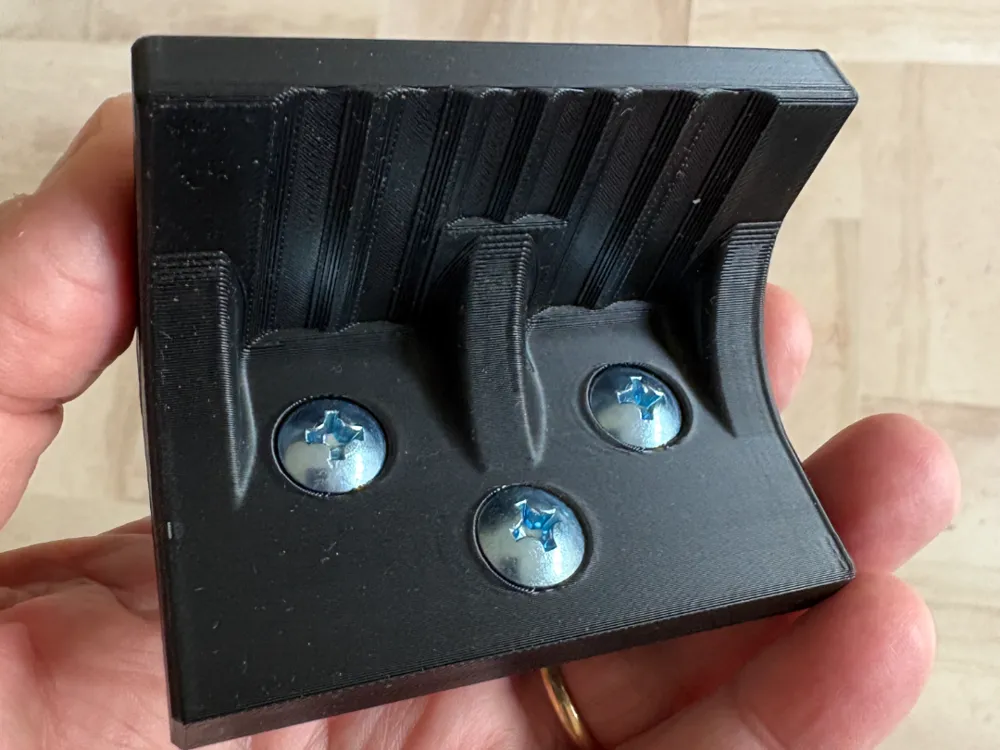

Robust parametric handle to be screwed onto wooden panels (cabinet doors, flaps, boxes, doors, etc.).
The model provides 3 holes for screws, and the hole dimensions are modifiable, as are the handle dimensions.

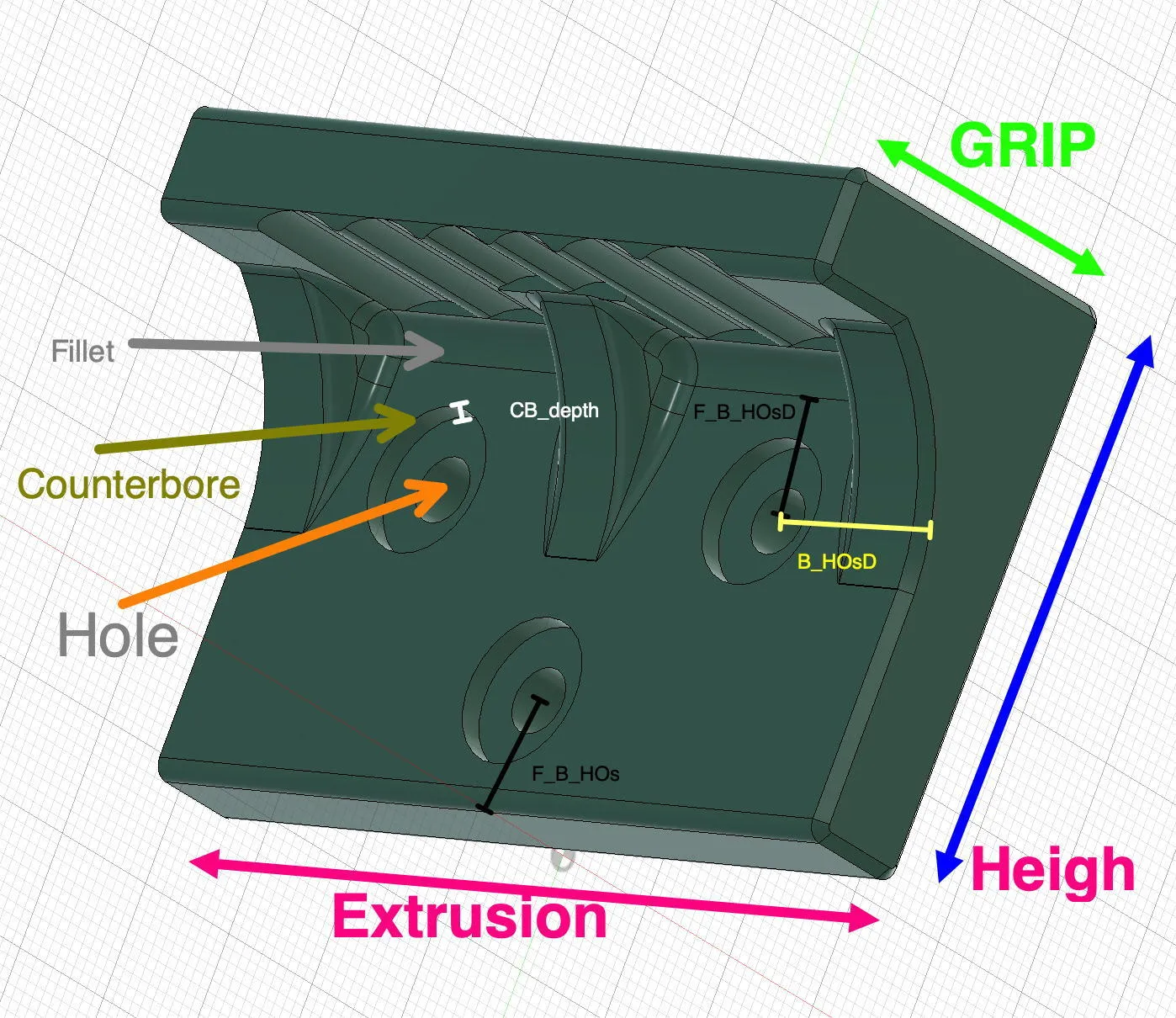

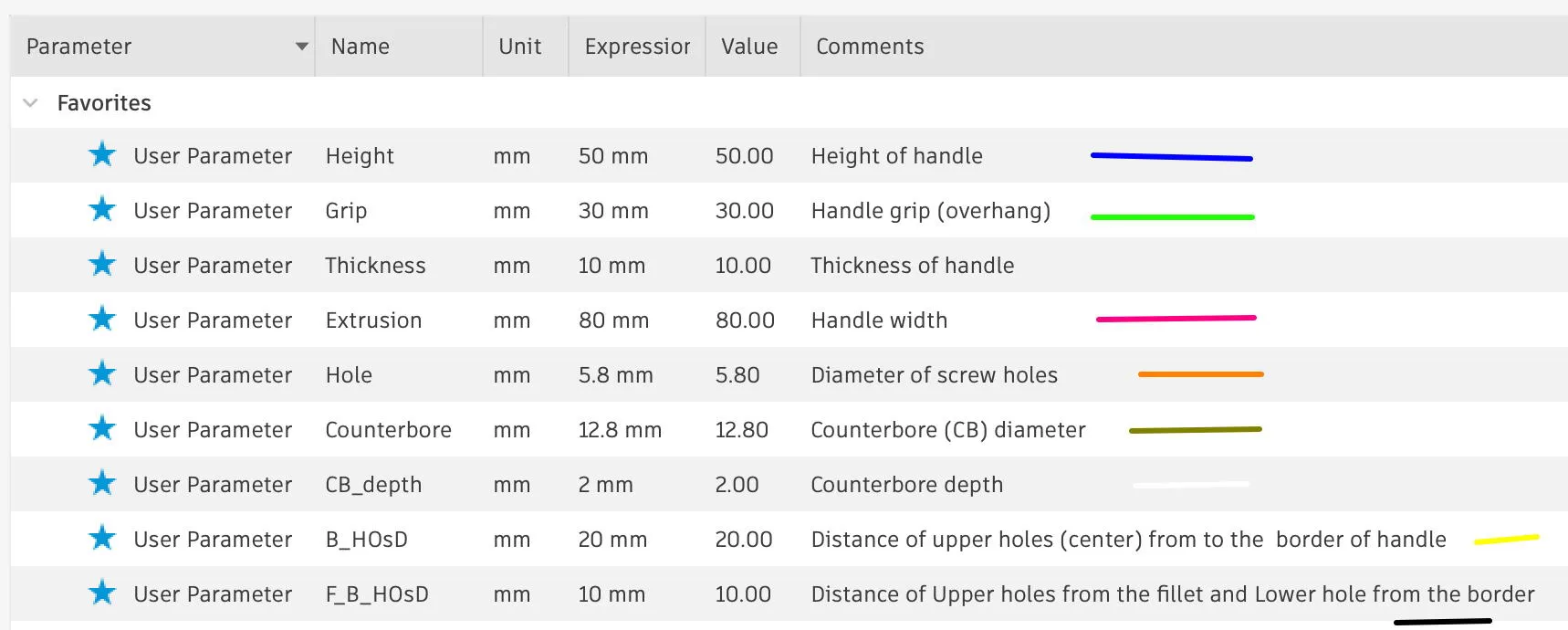

The preset but freely modifiable parameters are summarized in the following figures:

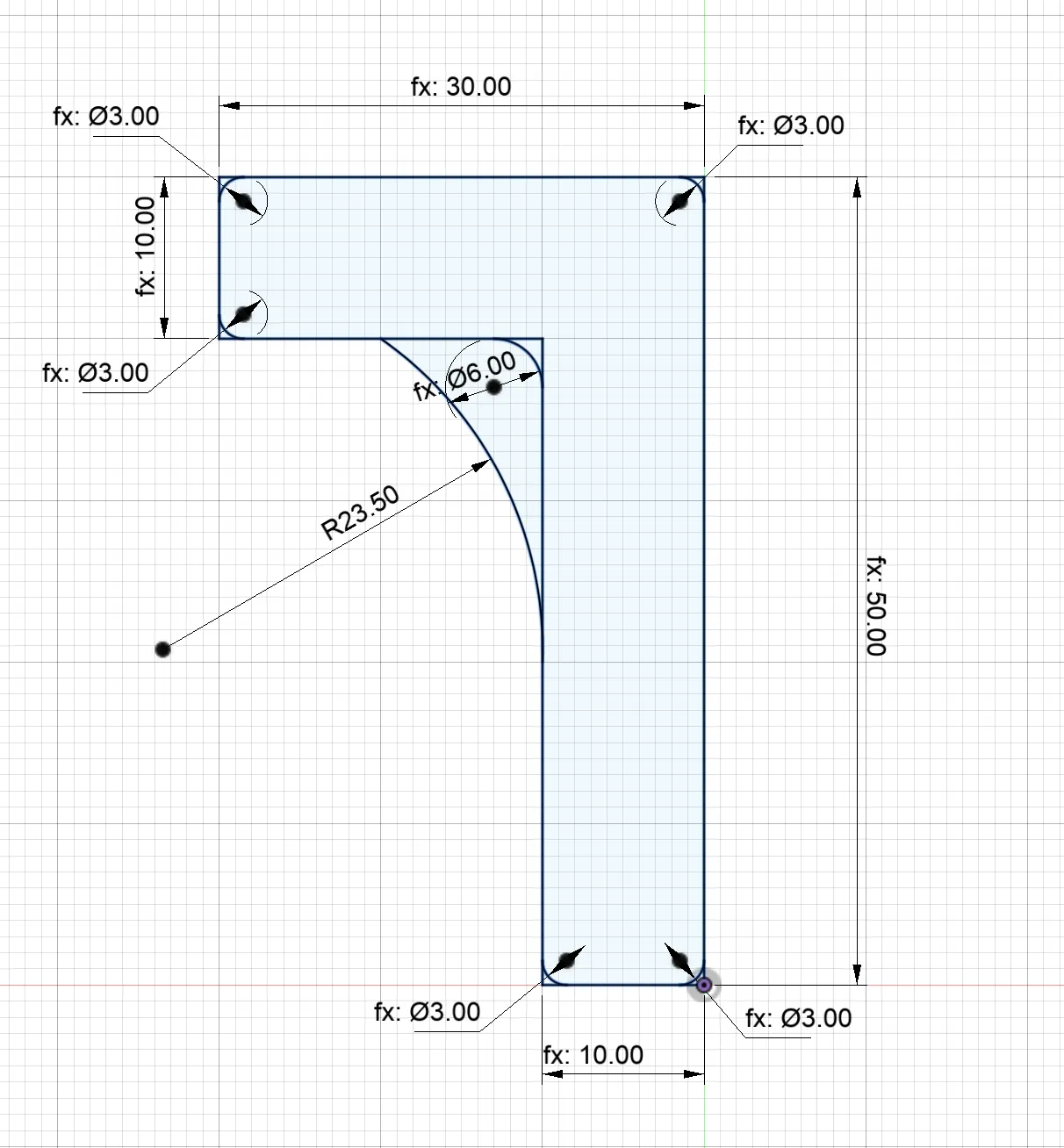

The handle design is based on the following sketch
