Solder paste extruder | Solder paste dispenser | Solder mask dispenser | No hardware needed | High strength | Effortless and comfortable
Print Profile(6)
Description
Boost Me (for free)
Every print, like, and boost brings me so much joy. Your support is where my creativity comes from.

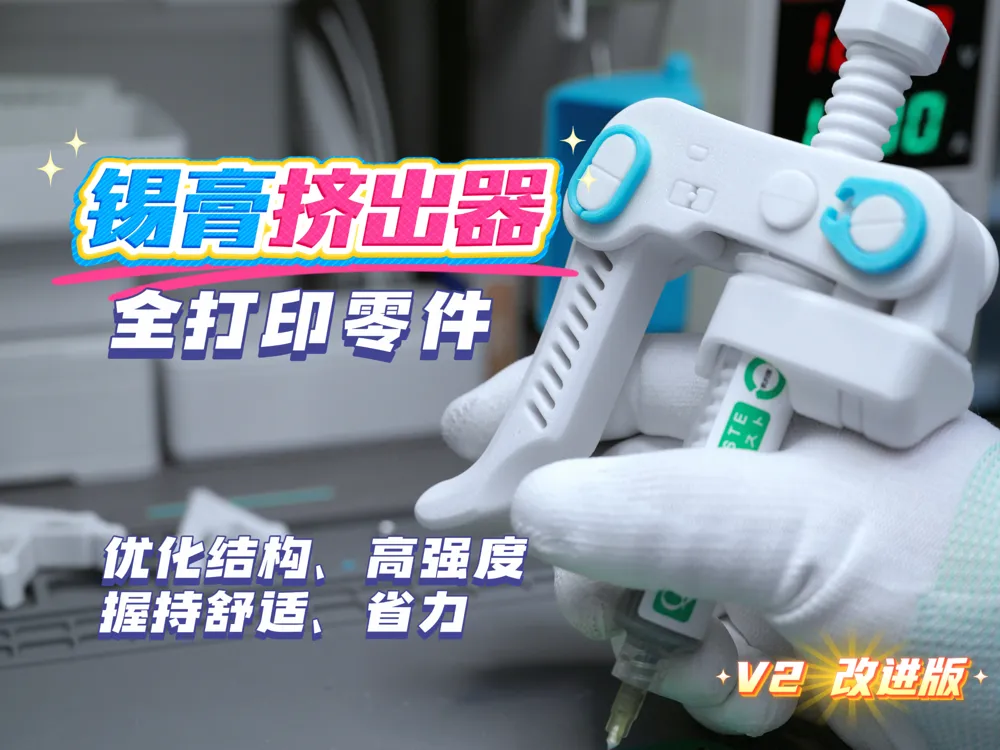

This is amanual solder paste & solder mask dispenserspecifically designed and optimized for 3D printing, compatible with standard50g solder paste syringes, requiring no hardware and entirely 3D printed
Features:
- Optimized for FDM printing,no supportsrequired, easy to print and disassemble
- Utilizes mortise and tenon, snap-fit, and pin structures for a strong and secure connection
- Operable with one hand, solder paste can be dispensed by pressing the handle with the index finger
- Compatible with 50g solder paste, UV solder mask, and other syringe packaging
Simple assembly, most structures are tool-free, and a few tight-fit pins can be gently pressed into place. Ideal for precise dispensing of solder paste and solder mask in electronics manufacturing, SMT placement, and PCB soldering
2026.5.4 V2 version modifications:
Handle:
Lightweight design for weight reduction, minor aesthetic modifications to match the connecting rod shape and enhance handle strength
Connecting rod:
Minor aesthetic modifications to improve appearance and moderately increase structural strength
Connecting rod link plate:
Modified for easier installation, now tool-free
Main nut:
Printed in two halves, significantly reducing the probability of print failure (spaghetti)
Half-round shaft and circlip:
Replaced circlip structure for a cleaner appearance
Joint:
Added fool-proof design
Wedge:
Added fool-proof design, aesthetic modifications
Clamp:
Added hand web support, added fool-proof design
It is highly recommended to print the V2 version, as many details have been improved
Video introduction and assembly instructions:
V2 version modification details introduction video:
Thank you for being part of my journey. Can’t wait to see your makes!
