Adapter MonkeyLoad auf SnapIT
Print Profile(1)
Bill of Materials
Description
After I unfortunately had to realize that there are several different standards for bike rack bags and I naturally didn't have the one that fit my rack…

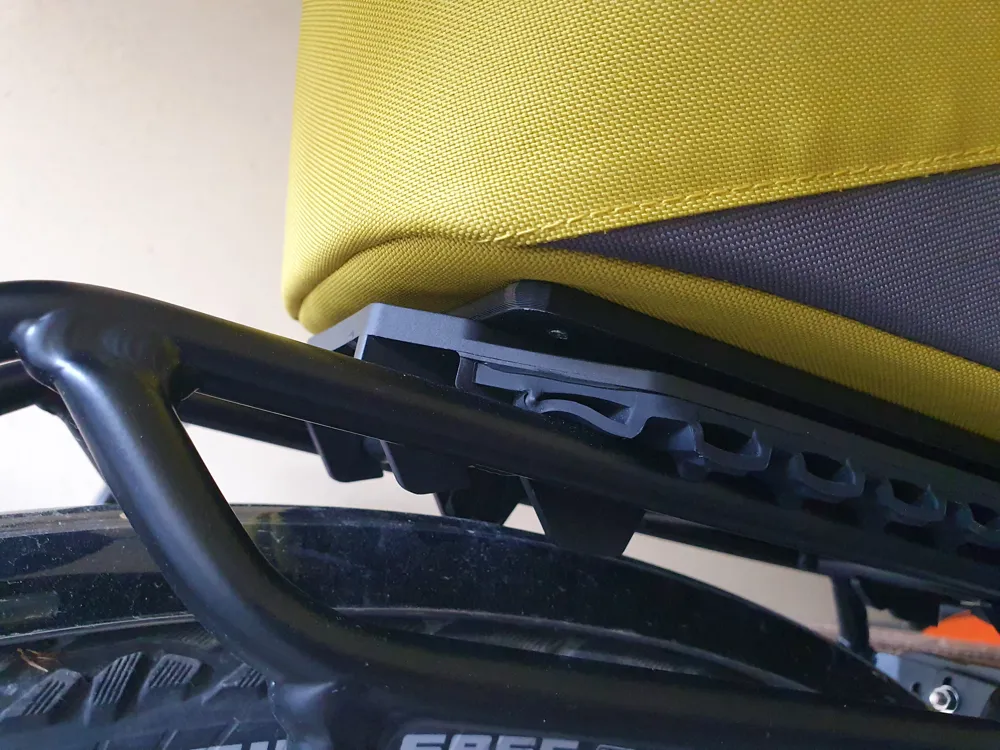

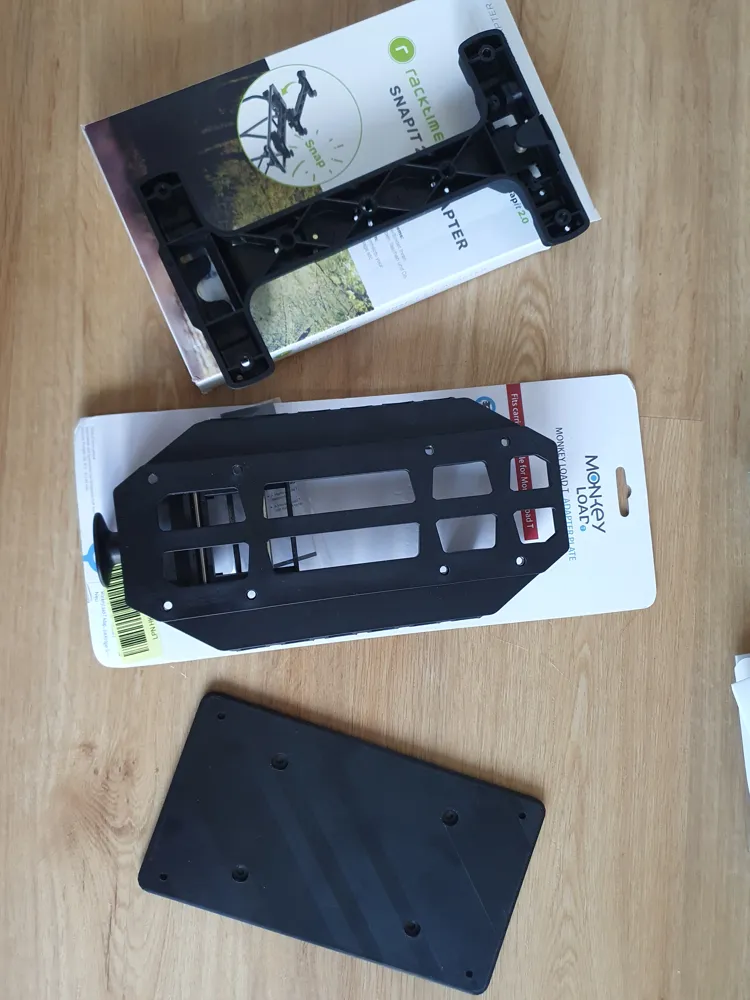

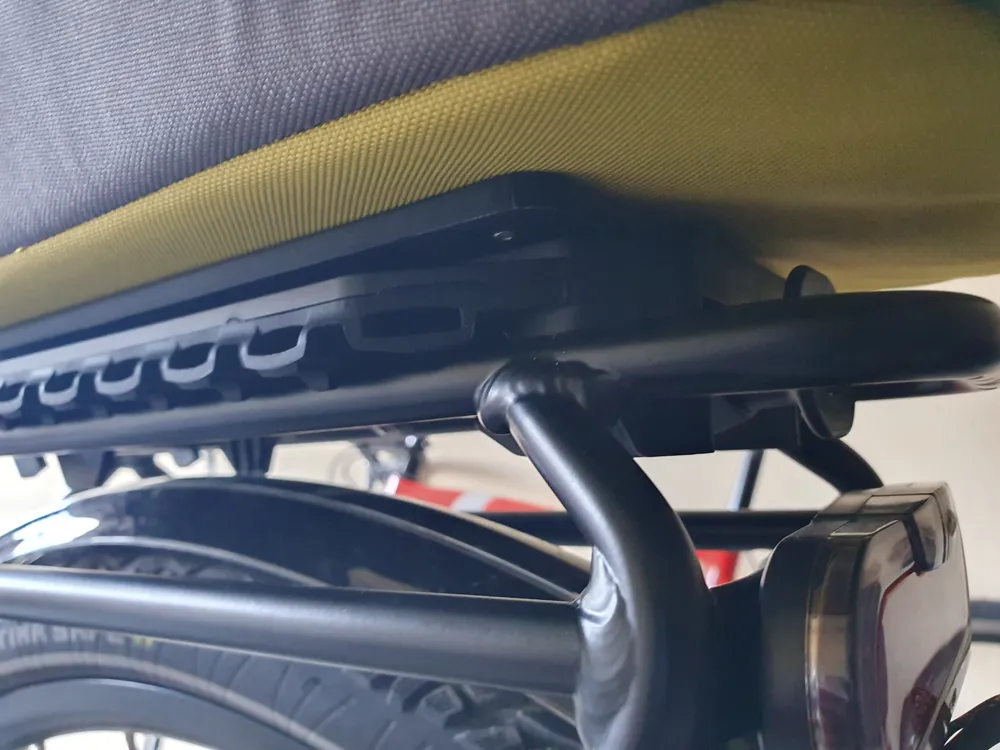

Here is a simple adapter plate with which a Racktime bag (with SnapIT system) can be attached to a MonkeyLoad base plate for a corresponding bike rack.

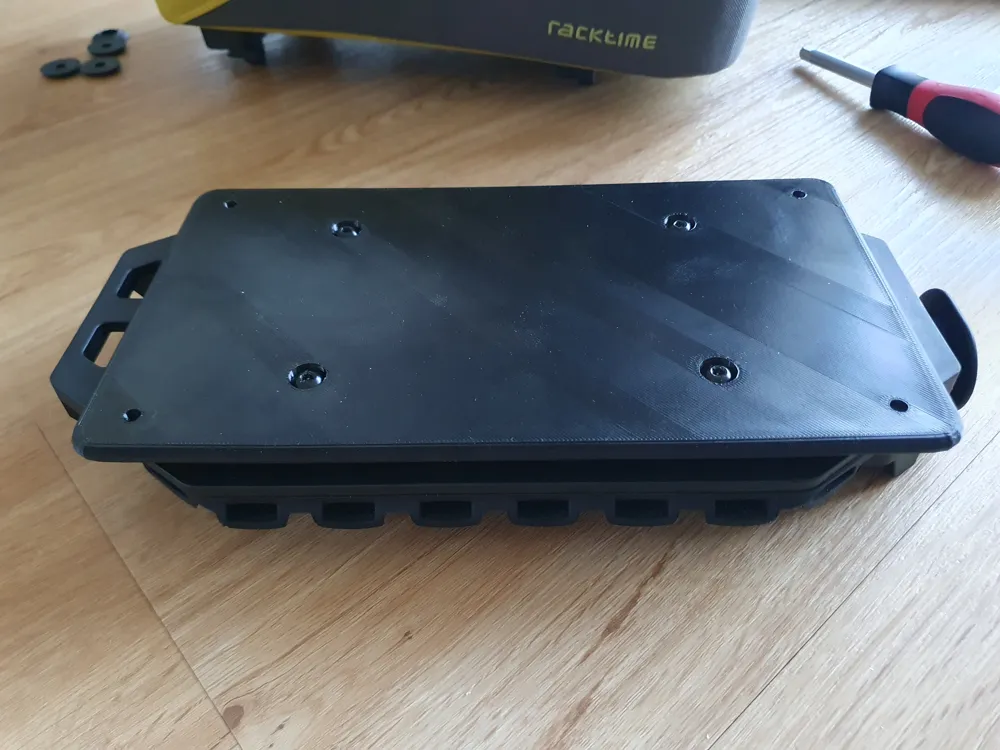

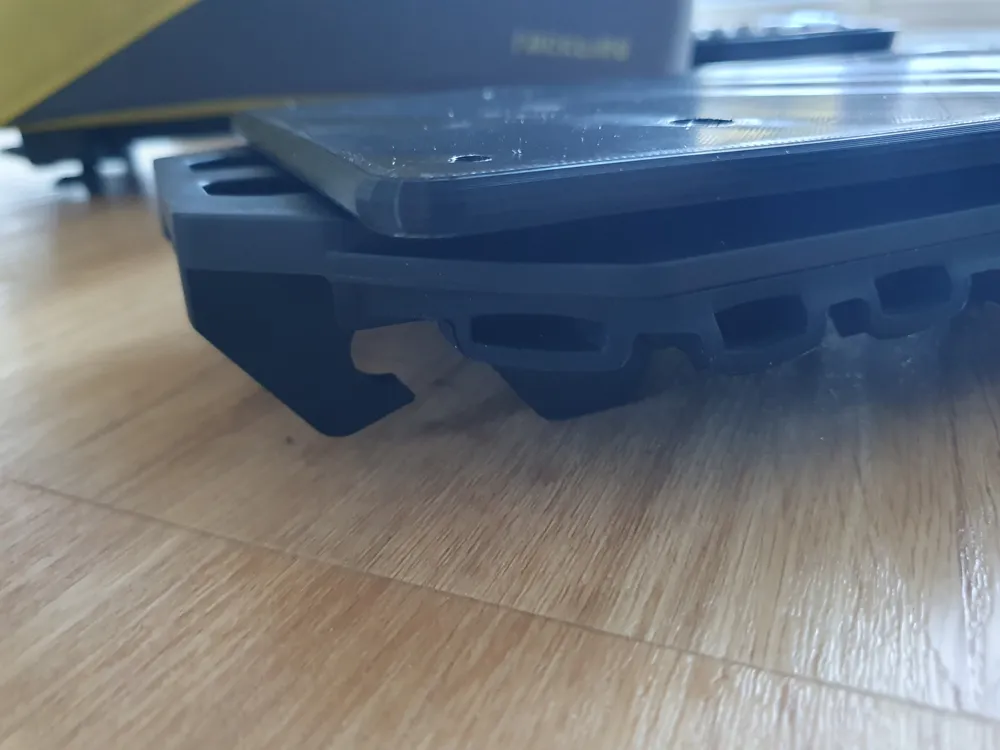

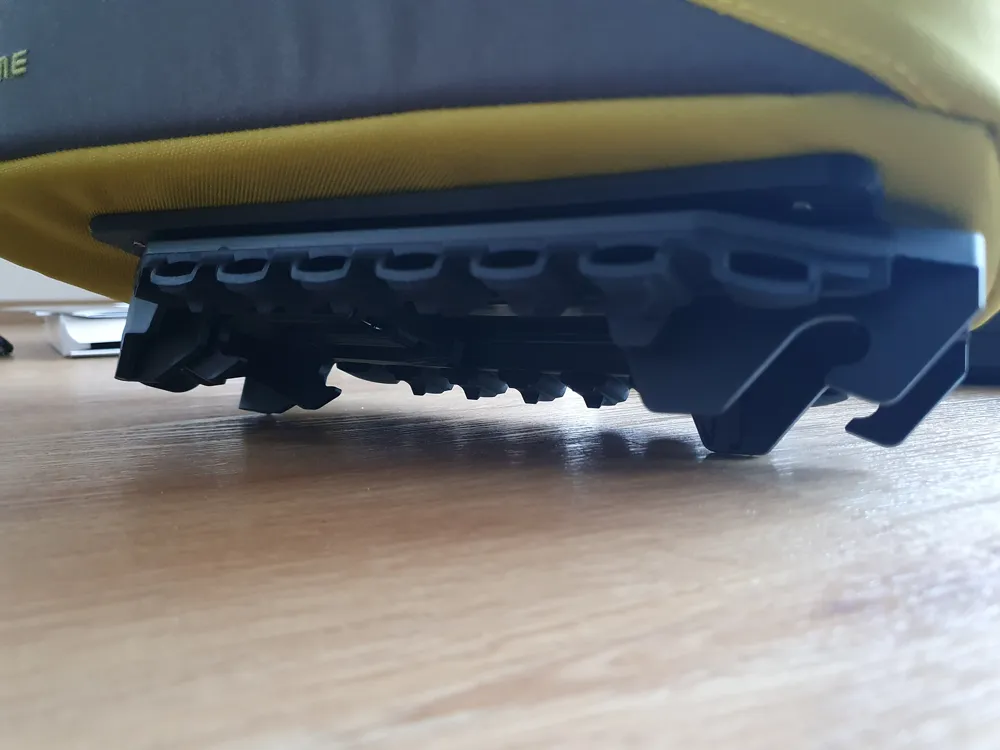

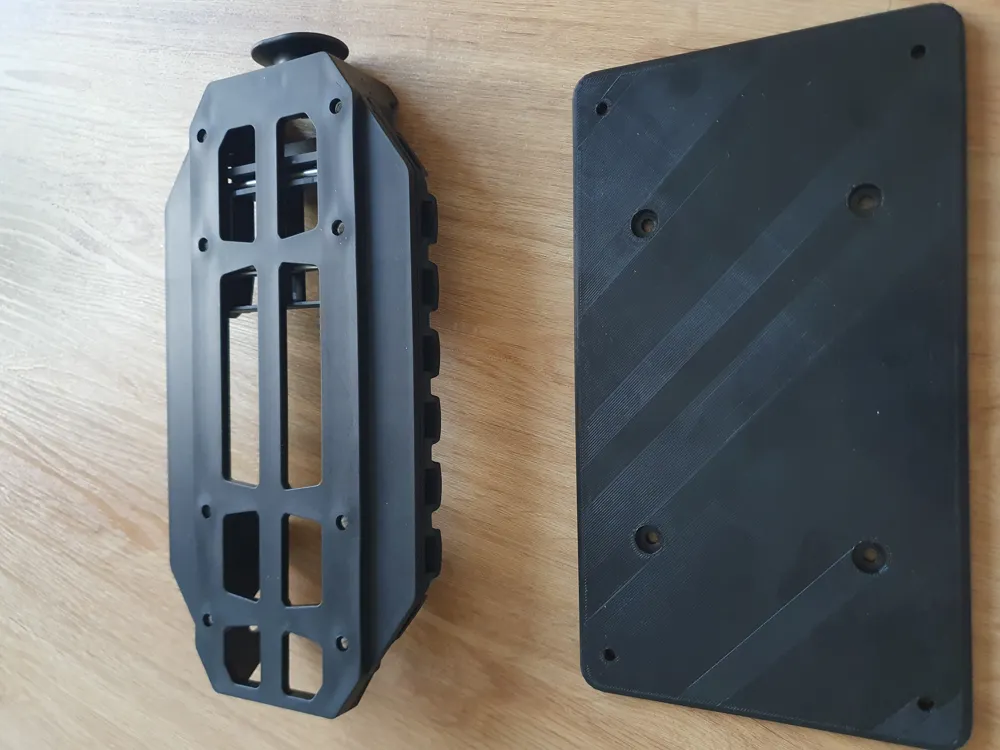

The principle is quite simple. First, attach the adapter plate with the original screws of the base plate (the 4 inner holes) and then screw the bag through the original SnapIt holes in the bag. Since the original SnapIT screws are a bit long, I used m5x12 fine-thread screws, which fit perfectly.
Since the holes each have a diameter of 4.5mm, M5 screws can be screwed in directly without problems and without thread inserts.
Just click through the pictures, after that there should be no more questions :-)
Printed with black Bambu ABS at 0.2mm layer height with 30% Gyroid infill.
Print time approx. 4.5h.
I hope you find this model helpful!
