[V2] AM4xS - EIBOS Tetras Riser

Because of how modular my AM4xS - AMS SLIDING Stacking System is, I have separated the print profiles into multiple different models. It would simply be impossible to include all the various different options in a single print profile as there would be too many plates.

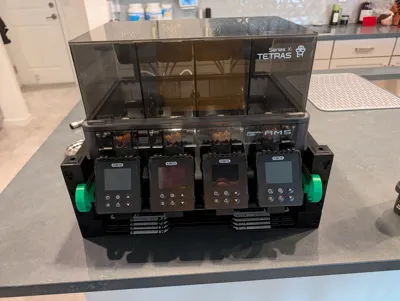

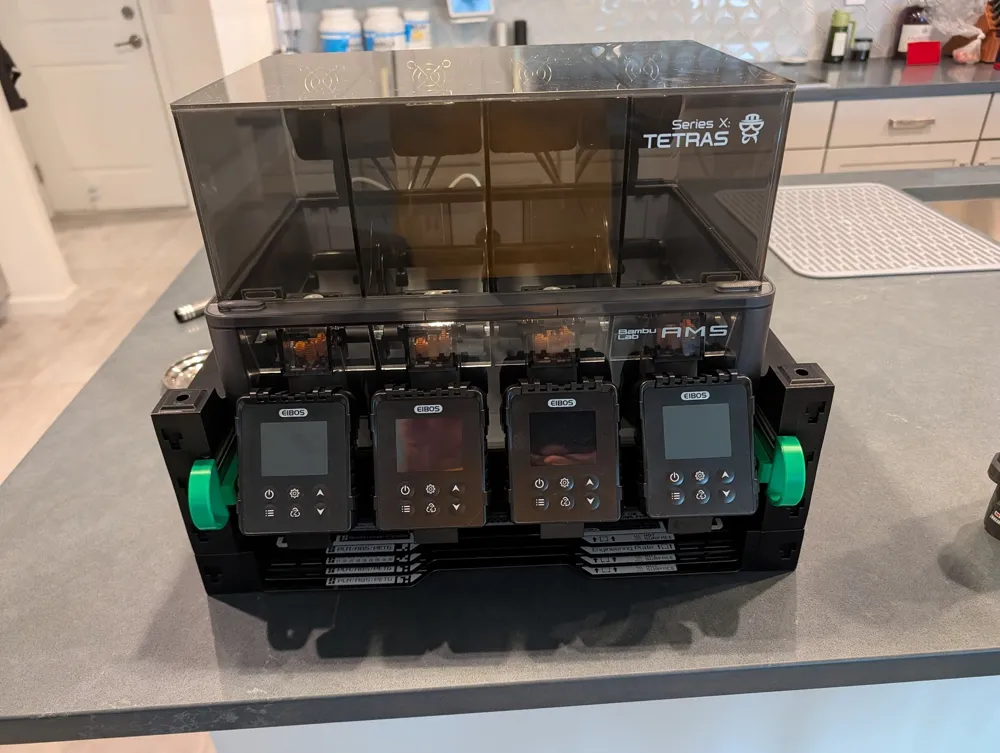

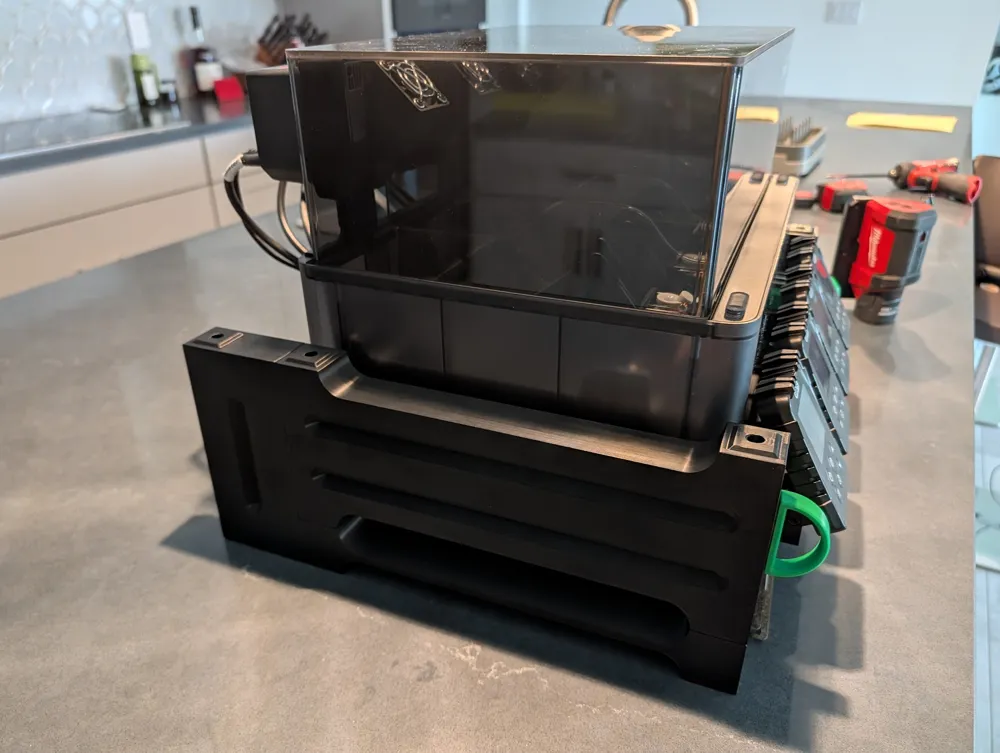

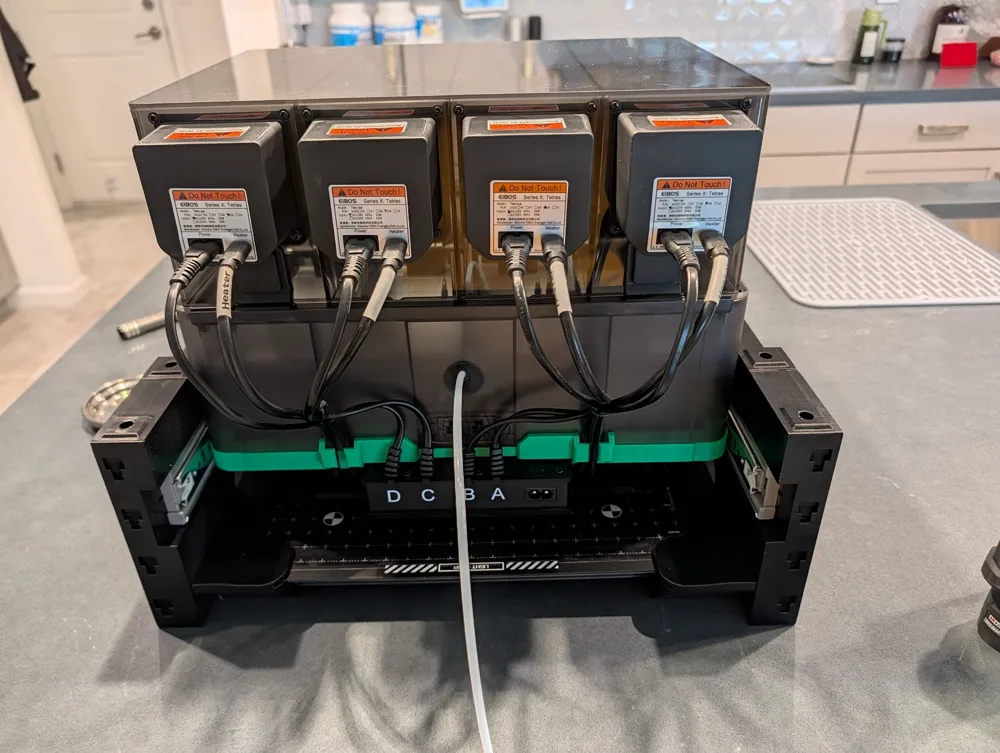

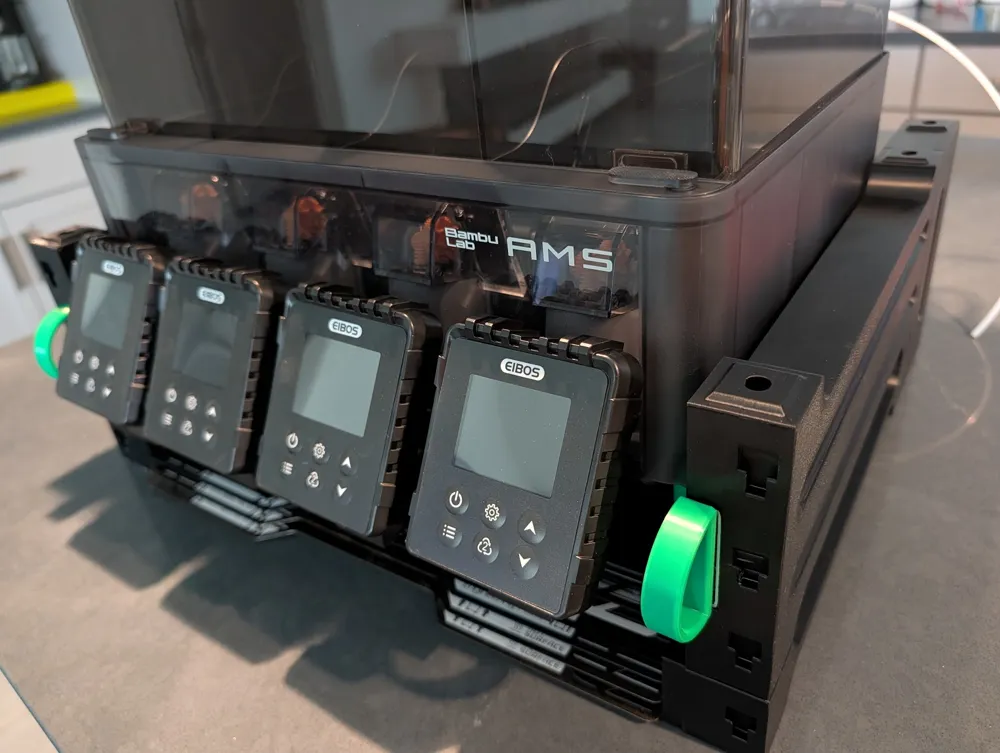

This model is adding support for the EIBOS Tetras conversion kit into the stack. The Tetras is a little bit bigger than your standard AMS, so adding it to a stack was not possible. This model is a bit different than the standard rack slides, so you should watch the video below to understand putting it together. If you are having issues routing cables around your cross braces, you can consider getting up/down-angle C8 and USB-C adapters.

This extension kit model includes the following plates:

• Plate 1: Riser Slides
  • These are the brackets where your drawer slides are screwed into.
  • H2D: Print this plate ONCE, for each AMS in your stack.
  • X1C: Print this plate TWICE, for each AMS in your stack.
• Plate 2: Braces (AMS1)
  • These braces will hold the AMS1 + Tetras Conversion Kit on your stack.
• Plate 3: Extension (1.5 Blocks)
  • If you are using this WITHOUT the new larger plate holder racks, print these.
• Plate 4: Extension (2.0 Blocks)
  • If you are using this WITH the new larger plate holder racks, print these.
