Parametric Gridfinity Round Object Holder
Print Profile(1)
Bill of Materials
Description
A fully parametric Gridfinity round object holder for anything cylindrical or round-ish that needs a stable spot in a drawer, toolbox, shelf, or
workbench grid.

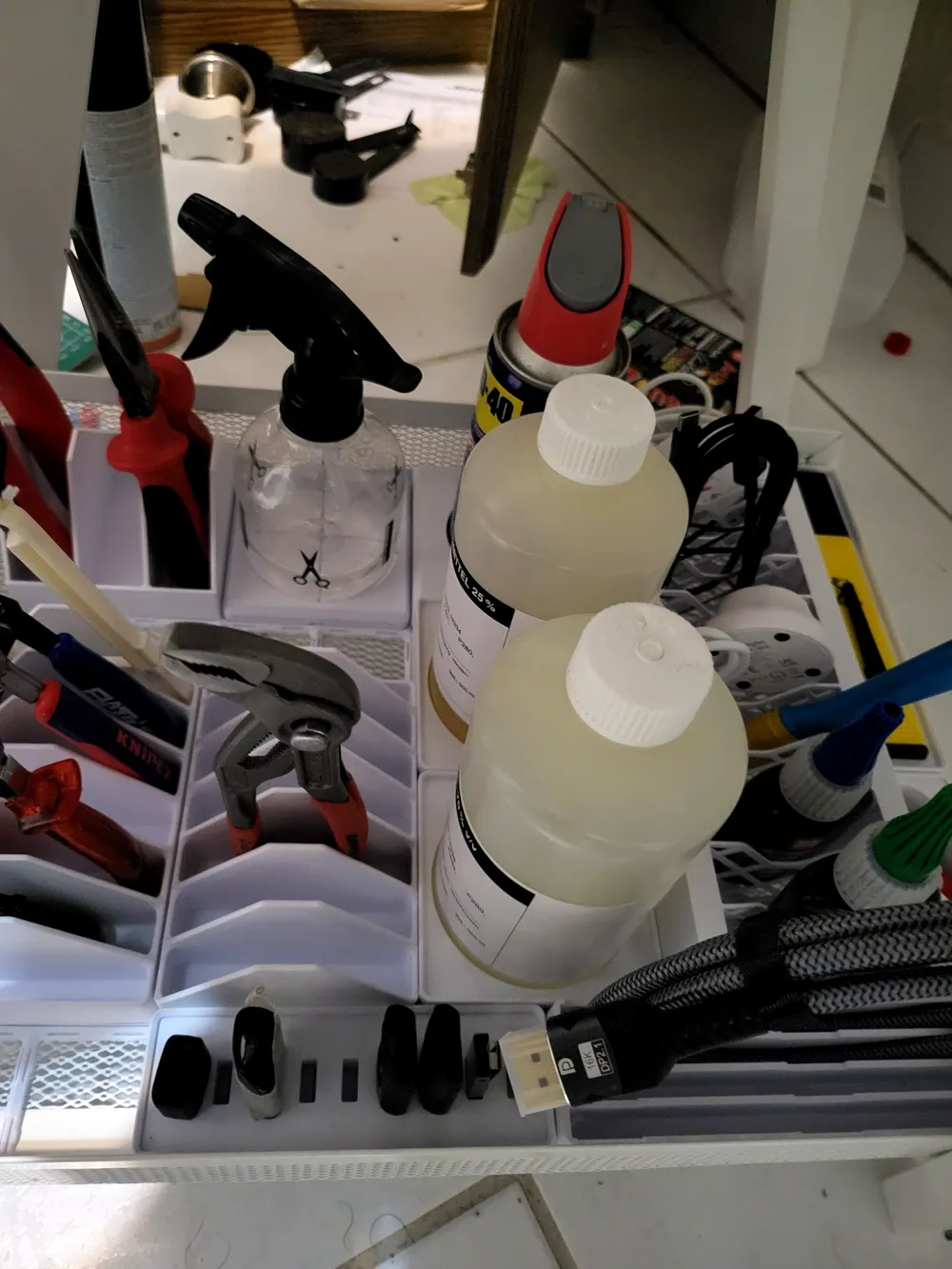

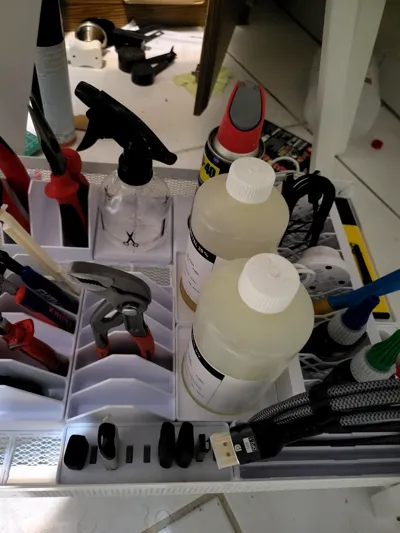

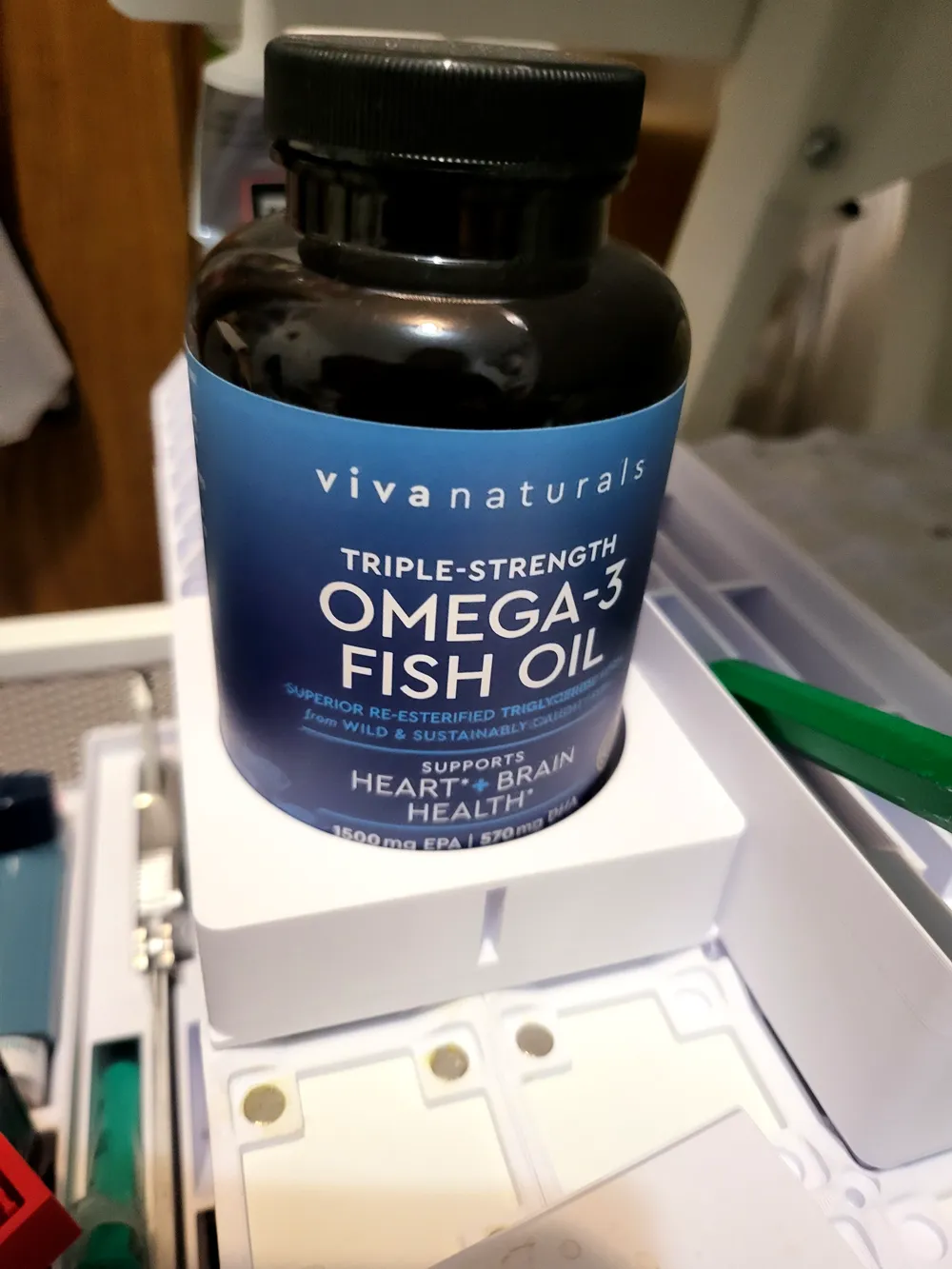

Use it for WD-40-style cans, spray cans, paint bottles, glue bottles, oil bottles, pill bottles, spice jars, small tubs, G FUEL or supplement
containers, mugs, cups, tumblers, tool handles, flashlights, markers, pens, and other round objects.

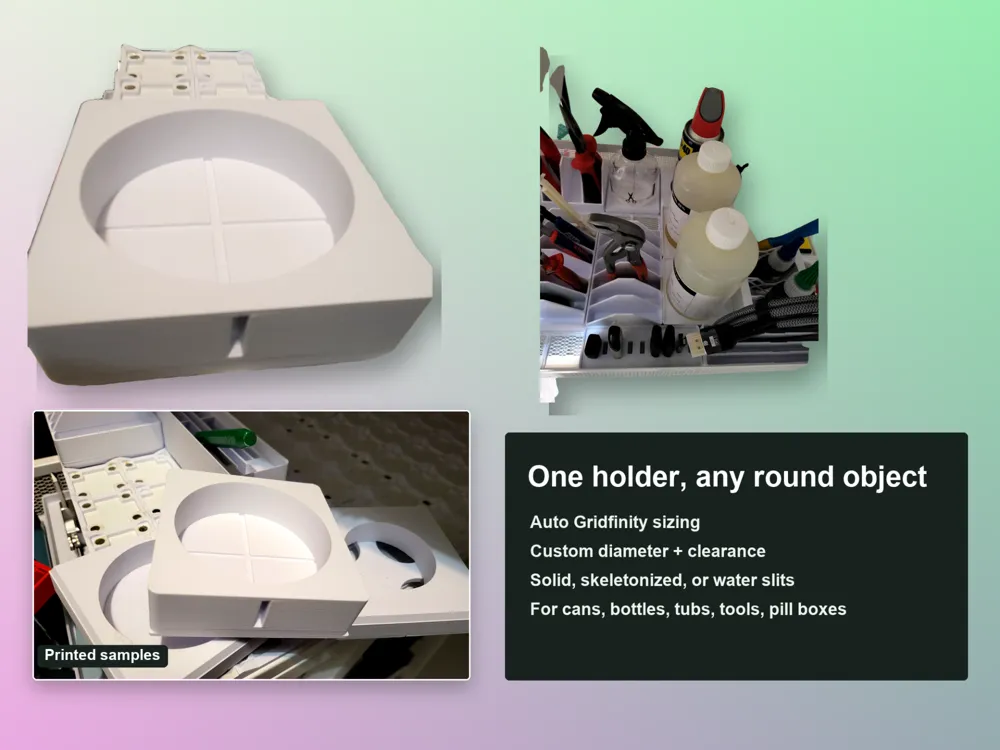

The OpenSCAD file is customizable: set the object diameter, add a little clearance, and the model automatically calculates how many Gridfinity
squares are needed. Small item? It stays compact. Larger canister or tub? The footprint grows automatically so the walls stay strong instead of
being chopped away.
The SCAD model also lets you adjust:
- object diameter and clearance
- automatic or manual Gridfinity size
- Gridfinity height units or custom height in mm
- wall thickness and floor thickness
- magnet holes

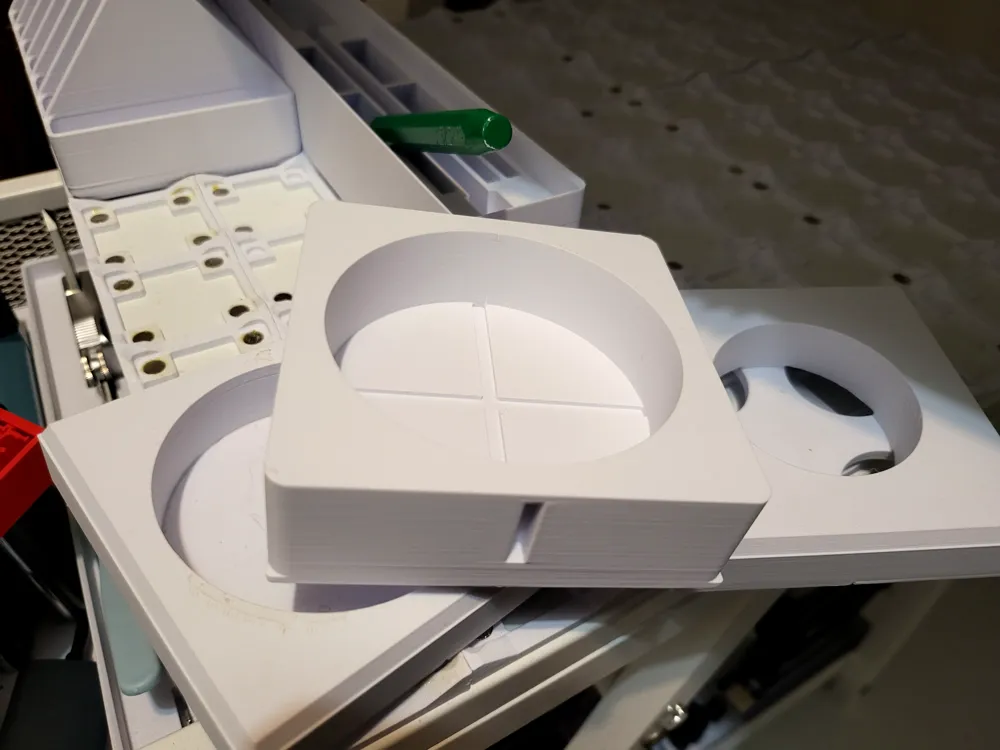

- solid, skeletonized, or water-slit wall style
- water slit count, width, and floor air-channel options
For most objects, measure the widest diameter with calipers, enter it as round_object_diameter, then set fit_clearance to around 0.5-1.5 mm
depending on how loose you want the fit. Use grid_size_mode = "Auto" if you want the model to choose the correct Gridfinity footprint for you.
