Height-adjustable Foot

This adjustable foot was originally designed to support a large bed.

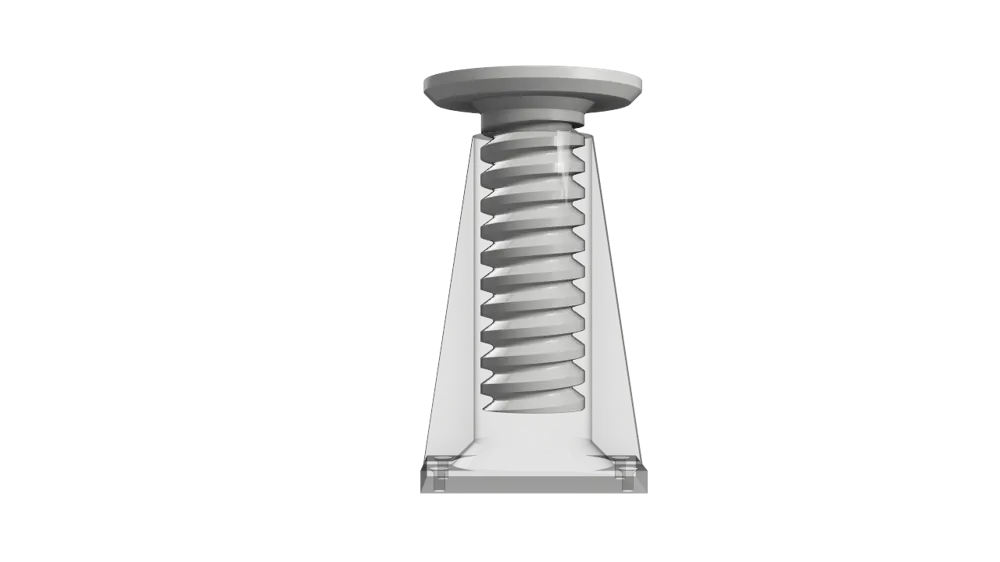

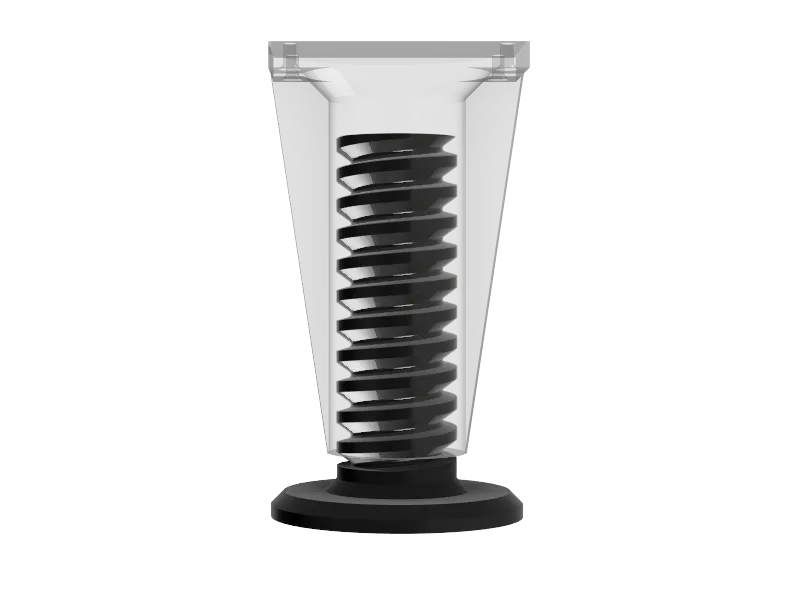

The feet use a robust threaded mechanism, allowing precise height adjustment while maintaining high load-bearing capacity.

Furthermore, the thread has been adjusted so that it can be easily printed without support, even for printers that are not optimally calibrated.

The thread tolerance has also been increased to 0.15 mm

Multiple mounting holes ensure secure attachment to the furniture base and long-term stability.

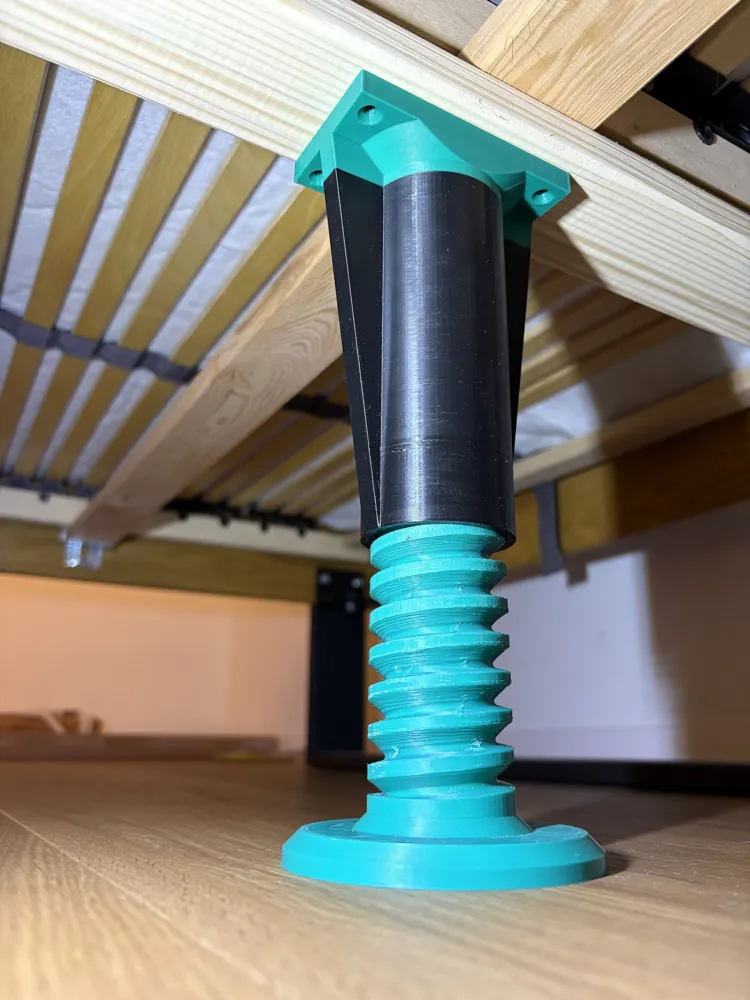

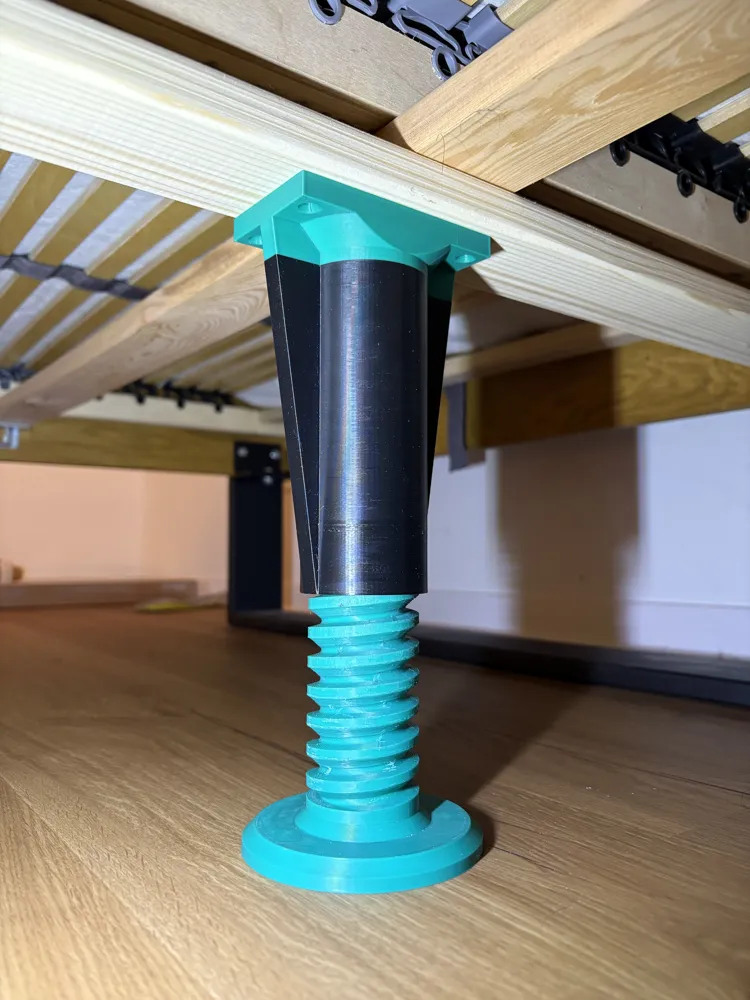

This support was attached to the bed with only double-sided tape and has been holding for half a year now without any problems

Key Features
• Adjustable height range: 185–295 mm
• 4× 5 mm mounting holes for secure fixation
• Strong thread for reliable load transfer and easy printing

• Large footprint to avoid excessive strain/damage to the floor
• Suitable for heavy furniture and work surfaces

In our case, the foot supports almost 190 kg without any problems so far

Printing Recommendations
• Material: ABS (recommended for strength and durability)
• Layer height: 0.2 mm
• Outer walls: at least 4 walls
• Infill: 25% -50% for maximum strength (Gyroid or TPMS-D / TPMS-FK)

Typical Applications

• Support for beds / sofas
• Leveling shelves and cabinets
• Height adjustment of workbenches
• Stabilizing uneven furniture
• Heavy-duty furniture support
