Universal Parametric Interlocking Blocks

Experience the ultimate construction freedom with this Universal Parametric Building Block System. Designed for precision, customizability, and superior "Clutch Power," this OpenSCAD-based model allows you to generate any block, plate, or tile you need with a perfect fit—every single time.

Key Features

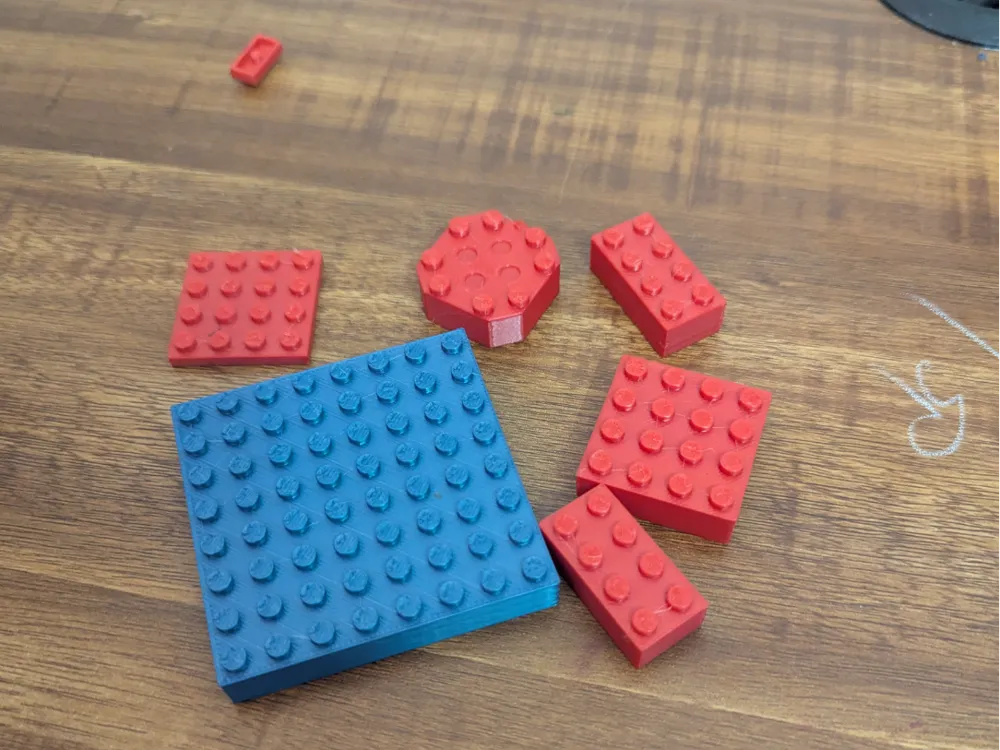

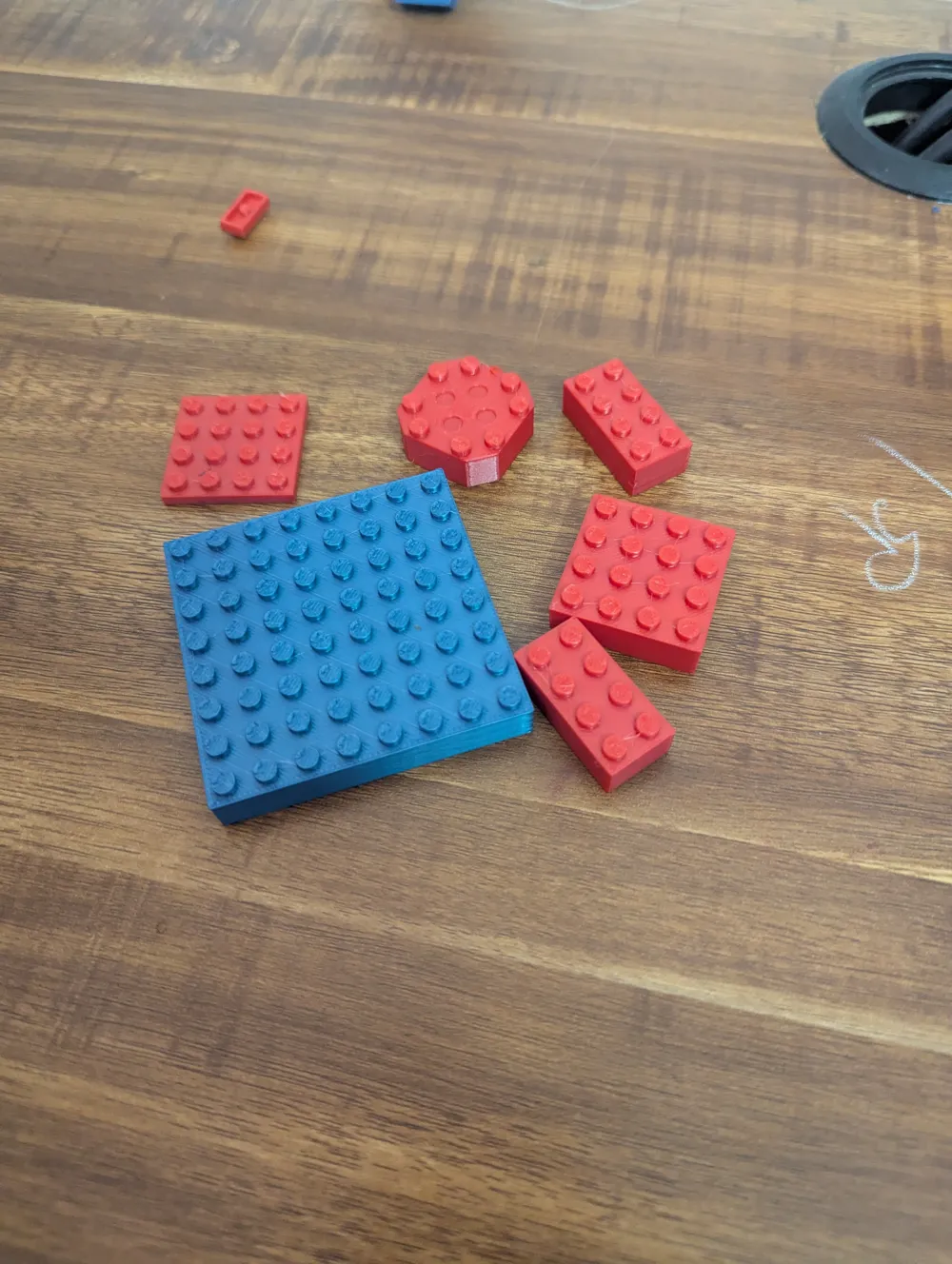

• Total Parametric Control: Generate any configuration from a 1x1 plate to a massive 20x20 baseplate.
• High-Clutch Technology: Integrated internal vertical ribs ensure a rock-solid grip even on 1xN blocks, solving the "loose fit" issue common in 3D prints.
• Octagon Connector: A specialized 8-sided intersection plate (octagon) designed to bridge and lock four 4x4 blocks together at their corners.
• Customizable Tiles: Add embossed or engraved personalized text directly onto smooth top tiles.
• Clutch Tuning: A dedicated parameter to refine the interference fit for your specific printer and material.

Customization Guide

Open the .scad file in OpenSCAD or use the MakerWorld Customizer to adjust:

• Width & Length: Dimensions in stud units.
• Height Units: Set to 1 for plates (3.2mm) or 3 for standard bricks (9.6mm).
• Block Type: Choose between Brick, Plate, or Tile (smooth top).
• Block Shape: Toggle between Rectangular or the specialized Octagon Connector.
• Custom Text: Enter your text for tiles. Adjust Text_Size and Text_Thickness for the perfect look.
• Clutch Tuning: If your blocks are too loose, increase this value (e.g., 0.1 to 0.2). If too tight, decrease it.

Printing Recommendations

For the best mechanical fit and "snap," follow these settings:

• Material: PLA or PLA+ (Bambu recommended).
• Nozzle: 0.4mm (Walls are optimized for 3 perimeters at 1.2mm).
• Layer Height: 0.2mm for standard blocks; 0.12mm or 0.16mm for high-detail custom text.
• Infill: 15-20% Grid or Gyroid.
• Orientation: Print with studs facing up. Support is generally not required for standard bricks.
• Flow Calibration: Ensure your E-steps and flow are calibrated to maintain precise tolerances
