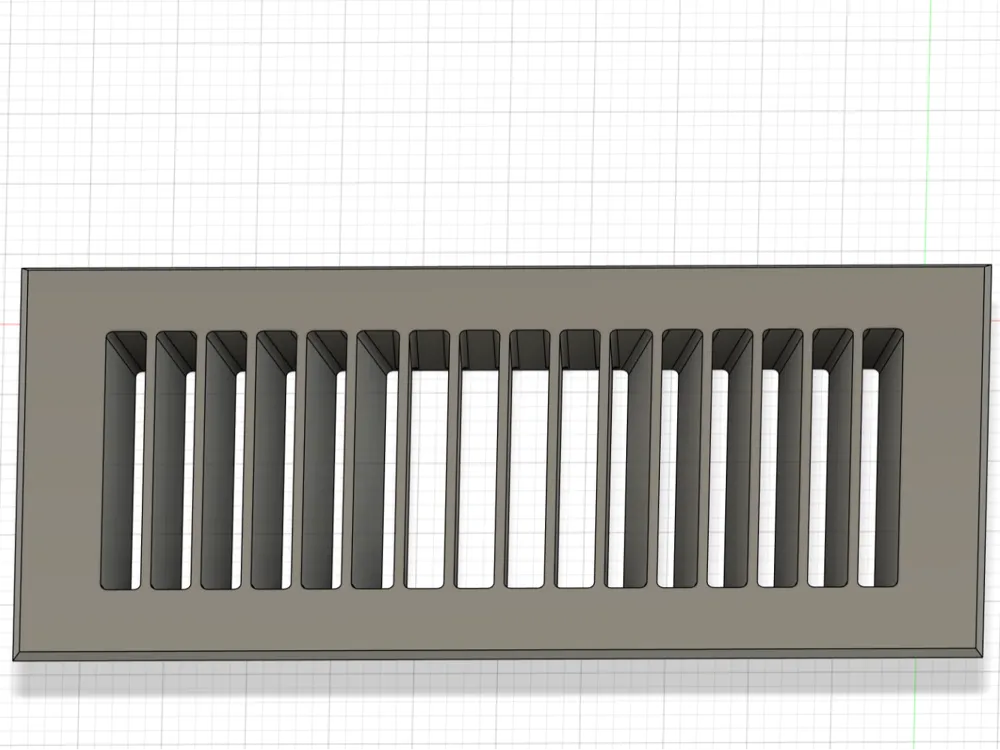

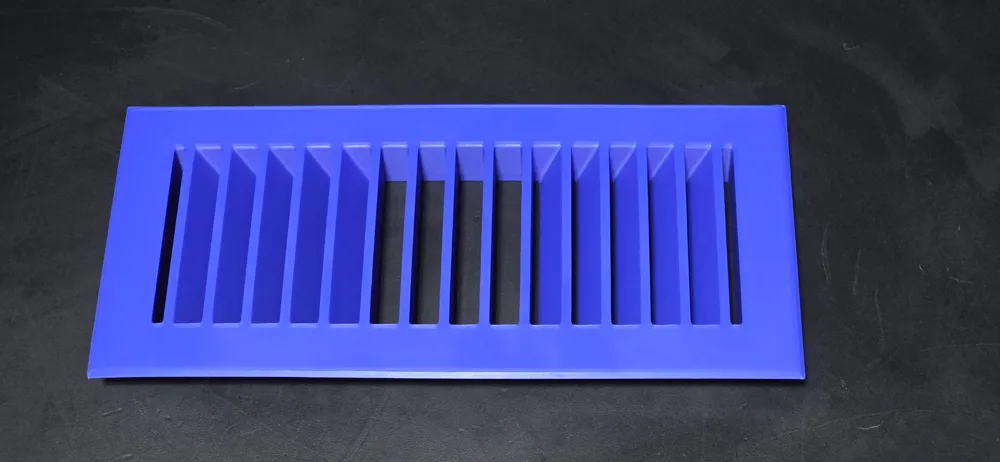

Parametric Floor Vent Grille
This fully parametric Fusion 360 model creates a customizable floor vent grille (register) for HVAC systems, such as hot air heating in RVs or homes. All key dimensions are user-controlled parameters for easy adaptation to standard duct sizes (e.g., 4x10 in).
Core Frame Parameters
These define the grille's outer structure for floor mounting.
| Parameter | Description |
|---|---|
| width_frame | Outer frame width (floor insert duct opening) |
| length_frame | Outer frame length (floor insert duct opening) |
| width_outer_rim | Width of the outer rim that rests on the floor surface |
| thickness_outer_rim | Thickness of the outer rim (floor flange) |
Louver Parameters
These control the internal vanes (louvers) for airflow direction and pattern.
| Parameter | Description |
|---|---|
| thickness_louver | Thickness of all louvers |
| straight_center_louver_number | Number of straight center louvers (e.g., 1,3,5,7 symmetric) |
| louver_spacing | Spacing between louvers |
| left_angled_louver | Angle of left inclined louver (degrees) |
| right_angled_louver | Angle of right inclined louver (degrees) |

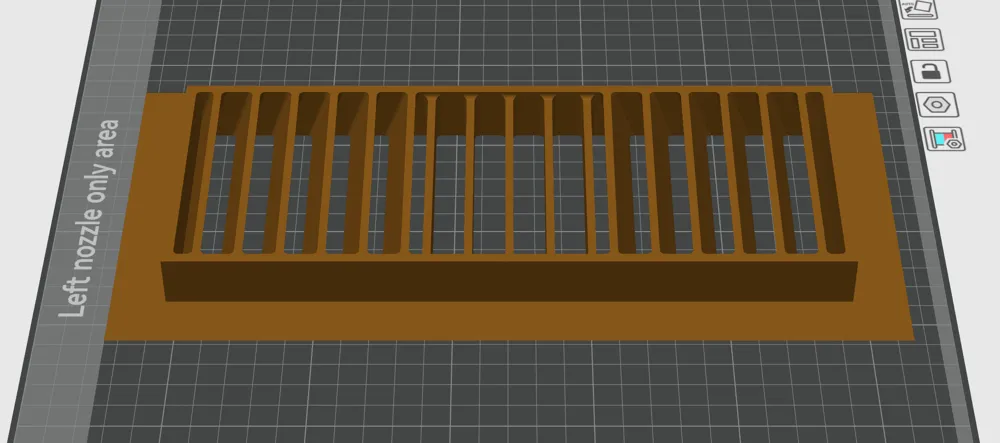

Usage: Adjust frame to match your duct (e.g., 100x250 mm), set louver count/angles for airflow, and export for slicing/printing in heat-resistant filament like HT-PLA, PETG or ABS.
