Network Switch Keycap Labels Case

Professional Network Cable Migration & Combing Kit

Tired of losing track of port mappings during a switch upgrade or rack migration? This kit is a professional-grade solution for IT experts and SysAdmins to organize and comb cables without the stress of mislabeling.

The Workflow:

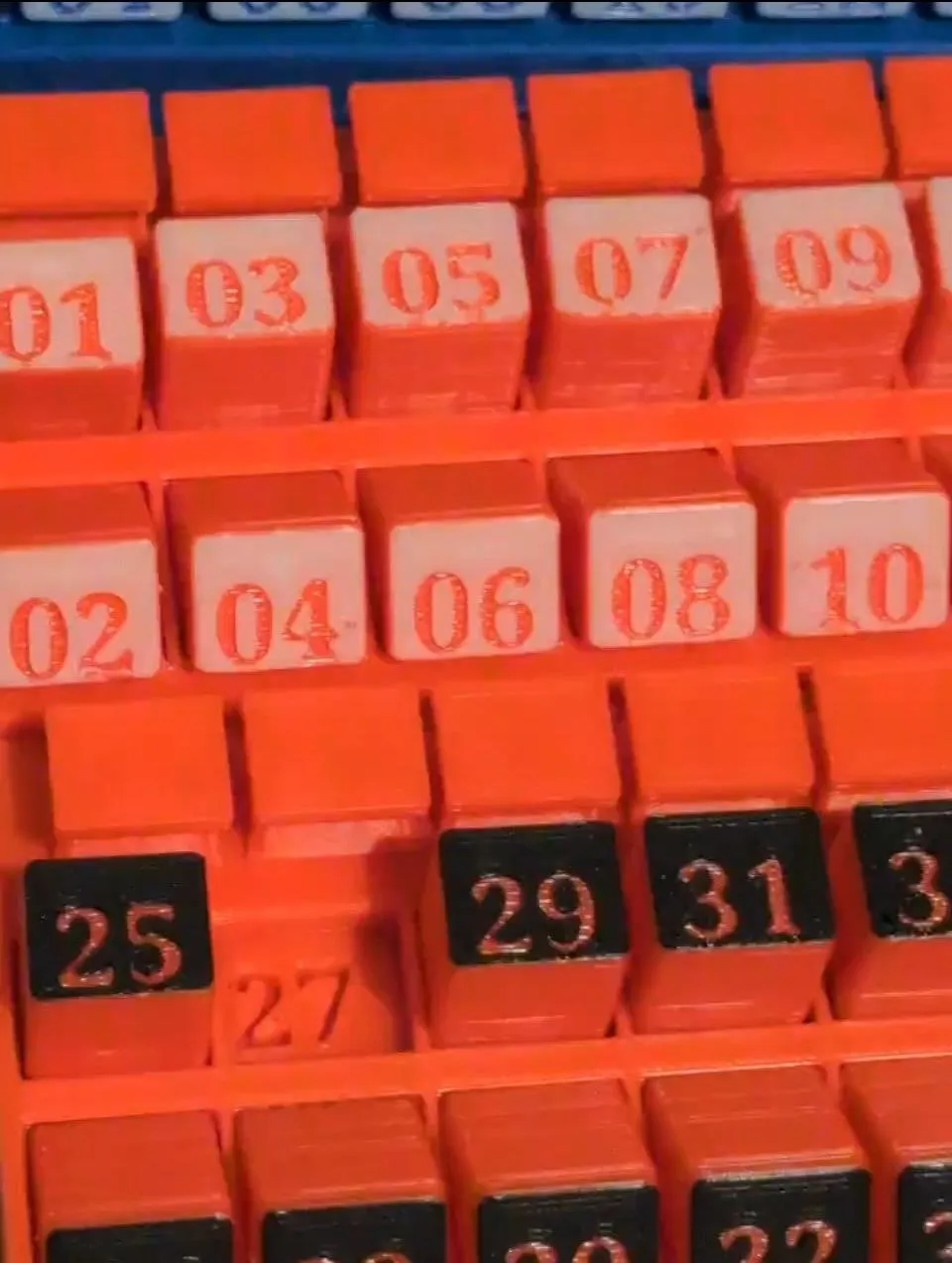

1. Unplug & Snap: Unplug a cable from the switch and immediately snap the corresponding numbered keystone onto the cable end.
2. Multi-Switch Strategy: For high-density environments, print sets in different colors. Assign one specific color per switch to manage complex migrations across the entire rack simultaneously without confusion.
3. Comb & Organize: Once all cables are tagged, you can freely comb, bundle, and route them. The keystones stay locked to the cable, ensuring you never lose the destination port.
4. Re-plug: Match the 3D-printed number to the new switch port for 100% accuracy.

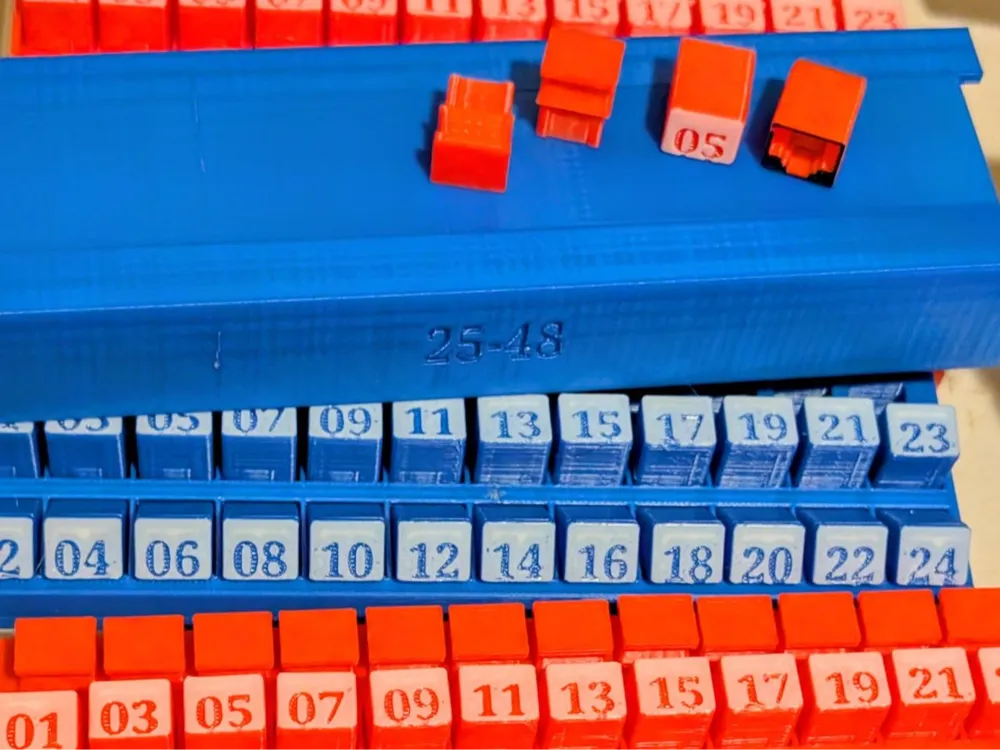

5. Storage: The kit includes Blank Inserts to designate empty or decommissioned ports and fits into a custom travel case to keep pieces secure in your tool bag.

Print Profile Details:

I have organized this into two distinct plates to suit your setup:

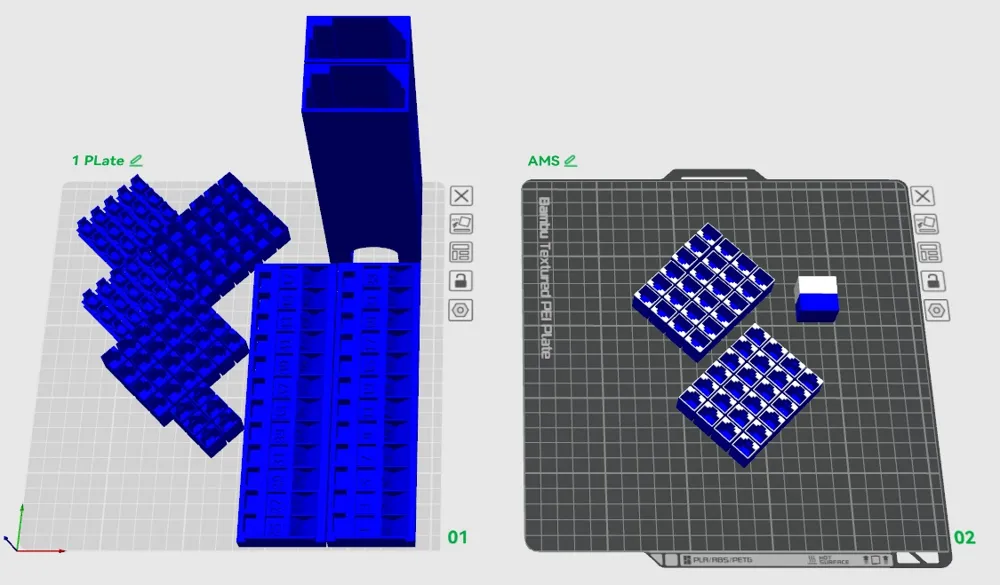

• Plate 01 (Full Mono Kit): Contains the Case, Tray, and all numbered pieces in a single color. Perfect for a quick, one-material print.
• Plate 02 (Two-Tone Numbered Caps): Contains only the numbered keystones. This plate is pre-configured for AMS or manual filament swaps.
• Note: Numbers are printed face-down for maximum legibility and a smooth professional finish.

Technical Recommendations:

• Material: PETG is highly recommended. Server room exhaust can get hot; PETG ensures the clips maintain their "snap" and don't soften over time.
• Supports: Not required.
• Layer Height: 0.2mm works perfectly as the text is printed on the bottom side for clarity.

  This is my very first upload to MakerWorld! If you find this tool helpful for your rack cable management or switch migrations, please consider giving it a Like and a Boost. Your support helps me keep designing and sharing functional tools for the IT community!
