Jam Stack [x2]

Disclaimer: I'm new to 3D printing so be lenient 🤣 Also, this is a hobby for me.. my free time is very limited unfortunately so please don't expect too much 😆 Comments and suggestions are also welcome, just remember the “limited free time” bit 🤣

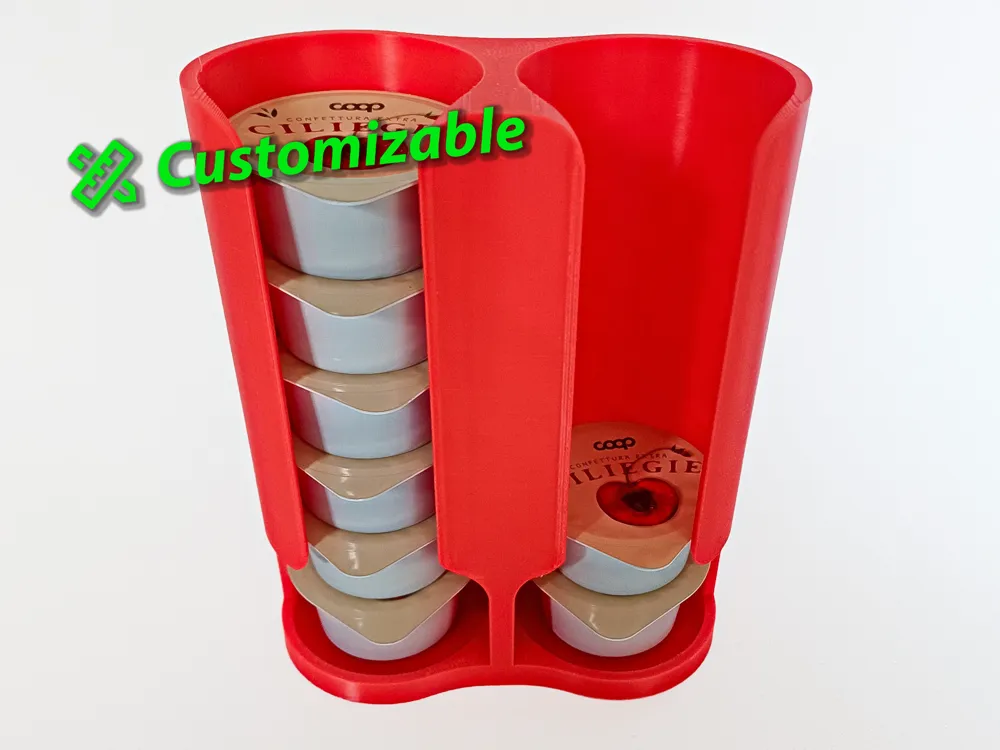

This specific model is for 2 stacks of round jam portions. I was working on another parametric model that allows 3+ stacks and I will publish it in a near future (still haven't done a test print). A single stack version is probably not that useful.. but let me know.

While the model is parametric, fillets and some other features might not like extreme values.

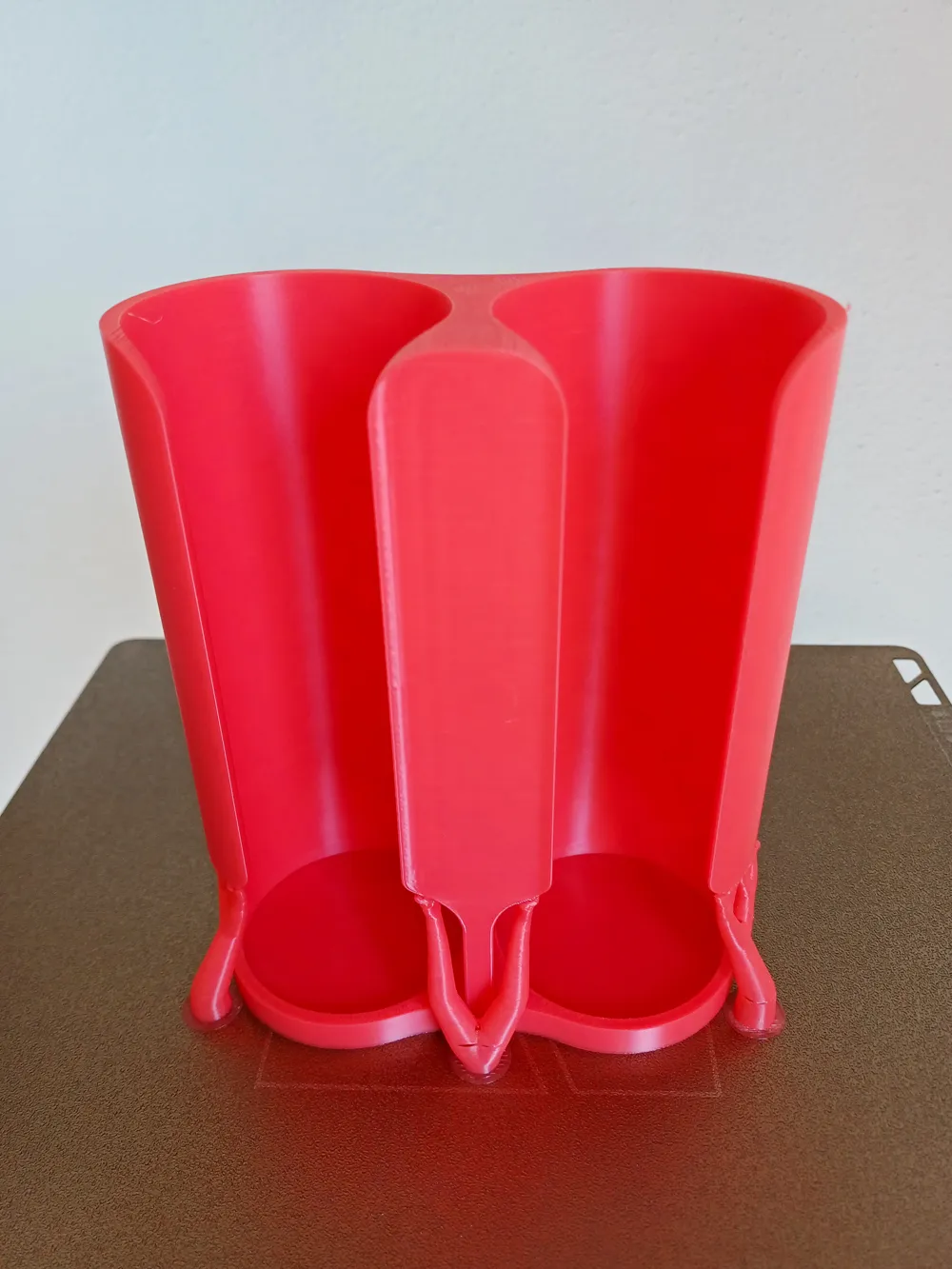

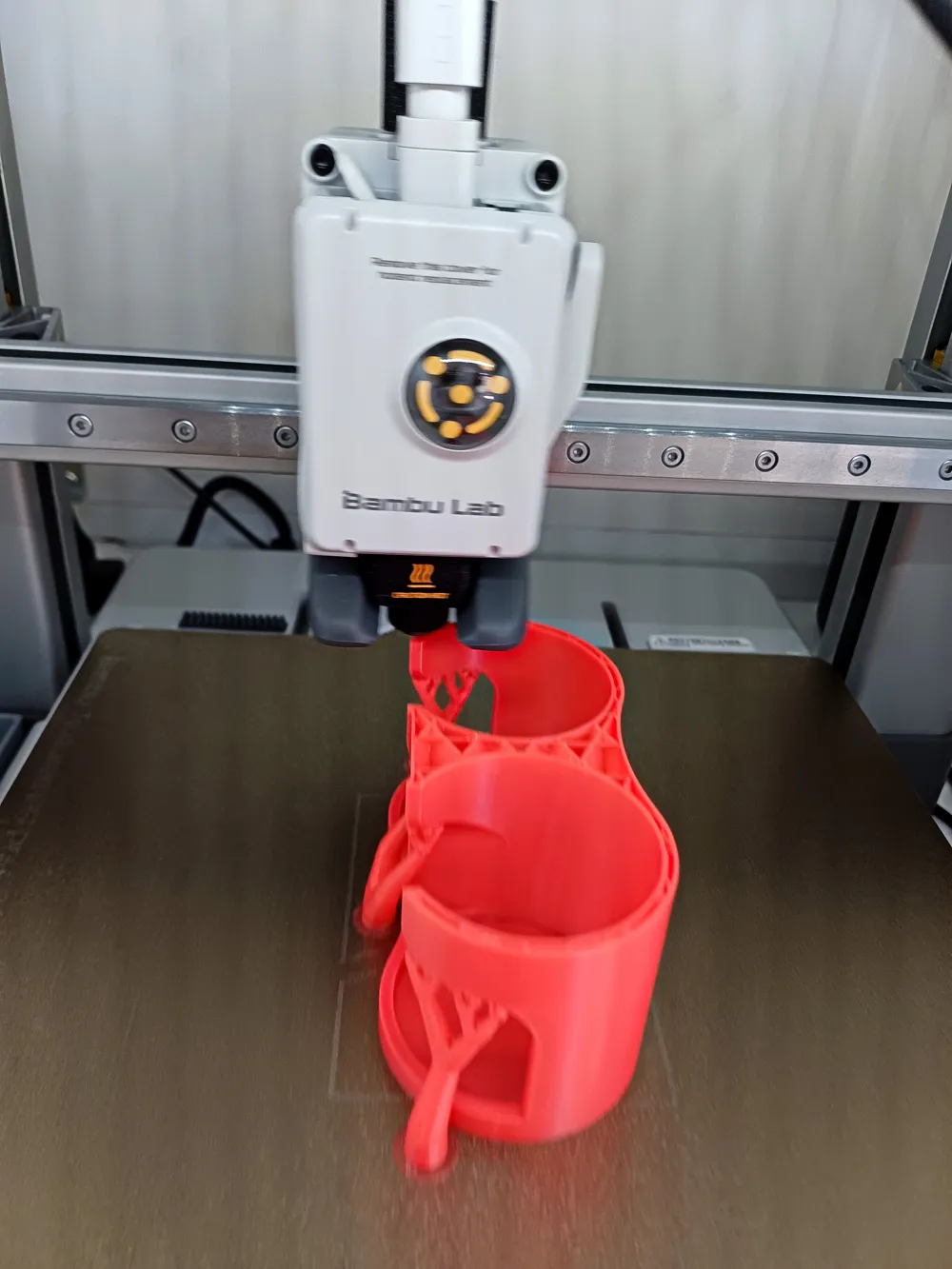

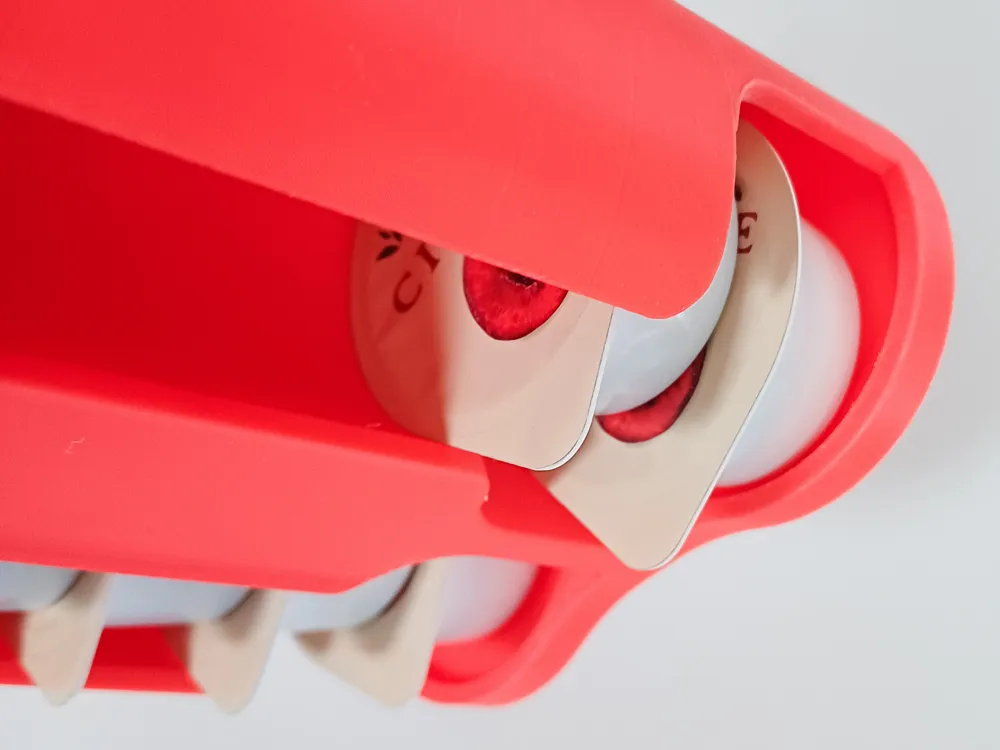

The model in the photos was printed using SUNLU HS-Matte PETG on my A1. PLA should be also perfect. Some small supports are required for the bottom slot where you can take a single portion from the stack.. I couldn't come up with a design that doesn't need them (while still looking good).

The model in the photos has ironing added to the top and bottom border surfaces (not the internal surface).. I'm not sure if it made sense. I'll publish a second sample profile with the ironing modifiers so you can decide yourself.

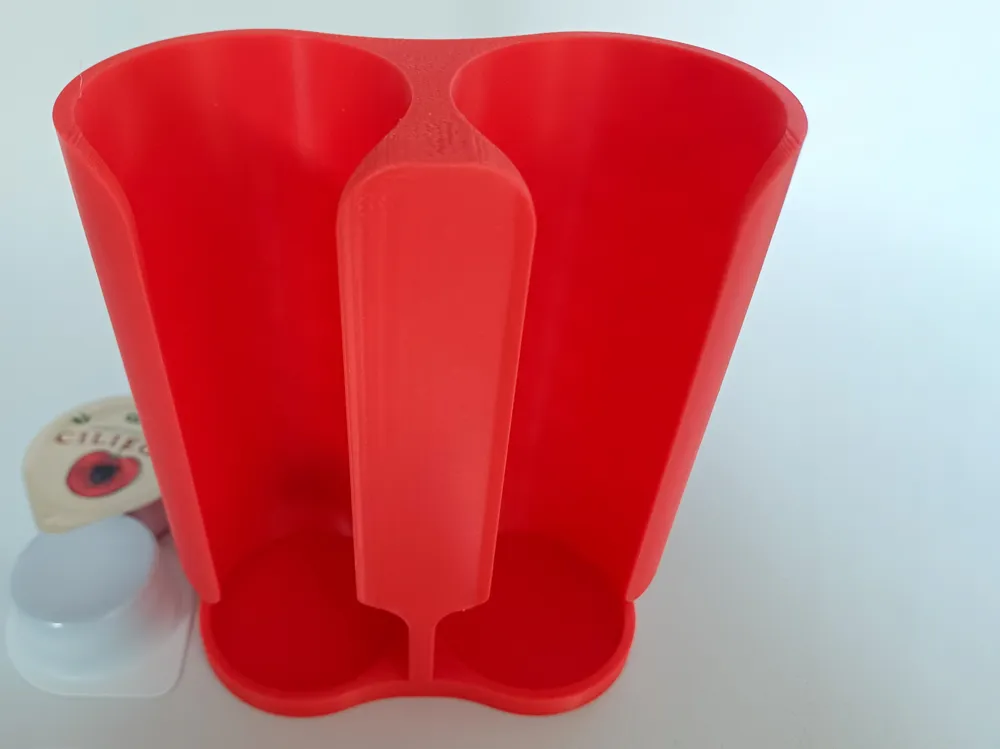

There is a small border at the bottom so that the jam won't slide off and fall out while you move the container.

PS: remember… prefer fresh fruit over sugar filled jam 🤣🤣
