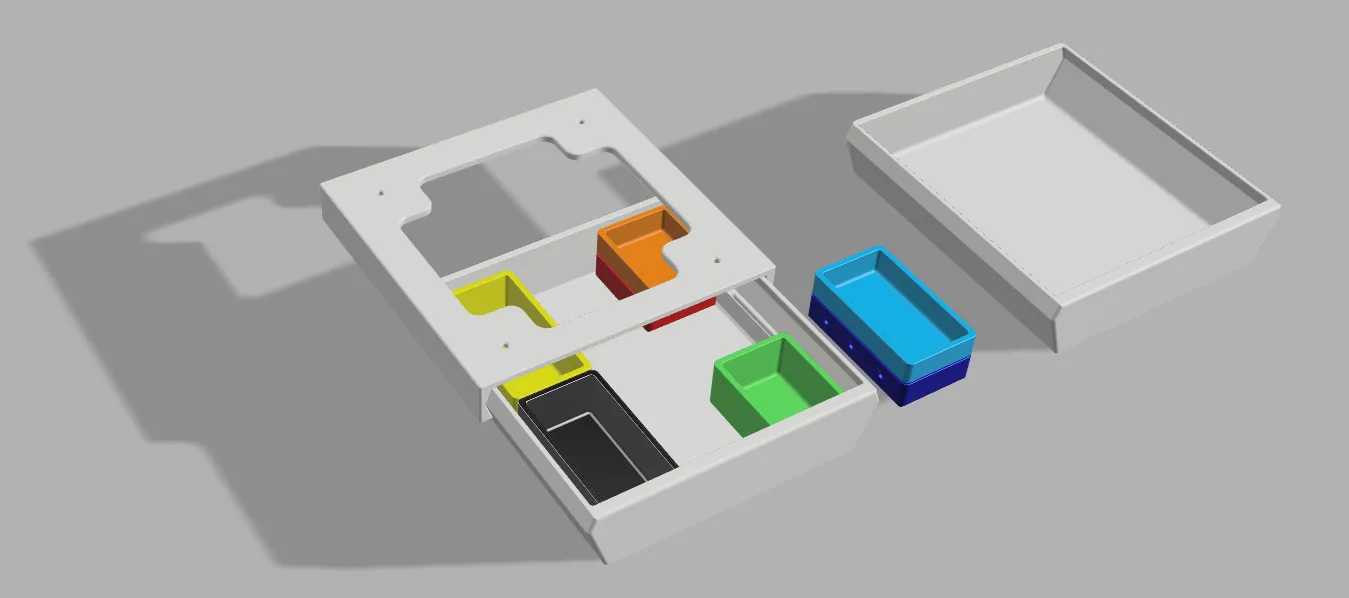

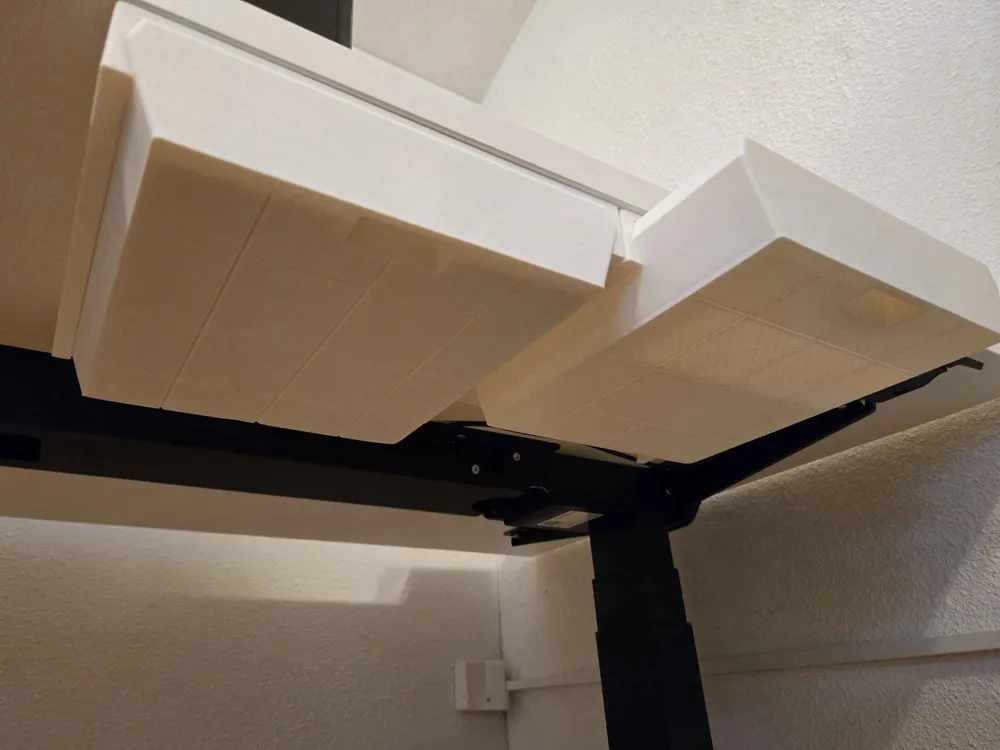

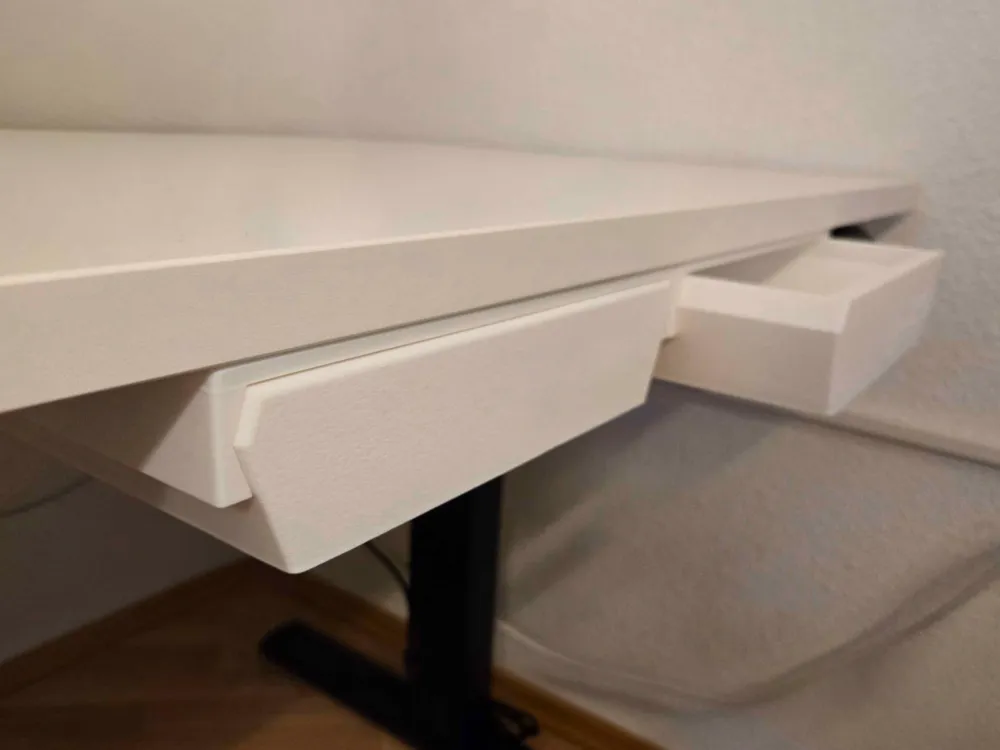

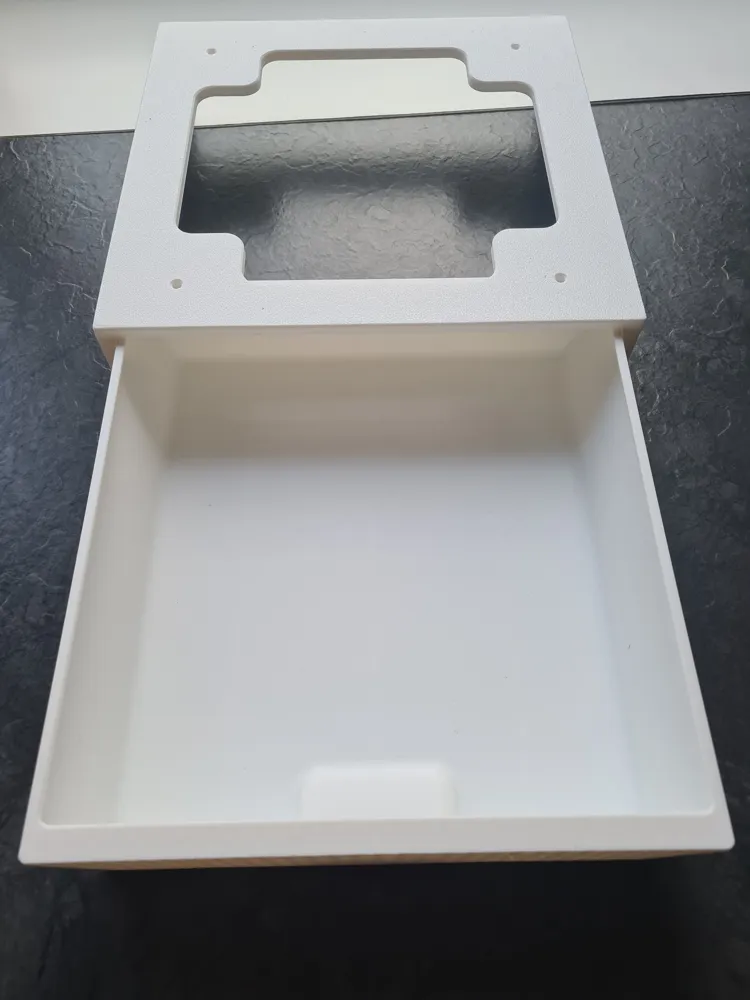

Here is my design for retrofittable drawers. A STEP file is also included to facilitate modifications

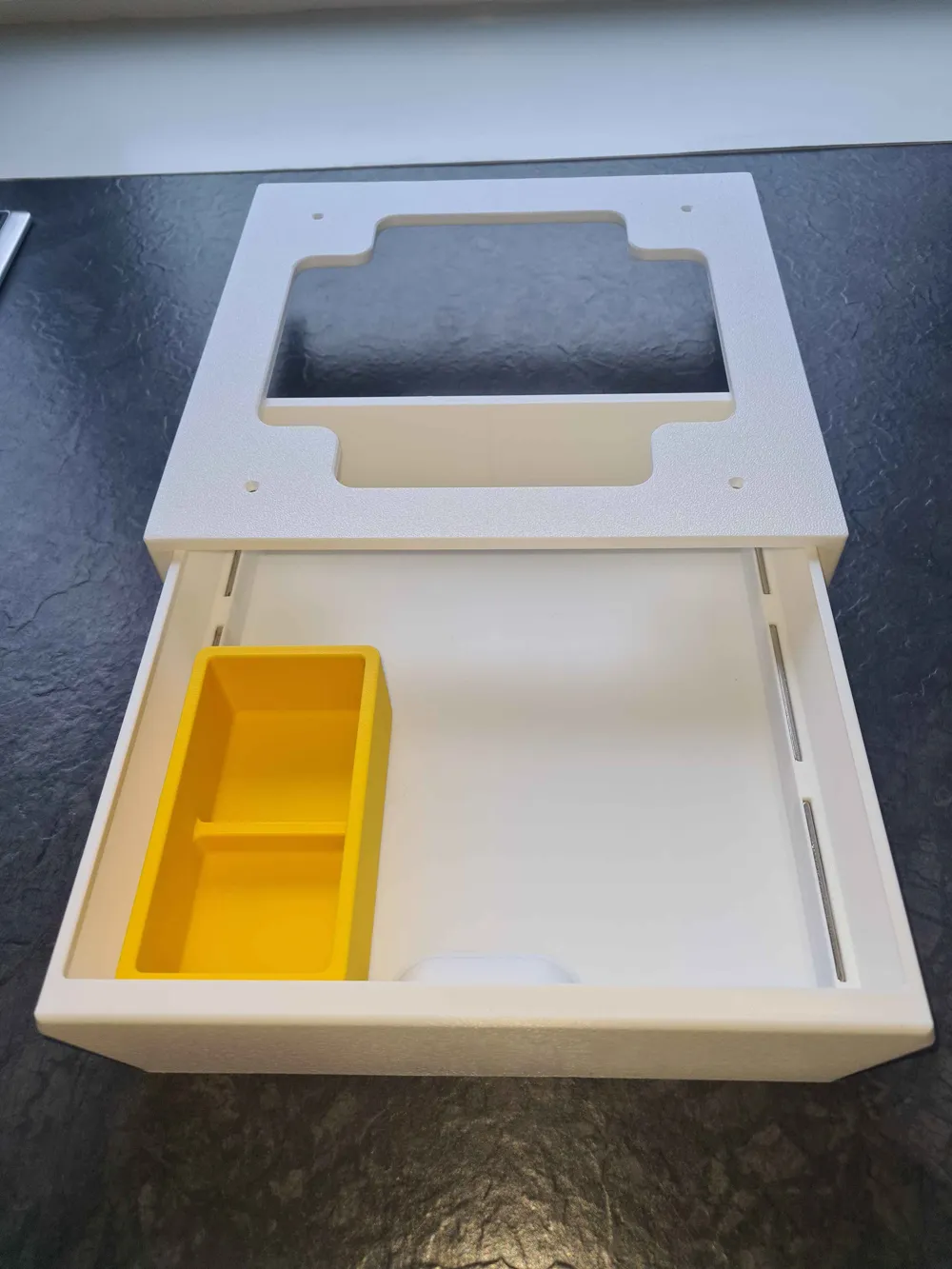

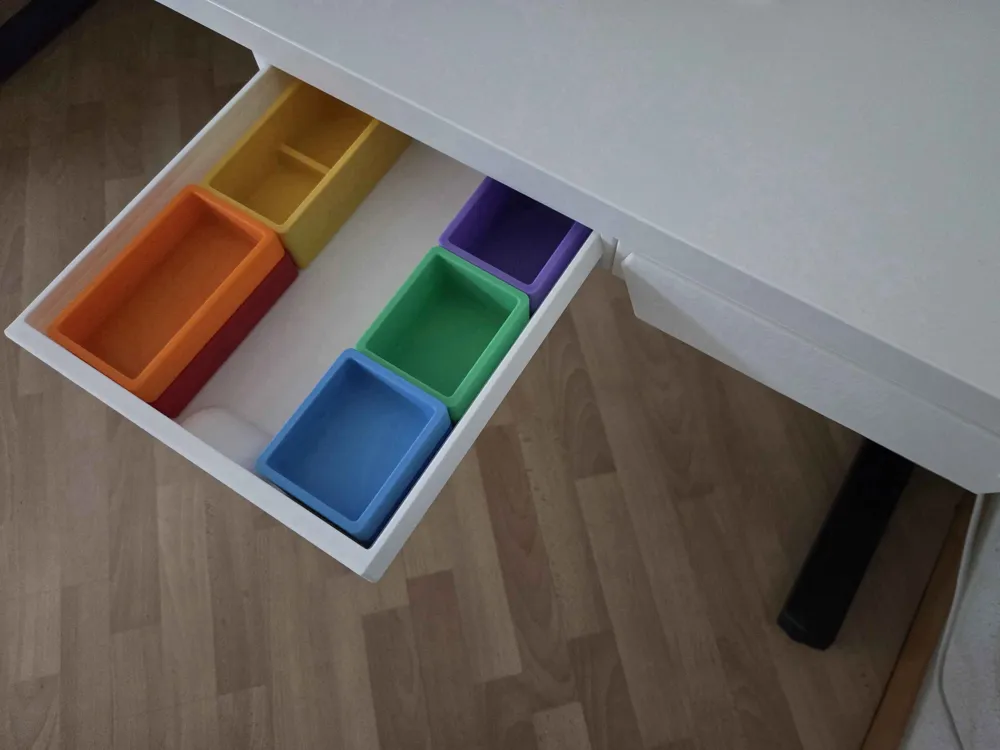

I designed one as a normal drawer, and one with additional magnets that securely hold various inserts and containers in place

The drawer is 50mm deep, and

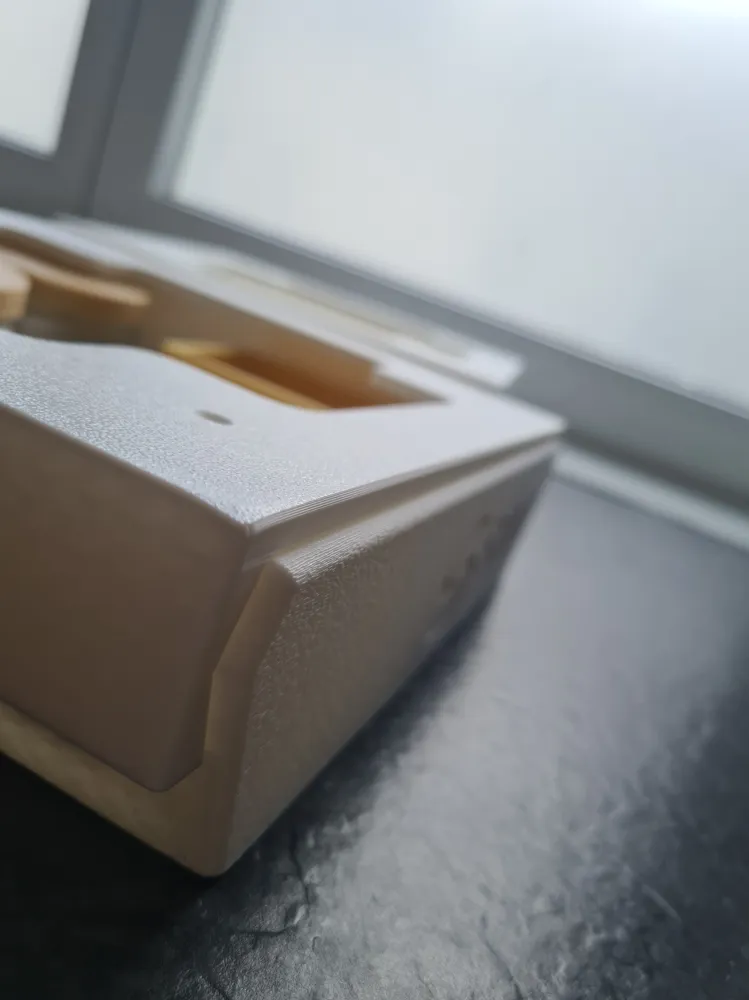

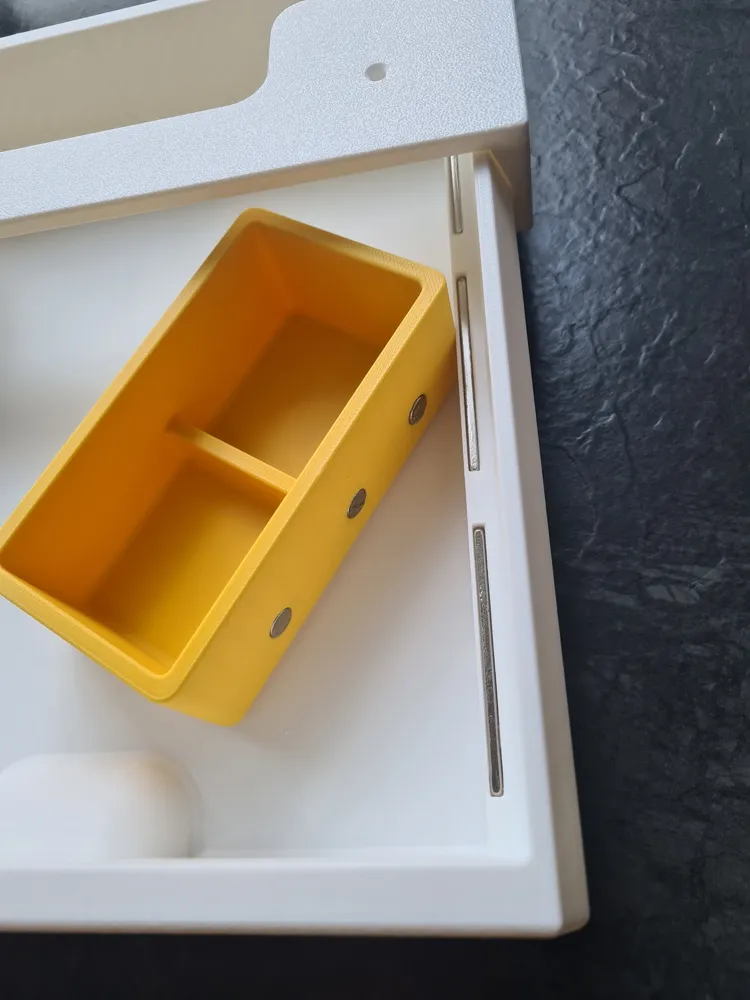

60x10x3mm magnets are used in the drawer, and round 8x2 magnets in the inserts. I printed the front with Fuzzy Skin, and also added a logo to my drawers, which gives them a very elegant look (The logo was removed from the pictures and the print file)

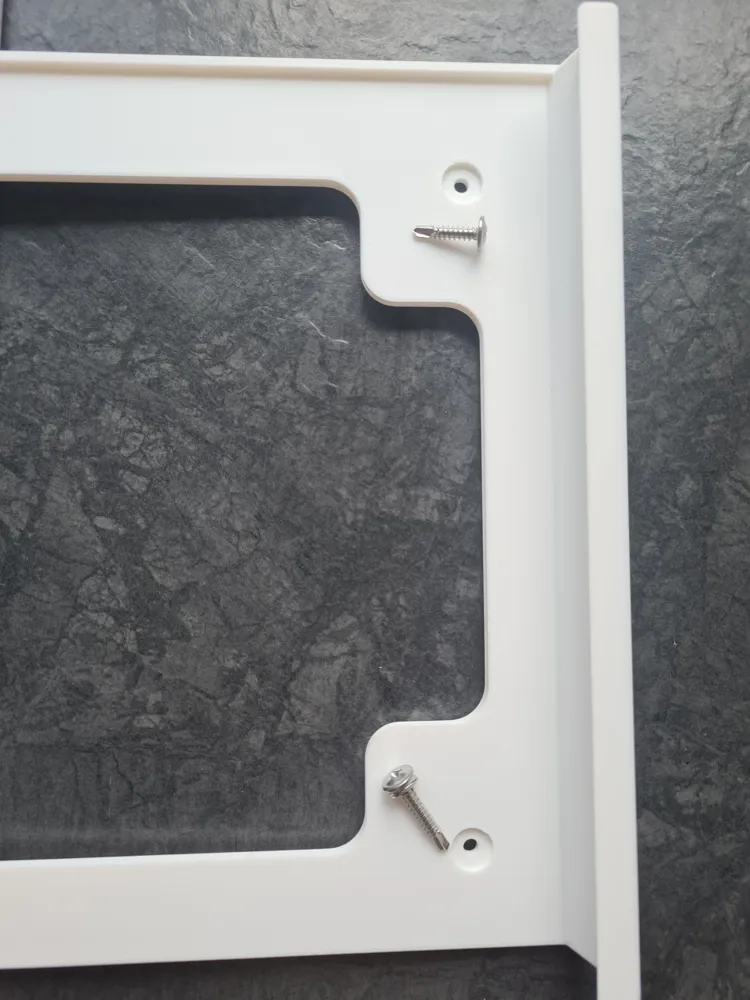

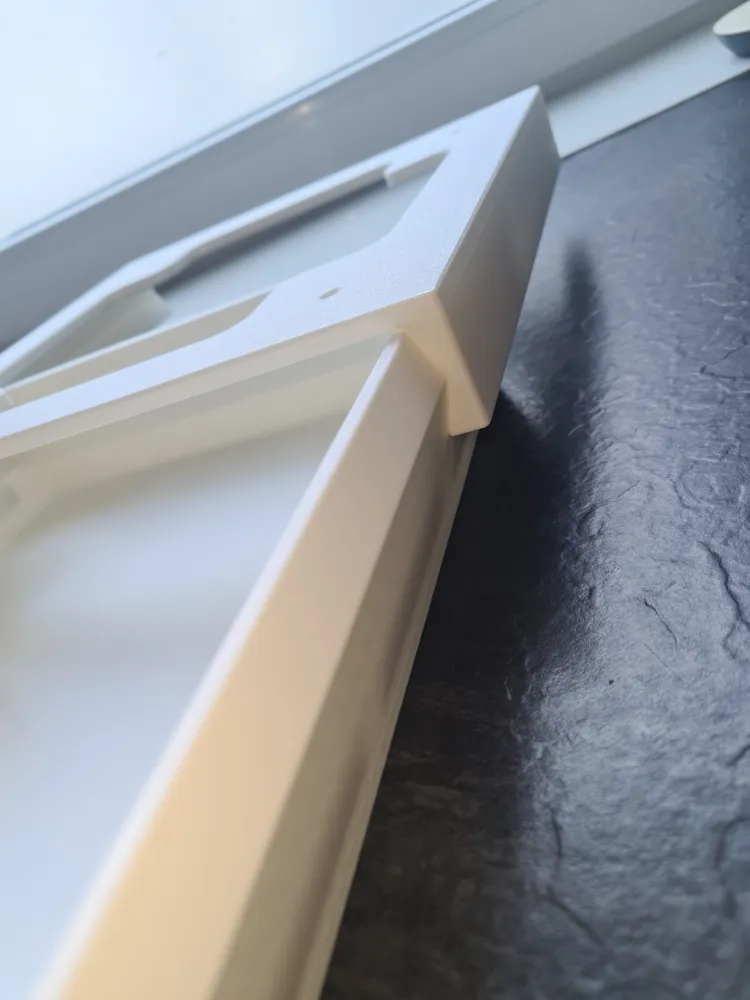

For assembly, I chose flat-head screws and used 2 washers for the front screws, which also allows the screw heads to function as stoppers
