Poseidon Xstream Pin Socket
Print Profile(0)
Description

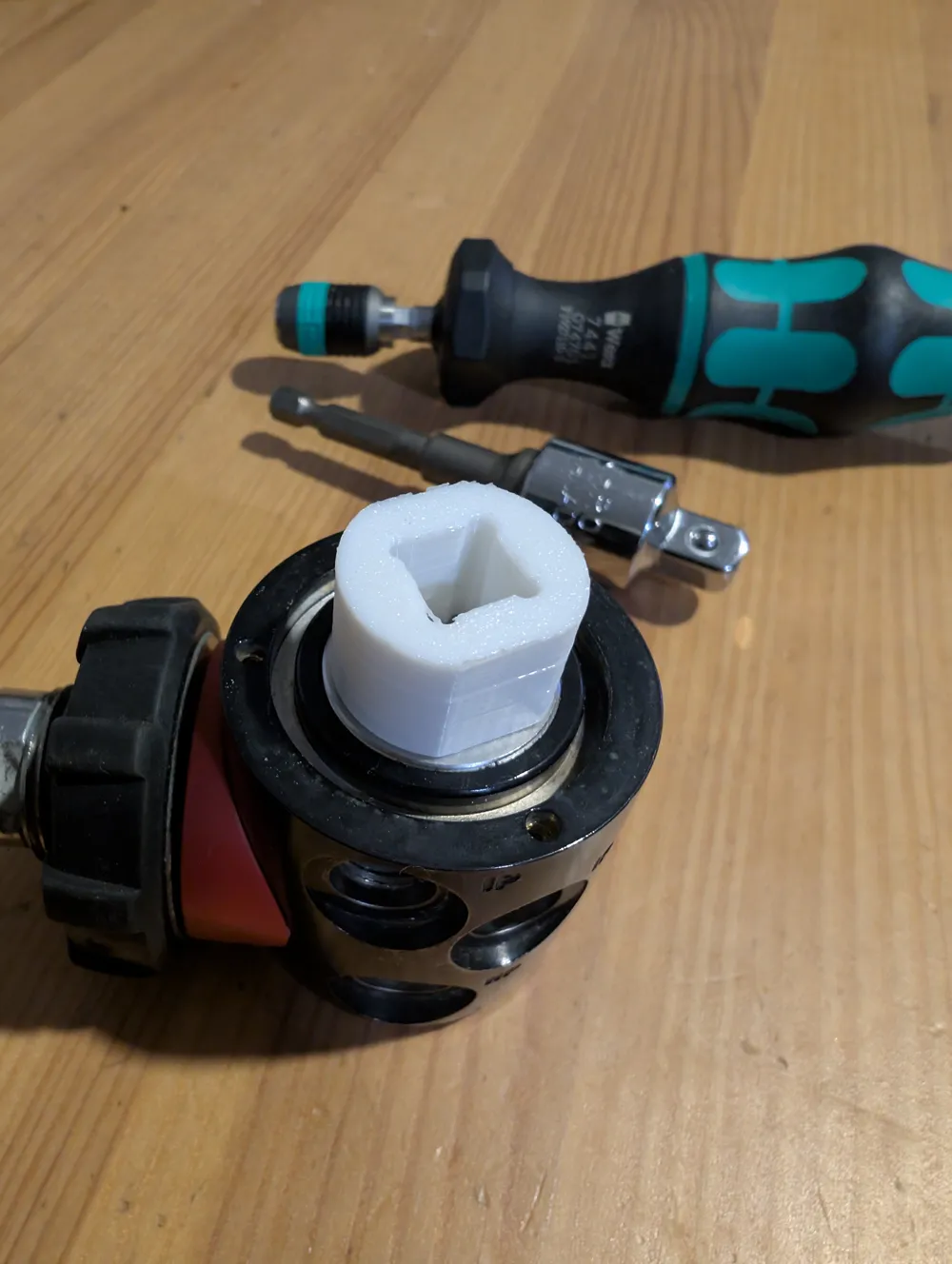

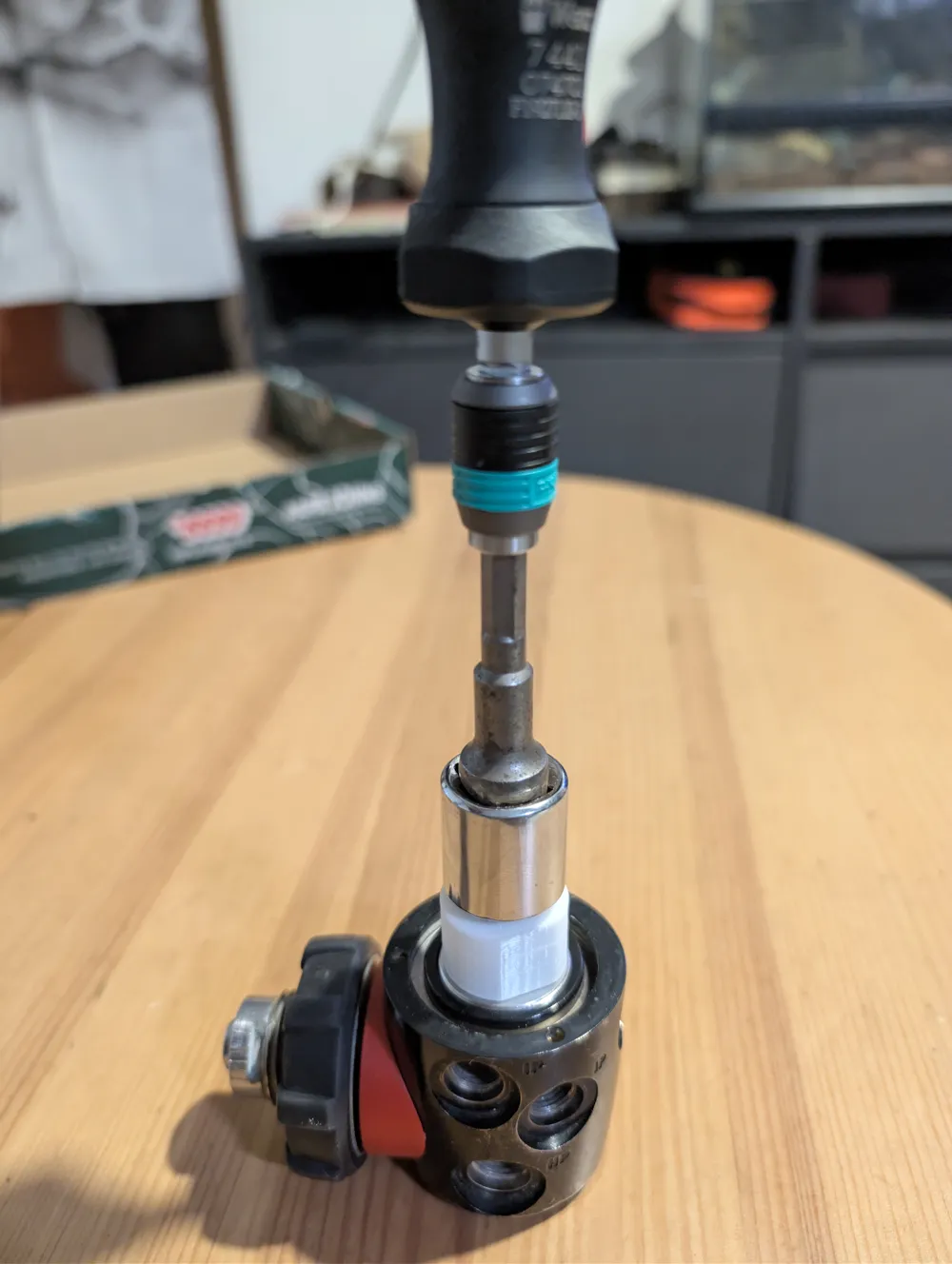

This tool allows you to close the upper & lower pin guide to the required torque which is 3nm (+/-1).
The tool accepts a 3/8 drive.

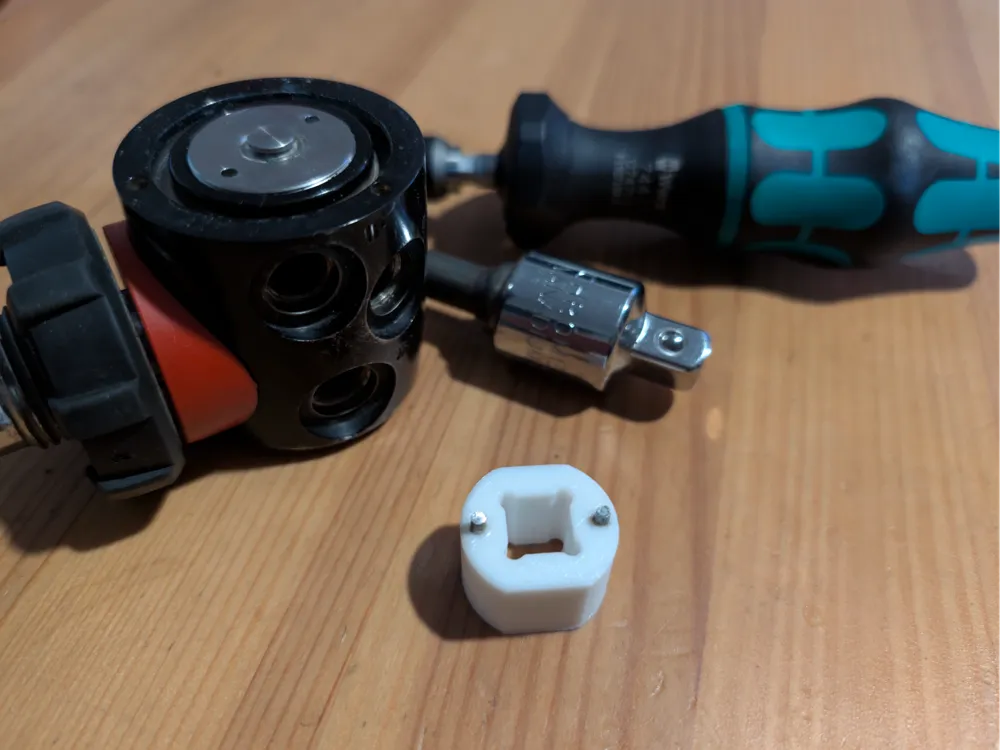

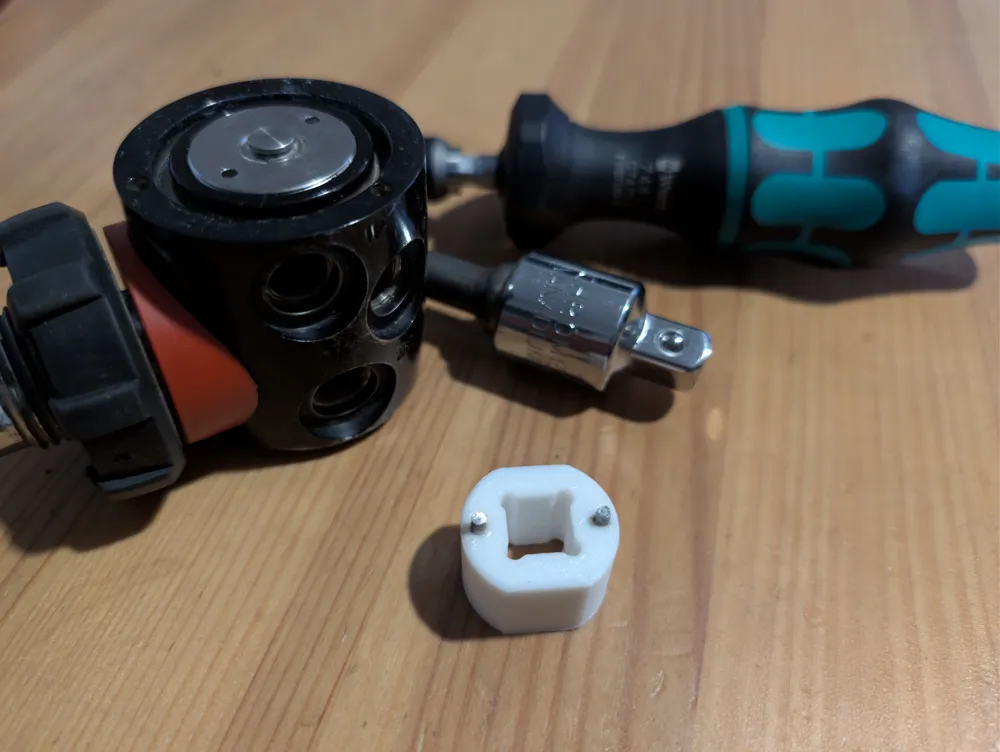

You will need to insert 2 metal pins diameter 2mm (with glue) to make it work.
Print this in PETG with at least 70% infill. This will make sure the torque transfer to the pins without breaking the tool.
For use of official technicians only.
