bee25 frame optimized version
Print Profile(1)
Description

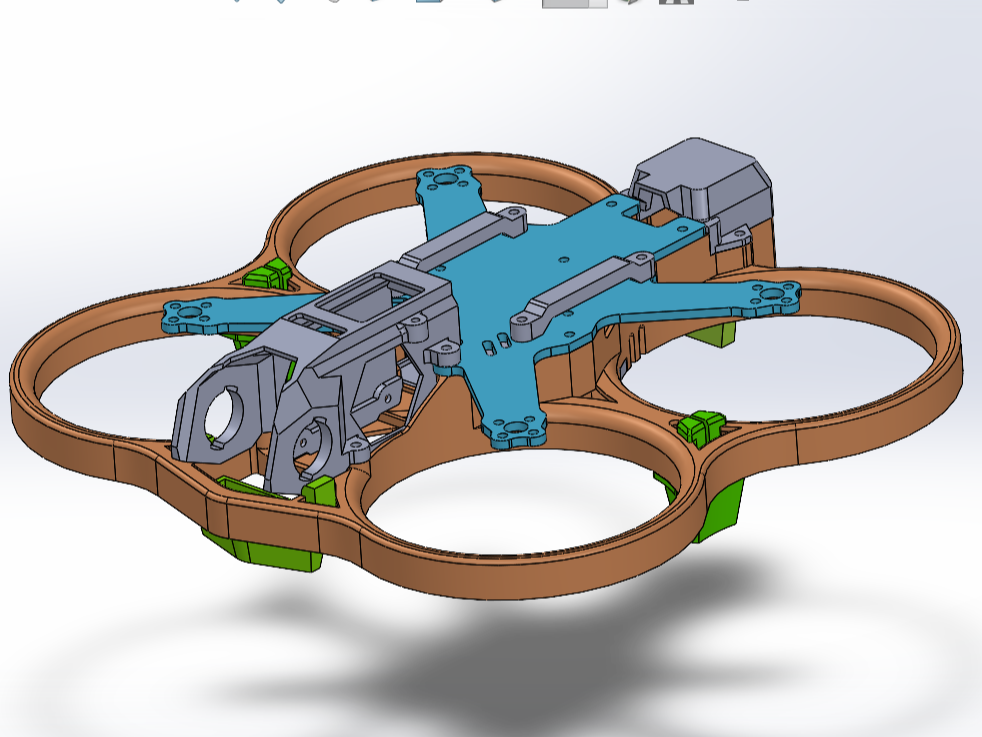

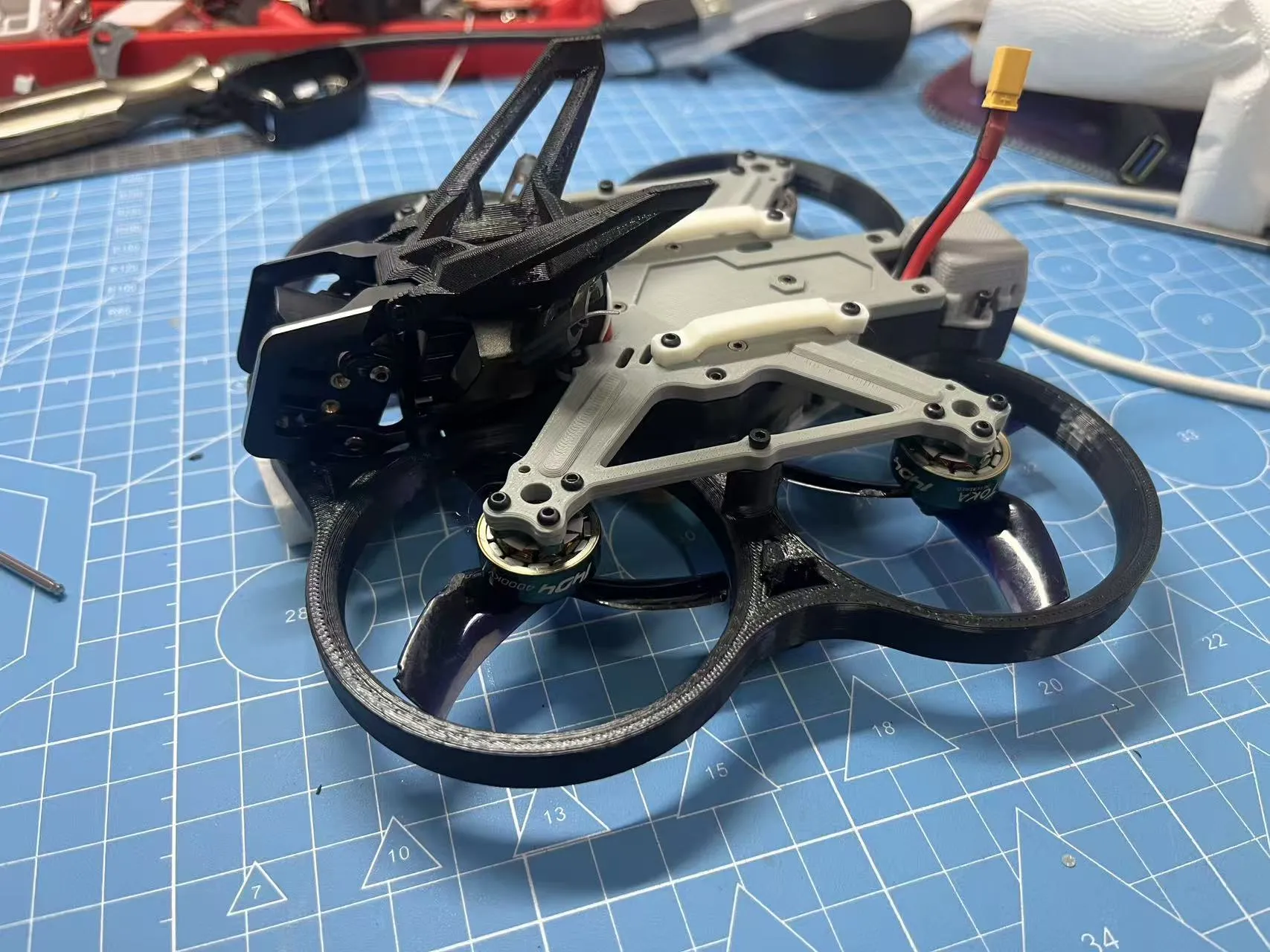

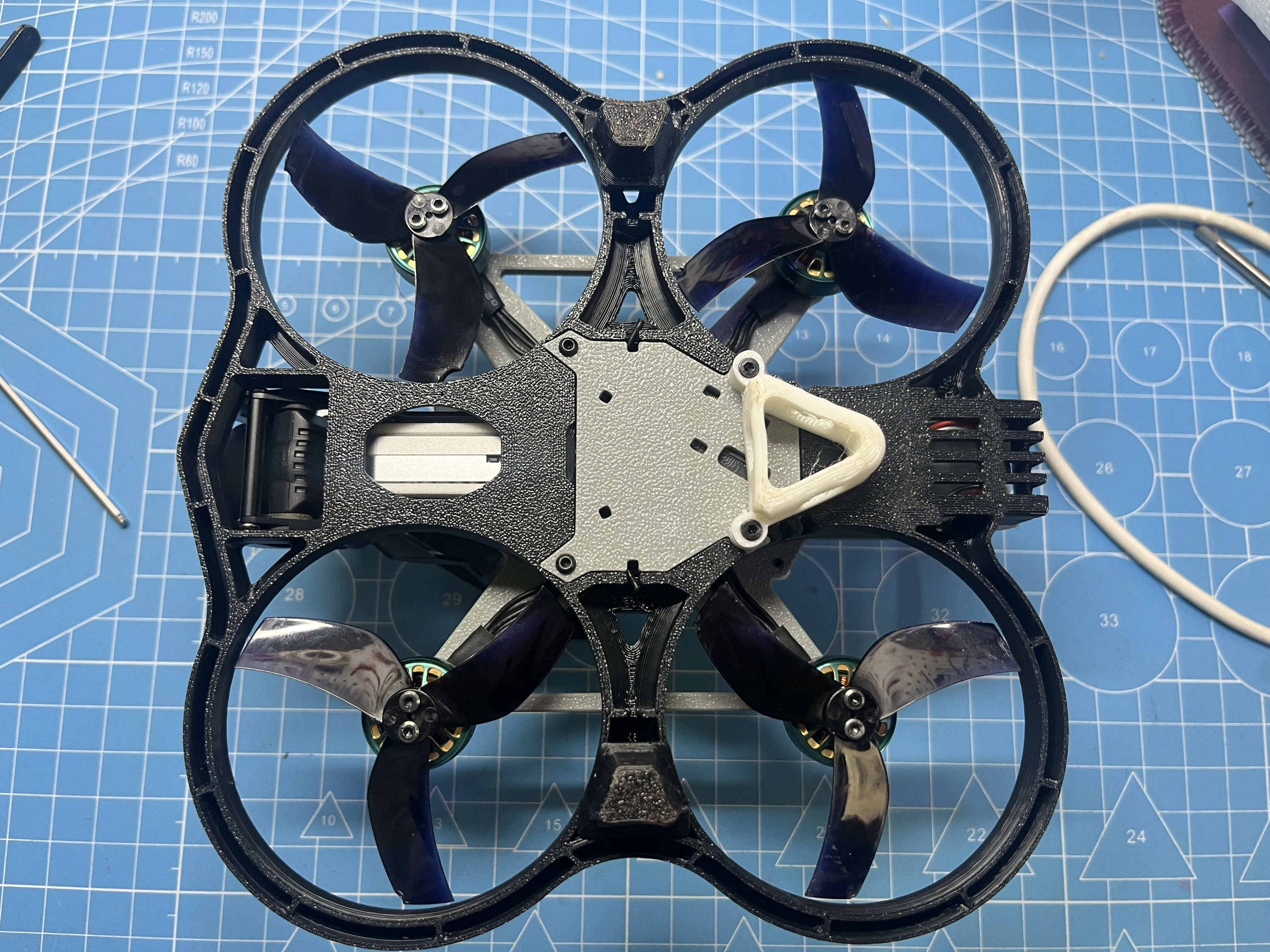

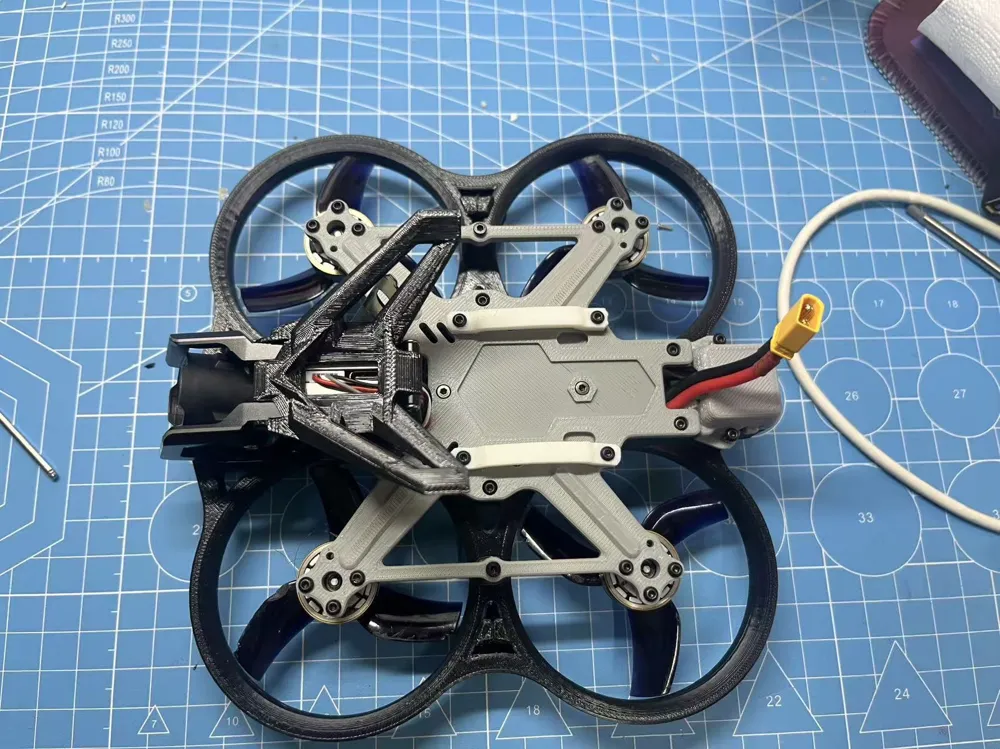

The original design has been relatively upgraded by adding reinforcement ribs to the printed rings, optimizing the frame, and incorporating two additional screws for fixation. This enhancement was prompted by several crashes. Since LED strips are not required, reinforcement ribs were directly designed into the vacant areas, and the two shock-absorbing feet were optimized to reduce support printing
The carbon plate has been changed to 4mm, requiring 16 M2*4*3.2 heat-set knurled nuts, 12 M2*6 screws, 6 M2*8 screws, 4 M2*12 (or M2*10) screws, and 4 M2 nuts,
The motor hole spacing is 12*12
This remix is based on
