FPV Camera RC Mount 19x19 TS5823 No Supports
Print Profile(1)
Description
Boost Me (for free)
If you like this model, boost it đ Â
It helps me create more lightweight, no-support FPV designs!
No supports. No hassle. Just print and fly.

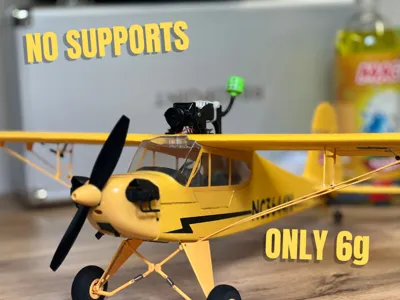

This FPV camera mount is designed for standard 19x19mm cameras and TS5823 5.8GHz VTX, with a focus on simplicity, strength and clean printing.
â Compatible with most 19x19 FPV cameras (RunCam, Foxeer, Caddx)
â Dedicated holder for TS5823 VTX
â No supports required â optimized for bridging
â Lightweight and strong construction
â Clean cable management

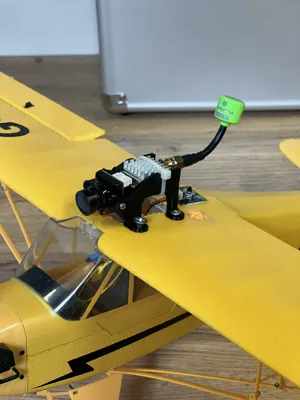

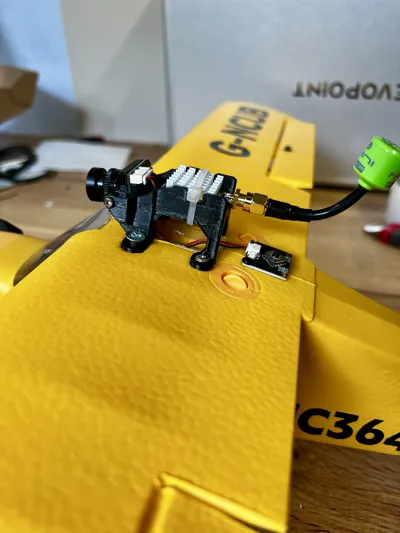

â Easy installation on RC planes (especially foam models)
The zip-tie mounting system makes it universal â you can mount the VTX with or without heatsink.
Printed at 0.28mm layer height â fast and efficient.
Only ~6g of filament required.
As shown in the slicer preview, the model prints reliably even over open gaps.
Perfect for DIY FPV builds.
Feel free to remix and improve.
If you find it useful, drop a like đ
