Parametric Pipe Reducer
Print Profile(0)
Description

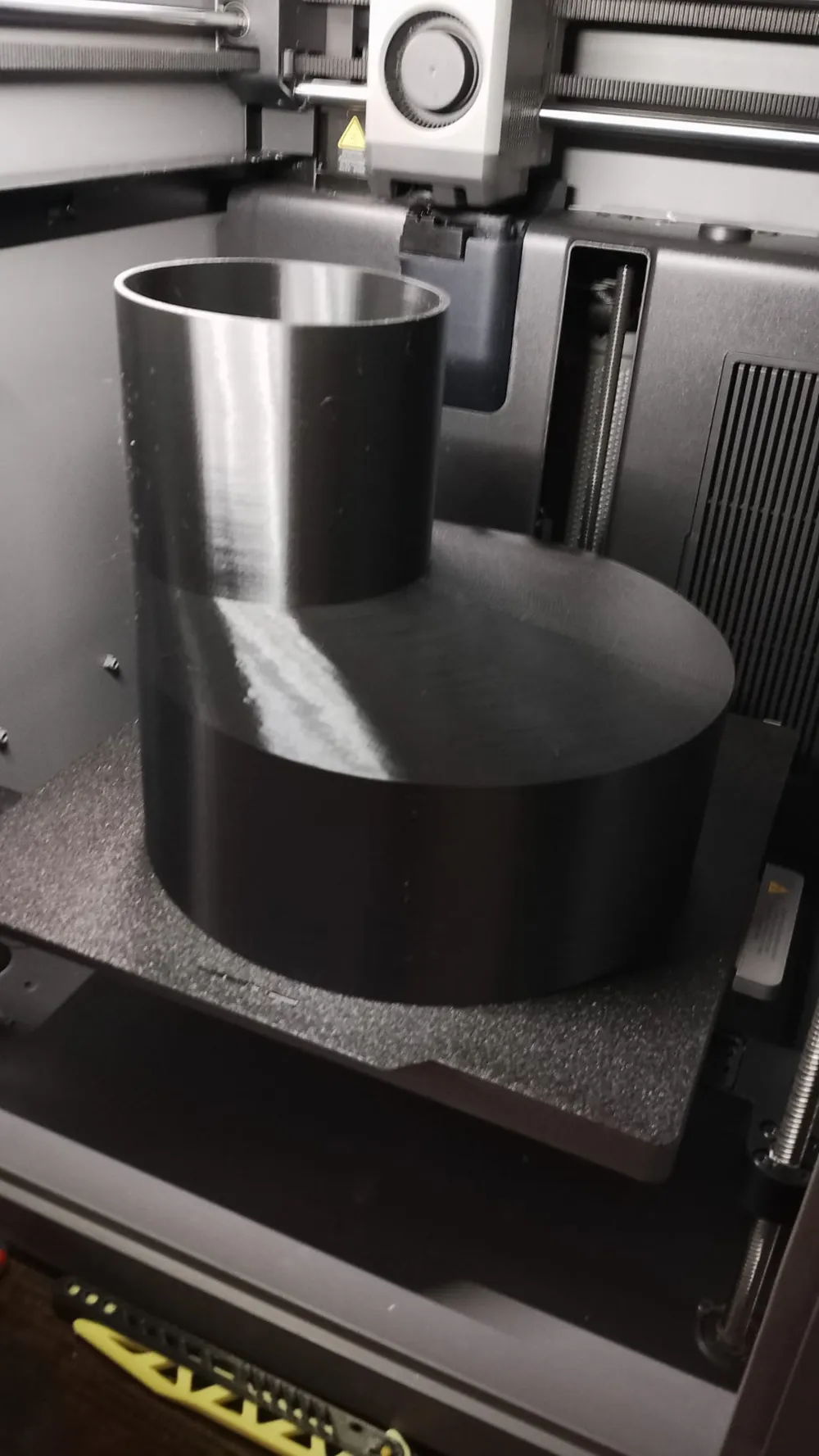

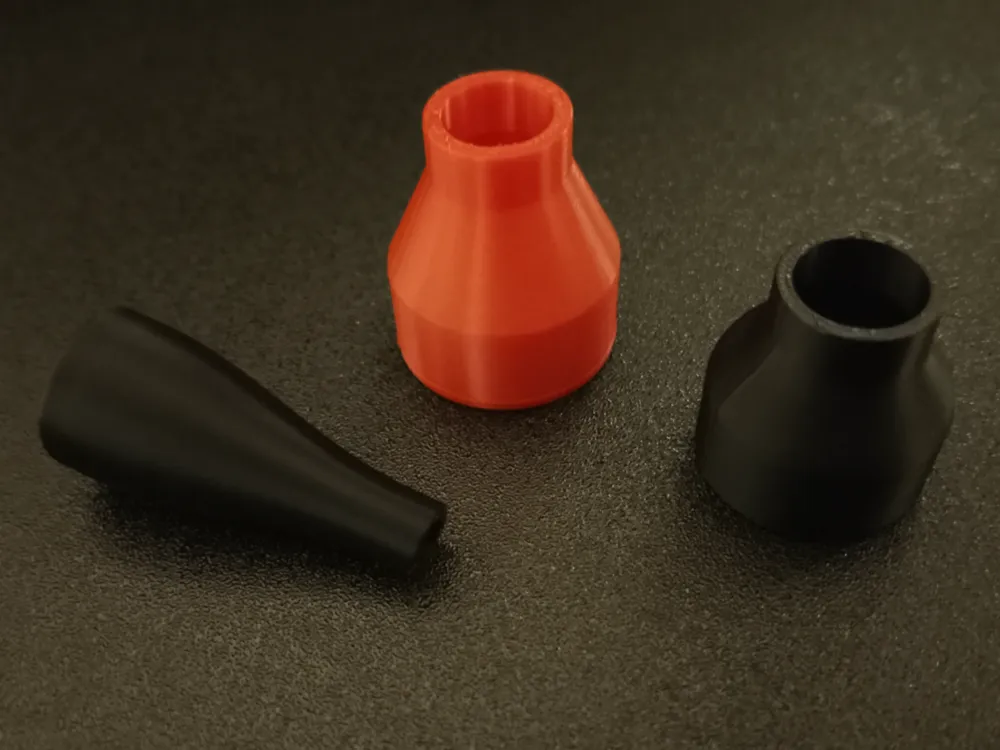

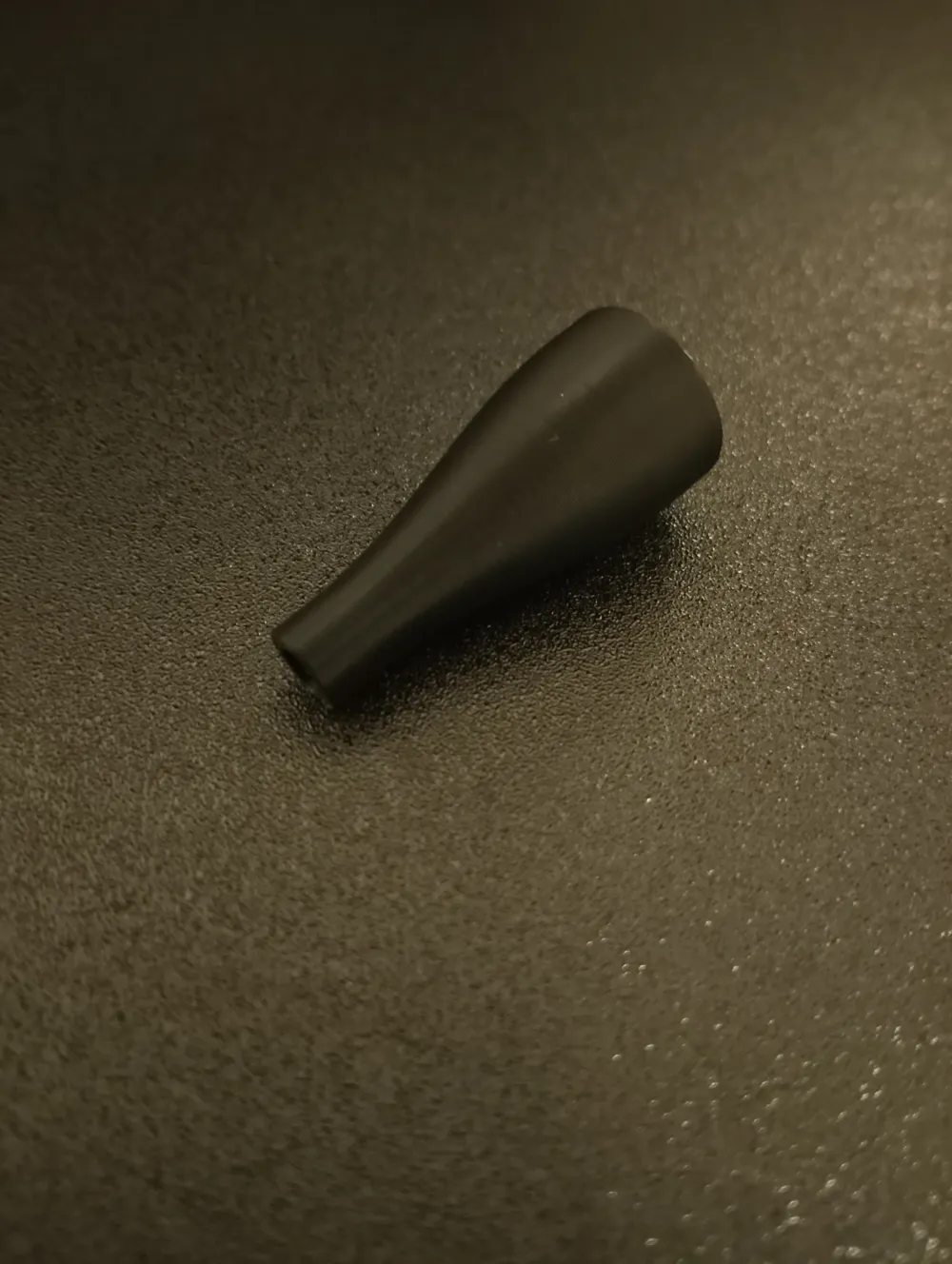

🧩 Concentric and Non-Concentric Pipe Reducer (Customizable)

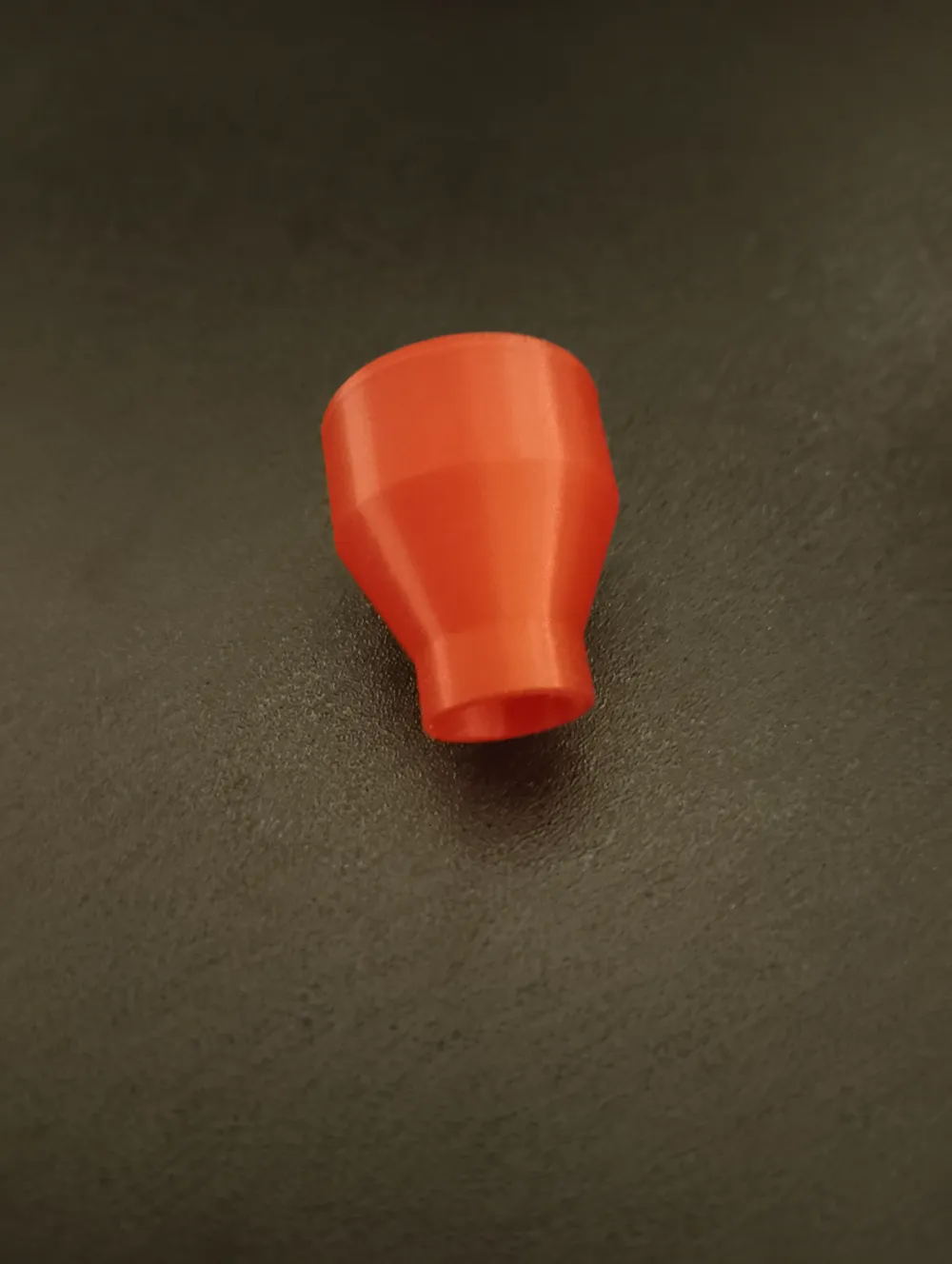

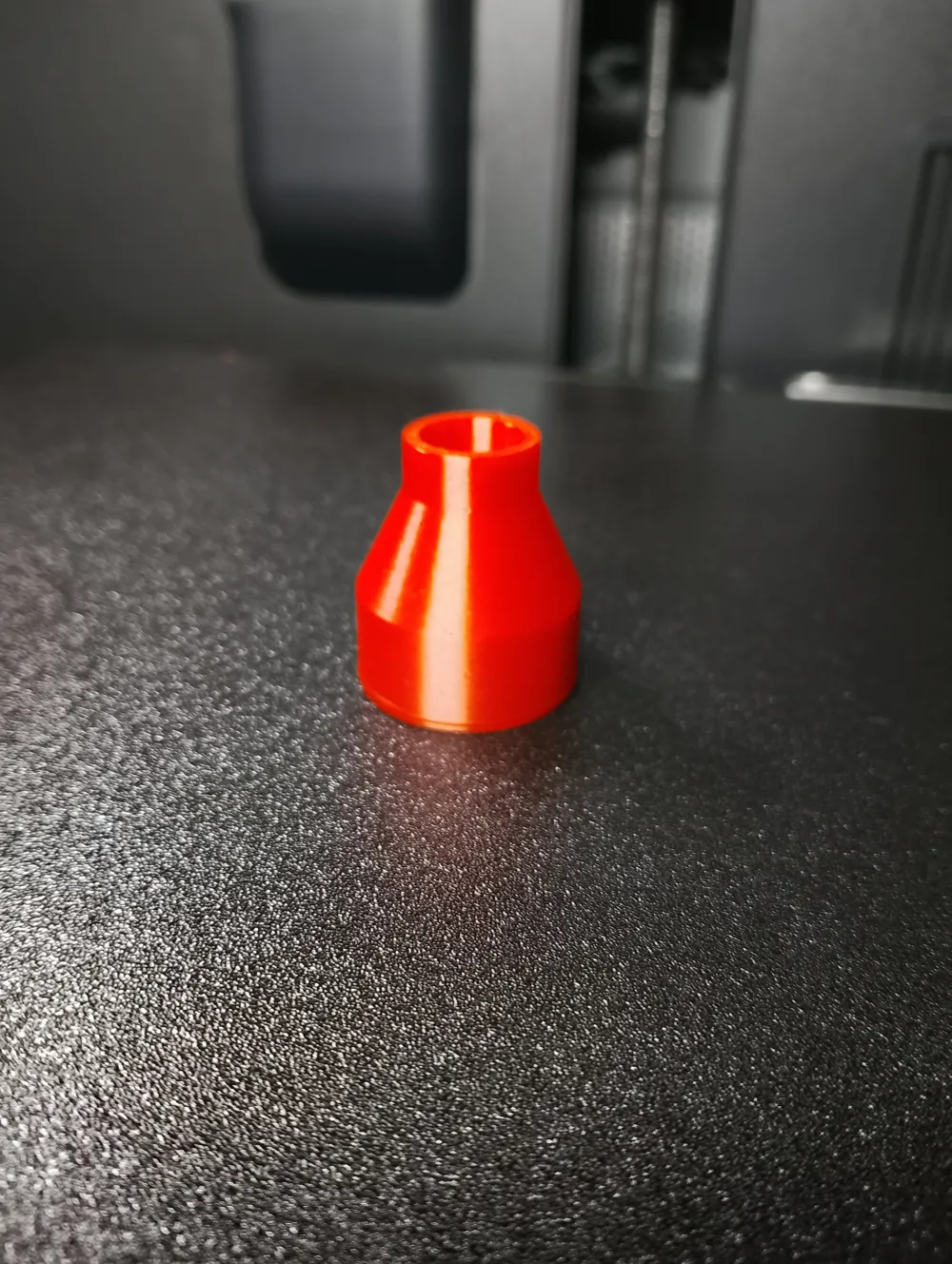

This model is a parametric concentric pipe reducer designed for 3D printing. It allows to smoothly connect pipes with different diameters.

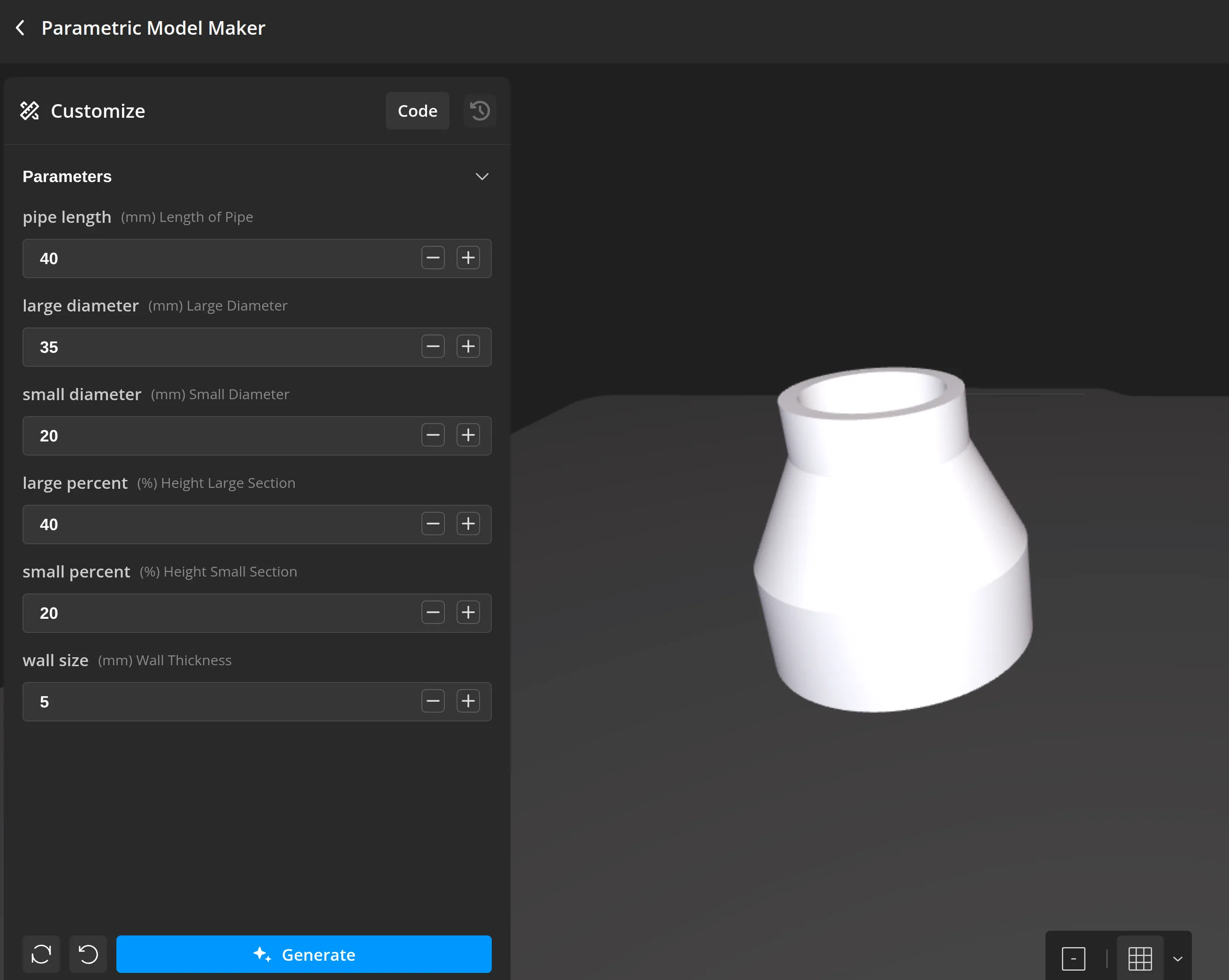

⚙️ Parameters
Pipe Dimensions
Total length of the pipe including all sections.
Pipe Length (mm)
Outer diameters of the pipe connections.
Large Diameter (mm)
Small Diameter (mm)
Wall thickness of the pipe.
Wall Thickness (mm)
Section Ratios
Height of the small and large diameter section as a percentage of total pipe length (e.g. 30%).
Small Percent (%)
Large Percent (%)
