Chipfinity – Chips
These are the Chips to accompany the chipfinity drawers

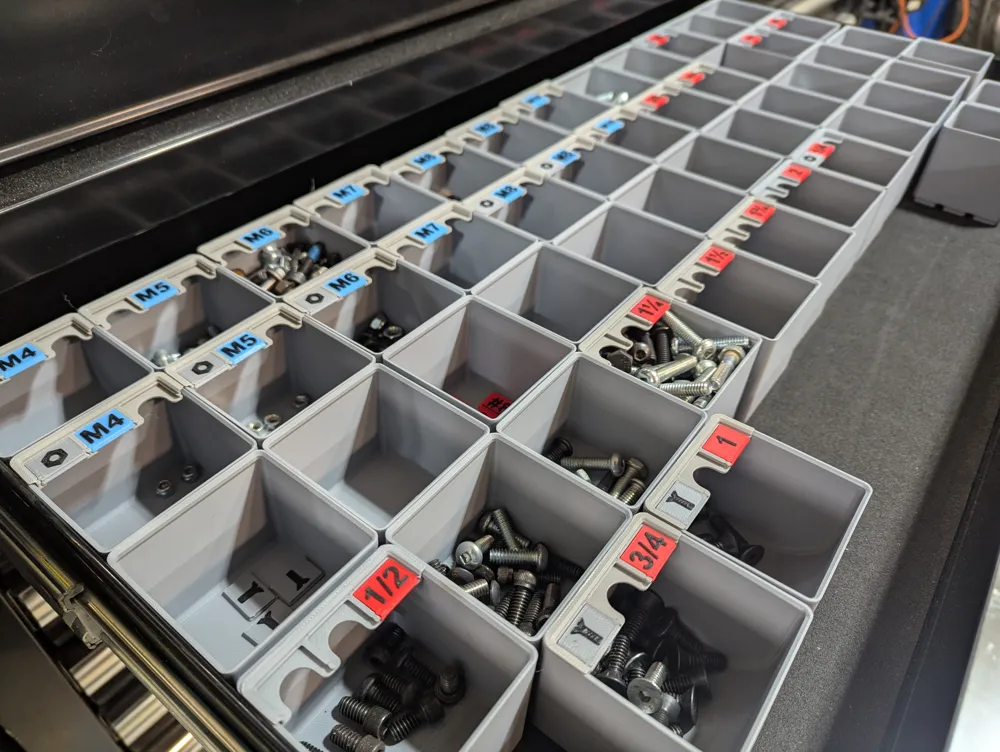

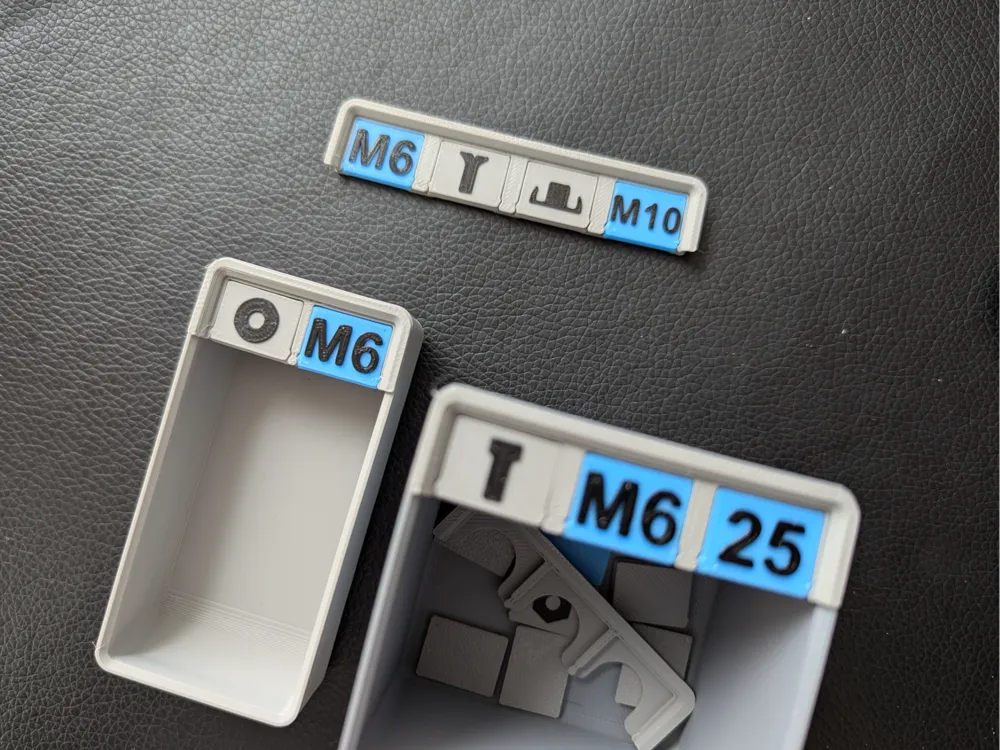

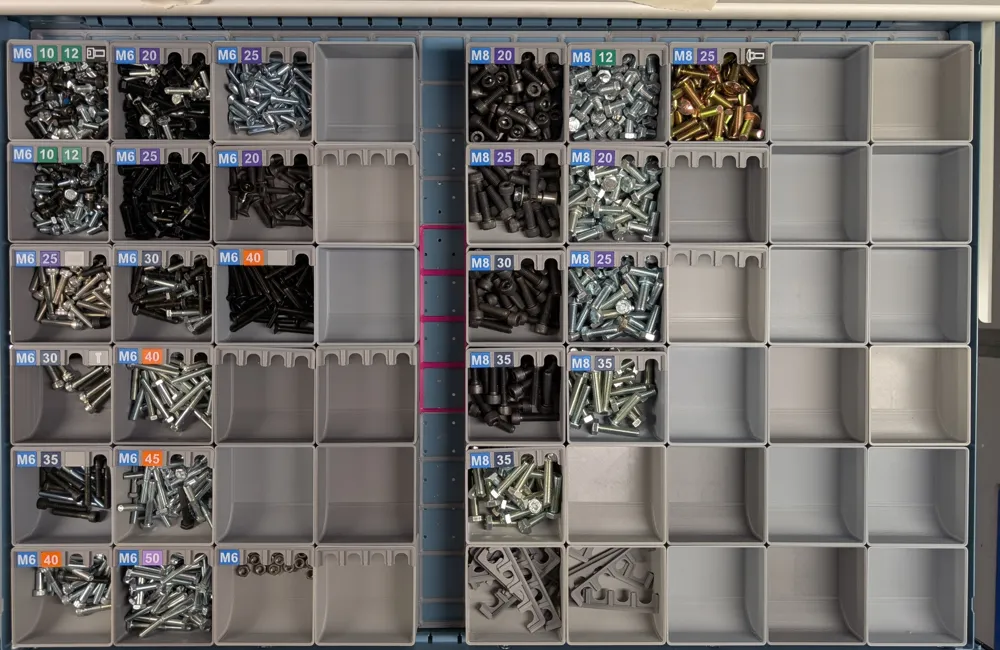

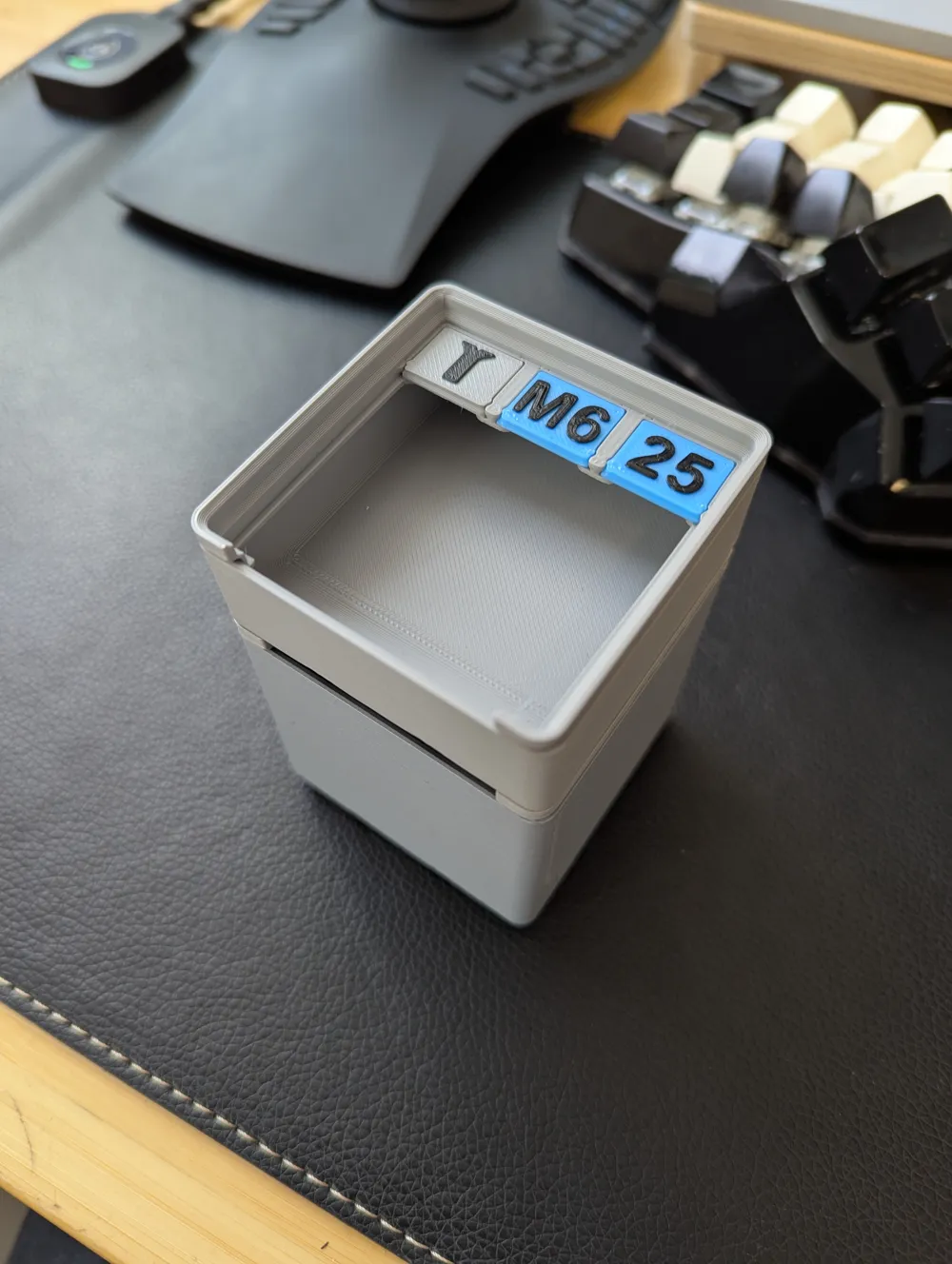

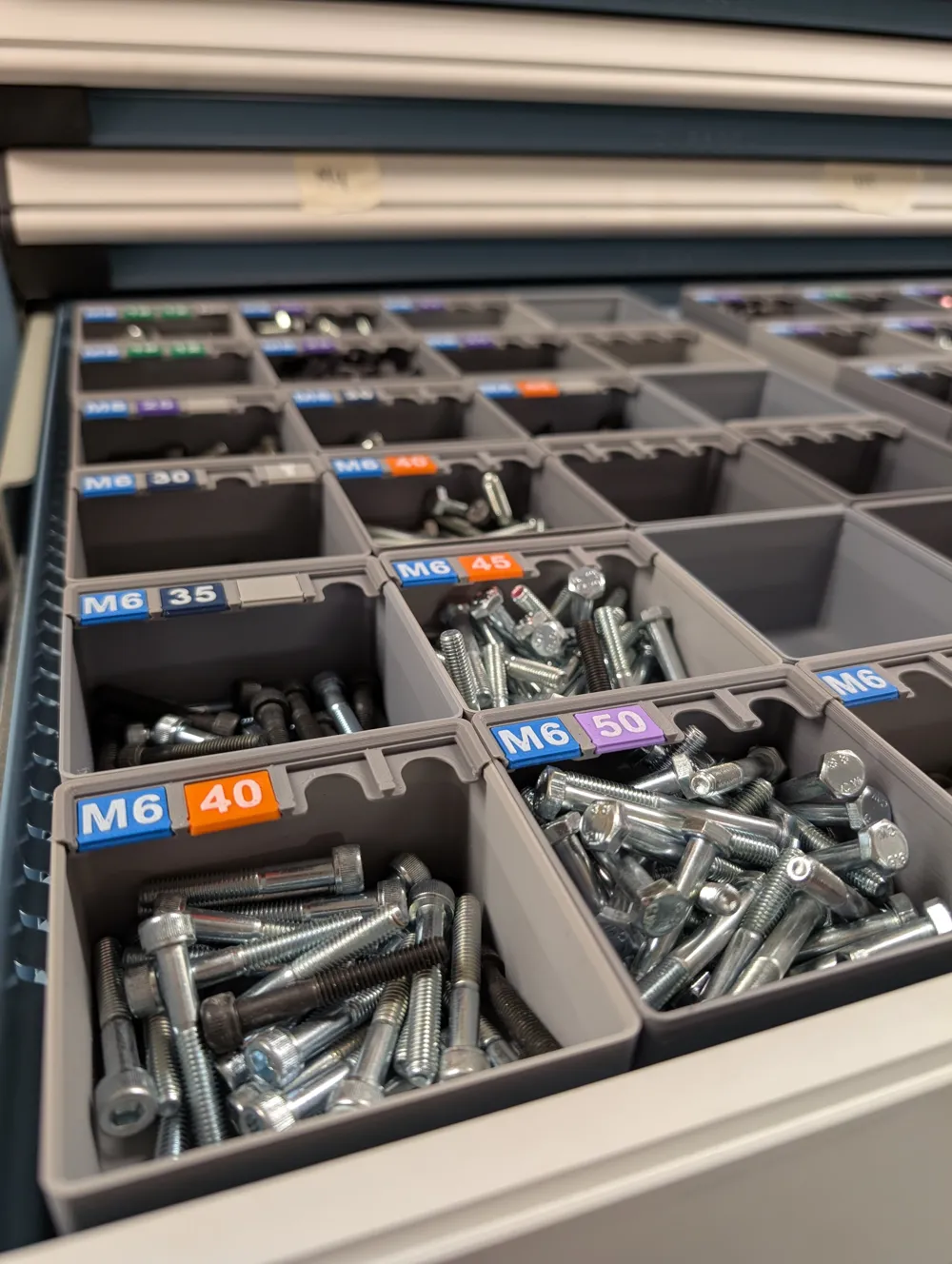

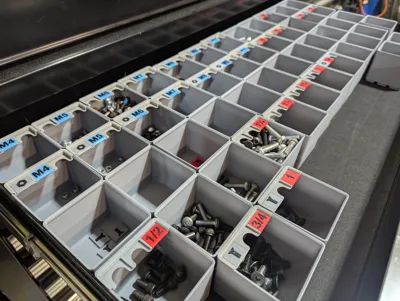

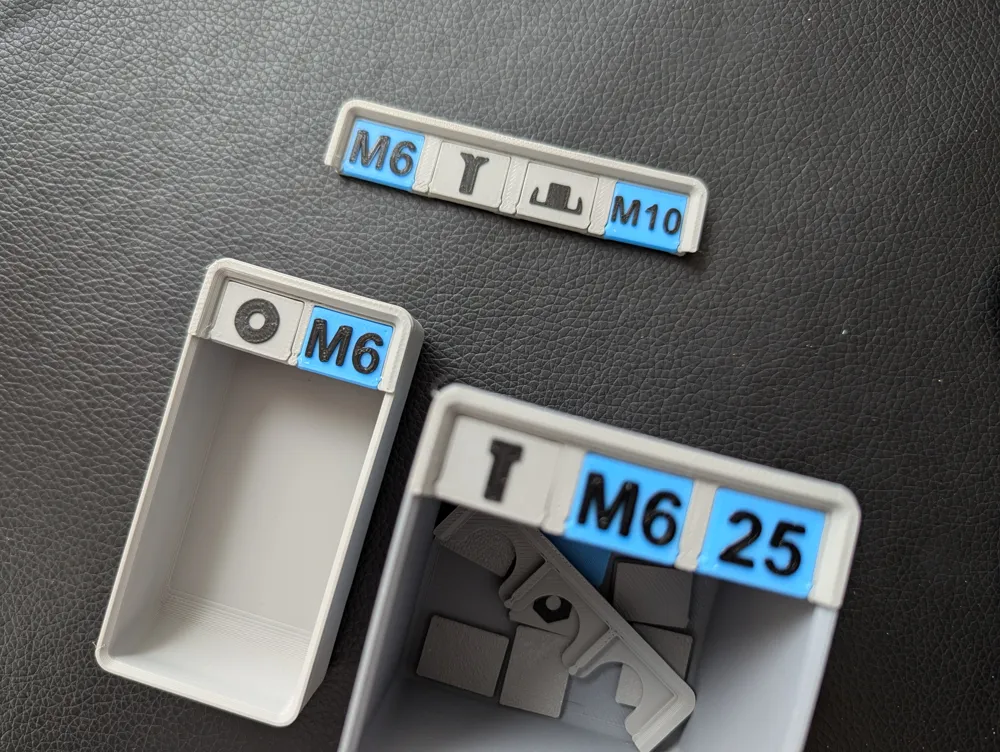

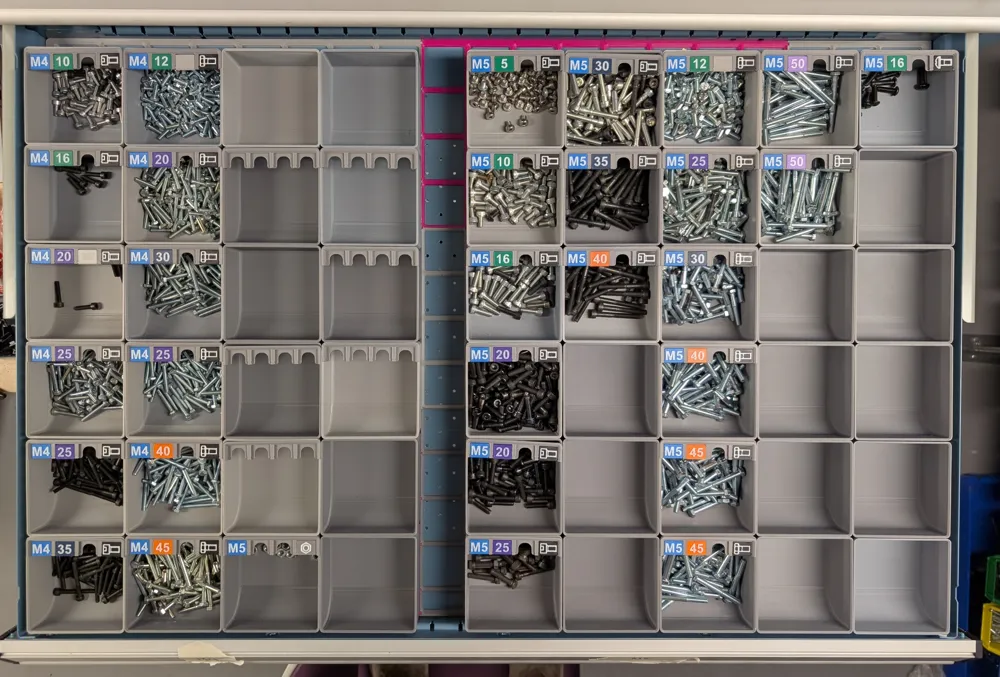

Chipfinity is a modular labeling system designed specifically for Gridfinity bins. It uses removable snap‑in “chips” that click into a front label rail, making labels easy to swap, update, or reorganize.
Compatibility
- Single chip is parametric

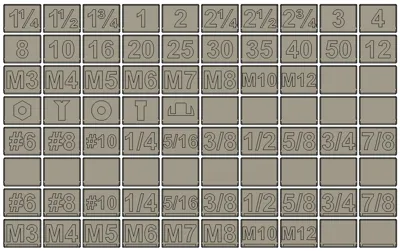

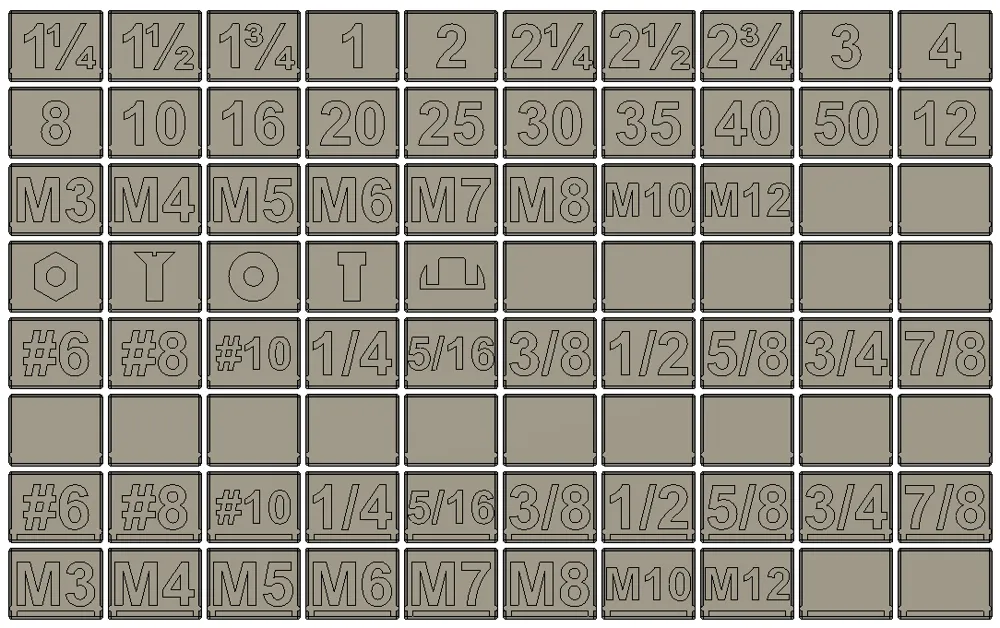

- Full chip set is based on a 17x13mm chip
Design Notes
- Each chip includes a detent to prevent it from sliding out unintentionally
- The fit is intentionally snug to give a positive “click” when inserting or removing chips
Print tolerance note:
If your chips have noticeable elephant’s foot, there is a small chance that tolerances can stack up, which may cause very slight bowing across a fully populated tray. In most cases this is negligible, but it’s something to be aware of if your first layer compensation isn’t well tuned.
Recommended Dimensions
- Maximum chip width for 2 chips on a standard 42mm 1U bin is: 17 mm
Slicer Tip
When importing the chip set into your slicer:
- Right‑click in the 3D model workspace
- Choose “Split to objects”
Do not right‑click the model name in the object list — that option will show “Split to parts”, which does not behave the same way.
