Description

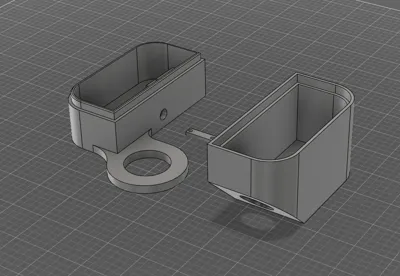

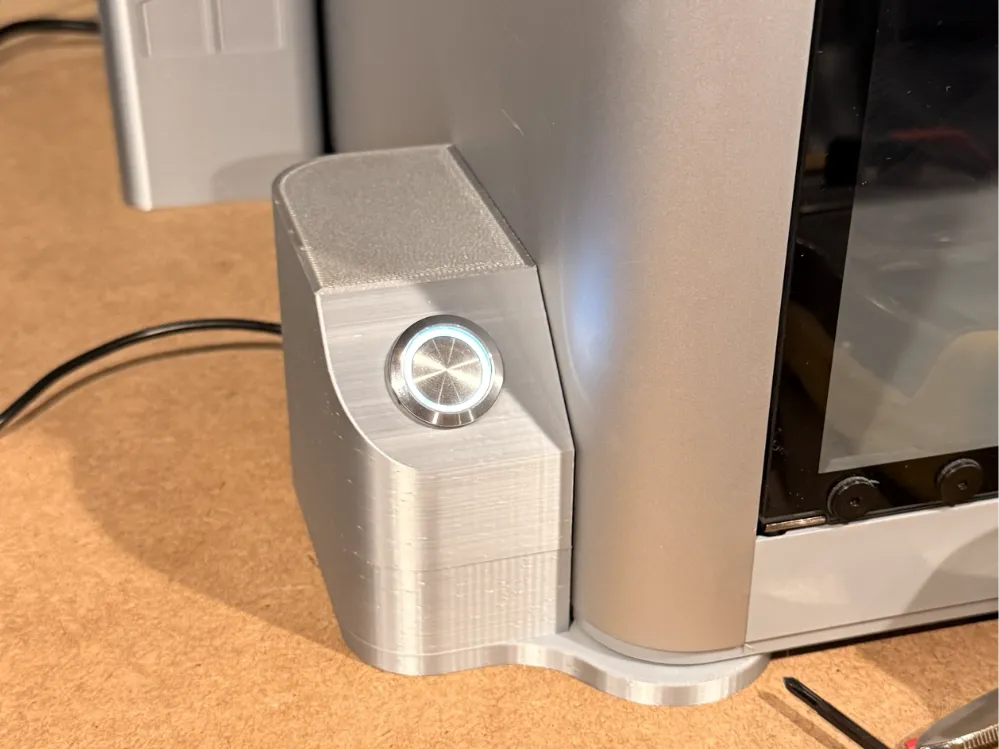

I added a VoxelPLA Bento Box 2 Stage Filter to my X1C.  The filter is awesome but doesn't come with an on/off switch so I ordered a 22mm button from Amazon and designed this box that installs on the left front foot of the X1C.  I thought about adding a magnet on the back side of the box for extra stability but honestly it doesn't need it.  Printed with Silk PLA with no supports.  Internal clamping is specifically designed for the barrel DC connector adapter to captive screw positive and negative.



I made this one specific to the Bento Box but the model can be adapted for any electrical accessory you want to add.



VoxelPLA:

Bento Box 2 Stage Filter: https://voxelpla.com/products/bento-box



Amazon Links:

Filament used: https://www.amazon.com/dp/B08VS41SDQ

Button: https://www.amazon.com/dp/B0CX85R6CK

Screws for the Clamp Bar: https://www.amazon.com/dp/B00GDXU4WM?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_17
